Free NetCommander-AXS Management Software is available for access and control of all of your Tripp
Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access
server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDU's, and manage
KVM settings. This software can be found on the model support page of the B072-016-1-IP, or via
searching NetCommander-AXS on www.tripplite.com
Highlights
q
16-port KVM switch provides
control of computers/servers
locally or via your network or the
Internet

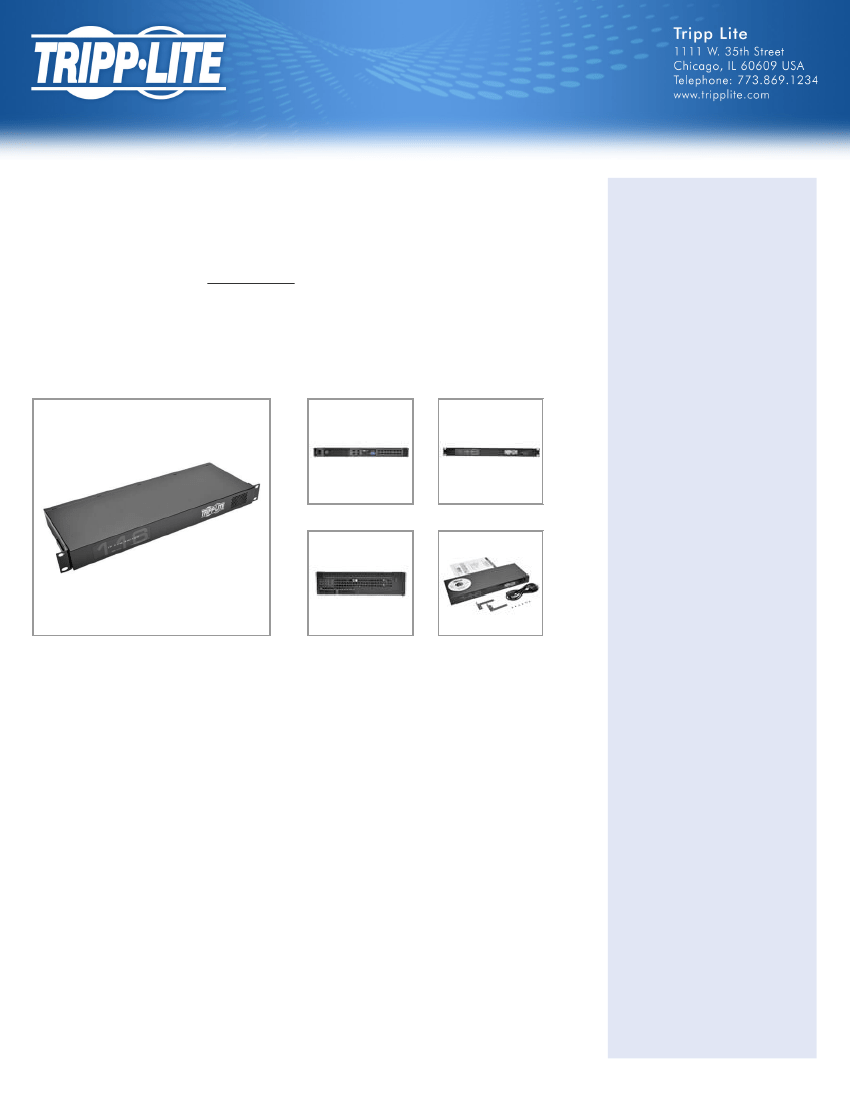

NetCommander 16-Port Cat5 1U Rack-Mount 1+1
User VGA USB KVM Switch with IP Remote
Access
MODEL NUMBER:
B072-016-1-IP
q
Occupies just 1U of rack space
Low-cost Cat5 cabling allows
longer distances, reduces cable
clutter
q
q
Simultaneous support for 2
users – 1 local, 1 remote
q
Dual Ethernet ports assure
uninterrupted remote access
q
Compliant with the Federal
Trade Agreements Act (TAA) for
GSA Schedule purchases
System Requirements
q
Computer with HD15 (VGA)
port, and USB port or PS/2
keyboard/mouse ports
q
Control up to 16 computers from virtually anywhere with one Cat5 KVM switch. This KVM switch with IP
remote access is a smart solution for efficient server control. Low-cost Cat5 cables let you locate servers
up to 100 ft. away.
q
User-supplied Cat5e/6/6a
cabling
B078-101-USB-1 (USB), B078-
101-USB2 or B078-101-PS2
Description
Tripp Lite’s B072-016-1-IP KVM Switch is the optimal solution for controlling up to 16 computers/servers
locally, from across the room, down the street or around the globe on a network or the Internet.
q
(PS/2) Server Interface Unit is
required for each connected
computer/server
This KVM switch can be accessed and controlled remotely, so there’s no need to travel to the server room
or network closet. A Java-based application allows access via web browser from any secure IP
connection; a non-browser client that can bypass browser-related Java Security prompts is available.
For computers with Displayport
or HDMI, change to VGA using
Tripp Lite adapters P134-06N-
VGA-V2 or P131-06N.
The B072-016-1-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold
separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch
features dual Ethernet ports; if one fails, the other takes over, keeping remote access uninterrupted. Users
can switch easily between the 16 ports using an on-screen display (OSD), hotkey commands or a remote
toolbar. Multi-level password protection prohibits unauthorized users from accessing connected
computers, and a local user and a remote user can each log on and access different ports simultaneously.
q
q
Maximum video resolutions
using adapters may vary.
Compatible with Windows and
Linux operating systems
Currently not compatible with
HP Gen 10 Servers
Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers;
individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This
1/5
q
Remote access supported using
KVM switch is compatible with Windows and Linux operating systems, and provides remote access using
a Windows computer. It supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel
housing stands up to frequent use.
q
Windows computers
Remote console computers
require minimum Pentium 4 with
2 GB memory
Hardware Versions
A new hardware version (v2) of the
B072-016-1-IP was released in
2014, requiring different firmware
from the previous version (v1). The
Support tab of this page includes a
zip folder for v1. Along with the
applicable firmware, it contains an
FW Notes file to help you
determine which hardware version
you have and which firmware to
use. The current firmware comes
pre-installed on all v2 models.
Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly
on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server
Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging
and an event log that tracks logins, reboots and network setting changes.
Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite
NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server
ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM
settings. This software can be downloaded free of charge from the model support page for the B072-016-
1-IP. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
Saves Space and Money
q
Package Includes
q
Mounts in a standard 19 in. rack
Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
Use a Server Interface Unit, B078-101-USB-1 (for USB) or B078-101-PS2 (for PS/2) with each server to
q
16-Port Cat5 1+1 User 1U
Rack-Mount VGA USB KVM
Switch with IP Remote Access
C13 to 5-15P Power Cord
Rack-Mount Hardware
CD with Owner's Manual
Quick Start Guide
q
q
be connected with Cat5 cable; use a B078-101-USB2 to support Virtual Media data transfer rates up to
q
12Mbps
q
q
To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or
q
P131-06N. Maximum video resolutions using adapters may vary.
IP Remote Access for Fewer Trips to the Server Room
q
Control this KVM switch over IP: remote access means there’s no need to travel to the server room or
network closet
q
Java-based application allows Windows computers to control a target server via web browser from any
location over a secured IP connection
q
A non-browser client is available that allows Windows computers to remotely access the KVM without
the need for a browser and without the need to install Java
q
1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single remote
session
q
Supports both IPv4 and IPv6
Simplifies IT Tasks
q
On-screen display, hot keys and remote toolbar for easy use
Free NetCommander-AXS Management Software gives you remote access and control over all your
Tripp Lite NetCommander IP KVM switches (B070 and B072 series)
q
q
Video resolutions up to 1920 x 1080 @ 60 Hz are supported
2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; assign
individual ports to an IP PDU port to power on/off the server connected to that port
q
2/5
q
BIOS-level control of any brand and model server, regardless of the server’s condition and network
connectivity
q
Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were directly
stored on it
q
Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server
Interface Unit; a B078-101-USB-1 Server Interface Unit can be used for Virtual Media support, but only
at speeds up to 1Mbps
q
Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
System-sent messages to SNMP server notify you of network failures
Supports RADIUS and LDAP/S authentication
Log tracks events such as logins, reboots and network setting changes on your installation
q
q
q
Advanced Security Features
q
Multi-level password protection: create administrator accounts with full access and user accounts with
limited access
q
Supports TLS 1.2 security protocol
You can install SSL certificates to ensure secure transactions between web servers and browsers
q
Built to Last
q
Flash-upgradable firmware over the network
Heavy-duty steel housing stands up to frequent use
q
TAA Compliant
q
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
UPC Code
037332141606
INPUT
Voltage Compatibility (VAC)
Input Frequency
Input Current
Power Input Receptacle
100; 110; 120; 127; 200; 208; 220; 230; 240
50/60Hz
120V (1.2A) / 230V (0.7A)
IEC-320-C14
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
Blue (Power)
PHYSICAL
Shipping Dimensions (hwd / in.)
4.30 x 10.10 x 22.80
3/5
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Packaging Type
Unit Dimensions (hwd / in.)
Unit Weight (lbs.)
Unit Weight (kg)
Material of Construction
Color
Rackmountable
10.92 x 25.65 x 57.91
6.60
2.99
Box
1.7 x 6.7 x 17.3
4.70
2.13
SECC (Steel, Electrogalvanized, Cold rolled, Coil)
Black
Yes
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
BTUs
Power Consumption (Watts)
32 to 104 F (0 to 40 C)
-40 to 158 F (-40 to 70 C)
0% to 80% RH, Non-Condensing
171 BTU/Hr
50
COMMUNICATIONS
IP Remote Access
Network Speed
Yes
10/100 Mbps
CONNECTIONS
Ports
PC/Server Connections
Side A - Connector 1
Side A - Connector 2
Side A - Connector 3
Side B - Connector 1
Computer Keyboard and Mouse
Interface
Computer Monitor Interface
Console Keyboard and Mouse
Interface
Console Monitor Interface
16
PS/2; USB; VGA
(3) USB A (FEMALE)
HD15 (FEMALE)
(4) RJ45 (FEMALE)
(16) RJ45 (FEMALE)
PS/2; USB
VGA
USB
VGA
FEATURES & SPECIFICATIONS
Number of Users
2
4/5
NIAP-Certified Secure
On-Screen Display (OSD)
Port Selection
Max Supported Video Resolution
USB Specification
Driver Required
Authentication Supported
Cat5 KVM Switch
Recommended Category Cable
Technology
No
Yes
Hotkey; OSD; Remote Selector
Local : 1920 x 1200 @ 60 Hz ; Remote : 1920 x 1080 @ 60 Hz
USB 2.0 (up to 480 Mbps)
No
RADIUS; LDAPS
Yes
Cat5e/6 Cables
Cat5/5e; PS/2; Serial (RS232); USB; VGA/SVGA
CERTIFICATIONS
Certifications
Tested to UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH
WARRANTY
Product Warranty Period
(Worldwide)
3-year limited warranty
REMOTE ACCESS
Virtual Media Speed
Up to 12 Mbps (using B078-101-USB2)
