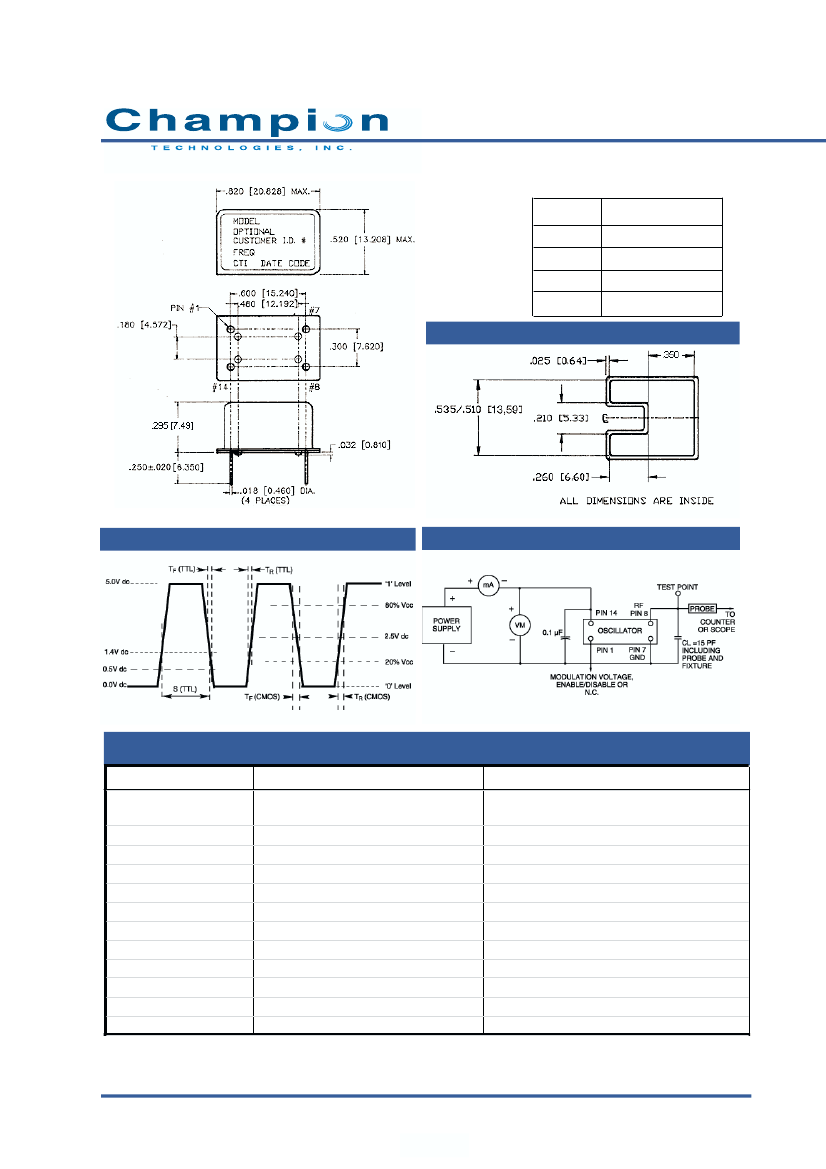

K1110D & K1120D Series
5V Crystal Clock Oscillators
!
Applications:
Wide Area Networks (WAN’s)
Reference Clocking
!
Superior Tolerance Performance Including up to 10
years of aging
!
2.0 to 35.0 MHz Frequency Range
!
±10ppm ±20ppm Stability Options
!
-40°C to 85°C Operating Temperature - K1120D
!
0°C to 70°C Operating Temperature - K1110D
!
Meets Stratum IV Requirements
!
Enable/Disable Option Available
ax.
mM
8m
20,
x.
Ma
mm
2
13,
0DA
Z
E
K11X
.330
MH E COD
33
TI DAT
C
m
9m
7,4
x.
Ma
PIN 1
E L E C T R I C A L S P E C I F I C AT I O N S
Model
Frequency Range (MHz)
Input Current (mA)
Frequency Stability (ppm)
Overall
0oC to 70oC
-40oC to 85oC
Aging @ 50oC (10 Years)
Temperature Range (oC)
Operating
Storage
Supply Voltage (V)
Symmetry CMOS/TTL
“0” Level (VOL)
“1” Level (VOH)
Rise Time & Fall Time (ns)
Start Up Time (ms)
K1110DA
2 to 35
< 30
Inclusive of Calibration, Temperature, Voltage, Load, Aging
±10
-
Inclusive
0oC to +70oC
-
±20
±3.0
-40oC to +85oC
K1120DAM
-40oC to +85oC
+5.0V ±5%
45/55 < 16MHz; 40/60
≥
16MHz
0.5 max.
4.5 min
<5
<10
PA R T N U M B E R I N G G U I D E
K11X0DAX X -
Specify Frequency
“Blank” = Fixed Frequency
“E” = Enable/Disable
“Blank” = 0°C to 70°C Operating Temp.
“M” = -40°C to +85°C Operating Temp.
Model Selection: See Table Above
2553 N. Edgington Street, Franklin Park, IL 60131
"
Phone: 847.451.1000
"
Fax: 847.451.7585
800-888-1499 or www.champtech.com
1
K1110D & K1120D Series
5V Crystal Clock Oscillators
PIN
1
7
8
14
FUNCTION
N/C or Enable/Disable
Gnd/ & Case Gnd
Output
+ VCC
SHIPPING TUBE CROSS SECTION
OUTPUT WAVEFORM
TEST CIRCUIT DIAGRAM
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
TEST METHODS
Temperature Cycle
Mechanical Shock
Vibration
Humidity Steady State
Thermal Shock
Electrostatic Discharge
Solderability
Hermeticity
Resistance to Soldering
Lead Integrity
Marking Permanence
Life Test
REFERENCE PROCEDURES
MIL-STD-833, Mtd 1010, Cond. B
MIL-STD-202, Mtd 213, Cond. D
MIL-STD 202, Mtd 204, Cond. B
MIL-STD-202, Mtd 103
MIL-STD-883, Mtd 1011.7 Cond. A
MIL-STD-883, Mtd 3015 Class II
MIL-STD-883, Mtd 2022.2
MIL-STD-883, Mtd 1014.8, Cond. A1
DESCRIPTION
-55°C to +125°C; Air-to-Air; 100 cycles; 10
min. dwell
500 g’s
10-2000 Hz; 0.06 inch; 15g; 3 planes
40°C; 90%-95% R.H.; 56 days
100°C to 0°C; Water-to-Water; 15 cycles
2 KV to 4 KV Threshold
Solder dip; Meniscograph Criteria
Mass spectro. 2 x 10-8 atmos. CC/sec He
MIL-STD-202, Mtd 210A, Cond. C
260°C; 10 seconds: 1 inch/sec.
MIL-STD-883, Mtd 2004.5, Cond. A, B1 Lead tension & bend stress
MIL-STD-883, Mtd 2015.8
MIL-STD-883, Mtd 1005.6
Resistance to solvents
125
°C, powered, 1000 hours minimum
2553 N. Edgington Street, Franklin Park, IL 60131
"
Phone: 847.451.1000
"
Fax: 847.451.7585
800-888-1499 or www.champtech.com
2
