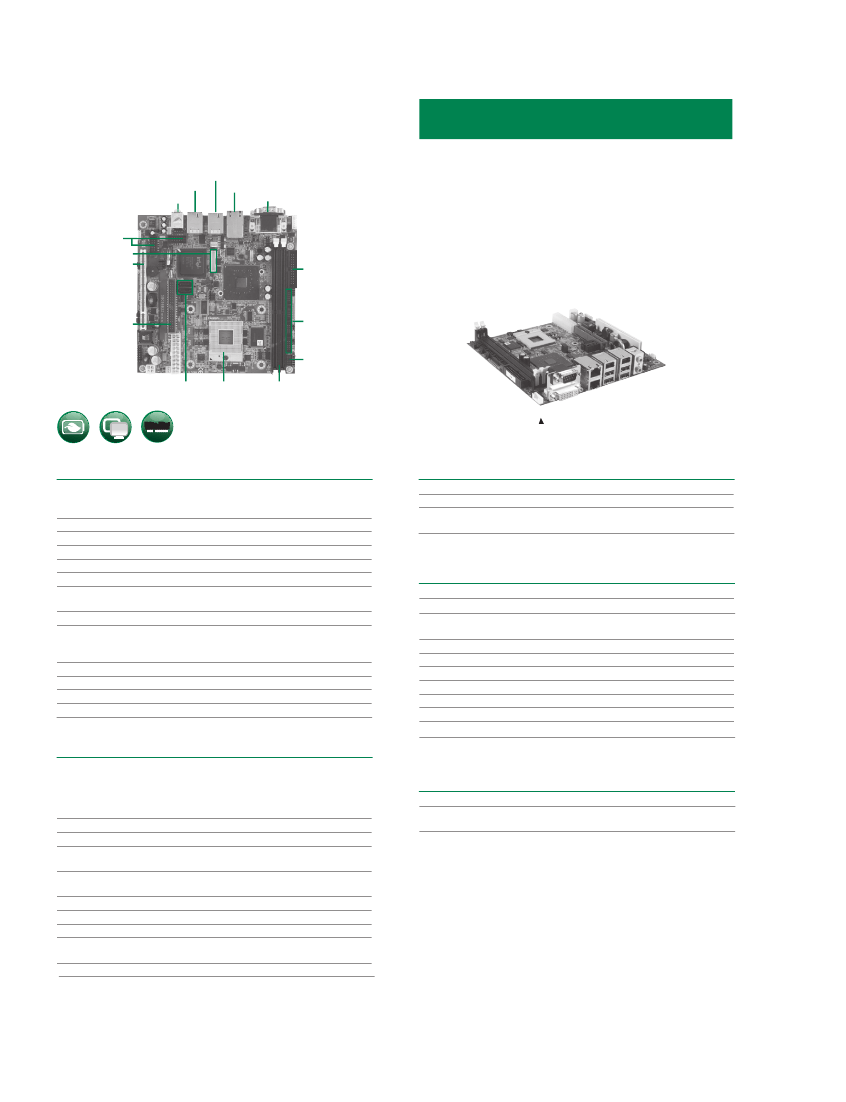

SBC86832
Socket M Intel
®
Core™2 Duo Mini ITX SBC
with Intel
®
945GME + ICH7M/-DH Chipset,
DVI-I/LVDS, 4 COM and Firewire
IEEE 1394a + USB 1/2
IEEE 1394a + USB 3/4 Ethernet 1/2
COM+DVI-I
Audio
Features
®
●
Socket M for Intel Core™2 Duo/Core Duo/Core Solo
processor with FSB 533/667 MHz
●
DVI-I interface for both VGA and DVI external display devices
●
4 COM ports for transaction terminal applications
●
8 USB 2.0 ports and 2 IEEE 1394a ports
USB 5/6/7/8
LVDS
PCI
FDD/LPT
PATA-100
COM 2/3/4
D I/O
SATA2
Socket M
DDR2 DIMM
Side view
PCIe Mini
Low Power
DualView
PCIe Mini
System
CPU
Socket M for Intel
®
Core™2 Duo/ Core™ Duo/ Core™ Solo/
Celeron
®
M processors with FSB 533/667 MHz;
Intel
®
Celeron
®
M processor ULV 423 onboard
2 x 240-pin DIMM supports DDR2-533/667 max. up to 4 GB
Intel
®
945GME + ICH7M/ICH7M-DH
Phoenix-Award
1 x CompactFlash™ type-II (optional)
255 levels, 1~255 sec.
1 x PCI for 32-bit PCI supports 2 bus masters
1 x PCI Express Mini Card (optional)
Lithium 3V/220 mAH
Intel
®
Core™2 Duo T7600 2.33 GHz, 2 GB DDR2
Max. RMS: +5V_SBY @ 0.025A, +3.3V @ 0.106A,
+5V @ 1.923A, +12V @ 1.584A, -12V @ NA
170 x 170 mm
1.6 mm
0° ~ +60°C (32°F ~ 140°F), operation
10% ~ 95% relative humidity, non-condensing
Display
Chipset
Memory Size
Display Interface
Intel
®
GMA 950 graphics core
Intel
®
DVMT 3.0 compliant
1 x LVDS; 18/24-bit single/dual channel
1 x DVI-I
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery
Power Requirements
Packing List
Standard
Quick installation guide, user's manual/utility CD, cable,CPU cooler
Cable
Part Number
593826A0000E
59382601000E
59384500200E
59386831000E
59386832000E
594826A0000E
Size
Board Thickness
Temperature
Relative Humidity
Description
SATA signal cable 500 mm
Ultra DMA66 IDE cable 40-pin 455 mm
COM x 2 w/ bracket, P=2.0, L=250 mm
USB cable x 2 w/ bracket, P=2.54 mm L=180 mm
Wafer 2.00 mm 6P to PS/2 cable, L=200 mm
DVI to VGA adaptor
Qty
1
1
1
1
1
1
I/O
MIO
1 x IDE; PATA-100
1 x FDD/LPT(default); with SPP/EPP/ECP supported
1 x PS/2 keyboard; 1 x PS/2 mouse
3 x RS-232 (COM 2/3/4); with +5V/+12V powered
1 x RS-232/422/485 (COM 1); with +5V/+12V powered
2 x SATA-150; with RAID 0/1 (optional with ICH7M-DH)
Detect CPU/system temperature, voltage and fan speed
2 ports as 10/100/1000Mbps support Wake-on-LAN,
RPL/PXE Boot ROM with Realtek RTL8111B
AC'97 Codec audio as MIC-in/Line-out with Realtek
ALC655
8 x USB 2.0
2 x IEEE 1394a
Infineon SLB9635 for trusted platform (optional)
System Management Bus for advanced monitoring/control
interface
8 channels (3-IN & 5-OUT)
Ordering Information
Standard
SBC86832DGGAF
(P/N: E386832100)
Socket M Mini ITX SBC with LVDS/DVI-I, 10/100/1000Mbps
Ethernet, AC 97 audio, 4 COM ports and firewire
SATA
Hardware Monitoring
Ethernet
Audio
USB
Firewire
TPM
SMBus
Digital I/O
169
* All specifications and photos are subject to change without notice.
