VAB-820 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> VAB-820

VAB-820: DescriptionSingle Board Computers Pico-ITX board with 1.0GHz Freescale i.MX 6Quad Cortex-A9 CPU; CategoryModule/solution; File Size666KB，2 Pages; ManufacturerVIA Technologies; Environmental Compliance

Download Datasheet Parametric View All

VAB-820 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VAB-820	-	-	View	Buy Now

VAB-820 Overview

Single Board Computers Pico-ITX board with 1.0GHz Freescale i.MX 6Quad Cortex-A9 CPU

VAB-820 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	VIA Technologies
Product Category	Single Board Computers
RoHS	Details
Form Factor	Pico-ITX
Processor Brand	Freescale
Processor Type	Freescale i.MX 6
Frequency	1 GHz
Memory Size	1 GB
Interface Type	Audio, CAN, HDMI, JTAG, LAN, SATA, SPI, USB
Operating Supply Voltage	12 V
Maximum Operating Temperature	+ 70 C
Dimensions	10 cm x 7.2 cm
Description/Function	Pico-ITX board with 1 GHz Freescale i.MX 6 quad Cortex A9 quad core SoC
Flash	4 GB
Memory Type	DDR3
Battery Backup Switching	No Backup Battery
Core	Freescale i.MX 6
Minimum Operating Temperature	- 20 C
Factory Pack Quantity	1

Preview

Download Datasheet

View All

ARM-based Pico-ITX Series

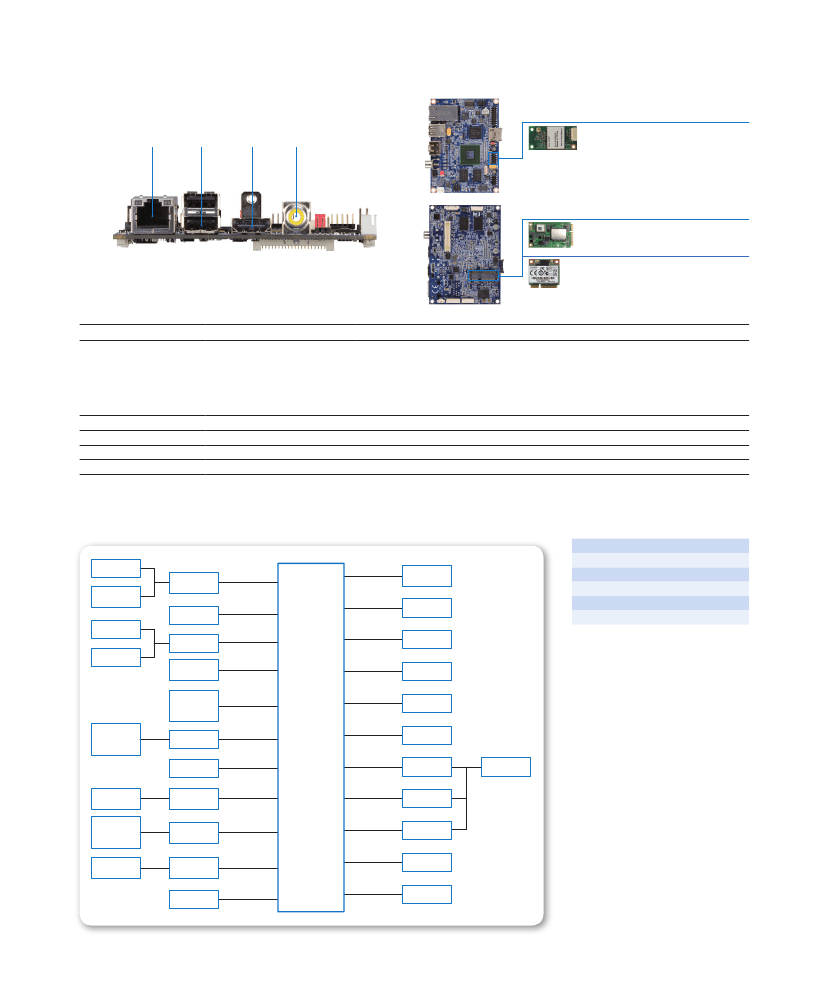

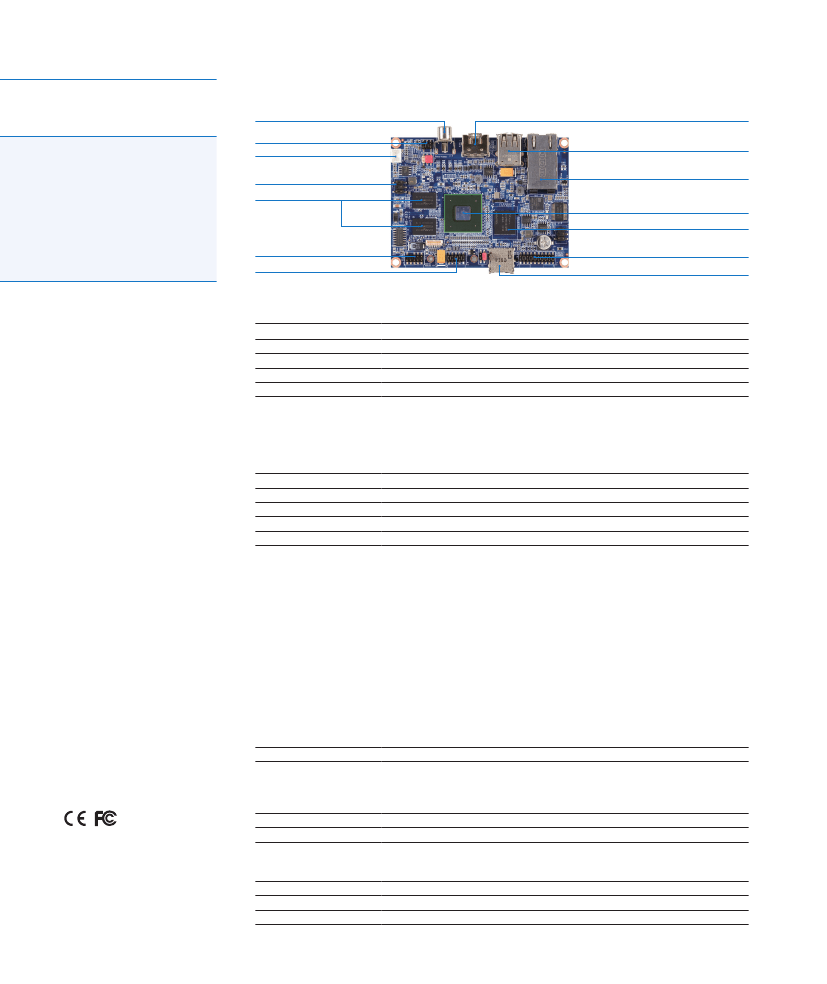

Board Placement

RCA Jack

HDMI

USB 2.0

Ethernet

VAB-820

VIA

S-Video

DC-in

PoE Ouput

DDR3 SDRAM

Low power quad-core

platform with advanced

multimedia capabilities for

a wide variety of industrial

applications

i.MX6Q SoC

eMMC

Audio

USB 2.0 and OTG

DIO/I

Micro SD Card Slot

Features

Compact 10cm x 7.2cm

Pico-ITX form factor

Specifications

Model Name

Processor

System Memory

Storage

Boot Loader

Graphics

VAB-820

1.0GHz NXP i.MX 6Quad Cortex-A9 quad-core SoC

1GB DDR3 SDRAM onboard

4GB eMMC Flash memory

4MB SPI Flash ROM

Vivante GC2000 GPU

3 integrated, independent 3D/2D and video graphics processing units

Graphics engine supporting OpenGL® ES 2.0, OpenCL and OpenVG™ 1.1 hardware

accleration

Supports MPEG-2, VC-1and H.264 video decoding up to 1080p

Supports SD encoding

Micrel KSZ9031RNX Gigabit Ethernet transceiver with RGMII support

NXP SGTL5000 low power stereo codec

Integrated HDMI 1.4 transmitter

SMSC USB2514 USB 2.0 high speed 4-port hub controller

1 miniPCIe slot

1 USB 2.0 host port, and 1 USB2.0 OTG port pin header

1 COM port connector with power supply (supports 8-wire DTE mode)

1 COM/CAN port connector with power supply (supports 1 RS-232 (TX/RX) and

2 FlexCAN TX/RX ports)

1 Dual-channel 18/24-bit LVDS panel connector

1 Miscellaneous pin header for 1 I

C pair, 1 Digital I/O (4 GPI + 4 GPO),

system reset button and LEDs for power/WPAN/Wi-Fi/WWAN

1 RTC battery connector

1 MIPI CSI-2 connector (supports 2 data lanes)

1 SPI master pin header (supports 2 SPI slave devices)

1 S-video input pin header

2 Power pin headers (support optional PD power board)

1 Boot Flash select pin header (for SPI or micro SD)

1 Front audio pin header for Line-in, Line-out, Mic-in

1 DC-in connector

1 miniPCIe slot (supports multiple connections and buses including JTAG)

1 Micro SD card slot

2 USB 2.0 ports

1 HDMI port

1 Composite input RCA jack

1 Gigabit Ethernet port (supports optional IEEE 802.3 at type 2)

12V DC-in

Android 4.4.2, Linux kernel 3.10

Integrated watch dog timer supports two comparison points. Each comparison

point can interrupt ARM core, 2nd comparison point capable of generating external

interrupts on WDOG line

-20°C ~ 70°C (3G & WiFi not included)

0% ~ 95% (non-condensing)

Pico-ITX (10cm x 7.2cm, 3.9" x 2.8")

CE, FCC

1.0GHz NXP i.MX 6Quad

Cortex-A9 quad-core SoC

Flawless HD video performance

up to 1080p

Wide operating temperature

range, -20°C ~ 70°C

Linux and Android solution

packs available

LAN

Audio

HDMI

USB

Expansion I/O

Onboard I/O

Front Panel I/O

Back Panel I/O

Power Supply

Operating System

Watch Dog Timer

Operating Temperature

Operating Humidity

Form Factor

Compliance
