Preliminary Data Sheet
Features
•
•
•
•
•
•
•
•
For GSM/EDGE applications
Usable bandwidth of 0.2 MHz
Low loss
High attenuation
Single ended operation, 50Ω
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856378
211 MHz SAW Filter
•

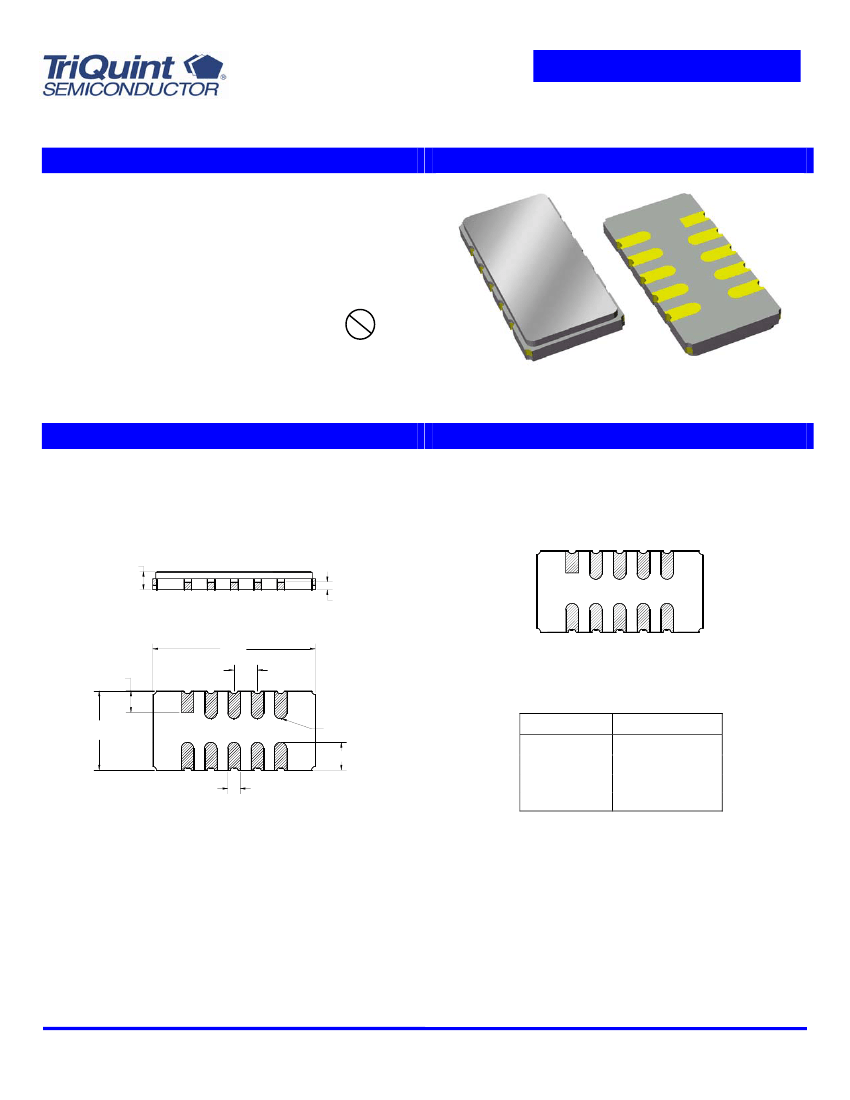

Package
Surface Mount 13.3 x 6.50 x 1.50 mm
(SMP-53C)
Pin Configuration
Bottom View
1
1.50 NOM.
1.65 MAX.
0.64
2
3
4
5
13.3
1.80
1.91
10
9
8
7
6
6.50
R0.51
2.31
1.02
Pin No.
10
5
1,6
2,3,4,7,8,9
Description
Input
Output
Ground
Case Ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev C
06-07 TriQuint Semiconductor, Inc. ©
Page 1 of 5
Preliminary Data Sheet
Operating Temperature Range:
(2)
0 to +70
o
C
Part Number 856378
211 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Insertion Loss at 211 MHz (fc)
Center Frequency at 3dB
At 25 ºC
0 to 70 ºC
Lower 1.5 dB Bandedge
(4)
Upper 1.5 dB Bandedge
Lower 2.0 dB Bandedge
Upper 2.0 dB Bandedge
Lower 3.0 dB Bandedge
Upper 3.0 dB Bandedge
Relative Attenuation
(4)
fc – 20 MHz to fc – 0.8 MHz
fc – 0.8 MHz to fc – 0.6 MHz
fc – 0.6 MHz to fc – 0.4 MHz
fc + 0.4 MHz to fc + 0.6 MHz
fc + 0.6 MHz to fc + 0.8 MHz
fc + 0.8 MHz to fc + 2.85 MHz
fc + 2.85 MHz to fc + 3.10 MHz
fc + 3.10 MHz to fc + 20.0 MHz
Absolute Group Delay
210.9 - 211.1 MHz
Group Delay Variation
210.9 - 211.1 MHz
EVM
(5)
Input\Output Return Loss
fc
±
0.05 MHz
fc
±
0.1 MHz
Out-of-Band Modulation
(5)
Input signals + 10 dBm @ 209.4 & 210.2 MHz
Input signals + 10 dBm @ 211.8 & 212.6 MHz
Source Impedance
(6)
Load Impedance
(6)
Notes:
1.
2.
3.
4.
5.
6.
All specifications are based on the test circuit shown on page 4
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature. The guardbanded specification includes the 3 dB center frequency correlation factor between customer board and
Sawtek test fixture
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
All bandedge and relative attenuation measurements are referenced to the minimum insertion loss
EVM and out-of-band modulation will not be tested in production due to the complexity of test. Compliance guaranteed by design
This is the optimum impedance in order to achieve the performance shown
Minimum
-
210.975
210.969
-
211.05
-
211.08
-
211.10
45
38
25
25
38
46
44
45
-
-
-
10
8
-
-
-
-
Typical
5.2
211
211
210.88
211.12
210.86
211.14
210.83
211.17
50
45
30
33
44
49
48
49
2.4
370
2
15
10
-65
-65
50
50
Maximum
6.5
211.025
211.031
210.95
-
210.92
-
210.90
-
-
-
-
-
-
-
-
-
5
500
-
-
-
-60
-60
-
-
Unit
dB
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
dB
dB
dB
dB
dB
dB
dB
dB
µs
ns
%
dB
dB
dBm
dBm
Ω
Ω
Subject to change or obsolescence without notice
Rev C
06-07 TriQuint Semiconductor, Inc. ©
Page 2 of 5
Preliminary Data Sheet
Part Number 856378
211 MHz SAW Filter

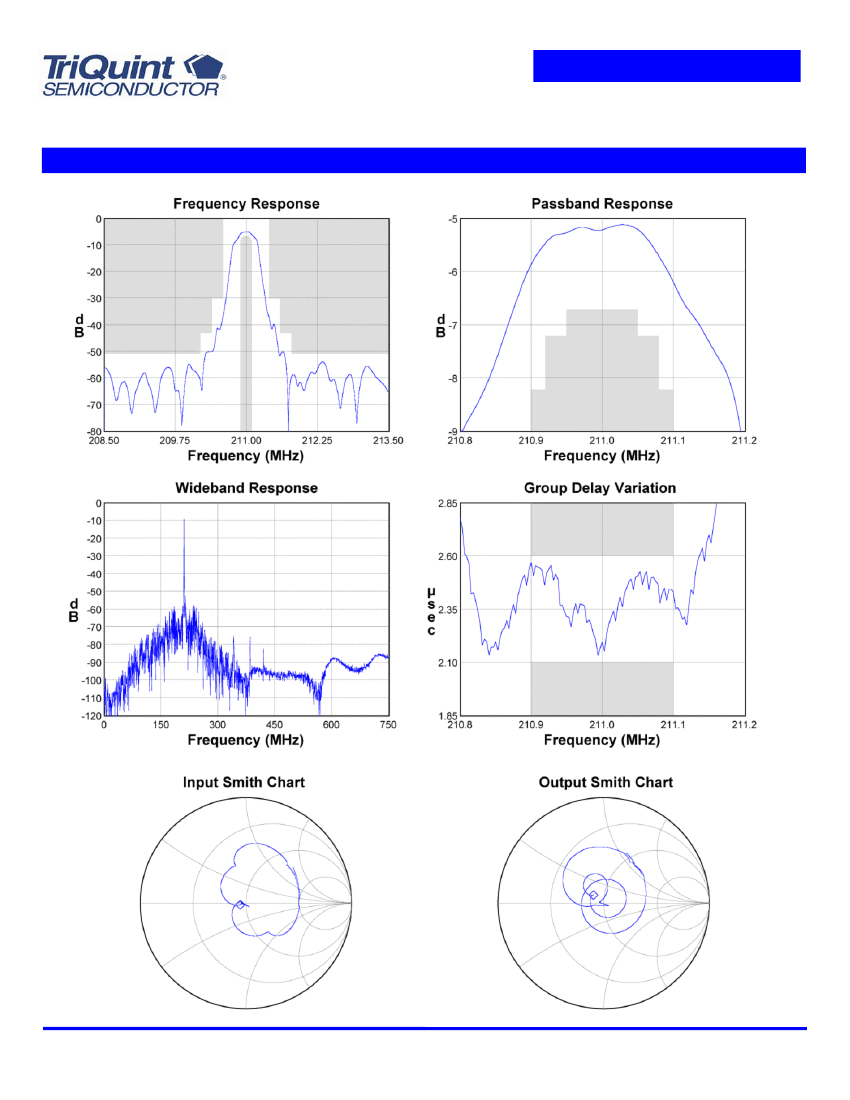

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev C
06-07 TriQuint Semiconductor, Inc. ©
Page 3 of 5
Preliminary Data Sheet

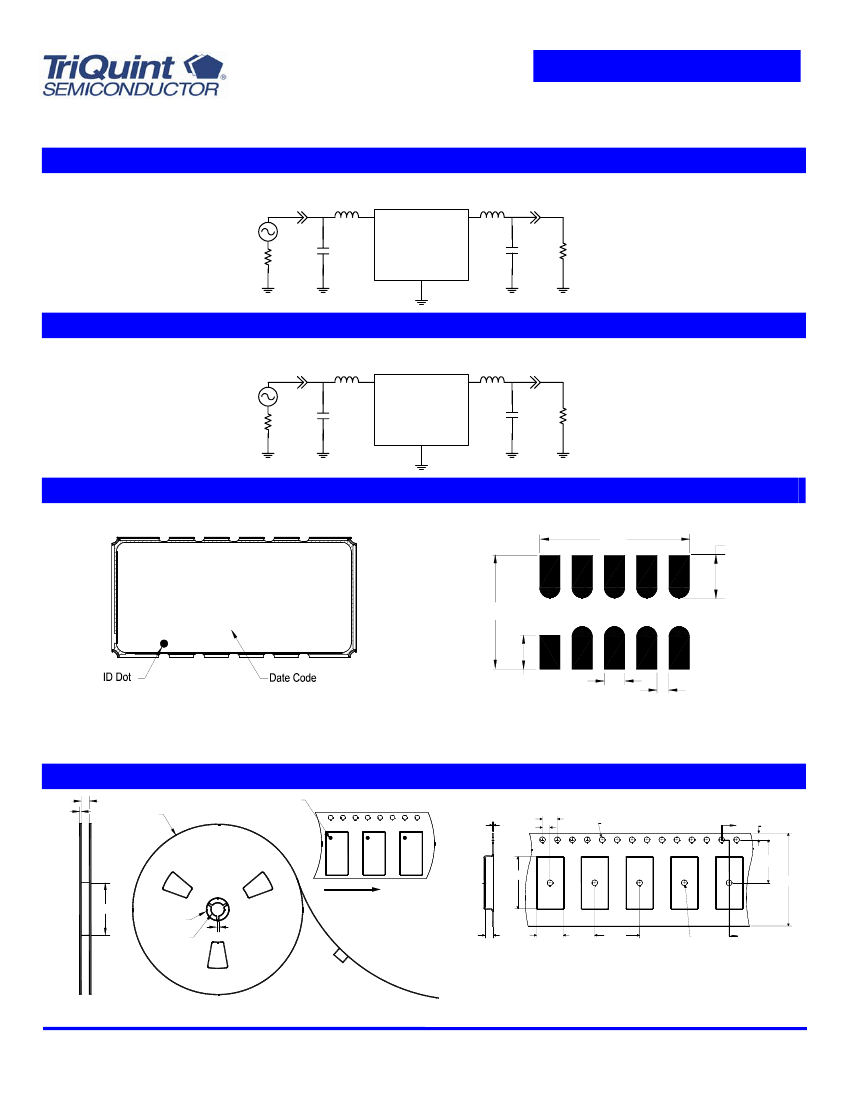

Test Circuit
33nH
10
5
36nH
Part Number 856378
211 MHz SAW Filter
50
Ω
Single-ended
Input
50Ω
33pF
1,2,3,4
6,7,8,9
33pF
50Ω
50
Ω
Single-ended
Output
Matching Schematics
Actual matching values may vary due to PCB layout and parasitics
43nH
10
5
39pF
50Ω
39nH
50
Ω
Single-ended
Input
50Ω
33pF
1,2,3,4
6,7,8,9
50
Ω
Single-ended
Output
Marking
PCB Footprint
8.86
2.51
SAWTEK
856378
XXXXXX
6.70
2.00
1.22
.69
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
24.8
2.7
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
11.5
13.9
24
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity:2000 units/reel
Subject to change or obsolescence without notice
Rev C
06-07 TriQuint Semiconductor, Inc. ©
Page 4 of 5
Preliminary Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
RF Power
Part Number 856378
211 MHz SAW Filter
Symbol
T
T
stg
P
in
Minimum
0
-40
-
Maximum
+70
+85
+14.5
Unit
C
C
dBm
o
o
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Rev C
06-07 TriQuint Semiconductor, Inc. ©
Page 5 of 5
