PCA-6012VG-00A1E datasheet, PDF

Datasheet> All Categories > Module/solution> PCA-6012VG-00A1E

PCA-6012VG-00A1E: DescriptionSingle Board Computers Onboard Atom N455 CPU with VGA/ Single GbE LAN; CategoryModule/solution; File Size577KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric View All

PCA-6012VG-00A1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PCA-6012VG-00A1E	-	-	View	Buy Now

PCA-6012VG-00A1E Overview

Single Board Computers Onboard Atom N455 CPU with VGA/ Single GbE LAN

PCA-6012VG-00A1E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Advantech
Product Category	Single Board Computers
RoHS	Details
Factory Pack Quantity	1

Preview

Download Datasheet

View All

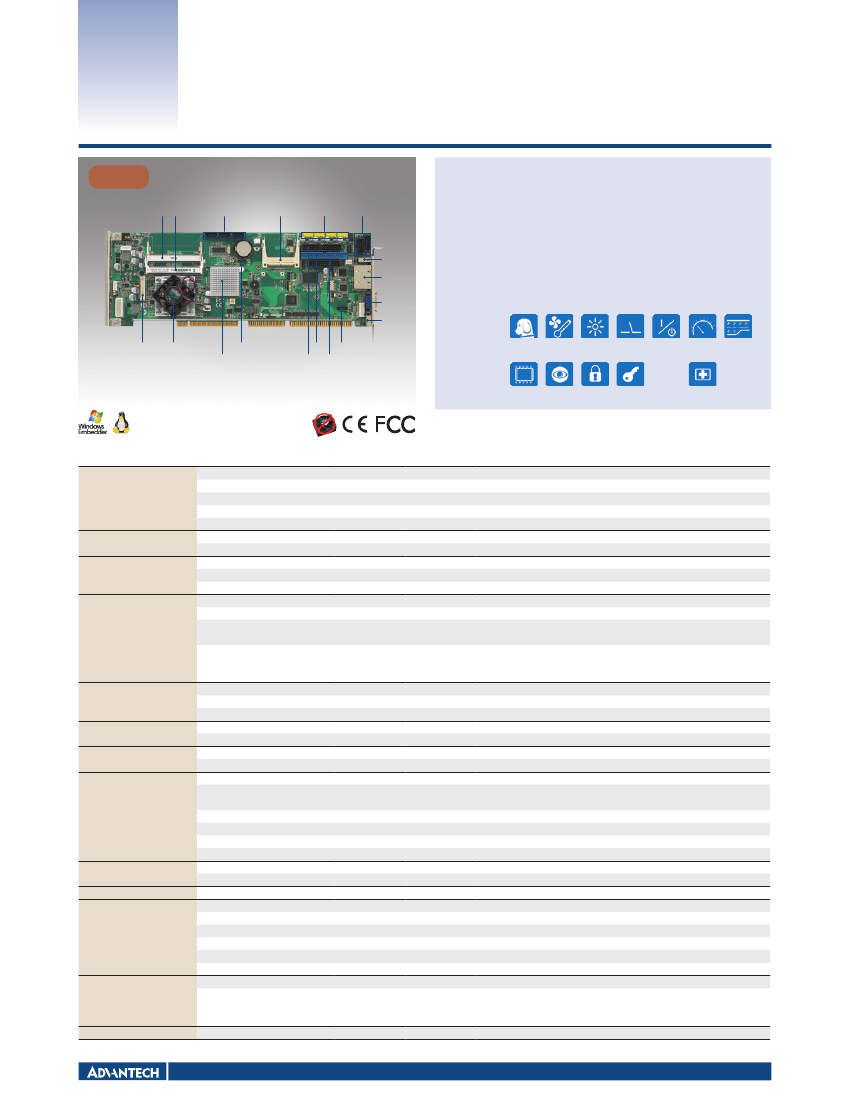

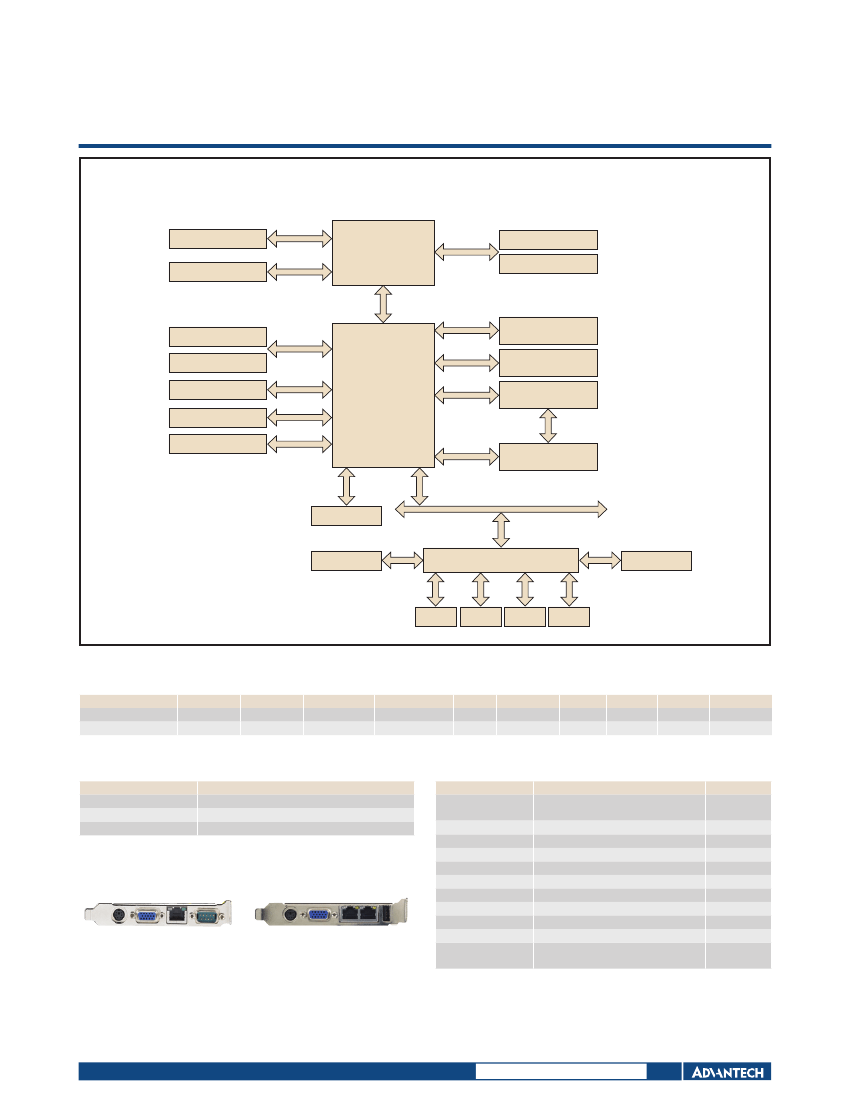

PCA-6012

NEW

DDR3 800 *2

SATAII *3

USB1~8

COM *2

USB9

LAN *2

VGA

KBMS1

LVDS

N455/D525

HDAUDIO

ICH8M

IDE

LPC

FDD LPT

Intel

Atom™ N455/D525 SBC with

VGA/Dual GbE LAN

Features

Ultra low power, fanless N455 CPU and maximum 2 GB DDR3 800 memory

(Only for N SKU)

Dual core high performance D525 CPU and maximum 4 GB DDR3 800

memory (Only for D SKU)

Optional module for 4 x RS-485 w/auto-flow control

Supports embedded software APIs and utilities

Software APIs:

Watchdog H/W Monitor Brightness

GPIO

Backlight CPU Speed System

Throttling

On/Off

Utilities:

BIOS flash Monitoring Flash Lock Embedded

Security ID

eSOS

(Requires BIOS Customization)

Specifications

Processor System

CPU

Speed

L2 Cache

Chipset

BIOS

PCI

ISA

Technology

Max. Cap.

Socket

Controller

VRAM

Video Interface

Video Output

Ethernet

SATA 2

EIDE

Interface

Controller

Connector

Max. Transfer Rate

Channel

Mode

Channel

USB 2.0

Serial

I/O Interface

Parallel

GPIO

FDD

PS/2

Output

Interval

Audio Output

Configuration

Voltage

Current

Configuration

Voltage

Current

Temperature

Dimensions

Intel Atom N455

Intel Atom D525

1.66 GHz

1.8 GHz

512 KB

1 MB

Intel ICH8M

AMI 16Mb SPI Flash

32-bit/33 MHz PCI

HISA (ISA High Drive)

Dual channel DDR3 800 MHz DIMMs

2 GB

4 GB

204 pin SODIMM x 2

Embedded Gen3.5+ GFX Core technology, Direct X 9/Pixel Shader 2.0 compliant

Shared with system memory up to 224 MB

15-pin VGA D-sub connector x1/LVDS pin header x 1

(G2 SKU only, supports single channel 18-bit LVDS)

VGA: Supports up to SXGA 1400 x 1050 @ 60 Hz for Atom™ N455 VG SKU, up to 2048 x 1536 @ 60 Hz for

Atom D525 G2 SKU

LVDS: Supports 18-bit single channel and up to WXGA 1366 x 768 or 1280 x 800 (G2 SKU only)

10/100/1000 Mbps

LAN1: Intel 82567V, LAN2: Intel 82583V

RJ45 with LED Connector x2 (G2 SKU), x1 (VG SKU)

300 MB/s

ATA 100/66/33

1 (Supports up to 2 IDE devices; Master device is alternative for CF socket)

8 ports by pin header (VG SKU); 8 ports by pin header and 1 port on bracket I/O (G2 SKU)

2 RS-232 onboard pin-headers, plus four ports of RS-485 with auto-flow control by module

(optional, Advantech P/N: PCA-COM485-00A1E)

1 (EPP/ECP)

1 (8-bit)

1 (for mouse and keyboard, Y cable is included in the package)

System reset

Programmable, 1~255 sec/min

Intel High Definition audio interface (requires an audio extension module, P/N: PCA-AUDIO-HDA1E)

Atom D525 CPU 1.8 GHz + DDR3 1333 2G x2 SODIMM; Storage: One SATA HDD

+12 V

+5 V

+3.3 V

+5 VSB

-12 V

-5 V

0.44 A

3.71 A

0.15 A

Atom N455 CPU 1.66 GHz + DDR3 1333 1G x2 SODIMM; Storage: One SATA HDD

+12 V

+5 V

+3.3 V

+5 VSB

-12 V

-5 V

0.16 A

2.81 A

0.13 A

Operating

Non-Operating

0 ~ 60° C (32 ~ 140° F)

(Operational humidity: 40° C @ 85% RH

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Non-Condensing)

338 mm (L) x 122 mm (W) (13.3" x 4.8")

Bus

Memory

Graphics

Watchdog Timer

Miscellaneous

Power Requirement

Environment

Physical

Slot SBC & Passive Backplanes

All product specifications are subject to change without notice

Last updated : 20-Jun-2012
