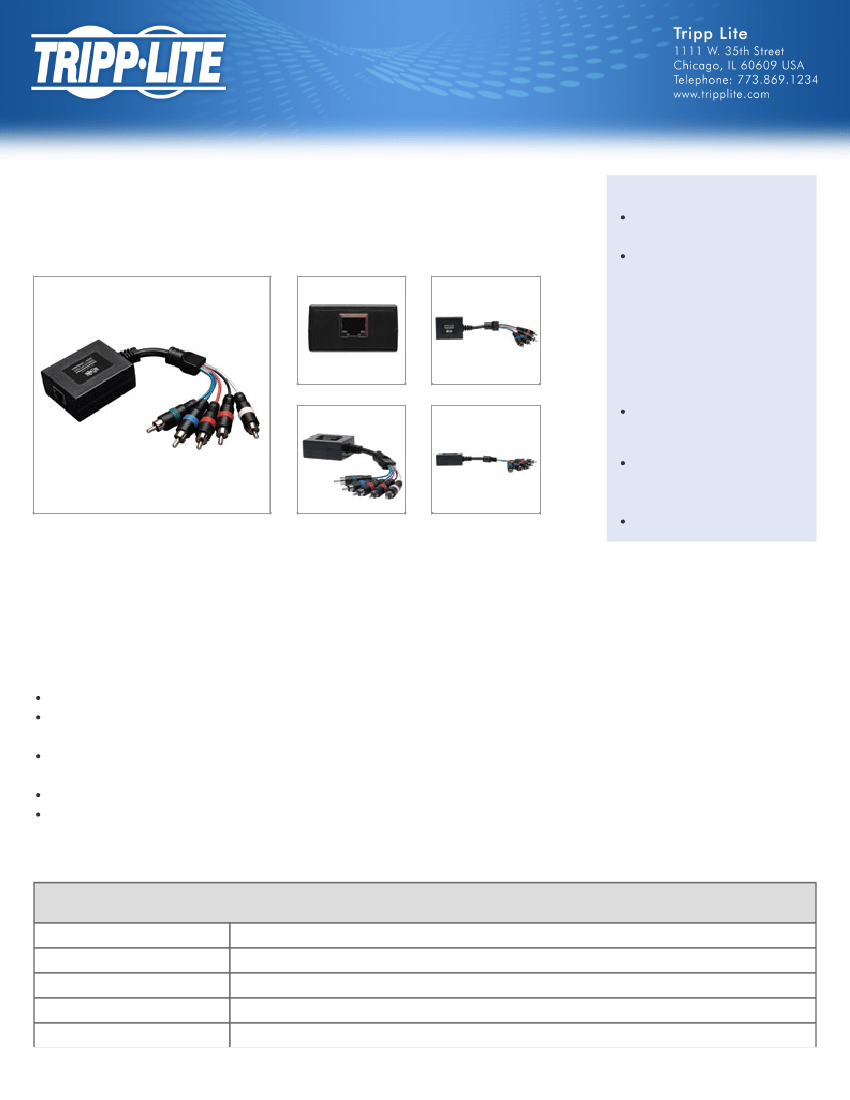

Component Video with Stereo Audio over Cat5/Cat6
Extender, In-Line Remote Receiver, Up to 700-ft.
MODEL NUMBER:
B136-100
Highlights
Remote extender unit for the
B136-004
4-Port Extender/Splitter
Extends a 1080i (60Hz)
Component Video and Stereo
Audio signal up to 300 ft. when
using 24Awg, Solid Wire UTP
cable (Tripp Lite N202-Series);
or, up to 400 ft. when using
Zero-Skew UTP cable (Tripp Lite
P524-01K)
No external power required
Package Includes
B136-100 Component Video +
Stereo Audio Remote Extender
Unit
Owner's Manual
Description
The B136-100 is a remote extender unit for the
B136-004
4-Port Component Video + Stereo Audio Extender/Splitter. A 1080i (60Hz) Component Video and
Stereo Audio signal can be extended up to 300 ft. when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 400 ft. when using Zero-Skew
UTP cable (Tripp Lite
P524-01K).
A 480p (60Hz) Component Video and Stereo Audio signal can be extended up to 500 ft. when using 24Awg, Solid Wire UTP
cable (Tripp Lite N202-Series); or, up to 700 ft. when using Zero-Skew UTP cable (Tripp Lite
P524-01K).
Plugs directly into the TV's Component Video and
Stereo Audio ports...no external power required.
Features
Remote extender unit for the
B136-004
4-port Extender/Splitter
A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 300 ft. when using 24Awg, Solid Wire UTP cable (Tripp Lite
N202-Series); or, up to 400 ft. when using Zero-Skew UTP cable (Tripp Lite
P524-01K)
A 480p (60Hz) Component Video and Stereo Audio signal can be extended up to 500 ft. when using 24Awg, Solid Wire UTP cable (Tripp Lite
N202-Series); or, up to 700 ft. when using Zero-Skew UTP cable (Tripp Lite
P524-01K)
Plugs directly into the TV's Component Video and Red/White Audio ports
No external power required
Specifications
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 480i Range (ft)
700
700
400
400
700
1/2
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
700
700
400
400
CONNECTIONS
Ports
Side A - Connector 1
Side B - Connector 1
1
(5) RCA (MALE)
RJ45 (FEMALE)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
