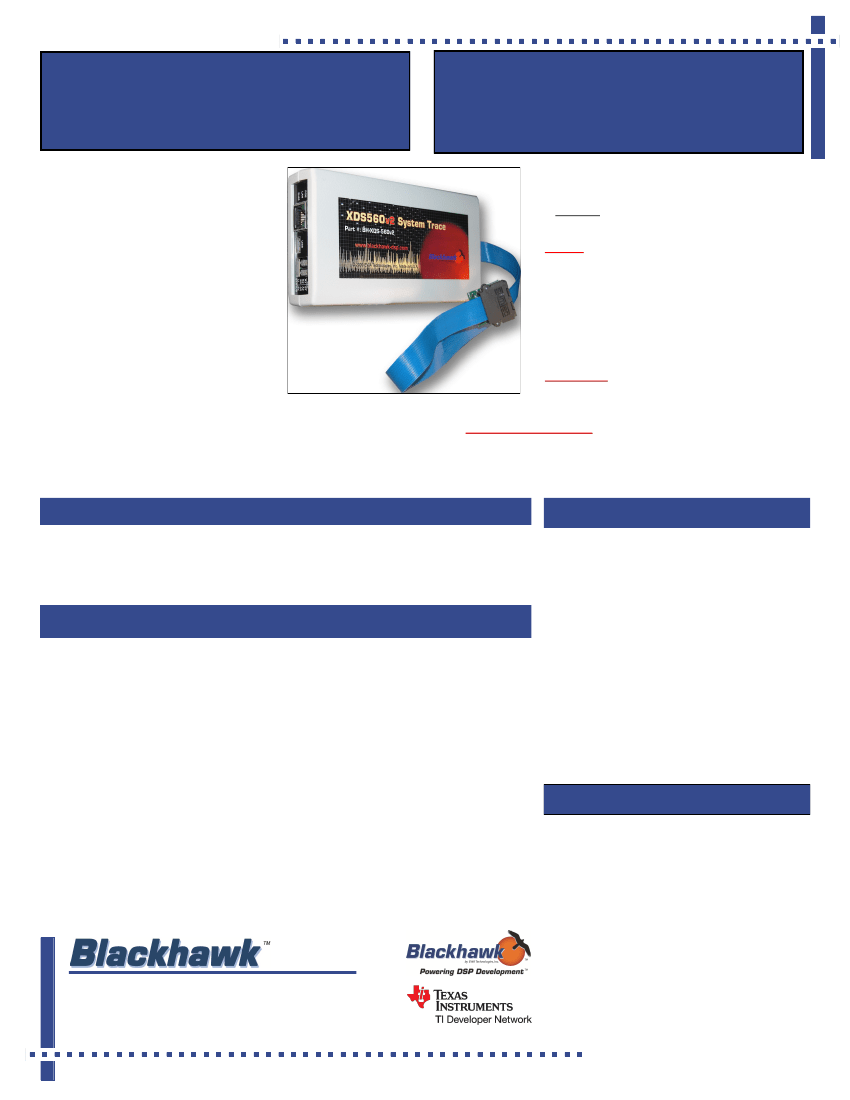

Blackhawk
™
XDS560v2
T
he
System Trace
for TI Devices
TI
Devices:
C6000, C5000, C2000, OMAP, DAVINCI, SITARA,
I
TMS470, TMS570, ARM 7/9, ARM Cortex A8/R4/M3 and more
Compatible Operating Systems:
Windows® (XP/Vista/7/8/10) and
Linux (RedHat/Fedora/Ubuntu/SUSE, etc.) 32 and 64-bit editions
P/N: BH-XDS-560v2-BP (bus-powered)
SKU: 12161
P/N: BH-XDS-560v2-PoE (PoE
Model)
SKU: 12162/12162EU
Blackhawk XDS560v2 System Trace
Emulator (BH560v2) is based on the new
Texas Instruments XDS560v2 JTAG emula-
tor reference design (XDS560v2). The
XDS560v2 design is the next-generation of
the high-performance XDS560-class tech-
nology first made available by Blackhawk
with the USB560/LAN560 and XDS560
Trace. The XDS560v2 design includes
both high-speed USB 2.0 and 10/100Mbit
Ethernet host interfaces, multi-color state
and activity LEDs and a flexible ribbonized
coax JTAG cable. The XDS560v2 adds sup-
port for IEEE1149.7 and the system trace
module (STM), an interface on the TI heterogeneous multi-core
(ARM + DSP) devices. If you are familiar with the Blackhawk
LAN560 product, you will already be familiar with this new design.
Blackhawk Emulators are available from a world wide network of
industry resellers.
T
he
BH560v2 meets all of the TI XDS560v2
reference design features and requirements
and extends (improves) capabilities by offering
the following enhanced features.
▪
POWER
:
POWER:
This is the first and most important fea-
ture enhancement. The BH560v2 has the option to
be powered from either the USB or POE (power over
Ethernet) connectors. Yes, the unit can be powered
solely from the USB; a great feature for road warri-
ors. And for LAN operation, the BH560v2 offers a
802.11af POE connector that can be powered from a
POE enabled switch or available POE injector supply.
We also added dedicated power
and USB activity LEDs, which are found on the cur-
rent Blackhawk USB560m and LAN560 models.
▪
INDICATORS
:
INDICATORS:
▪
CONFIGURATION & TEST
:
TEST:
The BH560v2 includes a graphical user
interface application that allows users to find, update, configure
and test Bh560v2 devices on the local area network (LAN). You
can even name the units, configure DHCP or fixed IP and more.
Blackhawk XDS560v2 Enhanced Feature Set
■
■
■
■
Power Over USB Standard
Power Over Ethernet Option
Additional Dedicated LEDs for Power and USB
LAN and USB Graphical Configuration & Diagnostic Tool
Items Included in the Box
1.
2.
3.
4.
5.
6.
7.
8.
9.
XDS560v2 System Trace Emulator Pod
System Trace Coax JTAG Cable
MIPI60 buffer board
Pin Converters (4): TI14, cTI20, ARM20,
and TI60 trace targets
USB Cable
Product Registration Card
Quick Start Guide
Software Disc
Standard Features of TI XDS560v2 and Blackhawk XDS560v2
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
Supports Code Composer Studio v4.2 or later and all Ctools enabled devices
Flexible 12.5 inch JTAG cable with native 60-pin MIPI HSPT Target Cable
Includes 20-pin compact TI (cTI), 14-pin standard TI and 20-pin ARM Adapters
Supports JTAG 1149.1 and 1149.7
Auto-Adaptive T-clock (TCLK) up to 50MHz
Auto Sensing Target voltage range from 1.2v to 4.1v
JTAG Debug Isolation, JTAG loop-back Modes and Boot Mode EMU0 & EMU1
Supports 1-4 pin System Trace with 128 Mbytes of System Trace Buffer
Up to 100MHz export clock compliant to MIPI STP
Auto compensating calibration for edge jitter, channel skew and duty cycle
Adaptive receiver for setup/hold times up to 1.5ns
High-Speed USB 2.0 port @ 480Mbit/sec and 10/100 Ethernet port
Supports Mobile Industry Processor Interface (MIPI)
Supports System Trace Protocol (STP) and High-speed Parallel Trace (HSPT)
Eight (8) tri-color status, state and activity LEDs
POE Injector power supply and wall
cords
(PoE
Model)
10. Ethernet Cables (2)
(PoE
Model)
ABOUT BLACKHAWK
EWA Technologies, Inc. is a major global player in
the application of the IEEE 1149.x standards (known
as boundary-scan or JTAG) to state-of-the-art prod-
ucts that will support the design, prototyping and
production of the next generation of complex tech-
nology products. EWA Technologies consists of two
operating units: the Blackhawk™ division in Mount
Laurel, NJ, and Corelis, Inc. in Cerritos, CA. The
Blackhawk™ division is a leader in providing hard-
ware and software for the rapid development of
digital signal processor-based (DSP) applications for
a wide variety of vertical markets. Blackhawk™ is a
Texas Instruments® (TI) DSP Third Party provider for
development hardware, advanced JTAG emulators,
Real-Time Operating Systems, design services and
consulting.
©
2016 EWA Technologies, Inc.
06/2016
JTAG
Emulators
AND DEVELOPMENT TOOLS
FOR TEXAS INSTRUMENTS DSP
S
123 Gaither Drive ● Mt. Laurel, NJ 08054 ● 877
-983-
4514 ● www.blackhawk
-dsp.com
877-983-
www.blackhawk-
Blackhawk is a registered trademark of EWA Technologies, Inc. Other product names used herein are trademarks of their respective companies.
