Freescale Semiconductor, Inc.
Data Sheet: Technical Data
FXLN83xxQ
Rev 2.0, 7/2014
Xtrinsic FXLN83xxQ 3-Axis Low-
Power Analog-Output Accelerometer
FXLN83xxQ is a family of 3-axis, low-power, low-g, analog-
output accelerometers that consist of an acceleration sensor
along with a CMOS signal conditioning and control ASIC in a
3x3x1mm QFN package. The analog outputs for the X, Y, and Z
axes are internally compensated for zero-g offset and sensitivity,
and then buffered to the output pads. The outputs have a fixed
zero-g offset of 0.75V, irrespective of the V
DD
supply voltage.
The bandwidth of the output signal for each axis may be
independently adjusted using external capacitors. The host can
place the FXLN83xxQ into a low-current shutdown mode to
conserve power.
Features
• Supply voltage (V
DD
) from 1.71 V to 3.6 V
• Accelerometer operating ranges selectable
• ±2
g
or ±8
g
(FXLN83x1Q)
• ±4
g
or ±16
g
(FXLN83x2Q)
• Low current consumption of 180 μA (typical)
• Output Bandwidth Options
• High bandwidth, 2.7 kHz (XY axes), 600 Hz (Z axis),
(FXLN837XQ)
• Low bandwidth, 1.1 kHz (XY axes), 600 Hz (Z axis),
(FXLN836XQ)
• 3 x 3 x 1 mm, 12-pin QFN package (0.65 mm lead pitch)
• Robust design with high shock survivability (10,000
g)
• Operating temperature from –40 °C to +105 °C
• MSL 1 compliant
Typical Applications
• Tamper detection
• White goods: tilt, vibration, and shake detection
• Motion sensing in robotics applications
• Inclinometer, vibrometer
• Activity monitoring in sports and medical devices

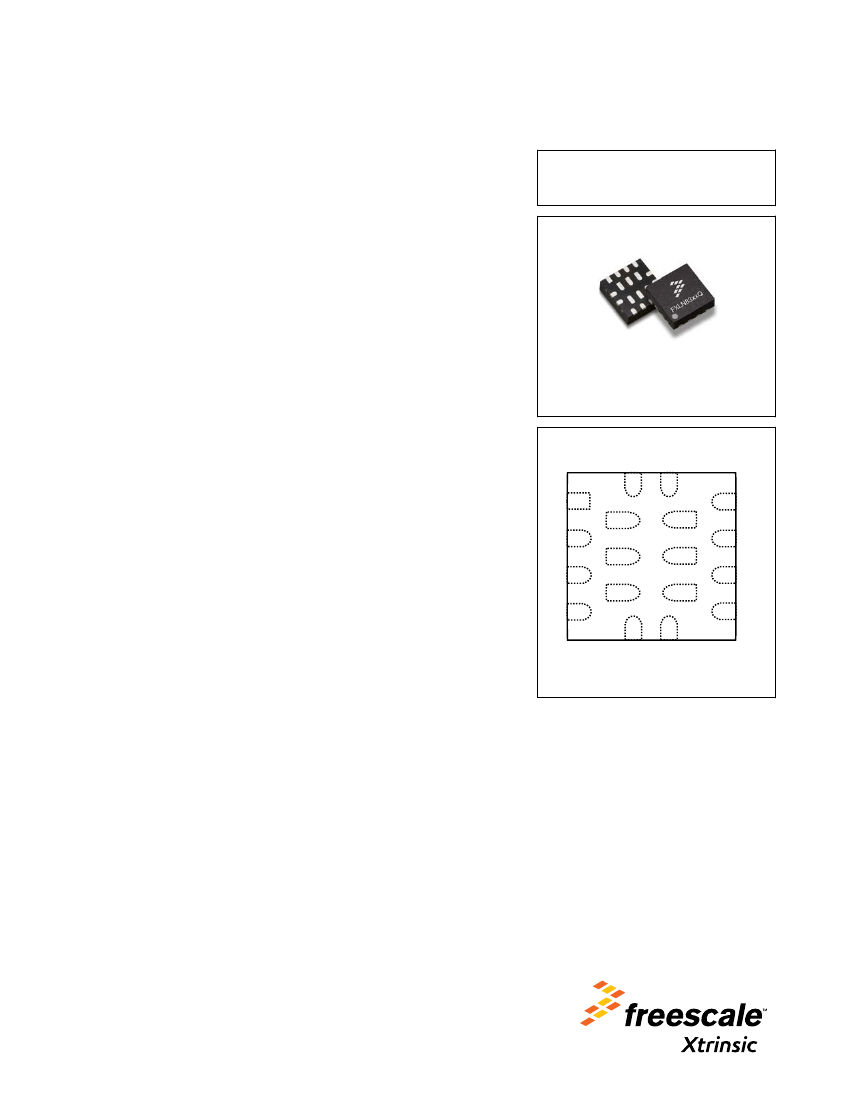

FXLN83xxQ
12-pin QFN
3 mm x 3 mm x 1 mm
Case 2300-01
Top View
NC
12
BYP 1
V
DD
ST
EN
2
3
4
5
6
g-Select GND
NC
11
10
9
8
7
X
OUT
Y
OUT
Z
OUT
GND
Pin Connections
Freescale reserves the right to change the detail specifications as may be required to permit
improvements in the design of its products. © 2014 Freescale Semiconductor, Inc. All rights
reserved.
Ordering Information
Part Number
FXLN8361QR1
FXLN8362QR1
FXLN8371QR1
FXLN8372QR1
Operating Range
±2/8
g
±4/16
g
±2/8
g
±4/16
g
Bandwidth
Low
Low
High
High
Temperature
Range
–40 °C to +105 °C
–40 °C to +105 °C
–40 °C to +105 °C
–40 °C to +105 °C
Package
Description
QFN-12
QFN-12
QFN-12
QFN-12
Shipping
Tape and reel (1 k)
Tape and reel (1 k)
Tape and reel (1 k)
Tape and reel (1 k)
Related Documentation
The FXLN83xxQ device features and operations are described in a variety of reference manuals, user guides,
and application notes. To find the most-current versions of these documents:
1. Go to the Freescale homepage at
freescale.com.
2. In the
Keyword
search box at the top of the page, enter the device number FXLN83xxQ.
3. In the
Refine Your Result
pane on the left, click on the
Documentation
link.
2
Freescale Semiconductor, Inc.
Xtrinsic FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer, Rev2.0,
7/2014.
Table of Contents
1 General Description......................................................................... 4
1.1 Block Diagram.........................................................................4
1.2 Pin Descriptions.......................................................................4
1.3 Typical Application Circuit..................................................... 6
1.4 Sensing Direction and Output Response................................. 6
2 Device Characteristics..................................................................... 8
2.1 Absolute Maximum Ratings.................................................... 8
2.2 Mechanical Specifications ...................................................... 9
2.3 Electrical Specifications ......................................................... 10
3 Printed Circuit Board Layout and Device Mounting.......................11
3.1 Printed Circuit Board Layout...................................................11
3.2 Overview of Soldering Considerations....................................12
3.3 Halogen Content...................................................................... 13
4 Package Information........................................................................ 13
4.1 Device Marking....................................................................... 13
4.2 Tape and Reel Information...................................................... 13
4.3 Package Description................................................................ 14
5 Revision History.............................................................................. 17
Xtrinsic FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer, Rev2.0,
7/2014.
3
Freescale Semiconductor, Inc.
General Description
1 General Description
1.1 Block Diagram
BYP
X
OUT
D2SAAF
V
DD
X+
Y+
Z+
10 KΩ
Y
OUT
MUX
D2SAAF
10 KΩ
a
X
,a
Y
,a
Z
ST
G-cell
MUX
C2V
Gain
X-
Y-
Z-
D2SAAF
10 KΩ
Z
OUT
EN
References
Self Test
Clock
Digital Logic
and
Control
g-Select
Figure 1. FXLN83xxQ block diagram
4
Freescale Semiconductor, Inc.
Xtrinsic FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer, Rev2.0,
7/2014.
General Description
1.2 Pin Descriptions
NC
12
BYP 1
V
DD
ST
EN
2
3
4
5
6
g-Select GND
NC
11
10
9
8
7
X
OUT
Y
OUT
Z
OUT
GND
Figure 2. Pin locations
Table 1. Pin descriptions
Pin
1
2
3
Name
BYP
V
DD
ST
1
Description
Internal voltage regulator output capacitor connection
Supply voltage
Self-Test
• When ST pin is logic high, the accelerometer is put into self-test mode.
• When ST pin is logic low, the accelerometer is put into normal operating mode.
Power enable pin
• When the EN pin is logic low, the accelerometer is shut down, minimizing current
consumption.
• When the EN pin is logic high, the accelerometer is fully functional.
I/O
Output
Power
Input
4
EN
Input
5
g-Select Full Scale Range selection:
For part numbers FXLN8361QR1 & FXLN8371QR1:
• When the g-select pin is logic low, the accelerometer is in ±8
g
mode
• When the g-select pin is logic high, the accelerometer is in ±2
g
mode
For part numbers FXLN8362QR1 & FXLN8372QR1:
• When the g-select pin is logic low, the accelerometer is in ±16
g
mode
• When the g-select pin is logic high, the accelerometer is in ±4
g
mode
Input
6
7
8
9
10
11
12
EP
GND
GND
Z
OUT
Y
OUT
X
OUT
NC
NC
DNC
Ground
Ground
Z-axis analog output
Y-axis analog output
X-axis analog output
No internal connection, may be left floating or connected to GND
No internal connection, may be left floating or connected to GND
Center pads should not be soldered, refer to
Printed Circuit Board Layout and Device Mounting
Ground
Ground
Output
Output
Output
—
—
—
Xtrinsic FXLN83xxQ 3-Axis Low-Power Analog-Output Accelerometer, Rev2.0,
7/2014.
5
Freescale Semiconductor, Inc.
