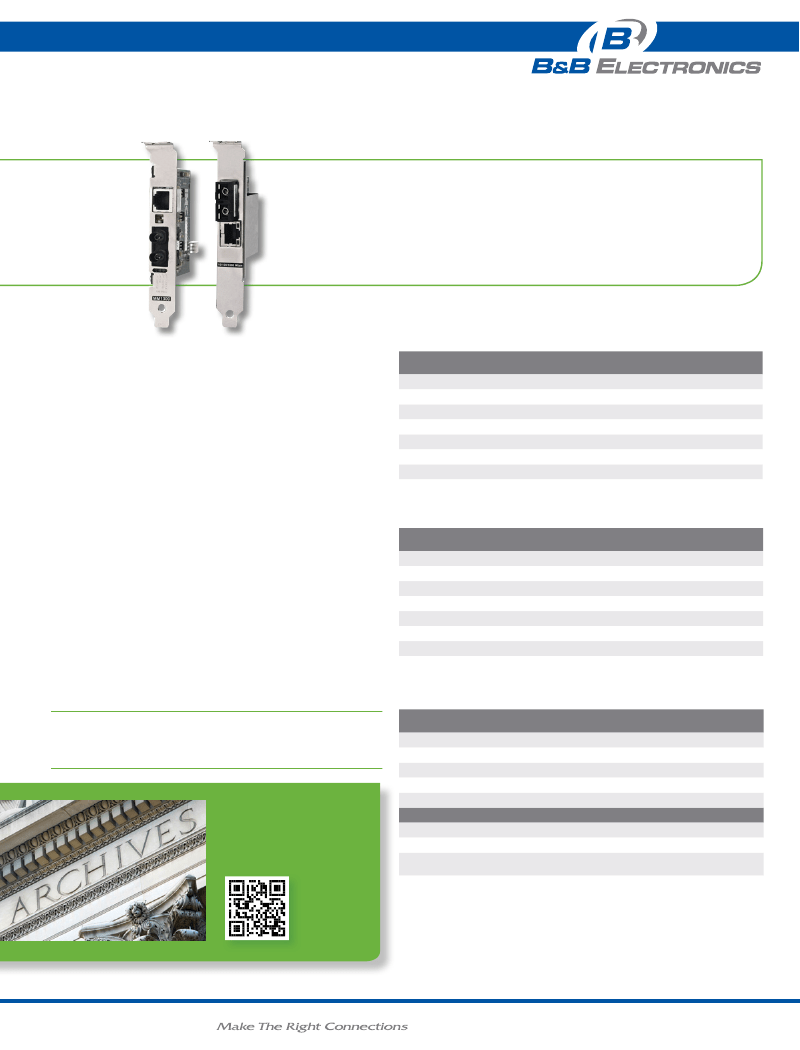

pc card Ethernet media converters
McPC Series 100, 10/100 & Gigabit
product FEaturEs
•
•
•
•
Easily installs inside a desktop PC
No configuration required, connects to existing NIC card
No drivers to install
Available in an ISA or PCI style bracket
McPC Series Media Converters are ideal for Fiber-to-the-Desktop
(FTTD) applications and for companies with frequent workstation
moves and changes. Installing inside a PC or workstation, and plugging
into an adjacent network interface card (NIC), these compact units
eliminate the need to place Media Converters on top of desks or
computers, reducing clutter of cords and adapters at the workspace.
the McPC series includes:
• 100 Mbps Fast Ethernet (TX/FX) - Designed to connect to NIC
cards running at Fast Ethernet speeds
•
10/100 Mbps - A media converter that auto-senses the
connected device’s rate (10 Mbps or 100 Mbps) and duplex
mode (Half-Duplex/Full-Duplex)
• 1000 Mbps Gigabit Ethernet (TX/SX or /LX) - Converts 1000
Mbps over copper to 1000 Mbps over fiber. Ideal for bringing
Gigabit speed connectivity to the desktop
McPC converters accommodate crossover or pass through cables,
with either a pushbutton MDI/MDIX switch or AutoCross, a feature
which automatically selects the correct operating mode. Units also
feature handy status LEDS to assist in network diagnostics and
troubleshooting. In addition, McPC TX/FX and McPC 10/100 include
troubleshooting features that make it easy to isolate fiber breaks.
accEssorIEs
806-39230
- SATA Cable for McPC
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
McPC tx/Fx 100 Mbps isa
855-13127 MM1300-ST
1
5 km
855-13128 MM1300-SC
1
5 km
40 km
855-13328 SM1310/PLUS-SC 1
McPC tx/Fx 100 Mbps PCi
855-12127 MM1300-ST
1
5 km
855-12128 MM1300-SC
1
5 km
855-12328 SM1310/PLUS-SC 1
40 km
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
McPC 10/100 Mbps isa
855-13260 MM850-ST
1
2 km
855-13261 MM850-SC
1
2 km
1
5 km
855-13263 MM1300-SC
McPC 10/100 Mbps PCi
855-12260 MM850-ST
1
2 km
855-12261 MM850-SC
1
2 km
855-12263 MM1300-SC
1
5 km
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
McPC-gigabit 1.25 gbps PCi
855-12900 MM850-SC
1
220/550 m
855-12901 SM1310-SC
1
15 km
855-12902 SM1310/PLUS-SC 1
40 km
855-12903 SM1550/LONG-SC 1
80 km
single-strand FiBer*
855-12904
SSLX-SM1310-SC
1
15 km
855-12905
SSLX-SM1550-SC
1
15 km
SSLX-SM1310/
855-12906 PLUS-SC
1
40 km
SSLX-SM1550/
1
40 km
855-12907 PLUS-SC
ethernet ethernet
Ports
ConneCtor
1
1
1
1
1
1
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
ethernet
Ports
1
1
1
1
1
1
ethernet
ConneCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
ethernet
Ports
1
1
1
1
1
1
1
1
ethernet
ConneCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
In thE FIEld
High Bandwidth for
National Archives
Industry: Enterprise IT
Product: Mc PC Multi-mode Fiber
Media Converters
www.bb-elec.com/
Archives
Carrier data charges
may apply.
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
www
.
bb
-
elec
.
com
|
McPC Series 100,10/100 & Gigabit_3713ds
pc card Ethernet media converters
McPC Series 100, 10/100 & Gigabit
SpecificationS
Technical
Save money by keeping existing copper network card (NIC) and converting inside
the PC
No drivers to install; McPC mounts inside any PC or workstation with a standard
PCI or ISA slot
Includes a standard 4-pin peripheral power connector
AutoCross or push-button selectable MDI/MDIX, depending on the unit
50/125μm or 62.5/125μm multi-mode fiber
Includes status LEDs
RoHS-Compliant
Plug-and-play operation
McPc 100 MbPs (TXFX)
100 Mbps twisted pair copper to fiber media conversion
IEEE 802.3u 100Base-TX twisted pair
Features LinkLoss and FiberAlert
Features Auto Negotiation
McPc 10/100 MbPs (TP-TX/FX)
10 Mbps and 100 Mbps to 100 Mbps twisted pair, auto-sensing media conversion
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX or SX fiber
Features Auto Negotiation
McPc GiGabiT
1000 Mbps twisted pair to fiber media conversion
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
Optionally available for single-strand fiber
connecTors
RJ45, ST and SC
Supports Half- and Full-Duplex operation

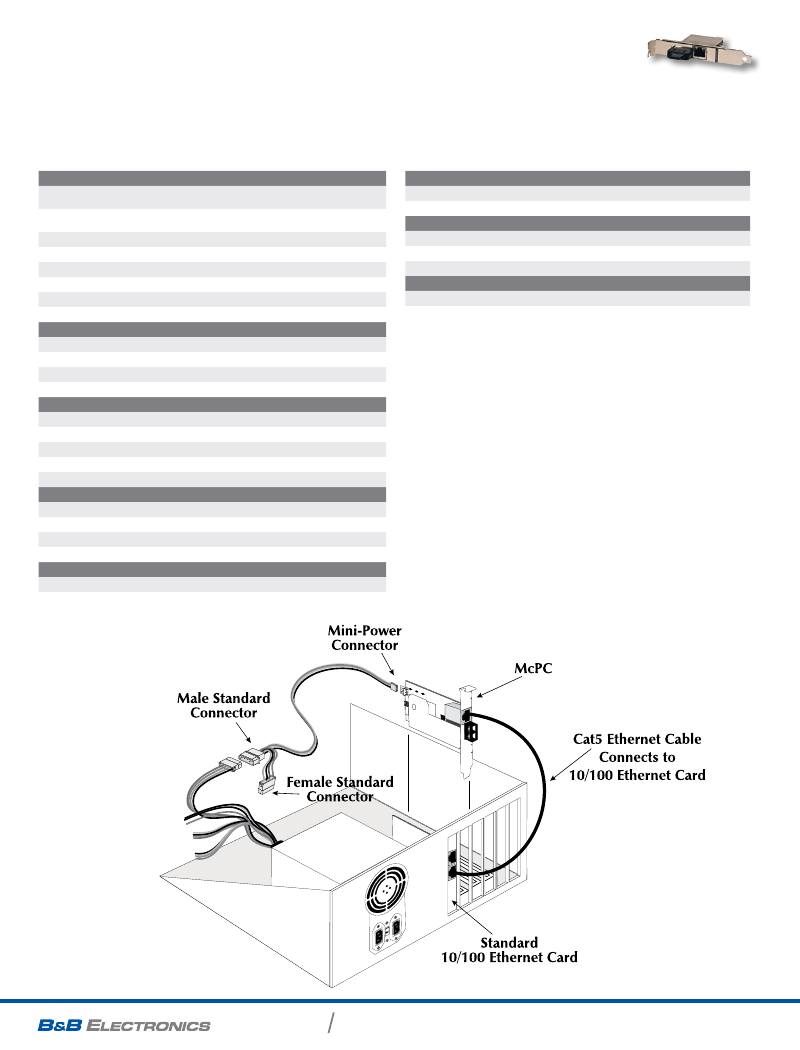

mEchanIcal dIagram
Mechanical
PCI, ISA Slot Configurations
Shipping Weight
environMental
Operating Temperature
Storage Temperature:
Operating Humidity
regulatory approvals
FCC Class B
UL/cUL, CSA, CE
0.6 lbs (0.22 kg)
+32° to +122° F (0° to +50° C)
-4° to +158° F (-20° to +70° C)
5% to 95% (non-condensing)
