RoHS Recast Compliant
ATA Disk Module 5S
ADM5S 40P/180D Specifications
November 26, 2015
Version 1.1
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
ADM5S
AP-FMxxxxD560XS-XTXXX
Features:
Standard ATA/IDE Bus Interface
– ATA command set compatible
– Compliant with ATA/ATAPI-8
– ATA operating mode supports up to:
PIO Mode up to 4
Multiword DMA Mode up to 2
Ultra DMA Mode up to 6
Capacity
– 128, 256, 512 MB
– 1, 2, 4, 8, 16, 32 GB
Performance*
– Sustained read: Up to 75 MB/sec
–
Sustained write:
Up to 65 MB/sec
Flash Management
– Advanced Wear-leveling algorithms
– Built-in Hardware ECC
– Flash block management
– Power Failure Management
– S.M.A.R.T.
NAND Flash Type:
SLC
MTBF >
1,000,000 hours
Temperature Ranges
– Operation:
Standard : 0°C to 70°C
Extended : -40°C to 85°C
– Storage: -40°C to 100°C
Connector Type
– 40-pin female connector
Power Consumption *
– Supply voltage: 3.3V / 5V
– Active mode: 280 mA
– Idle mode: 15 mA
Form Factor
– ATA Disk Module
– Without Housing
Dimensions: 50.93x25.95x6.00 (unit:
㎜)
– With Housing
Dimensions: 58.99x27.83x6.25 (unit:
㎜)
ATA Secure Erase
RoHS Recast Compliant (2011/65/EU)
Master/Slave Switch (optional)
Note: the values addressed for performance and power consumption are typical and may vary in real world applications due to
various platform configurations.
1
© 2015 Apacer Technology Inc.
Rev. 1.1
ADM5S
AP-FMxxxxD560XS-XTXXX
Table of Contents
1. General Description .............................................................................. 3
1.1 Performance-Optimized Controller ...................................................................................................... 3
1.1.1 Power Management ...................................................................................................................... 3
1.1.2 DATA Buffer .................................................................................................................................. 3
2. Functional Block ................................................................................... 4
3. Pin Assignments .................................................................................... 5
4. Product Specifications.......................................................................... 6
4.1 Capacity ............................................................................................................................................... 6
4.2 Performance ........................................................................................................................................ 6
4.3 Environmental Specifications .............................................................................................................. 7
5. Flash Management ................................................................................ 8
5.1 Advanced wear-leveling algorithms..................................................................................................... 8
5.2 Built-in Hardware ECC ........................................................................................................................ 8
5.3 Flash Block Management .................................................................................................................... 8
5.4 Power Failure Management ................................................................................................................ 8
6. Software Interface ................................................................................ 9
7. Electrical Specifications..................................................................... 11
8. Mechanical Specifications ................................................................. 12
8.1 Without Housing ................................................................................................................................ 12
8.2 With Housing ..................................................................................................................................... 13
9. Product Ordering Information ............................................................. 14
2
© 2015 Apacer Technology Inc.
Rev. 1.1
ADM5S
AP-FMxxxxD560XS-XTXXX
1. General Description
Apacer ATA Disk Module 5S (ADM5S) SSD delivers ultra smooth performance and extremely low power
consumption. This device supports DMA mode up to UDMA 6 that offers advanced data transfer
technology and internal memory efficiency, which effectively decreases the loading for the microprocessor.
Compliant with ATA/ATAPI-8 standards, our ADM5S supports data transfer modes up to PIO 4, Multiword
DMA 2, and Ultra DMA 6. Equipped with power Error Correction Coding (ECC) up to 72 bit/1KB, the
ADM5S can provide high data integrity. Aside from data efficiency, the ADM5S also comes with power
management. The device can work at 3.3V or 5V power supply, with the output voltage automatically
adjusted by the voltage regulator in the core. In addition, the built-in ECC engine can support multi-mode
correction capability up to 72 bits and perform effective decoding throughput with high reliability.
Well suited for embedded flash storage applications by offering new and expanded functionalities as well
as more cost-effective designs, better performance and increased reliability, ADM is designed to work at
either 5 or 3.3 Volts, and supports the standard ATA driver complying with all major operating systems
such as Microsoft’s Windows series, Apple’s Mac OS family, and Unix variants. Featuring technologies as
Advanced Wear-leveling algorithms, S.M.A.R.T, Intelligent Power Failure Recovery, and ATA Secure
Erase, Apacer’s ADM assures users of a versatile device on data storage.
1.1 Performance-Optimized Controller
The heart of an ATA-Disk Module is the ATA controller, which translates standard ATA signals into the
data and controls of the flash media. This proprietary ATA controller is specifically designed to attain high
data throughput from the host to the flash.
1.1.1 Power Management
The controller unit of this ADM storage device is made for power efficiency. It comes with built-in 2.7V
voltage detectors for power fail prevention. In addition, it also supports 1.2V power-on reset.
1.1.2 DATA Buffer
The ATA-Disk Module Controller is programmed with a 128KB data buffer to optimize the host’s data
transfer to and from the flash media.
3
© 2015 Apacer Technology Inc.
Rev. 1.1
ADM5S
AP-FMxxxxD560XS-XTXXX
2. Functional Block
The ATA-Disk Module (ADM) includes the ATA controller and flash media, as well as the ATA standard
interface. Figure 2-1 shows the functional block diagram.

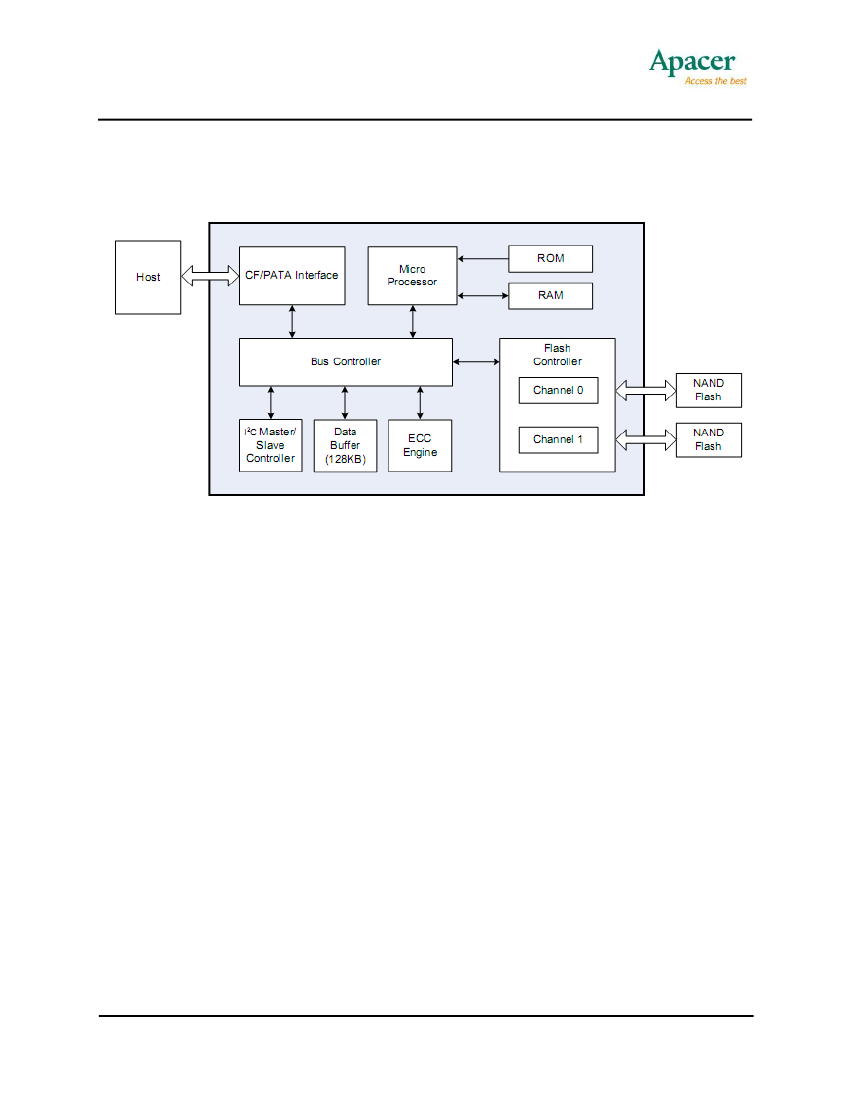

Figure 2-1:
Functional block diagram
4
© 2015 Apacer Technology Inc.
Rev. 1.1
