DS-270GB-S6A1E Overview

Embedded Box Computers Intel Celeron J1900 w/ N14M, barebone

DS-270GB-S6A1E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Advantech
Product Category	Embedded Box Computers
RoHS	Details
Factory Pack Quantity	1

Preview

Download Datasheet

View All

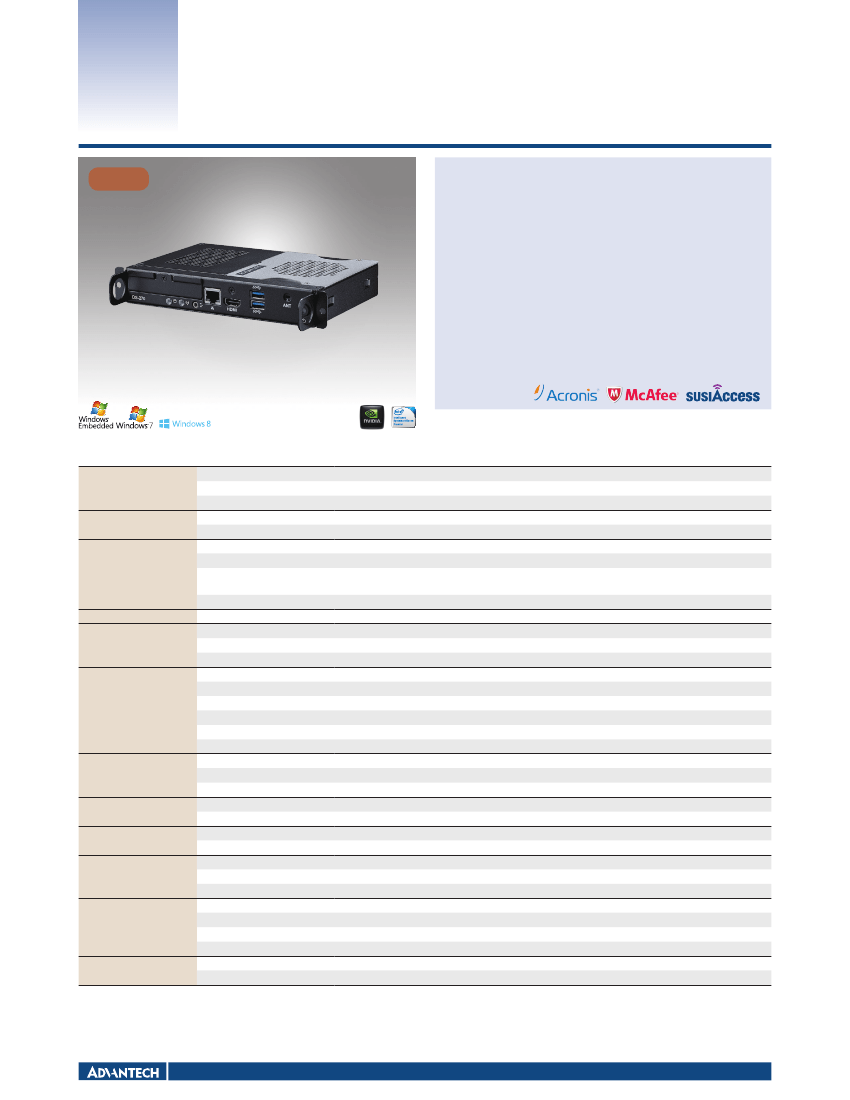

DS-270

NEW

OPS Intel Celeron J1900 Quad-Core SoC

with Advanced NVIDIA GeForce GT730M

Graphics up to 4K resolution

Features

Intel Celeron J1900 low power Quad-Core SoC OPS platform

Integrated NVIDIA GeForce GT 730M to support up to 4K2K resolution

(3840 x 2160 @ 30Hz)

Designed compliant with OPS (Open Pluggable Specification)

Content management software built-in for content editing, scheduling and

remote monitoring functions

Slot-in Integration, easy maintenance

Specifications

Processor System

Memory

CPU

System Chipset

BIOS

Technology

Max. Capacity

Chipset

Memory Size

Resolution (Chipset support)

Video format

SATA Interface

Interface

Controller

Connector

JAE Connector

HDMI (front)

LAN

USB

Audio

Mini-PCIe (Internal)

Management

Power Consumption

Input Voltage

Output

Interval

Dimensions (W x H x D)

Weight

Operating Temperature

Relative Humidity

Vibration Resistance

Operating System

Remote Device Management

System Recovery

Anti-Virus

Electromagnetic

Safety

Intel Celeron J1900 QuadCore SoC 2.00GHz

Integrated in CPU

AMI uEFI 64M bit

2 x DDR3L 204-pin SO-DIMM*

8 GB (up to 4GB per each SO-DIMM)

NVIDIA GeForce GT730M

Independent display memory 1024MB

HDMI up to 3840 x 2160 @ 30Hz (Front);

HDMI/ DP up to 3840 x 2160 @ 30Hz (via OPS interconnection)

H.264, VC1, MPEG-1, MPEG-2, MPEG-4 Part 2SP, MPEG-4 ASP, WMV9, DivX3.11

1 x 2.5-inch SATA II HDD/SSD (supports 7mm height only)

Gigabit LAN Controller

Intel I211

1 x RJ-45

1 (JAE TX25 80-pin)

1 (RJ-45)

2 (USB 3.0 compliant)

1 x Line-out (supports Jack Sense via OS setting)

1 (full size, support mSATA)

ACPI 3.0

Typical: 11.82W (w/o expansion); Max.: 21.84W (w/o expansion)

12V -24V DC-in (via OPS interconnection)

Interrupt, system reset

Programmable by SUSIAccess

200 x 30 x 119 mm (OPS compliant)

1.5 kg (3.3 lb.)

0° C ~ 40° C (32~104° F) w/ HDD; 0° C - 50° C (32~122° F) w/ SSD

95% @ 40° C (non-condensing), operating

0.2Grms, IEC 60068-2-64, random, 5-500 Hz, 1 Oct./ min, 1hr/ axis (w/ HDD)

Windows 8 (64bit), Windows 7 (64bit), Linux (by project)

SUSIAccess

Acronis

McAfee

CE, FCC Class B, BSMI, C-Tick

UL, CB, CCC, BSMI

Display

Storage

Ethernet

I/O Interface

Power Requirement

Watchdog Timer

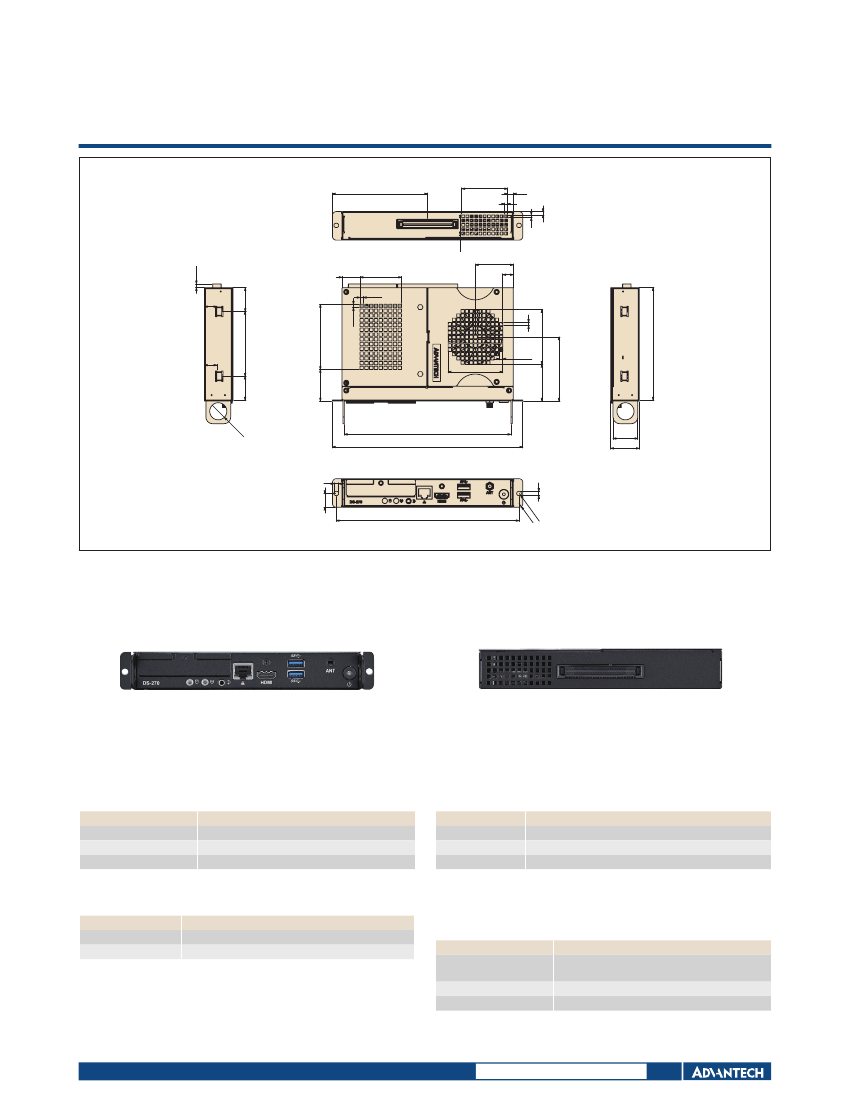

Physical Characteristics

Environment

Software Development Kit

Certification

*If only one RAM, please insert it into SO-DIMM 1 slot and boot up.

Digital Signage Platforms

All product specifications are subject to change without notice

Last updated : 3-Jun-2015
