Fully Managed Industrial Ethernet Switch
All Gigabit, PoE+, SNMP Modbus/TCP
Models SEGP510-2SFP-T, SEGP512-4SFP-T
www.advantech-bb.com
Features & Benefits

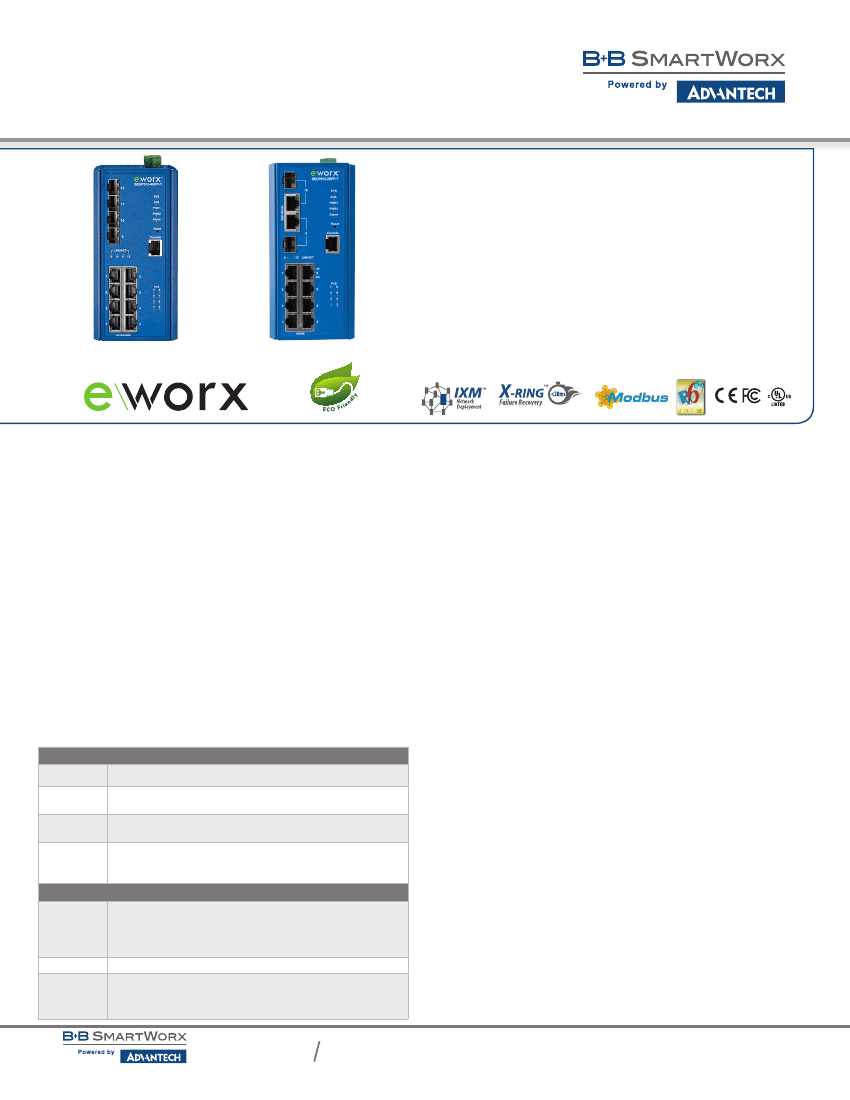

SEGP512-4SFP-T
SEGP510-2SFP-T
• 8-port 10/100/1000 Mbps + 2-port Gigabit Combo (RJ45 or SFP) Uplink
• 8-port o10/100/1000Mbps + 4-port Gigabit SFP Uplink
• Full suite of Layer 2 functionality and advanced diagnostic tools
• IEEE802.3af/at PoE/PoE+ standard compliant, up to 240W as total PoE power budget
• Smart PoE Management, allowing to reboot PD (Powered Device) device remotely.
• Energy Efficient Ethernet (EEE), IEEE 802.3az for low energy consumption
• Jumbo Frame support, up to 9,216 bytes
• IXM™ function enables the cross management for fast deployment
• X-Ring™ function offers self-healing recovery time less than 20 ms
• Redundant Power Inputs
• Wide Temperature Range -40 to 75°C
• EMS Level 3 Radiated/Conducted noise protection
• UL508 (Industrial Control Panel), NEMA TS2 (Traffic Control), EN50121-4 (Rail
Signal Control)
Introduction
The SEGP500 series is a fully managed PoE+ Gigabit Ethernet switch with industrial,
ruggedized features designed to work in harsh environment applications. This switch
offers all the features expected in a managed switch such as VLAN, IGMP Snooping,
Network Redundancy, Link Aggregation, SNMP V1,V2c,V3, Web and Telnet support.
Smart PoE Management features allow advanced PoE settings and monitoring.
Comprehensive network security features such as SSH, HTTPS/SSL, TLS, TTLS,
PEAP and Radius are also offered.
The SEGP500 series support Power over Ethernet, simplifying deployments with
PTZ cameras, wireless access points (APs), and other standards-compliant powered
devices. The products comply with the 802.3af/at PoE+ standards, supporting up to
30W on each PoE port, not to exceed the switches specific power budget. Using
the management interface, an administrator can control various PoE functions, such
as remotely rebooting cameras or access points, from anywhere on the network,
including over the Internet.
The SEGP500 series switches features a powerful suite of diagnostic, monitoring,
network performance capabilities and industry leading eWorx IXM™ cross
management technology: Cable diagnostics, IPv4/IPv6 ping, fiber SFP monitoring
(DDMI), port utilization, traffic statistics, QoS and rate limiting - all available from the
Web GUI. Also IXM™ allows the installer to auto synchronize firmware updates and
push configuration settings to either individual or groups of switches.
COMMUNICATIONS
IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.1p, 802.3az,
Standards
802.1w, 802.1s, 802.1Q, 802.1X, 802.1ad, 802.3af, 802.3at
10/100/1000Base-T(X), Optional 100Base-FX,
LAN
1000Base-SX/LX/LHX/XD/ZX/EZX
Transmission
Distance
Transmission
Speed
INTERFACE
Ethernet: 100m (4-wire Cat.5e, Cat.6 RJ-45 cable suggested for GB port)
SFP: 110km (depends on SFP)
Ethernet: 10/100 /1000 Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000Mbps
Outstanding L2 Managed Feature Design
Specifications
8 x RJ45 + 2 x RJ45/SFP combo ports - SEGP510-2SFP-T
8 x RJ45 + 4 x SFP ports - SEGP512-4SFP-T
Connectors
1 x RS-232 Console port (RJ45 connector)
1 x Reset bottom
6-pin removable screw terminal (power & relay)
Ethernet
Auto Sensing, 10/100BaseTX, 10/100/1000BaseTX, Duplex and MDIX
PWR1, PWR2, SYS, Alarm and R.M.
LED Indicators 10/100/1000 T(X): Link/Activity, Speed, PoE
Gigabit Copper: Link/Activity, Speed
SFP: Link/Activity
orders@advantech-bb.com
support@advantech-bb.com
IEEE802.3az
– Energy-Efficient Ethernet (EEE) is a set of enhancements to the
twisted-pair and backplane Ethernet family of computer networking standards that
allows for less power consumption during periods of low data activity.
Smart PoE Management
– The PoE management features allow the user to
use the management interface, an administrator can control various PoE functions
such as the power budget per port, priority, classification and monitor of PoE
status such as the voltage, current, power and temperature per port.
IXM™
– Offers auto synchronization function of firmware and configuration settings
to make middle/large-scale deployment of multiple switches fast and easy. Built-
in Web GUI feature, no need for extra software installation on a computer.
X-Ring™
– Sub-20ms self-healing/ring recovery technology. X-Ring™
supports
different topology options and allows different ring healing methods to coexist in
one switch - Couple Ring, Dual Homing and Multi-couple Ring - reduce redundant
network cabling and planning costs and ensure high reliability of your industrial
network applications.
Multiple Account Access
– This feature allows the network manager to
create user accounts with differing permissions. User ID’s can be created with
a wide variety of access - from simple device monitoring to full maintenance
accessibility, thus ensuring security and offering flexibility for field deployment.
IPv6
– A future-proof feature, IPv6 (Internet Protocol version 6) is a set of
specifications from the Internet Engineering Task Force (IETF) that is an upgrade
of IP version 4 (IPv4). The basics of IPv6 are similar to those of IPv4 - devices can
use IPv6 as source and destination addresses to pass packets over a network.
IGMP Snooping
– The Internet Group Management Protocol is a feature that
allows the managed switch to forward and filter multicast traffic intelligently,
designed for the video streaming and automation control network applications.
DDM
– Digital-diagnostic-monitoring ("digital optical monitoring" or DOM) provides
a user with critical information concerning the status of transmitted and received
signals. This approach allows for better fault isolation and error detection.
Cable Diagnostics
– This feature will enable you to verify the length of a cable
right from the switch to the other end. This is essential in diagnosing faults as a
break in the cable can be easily identified on a single wire within the cable, as well
as shorts and crossed-pairs.
Dual Image
– Considering possible failures during FW upgrades, such as power
failure or human error, dual image provides a backup image in case the system
can’t boot up through the primary image. The system automatically switches to
the backup image to reduce downtime.
Embedded Watchdog Timer
– This feature, embedded in our managed
switches, when the user can't easily access the field switch or is unable to react to
faults in a timely manner. Used to detect and recover from switch malfunctions.
Ease of Use
– 10/100BaseTX or 10/100/1000 Mbps ports are auto sensing
and auto configuring. Each copper port is automatically negotiated for maximum
speed and performance by default, but can also be configured individually via the
user interface. A powerful inside processor allows wire speed capability on all.
All product specifications are subject to change without notice.
SE500_Full GB-PoE_5016ds
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Fully Managed Industrial Ethernet Switch
All Gigabit, PoE+, SNMP Modbus/TCP
Models SEGP510-2SFP-T, SEGP512-4SFP-T
SWITCH PROPERTIES
MAC Table Size
8K
Packet Buffer Size 4.1Mbit
Switching Capacity 20 Gbps - #SECP510-2SFP-T
32 Gbps - #SECP512-4SFP-T
Jumbo Frame
9,216 bytes
Priority Queues
8
Max. Number of
256
Available VLANs
VLAN ID Range
VID 1 to 4094
IGMP Groups
256
SOFTWARE
Management
Web interface, Serial interface (Console), WebAccess NMS™,
Multiple user accounts, LLDP, SNMP v1/v2c/v3, Traps, SMTP,
RMON, Smart PoE management, SNTP, Standard MIB,
Private MIB
HTTP/TFTP, Command line interface (CLI), IPv4/IPv6, TELNET,
DHCP server/ client, DHCP option 66/67/82, Flow control, Ingress/
Egress Rate limit, Jumbo frame
802.1x, IP Security (Trusted Host), DoS prevention, HTTPS/SSL,
SSH, PEAP, RADIUS, Multiple account setting, Storm control,
Port-IP Binding, SNMPv3 (Encryption)
X-Ring™ (Self-Recovery time < 20 ms), STP/RSTP/MSTP,
LACP(Link Aggregation Control Protocol)
Port statistics & utilization, LLDP/IGMP/MLD statics, Loop
detection, Power status
Multicast (IGMP Snooping/Querier), Unknown multicast filtering,
802.1Q VLAN, Port-based VLAN, GVRP, GARP, Q in Q, QoS (IEEE
802.1p) with 8 classes and TOS/DiffServ, Flow control
Modbus/TCP
Cable Diagnostic, IPv4/IPv6 Ping Test, Syslog, Port Mirror, DDM
(Digital-Diagnostic-Monitoring), Port Mirroring 1:1 and N:1
IXM™ Cross management platform for fast deployment,
Configuration backup manager, Import/ Export configuration files,
Firmware upgrades
Remote reboot/reset device, Dual Image, Embedded watchdog
timer, Multiple account setting (Admin/User)
Software Specifications
POWER
Hardware Specifications
Configuration
Security
Redundancy
Monitoring
Filter
Industrial Protocol
Diagnostics
Enhanced
Provisioning
Miscellaneous
Max. 132W (PoE on), 12.1W (PoE off) - SEGP510-2SFP-T
Max. 252.1W (PoE on), 12.1W (PoE off) - SEGP512-2SFP-T
24~48 VDC (16.8~57.6 VDC) dual inputs - SEGP510-2SFP-T
Power Input
48 VDC (46~57 VDC) dual inputs - SEGP512-2SFP-T
Fault Output
1 Relay Output
Reverse Polarity Protection Present
Overload Current
Present
POE (POWER OVER ETHERNET)
PoE Standard
IEEE802.3af/at (Alternative A)
PoE Pins
With data pairs, 1, 2 and 3, 6
Max. 120W - SEGP510-2SFP-T
PoE Power Budget
Max. 240W - SEGP512-2SFP-T
Max. 30W - each port
PHYSICAL
Dimensions (WxHxD)
74 x 152 x 105 mm (2.91 x 5.98 x 4.13 inches)
Protection Class
IP30
Weight
Net: 1.3 kg, Gross: 1.8 kg
Enclosure
Metal Shell
Mounting
DIN Rail, Wall
ENVIRONMENT
Operating Temperature
-40 to +75°C (-40 to +167°F)
Storage Temperature
-40 to +85°C (-40 to +185°F)
Operating Humidity
10 to 95% (non-condensing)
Storage Humidity
10 to 95% (non-condensing)
MTBF
858,835 hours
CERTIFICATIONS
Safety
UL508
Traffic Control
NEMA TS2
Rail Signal Control
EN50121-4
EMI
FCC Part 15 Subpart B Class A, EN 55011/55022, Class A
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3)
EMS
EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Power Consumption
Product Ordering Information
MODEL #
DESCRIPTION
OPERATING
TEMPERATURE
-40~75°C
-40~75°C
10/100/1000
MBPS
8
8
RJ45
POE/POE+
(PSE)
Up to 30 per port
Up to 30 per port
8-port 10/100/1000 Mbps + 2 GbE Combo
SEGP510-2SFP-T Full PoE+ Managed Ethernet Switch,
120W PoE Budget
8-port 10/100/1000 Mbps + 4 GbE SFP
SEGP512-4SFP-T Full PoE+ Managed Ethernet Switch,
240W PoE Budget
Accessories - Optional (sold separately)
MODEL #
SDR-240-24
SDR-240-48
SDR-480-24
SDR-480-48
DESCRIPTION
DIN Rail Power Supply, 24VDC, 240W, 10A
DIN Rail Power Supply, 48VDC, 240W, 5A
DIN Rail Power Supply, 24VDC, 480W, 20A
DIN Rail Power Supply, 48VDC, 480W, 10A
COMBO PORT,
100/1000BASE- 10/100/1000BASE-T(X) CONNECTOR
SFP
OR 100/1000BASE-SFP
-
4
2
-
LC (SFP)
LC (SFP)
FIBER
OPERATING
TEMPERATURE
-20~70 °C
-20~70 °C
-20~70 °C
-20~70 °C
Accessories - WebAccess/NMS, Networking Management Software
(sold separately)
MODEL #
DESCRIPTION
Trial Version
6 Months Free Trial -- ask your local sales representative
NMS-U050-ULE
Supports maximum 50 nodes
NMS-U300-ULE
Supports maximum 300 nodes
NMS-U01K-ULE
Supports maximum 1,000 nodes
NMS-U04K-ULE
Supports maximum 4,000 nodes
Package Checklist
Ethernet Switch, RJ45 to DB9 console port cable, Protective Caps for unused ports, Quick
Start Guide, DIN-Rail mount bracket (installed), wall mount bracket.
orders@advantech-bb.com
support@advantech-bb.com
Warranty
Limited lifetime warranty for B+B SmartWorx designed and/or manufactured products.
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445

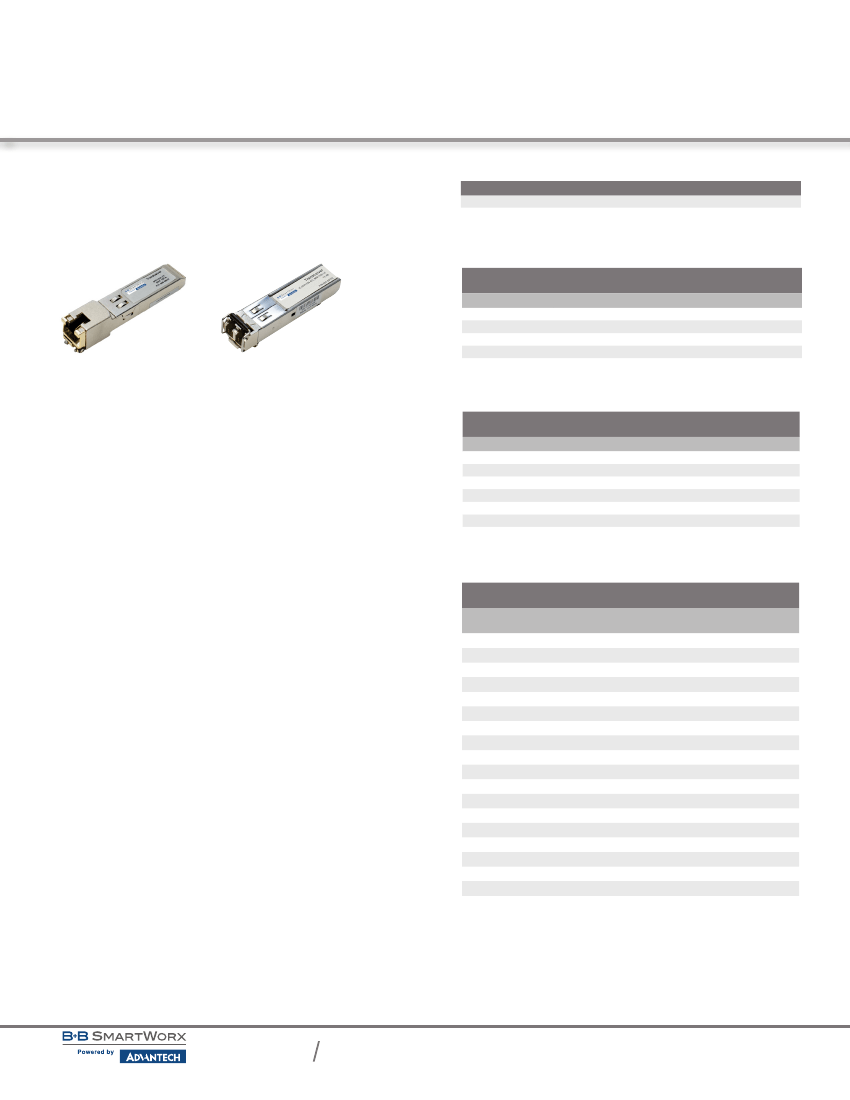

Small Form Pluggable (SFP) Modules
Copper SFP (10/100/1000 and 1000 Mbps)
Fiber SFP (155 Mbps, 1.25 Gbps)
•
•
•
•
•
Future-proof network equipment
Available in SM, MM fiber types
Maximize network hardware
Troubleshooting diagnostics
Plug-and-play operation
Copper SFP Models
MODEL NUMBER
808-39001
808-39010
PORT DESCRIPTION
10 - 1250, TX
1250, TX
CONNECTOR
RJ45
RJ45
DISTANCE
100 m
100 m
IE-SFP Modules: 100 to 155 Mbps, DDMI (OC-3)
MODEL NUMBER
W/ DDMI
808-38101
808-38102
808-38103
808-38104
808-38105
MM850
MM1300
SM1310
SM1310/PLUS
SM1550/LONG
LC
LC
LC
LC
LC
2 km
2 km
20 km
40 km
80 km
PORT DESCRIPTION
FIBER
DISTANCE
POWER
BUDGET
(db)
14.5
11
21
31
31
Copper
Fiber LC
SFPs are compact transceivers that function as modular connectors. Available for
copper (RJ-45) and all common fiber modes, wavelengths and data rates, these
modules allow network operators to connect different interface types to the same
network equipment via an SFP port. The cost of cable upgrades is greatly reduced,
preserving the networking equipment investment – all for the price of a relatively
inexpensive module.
More and more network equipment is being designed with SFP ports to take
advantage of the inherent flexibility and to eliminate the guesswork and uncertainty
of expensive equipment purchases. Remember to select an SFP to match the speed
of your designated port. All modules from B+B SmartWorx carry a limited lifetime
warranty.
IE-SFP Modules: 1.25 Gbps GB Ethernet, DDMI (OC-24)
MODEL NUMBER
W/ DDMI
808-38201
808-38206
808-38200
808-38203
808-38204
808-38205
808-38208
MM850
MM1300
SM1310
SM1310/PLUS
SM1550/LONG
SM1550/XLONG
SM1550/XXLONG
LC
LC
LC
LC
LC
LC
LC
220/550 m
2 km
20 km
30 km
40 km
70 km
120 km
PORT DESCRIPTION
FIBER
DISTANCE
POWER
BUDGET
(db)
7.5
10
14
17
18
21
30
Standard Diagnostics
•
•
•
•
•
SFP Type
Fiber Link Length
Wavelength
Bit Rate
Date Code
DDMI/Extended Diagnostics
•
•
•
•
•
Temperature
Voltage
Bias Current
TX Power
RX Power
IE-SFP Modules: CWDM (155 Mbps/1.25 Gbps), DDMI
MODEL NUMBER
155 Mbps
808-38141
808-38142
808-38143
808-38144
808-38145
808-38146
808-38147
808-38148
808-38149
808-38150
808-38151
808-38152
808-38153
808-38154
808-38155
808-38156
808-38157
808-38158
1.25 Gbps
808-38241
808-38242
808-38243
808-38244
808-38245
808-38246
808-38247
808-38248
808-38249
808-38250
808-38251
808-38252
808-38253
808-38254
808-38255
808-38256
808-38257
808-38258
CWDM-SM1270
CWDM-SM1290
CWDM-SM1310
CWDM-SM1330
CWDM-SM1350
CWDM-SM1370
CWDM-SM1390
CWDM-SM1410
CWDM-SM1430
CWDM-SM1450
CWDM-SM1470
CWDM-SM1490
CWDM-SM1510
CWDM-SM1530
CWDM-SM1550
CWDM-SM1570
CWDM-SM1590
CWDM-SM1610
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
DESCRIPTION
FIBER
DISTANCE
155
Mbps
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
1.25
Gbps
40 km
40 km
40 km
40 km
40 km
40 km
40 km
40 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
POWER
BUDGET (db)
155
Mbps
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
1.25
Gbps
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
Fiber SFP Modules
Robust Industrial Performance
Feature Friendly
•
Extended operating temperature range
•
Hot swappable
•
Available in a wide range of fiber types, wavelengths and transmission rates to meet
almost any networking need
•
Powerful troubleshooting Digital Diagnostics Monitoring Interface (DDMI)
•
•
•
•
•
•
•
•
MSA compliant: available in dual- or single-strand, SC or LC connector
Eye Safety meets Laser Class 1 Compliance with IEC 60825-1
Complies with Telecordia GR-468-CORE
RoHS compliant
Input Voltage: 3.3V
Operating Temperature: -40° to +85° C
Operating Temperature, CWDM: 0° to +70° C
Storage Temperature: -40° to +85° C
Extended Diagnostics
Standard Compliances
Voltage/Temperature
Data Rates
155 Mbps
•
ITU-T G.957, G.958 and IEEE 802.3u
•
Applications: Fast Ethernet, OC-3/STM-1 and other optical links
1.25 Gbps
•
Compliant with specifications for IEEE 802.3z
•
Applications: Gigabit Ethernet and other optical links
NOTES: Fiber SFP Form Factors & Distances
Fiber SFP (OC-3, OC-24) form factors have virtually identical dimensions and are not typically interchangeable;
this will depend on the device type.
For each fiber product listed in the tables, DISTANCE represents an approximate fiber distance based on
industry-standard fiber attenuation specifications. Actual distances will vary for each installation. For complete
power budgets and additional information on calculating specific distances, contact B+B SmartWorx Technical
Support specialists at (815) 433-5100 (USA).
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
56 [2.22
15
45
[0.591] [1.781
Fully Managed Industrial Ethernet Switch
All Gigabit, PoE+, SNMP Modbus/TCP
38
36
[1.481] [1.400]
Models SEGP510-2SFP-T, SEGP512-4SFP-T
84 [3.287]
56 [2.20
10 [0.390]
10 [0.390]

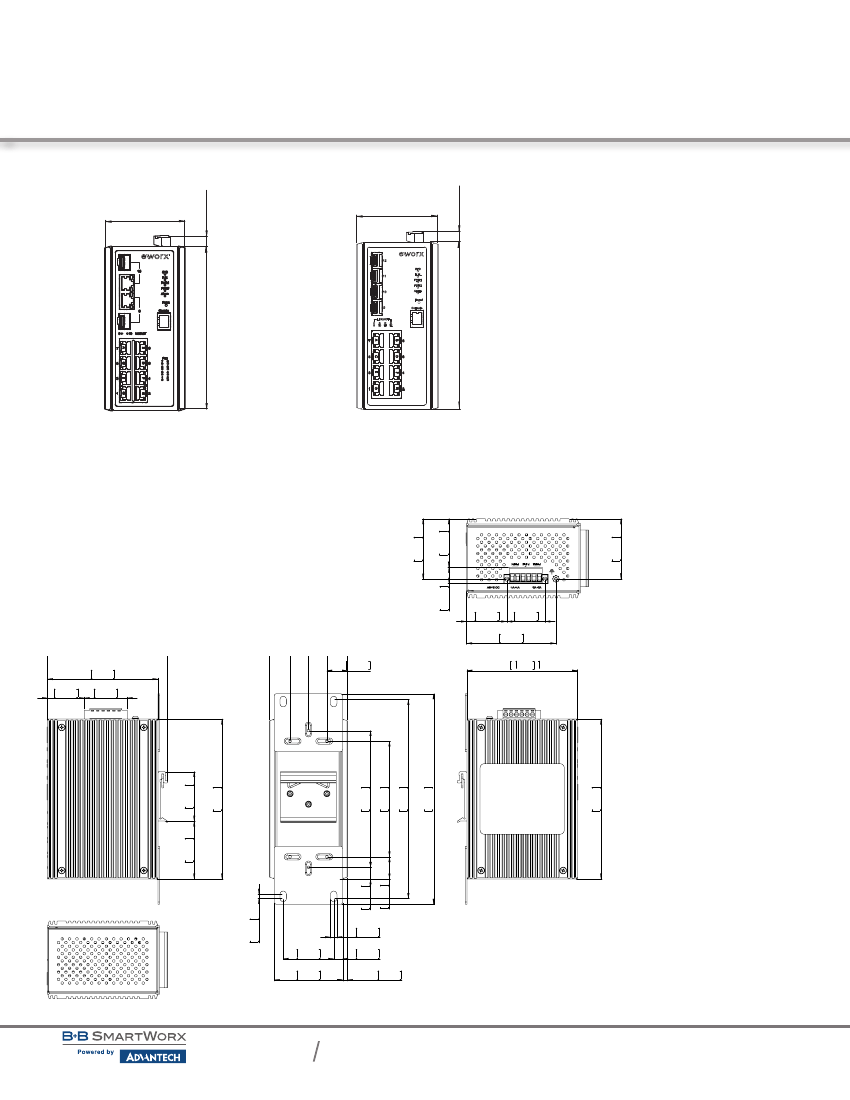

Mechanical Diagram
| Faceplate Detail by
114 [4.488]
Model
Units = [inches] mm
105 [4.134]
35
41
74 [2.913]
74 [2.913]
[1.381] [1.600]
74 [2.913]
37 [1.457]
35
20
[1.378] [0.768]
105 [4.134]
55
47
[2.165] [1.850]
152 [5.984]
152 [5.984]
152 [5.984]
Model SEGP510-2SFP-T
faceplate detail
Model SEGP512-4SFP-T
faceplate detail
6-M3xP0.5
45
1.781
2.222
Mechanical Diagram
| Enclosure
DIN Rail & Panel Mount Options
Units = [inches] mm
38
1.481
36
1.400
84
3.287
114
4.488
105
4.134
41
1.600
35
1.378
20
0.768
74
2.913
37
1.457
56
2.209
45
1.781
15
0.591
56
2.222
15
0.591
38
1.481
36
1.400
84
3.287
114
105
4.488
4.134
105
4.134
41
1.600
56
2.209
11 [0.433]
21 [0.827]
130 [5.118]
110 [4.331]
162 [6.374]
74
2.913
37
1.457
35
1.378
20
0.768
152
5.984
47
1.850
10
0.390
35
1.381
74
2.913
35
1.381
47
1.850
152
5.984
130
5.118
152
110
5.984
4.331
189
7.446
200
7.874
152
5.984
130
5.118
110
4.331
189
7.446
4
0.157
48
1.890
65
2.559
11
0.433
21
0.827
6
0.236
9
0.335
5
0.177
55
2.165
4
0.157
48
1.890
65
2.559
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
11
0.433
21
0.827
6
0.236
9
0.335
5
0.177
55
2.165
200
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
