RoHS Compliant
Serial ATA Flash Drive
SFD25A Product Specifications
December 14, 2015
Version 1.5
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
Serial ATA Flash Drive
APS25AXXxxxx-XTX
Features:
–
–
–
–
–
–
Compliance with SATA Revision 3.1
Serial ATA Revision 3.1
SATA
6.0 Gbps interface
Backward compatible with SATA 1.5 and
3.0 Gbps interfaces
ATA-8 command set
Capacity
8, 16, 32, 64, 128, 256 GB
–
–
–
Temperature Range
Operating:
Standard: 0°C to 70°C
Extended: -40°C to 85°C
Storage: -40°C to 100°C
Supply Voltage
5.0 V
±
5%
Performance*
Interface burst read/write:
600
MB/sec
Standard speed:
–
Sustained read: up to 160 MB/sec
–
Sustained write: up to 150 MB/sec
High speed:
–
Sustained read: up to 530 MB/sec
–
Sustained write: up to 445 MB/sec
–
Random read (4K): up to 88,000 IOPS
–
Random write (4K): up to 76,000 IOPS
–
–
–
–
–
–
–
Power Consumption*
Standard:
–
Active mode: 275 mA
–
Idle mode: 105 mA
High speed:
–
Active mode: 500 mA
–
Idle mode: 65 mA
–
–
–
–
–
–
–
Flash Management
Built-in hardware ECC
Static/dynamic wear leveling
Flash bad-block management
S.M.A.R.T.
Power Failure Management
ATA Secure Erase
TRIM
NAND Flash Type: SLC
SATA Power Management Modes
Form Factor
2.5”
Dimensions with 7mm enclosure:
100.00 x 69.85 x 6.90, unit: mm
Dimensions with 9.5mm enclosure:
100.00 x 69.84 x 9.30, unit: mm
Connector
7-pin SATA signal connector
15-pin SATA power connector
Shock & Vibration**
Shock: 1,500 G
Vibration: 15 G
Device Sleep Mode (optional)
RoHS Compliant
*The
values addressed here are typical and may vary depending on settings and platforms.
**Non-operating
1
© 2015 Apacer Technology Inc.
Rev. 1.5
Serial ATA Flash Drive
APS25AXXxxxx-XTX
Table of Contents
1.
Product Description ............................................................................................... 3
1.1
1.2
1.3
1.4
Introduction ................................................................................................................................................3
Capacity Specification ................................................................................................................................ 3
Performance ................................................................................................................................................3
Pin Assignments ..........................................................................................................................................4
2. Software Interface ..................................................................................................... 6
2.1 Command Set ..............................................................................................................................................6
2.2 S.M.A.R.T. ...................................................................................................................................................6
3.
Flash Management ................................................................................................. 8
3.1
3.2
3.3
3.4
3.5
3.6
3.7
Error Correction/Detection .......................................................................................................................8
Bad Block Management ............................................................................................................................. 8
Wear Leveling .............................................................................................................................................8
Power Failure Management .......................................................................................................................8
ATA Secure Erase.......................................................................................................................................8
TRIM ........................................................................................................................................................... 9
SATA Power Management ........................................................................................................................9
4.
Reliability Specifications ..................................................................................... 10
4.1
4.2
4.3
Environmental .......................................................................................................................................... 10
Mean Time Between Failures (MTBF) ................................................................................................... 10
Certification and Compliance .................................................................................................................. 10
5.
Electrical Characteristics ..................................................................................... 11
5.1
5.2
Operating Voltage ..................................................................................................................................... 11
Power Consumption ................................................................................................................................. 11
6.
Mechanical Specifications ................................................................................... 12
6.1
6.2
7mm Type Dimensions ............................................................................................................................. 12
9. 5mm Type Dimensions ......................................................................................................................... 13
7.
Product Ordering Information ............................................................................. 14
7.1
7.2
Product Code Designation........................................................................................................................ 14
Valid Combination.................................................................................................................................... 15
2
© 2015 Apacer Technology Inc.
Rev. 1.5
Serial ATA Flash Drive
APS25AXXxxxx-XTX
1.
Product Description
1.1 Introduction
Apacer’s SFD25A is a well-balanced solid-state disk (SSD) drive with standard form factor and great
performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed,
making it the ideal companion for heavy-loading industrial or server operations. In regard of reliability, the drive
comes with various implementations including powerful hardware ECC engine, power saving modes, wear
leveling, flash block management, S.M.A.R.T., TRIM, and power failure management.
1.2 Capacity Specifications
Table 1-1
Capacity Specifications
Capacity
8 GB
16 GB
32 GB
64 GB
128 GB
256 GB
Total Bytes*
8,012,390,400
16,013,942,784
32,017,047,552
64,023,257,088
128,035,676,160
256,060,514,304
Cylinders
15,525
16,383
16,383
16,383
16,383
16,383
Heads
16
16
16
16
16
16
Sectors
63
63
63
63
63
63
Max LBA*
15,649,200
31,277,232
62,533,296
125,045,424
250,069,680
500,118,192
*Display of total bytes varies from file systems.
**Cylinders, heads or sectors are not applicable for these capacities. Only LBA addressing applies.
***LBA count addressed in the table above indicates total user storage capacity and will remain the same throughout the lifespan of
the device. However, the total usable capacity of the SSD is most likely to be less than the total physical capacity because a small
portion of the capacity is reserved for device maintenance usages.
1.3 Performance
Table 1-2
Performance (Standard)
Capacity
Performance
Sustained Read
(MB/s)
Sustained Write
(MB/s)
8 GB
155
110
16 GB
155
145
32 GB
160
145
64 GB
160
150
128 GB
160
150
Table 1-3
Performance (High-speed)
Capacity
Performance
Sustained Read
(MB/s)
Sustained Write
(MB/s)
Random Read
IOPS (4K)
Random Write
IOPS (4K)
32 GB
530
270
81,000
62,000
64 GB
530
440
82,000
73,000
128 GB
530
445
82,000
76,000
256 GB
310
440
88,000
76,000
Note: Performance varies from flash configurations or host system settings.
IOPS: measured on 8GB span (16777216 sectors Disk Size), 32 Outstanding I/Os (QD=32), Full Random Data pattern,
4KB Align I/Os and test durations 15minutes.
3
© 2015 Apacer Technology Inc.
Rev. 1.5
Serial ATA Flash Drive
APS25AXXxxxx-XTX
1.4 Pin Assignments
Table 1-4 describes the SFD signal segment, and Table1-5, power segment.

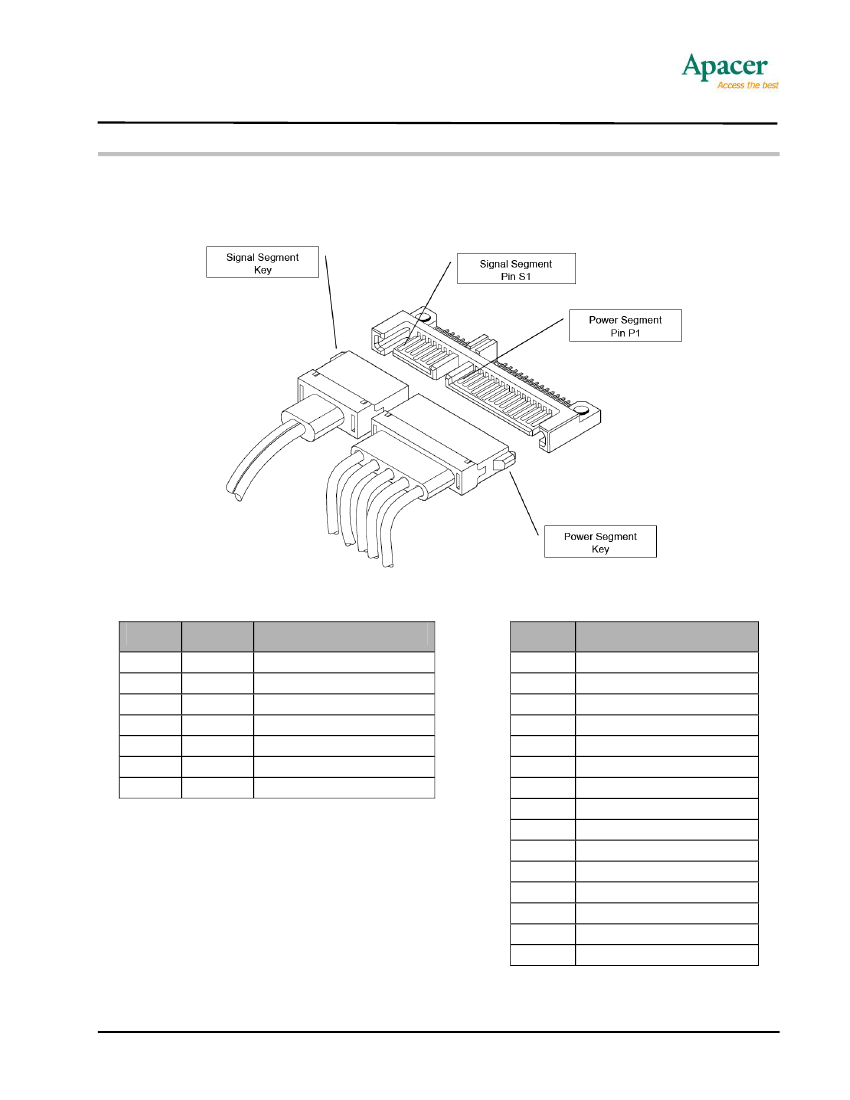

Figure 1-1
SATA Connectors
Table 1-4
Signal Segment
Pin
S1
S2
S3
S4
S5
S6
S7
Type
GND
RxP
RxN
GND
TxN
TxP
GND
+ Differential Receive
Signal
- Differential Receive
Signal
- Differential Transmit
Signal
+ Differential Transmit
Signal
Description
Pin
P1
P2
P3
P4
P5
P6
P7
P8
P9
Table 1-5
Power Segment
Signal/Description
Unused (3.3V)
Unused (3.3V)
Unused or Device Sleep*
Ground
Ground
Ground
5V
5V
5V
Ground
DAS
Ground
Unused (12V)
Unused (12V)
Unused (12V)
P10
P11
P12
P13
P14
P15
*P3 can be configured as Device Sleep trigger by option
4
© 2015 Apacer Technology Inc.
Rev. 1.5
