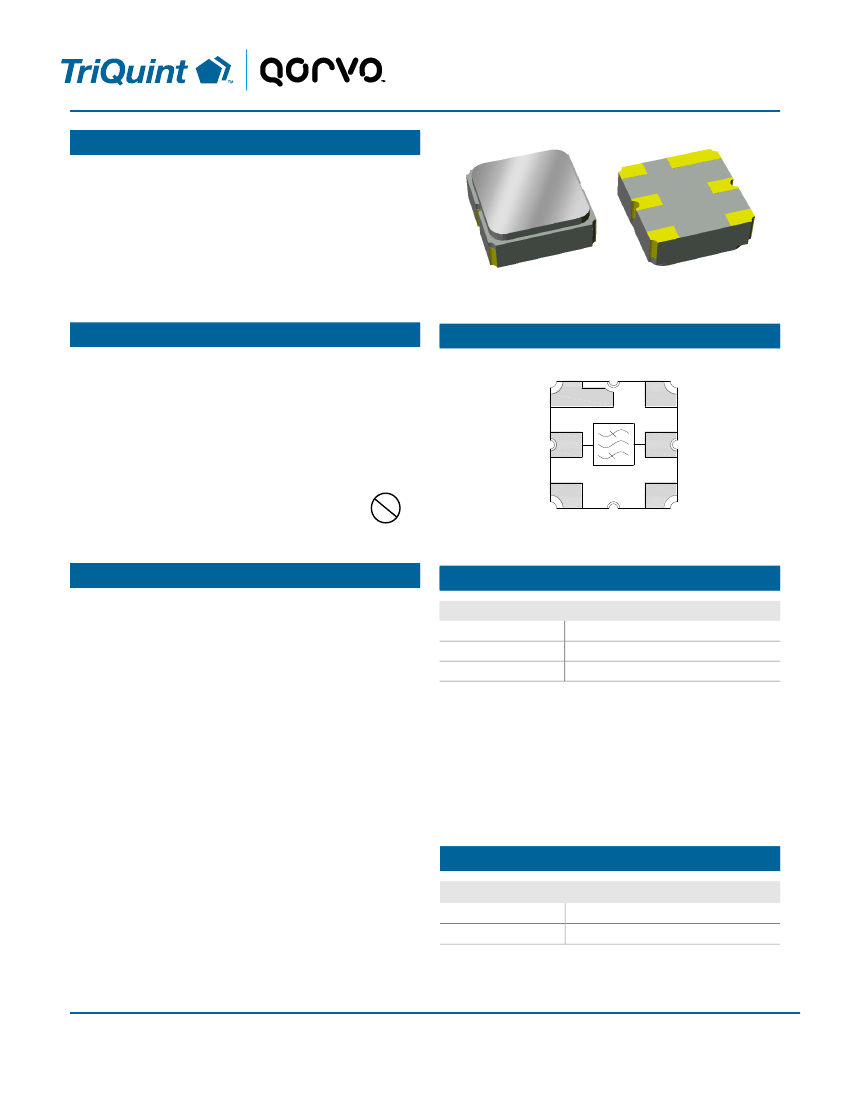

856824
RFMD + TriQuint = Qorvo
897.5 MHz SAW Filter
Applications
For Base Station Applications
SMP
−
12
Product Features
Usable bandwidth 35 MHz
Low loss
Single-ended operation
No impedance matching for operation at 50
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
P
Functional Block Diagram
Top View
Gnd
1
6
Gnd
Input
2
5
Output
Gnd
3
4
Gnd
b
General Description
The TriQuint 856824 is a low loss RF filter with a center
frequency of 897.5 MHz and a bandwidth of 35 MHz.
The insertion loss is 2.5 dB maximum and the filter is
provided in a small surface mount hermetic package.
Pin Configuration
Pin No.
2
5
1,3,4,6
Label
Input
Output
Case Ground
Ordering Information
Part No.
856824
Description
Packaged part
856824-EVB
Evaluation board
Standard T/R size = 5,000 units/reel
Preliminary Data Sheet: Rev D 08-17-15
© 2015 TriQuint
-
1 of 6
-
Disclaimer: Subject to change without notice
www.triquint.com / www.qorvo.com
