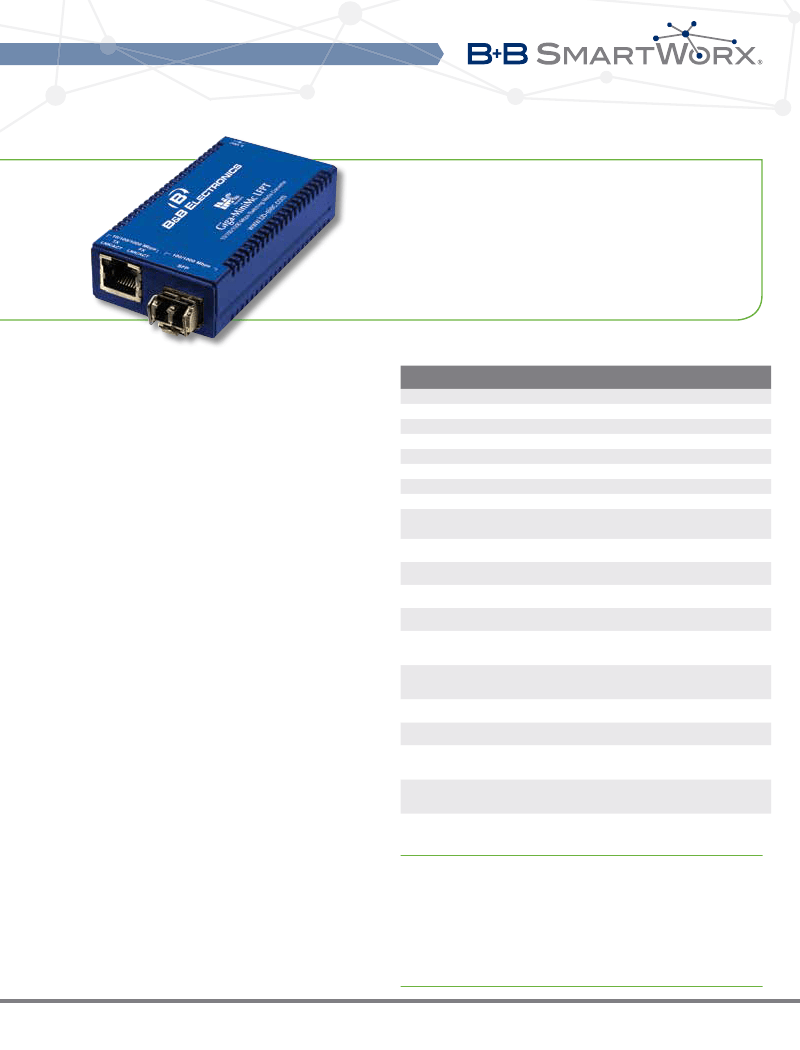

Smallest, Most Reliable Gigabit Switching
Media Converter
Giga-MiniMc LFPT
PRODUCT FEATURES
• One 1000Base-SX or SFP fiber port
• One 10/100/1000 Mbps twisted pair port
• AutoCross automatic selection between crossover or
straight-through connection
• Status LEDs
• LFPT
• 18 connections in the 1.5U high PowerTray/18 Chassis
Media conversion is the most cost-effective solution for extending the
productive life of legacy wiring plants and equipment while allowing
implementation of new technologies. Media conversion’s greatest
benefits are flexibility and cost savings.
Measuring less than 3.5 inches deep and 2 inches wide, and having
both data connections on the same side of the unit—the Giga- MiniMc-
LFPT is the industry’s smallest media converter at a fraction of the cost
of other alternatives. Link Fault Pass Through (LFPT) is permanently
enabled and is a useful diagnostic feature that assists the network
administrator in indicating a fault condition on a given segment
between the interfaces. Plug-and-play operation with a variety of
model types and powering options make the Giga-MiniMc LFPT easy
and convenient to use.
ORDERinG inFORMATiOn
Model
Fiber raNge
Fiber
NuMber
Ports
giga-MiniMc - with sFP/lFPt
856-11700 SFP
1
Various
giga-MiniMc lFPt - Multi-Mode/single-Mode
1
220/500 m
856-11701 SX-MM850-SC
856-11702 MM1300-SC
1
5 km
856-11703 SM1310-SC
1
10 km
856-11704 SM1310/PLUS-SC
1
40 km
856-11705 SM15510/LONG-SC 1
80 km
856-11706 SM1550/SLONG-SC 1
100 km
giga-MiniMc lFPt - single-strand
SSLX-SM1310-SC
1
15 km
856-11710 (1310xmt/1550rcv)
856-11711 SSLX-SM1550-SC
15 km
(1550xmt/1310-SC) 1
856-11712 SSBX-SM-1310-SC 1
10 km
(1310xmt/1490rcv)
SSBX-SM1490-SC
856-11713 (1490xmt/1310rcv)
1
10 km
SSLX-SM1310/
856-11714 PLUS-SC
1
40 km
(1310xmt/1550rcv)
SSLX-SM1550/
856-11715 PLUS-SC
1
40 km
(1550xmt-1310rcv)
SSBX-SM1310-SC
856-11742 (1310xmt/1490-SC) 1
30 km
856-11743 SSBX-SM1490-SC
1
30 km
(1490xmt/1310rcv)
SSLX-SM1490/
856-11744 LONG-SC
1
60 km
(1490xmt/1550rcv)
SSLX-SM1550/
856-11745 LONG-SC
1
60 km
(1550xmt/1490rcv)
* SFP Fiber sold separately
etherNet
Ports
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
etherNet
CoNNeCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
ACCESSORiES
806-39105 - DIN Rail Clip
806-39638 - Double-USB Power Cable, 36”/.9m
806-39650 - 12”/.3m Barrel-Connector Power Cable
850-13086 - IE-PowerTray/18-AC (-20°C to +70°C), 18-slot AC powered chassis
895-39229 - Wall Mount Bracket
www.bb-smartworx.com
|
Enabling connEctEd intElligEncE
Giga-MiniMc LFPT_1115ds
Smallest, Most Reliable Gigabit
Switching Media Converter
Giga-MiniMc LFPT
SpecificationS
Technical
Plug-and-play operation
RJ45 and SC or SFP connectors
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
MTU: Supports Jumbo Frames up to 10240 bytes
Country-specific, high-reliability power adapter
Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 1,488,096 pps for
1000 Mbps)
Status LEDs
Mechanical
Dimensions
Shipping Weight
Power
5 VDC, 600mA
120 VAC, 0.1A
environMental
Operating Temperature:
Storage Temperature:
Operating Humidity
regulatory aPProvals
FCC Class A
UL/cUL, CSA, CE
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
0.7 lbs (.317 kg)
+32° F to +122° F (0° C to +50° C)
-31° F to +167° F (-35° C to +75° C);
5% to 95% (non-condensing)

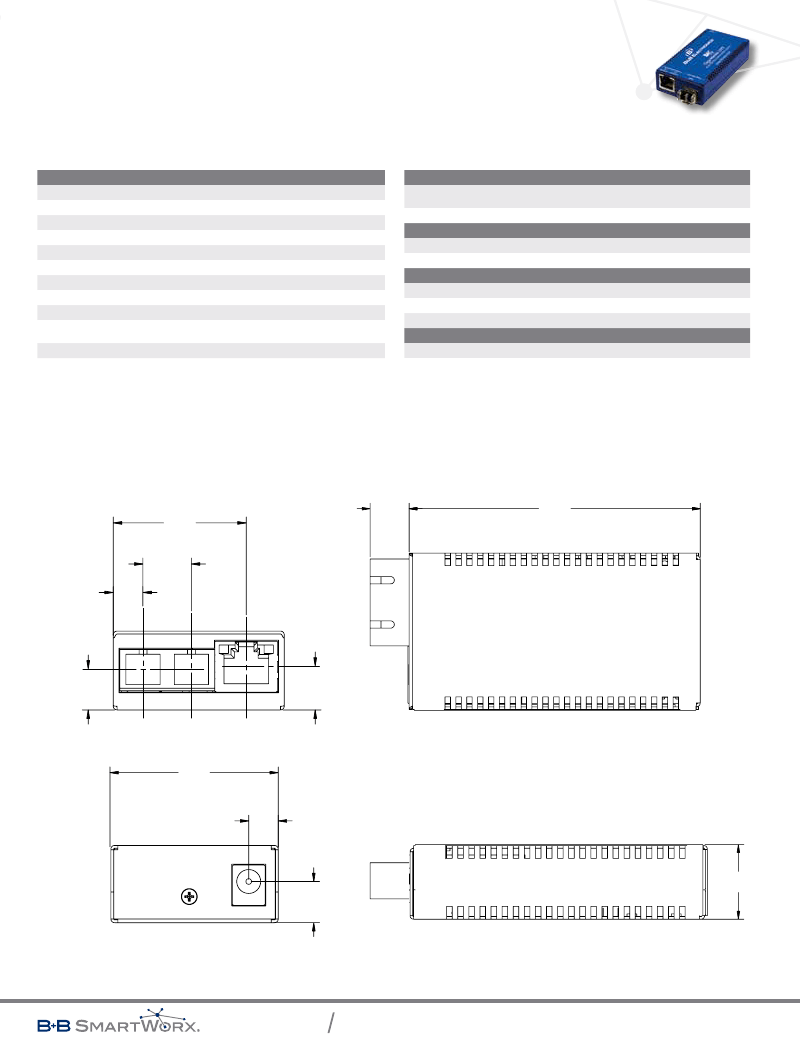

MEChAniCAl DiAGRAM
(dimensions in inches & millimeters)
1.40
(35,6)
.51
(12,9)
REF
.31
(7,9)
.45
(11,4)
3.35
(85,1)
.43
(11,0)
.46
(11,7)
1.81
(46,0)
.32
(8,1)
.44
(11,2)
.84
(21,3)
orders@bb-smartworx.com
support@bb-smartworx.com
