105BN.HMWWB: DescriptionWiFi / 802.11 Modules Intel Centrino Wireless-N 105, SingleBand, 1X1, HMC; CategoryModule/solution; File Size177KB，3 Pages; ManufacturerIntel; Websitehttp://www.intel.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

105BN.HMWWB Overview

WiFi / 802.11 Modules Intel Centrino Wireless-N 105, SingleBand, 1X1, HMC

105BN.HMWWB Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Intel
Product Category	WiFi / 802.11 Modules
RoHS	Details
Protocol Supported	802.11 b/g/n
Frequency	2.4 GHz
Data Rate	150 Mb/s
Interface Type	802.11, PCI
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 80 C
Dimensions	30 mm x 26.8 mm x 2.4 mm
Packaging	Tray
Security	802.1x, EAP-AKA, EAP-FAST, EAP-SIM, EAP-TLS, LEAP, PEAP, TTLS, WPA, WPA2
Antenna Connector Type	Integrated
Factory Pack Quantity	10

Preview

Download Datasheet

View All

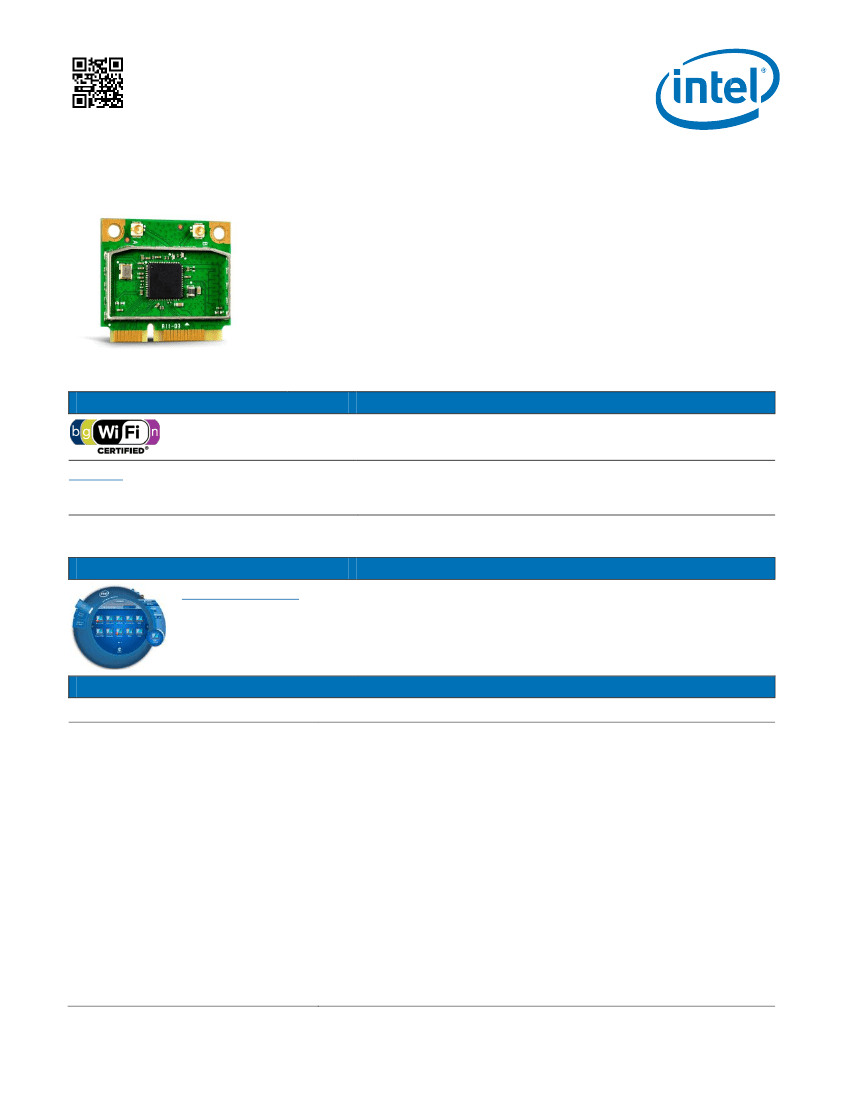

PRODUCT BRIEF

Intel® Centrino® Wireless-N 105

802.11b/g/n, 1x1, single-band Wi-Fi

Intel

Centrino

Wireless-N 105

Good Wireless Performance with Innovative Intel Features

Intel

Centrino

Wireless-N 105 delivers good Wi-Fi performance with innovative Intel-only

features for a richer mobile experience. This single-stream (1x1), single-band, 802.11b/g/n

Wi-Fi product with Wi-Fi Direct* combines good speed (up to 150 Mbps

), range and reliability

with the Intel ® My WiFi Dashboard.

Recommended For

Home email and Web browsing in low to moderate traffic and low interference Wi-Fi

environments.

Next-Gen Wireless Connectivity

Single Stream, Single Band

802.11b/g/n 1x1 and 2.4 GHz

Wi-Fi Direct*

New game-changing technology certified by the Wi-Fi

Alliance for direct device-to-device Wi-Fi connectivity

Energy Efficient

Optimized power modes during periods of inactivity

Delivers up to 150 Mbps speed in the 2.4 GHz band.

Enables Wi-Fi enabled devices to connect directly without the need for a WLAN or

hotspot. With the Intel® My WiFi Dashboard you can chat, transfer files, create a

personal hotspot, and sync over Wi-Fi Direct.*

Saves battery life for greater mobility and convenience.

Ultra Mobile Experience

Intel® My WiFi Dashboard

Visually intuitive app for managing

Wi-Fi Direct* connectivity and

services

Use the ultimate portability of Wi-Fi Direct with the Intel® My WiFi Dashboard on your

Ultrabook™, PC or other devices. Whether you’re connected to a Wi-Fi network, public

hotspot or no network at all – connect, communicate and collaborate with others in

your vicinity. No extra hardware or cloud-based service. No fumbling for USB flash

drives or complicated network setup.

Intel® Centrino® Wireless-N 105 Technical Specifications

General

Dimensions (H x W x D)

Weight

Diversity

Radio ON/OFF Control

Connector interface

LED Output

Operating Temperature (Adapter Shield)

Humidity Non-Operating

Operating Systems

Wi-Fi Alliance

Microsoft WHQL

IEEE WLAN Standard

Architecture

Roaming

26.80 mm x 30.00 mm x 2.4 mm Max (Top Side) / 1.35 mm Max (Bottom Side)

2.9g

On-board diversity support for systems designed with two antennas

Supported in both hardware and software

Half Mini Card form factor, based on PCIe electrical interface

On/Off

0° to +80° C

50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)

Microsoft Windows 7*, Linux* Microsoft Windows 8*

Wi-Fi CERTIFIED* for 802.11b, 802.11g, 802.11n, WMM*, WPA*, WPA2*, and WPS

Wi-Fi Direct for peer to peer device connections

Yes

IEEE 802.11b/g/n, 802.11d, 802.11e, 802.11i, 802.11h

Infrastructure and SoftAP

Supports seamless roaming between respective access points

(802.11b, 802.11g, 802.11a/b/g, and 802.11b/g/n)

Intel® Centrino® Wireless-N 105 Technical Specifications

Security

Authentication

Authentication Protocols

Encryption

Wi-Fi Direct* Encryption and Authentication

Product Safety

WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA

PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2

64-bit and 128-bit WEP, AES-CCMP, TKIP

WPA2, AES-CCMP

UL, C-UL, CB (IEC 60950-1)

Compliance

Retail (Credit Card Processing)

Government

PCI, CISP

FIPS

,FISMA

Product Name

Intel

Centrino

Wireless-N 105

Model Number

105BNHMW

Version

802.11b/g/n

For more information on Intel® Centrino® wireless products, visit

intel.com/go/wireless

Based on the theoretical maximum bandwidth enabled by 1x1 802.11n implementations with 1 spatial stream. Actual wireless throughput and/or range will vary depending on your specific

operating system, hardware and software configurations. Check with your PC manufacturer for details.

References to power consumption refer to Wi-Fi module power consumption comparisons versus competing 802.11n WLAN solutions. Actual platform battery life savings will vary depending on your

specific operating system, hardware and software configurations. Check with your PC manufacturer for details.

Intel® My WiFi Dashboard is an optional feature and requires additional software and an Intel® Centrino® wireless adapter. Wi-Fi devices must be certified by the WiFi Alliance for 802.11a/g/n and

Wi-Fi Direct* in order to connect. See

www.intel.com/network/connectivity/products/wireless/mywifi.htm

for more details.

Roaming is supported only within each respective band and mode of access points.

Some security solutions may not be supported by your PC’s operating system and/or by your PC manufacturer. Check with your PC manufacturer for details on availability.

Microsoft Windows 7 only.

Software and workloads used in performance tests may have been optimized for performance only on Intel microprocessors. Performance tests, such as SYSmark and MobileMark, are measured using

specific computer systems, components, software, operations and functions. Any change to any of those factors may cause the results to vary. You should consult other information and performance

tests to assist you in fully evaluating your contemplated purchases, including the performance of that product when combined with other products.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel

assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including without limitation, liability or warranties relating to fitness for a

particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel

may make changes to specifications and product descriptions at any time, without notice. For the most current product information, please visit:

http://www.intel.com/go/wireless

Intel, the Intel logo, Intel, and Intel Centrino are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others

326740-001US
