nanoX-ML-51-512 datasheet, PDF

Datasheet> All Categories > Module/solution> nanoX-ML-51-512

nanoX-ML-51-512: DescriptionComputer-On-Modules - COM MINI SIZE COM EXP INTEL ATOM Z510; CategoryModule/solution; File Size376KB，2 Pages; ManufacturerADLINK; Websitehttps://www.adlinktech.com/en/AboutUs.aspx; Environmental Compliance

Download Datasheet Parametric Compare View All

nanoX-ML-51-512 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	nanoX-ML-51-512	-	-	View	Buy Now

nanoX-ML-51-512 Overview

Computer-On-Modules - COM MINI SIZE COM EXP INTEL ATOM Z510

nanoX-ML-51-512 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ADLINK
Product Category	Computer-On-Modules - COM
RoHS	Details
Form Factor	COM Express Mini Type 1
Processor Brand	Intel
Processor Type	Intel Atom Z510
Chipsets	US15W
Frequency	1.1 GHz
Memory Size	512 MB
Interface Type	Ethernet, IDE, LAN, PCI, SATA, USB
Operating Supply Voltage	4.75 V to 14 V
Maximum Operating Temperature	+ 60 C
Dimensions	84 mm x 55 mm
Description/Function	Mini COM Express type 1 compatible module with Intel Atom processor Z510 at 1.1 GHz and 512 MB DDR2
Memory Type	DDR2
Power Consumption	2 W
Battery Backup Switching	No Backup Battery
Minimum Operating Temperature	0 C
Processor Series	Intel Atom Z500

Preview

Download Datasheet

View All

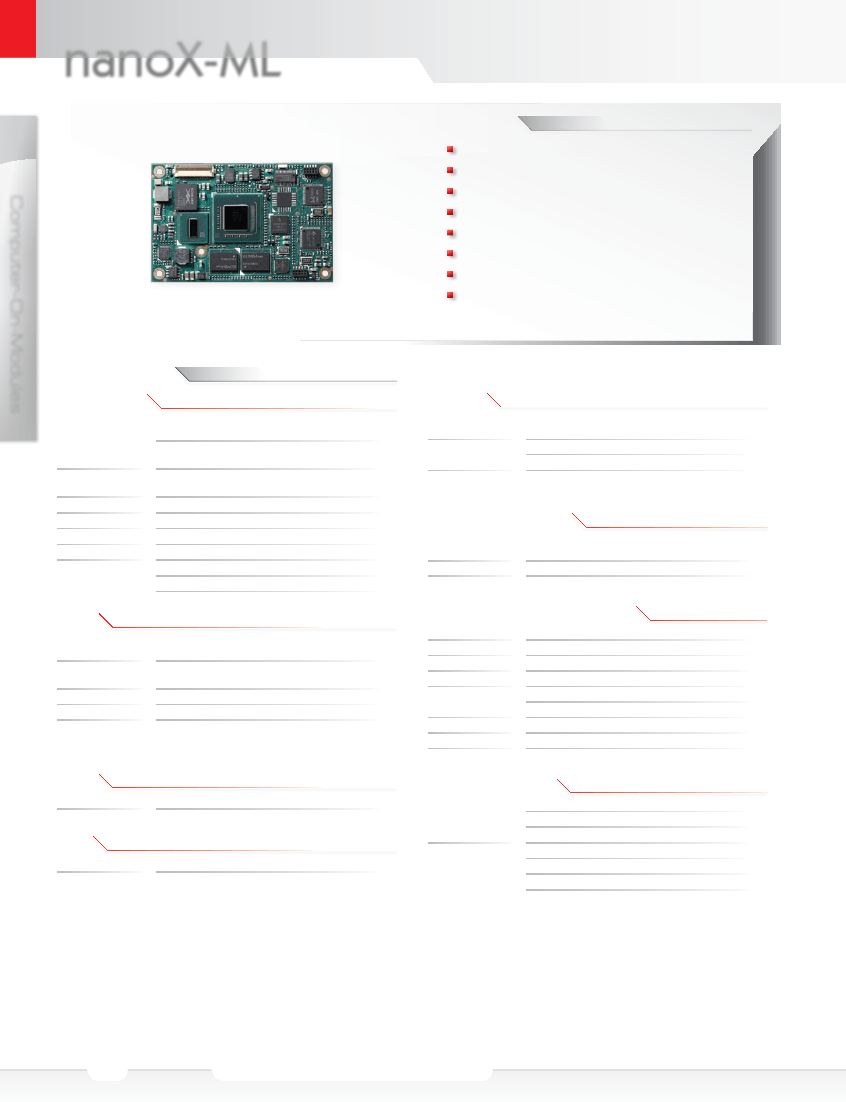

nanoX-ML

Computer-On-Modules

Mini size COM Express

Type 1 Pinout Compatible Module

with Intel

Atom™ Processor Z5xx and US15W Chipset

Features

Intel

Atom™ Processor Z530/Z510

Intel

System Controller Hub US15W

One PCIe x1 (opt. 2 without LAN)

18/24-bit LVDS and SDVO

GbE LAN, SATA, USB 2.0, SDIO, LPC

AMIBIOS

8 BIOS

Solid State Disk: 1 GB up to 8 GB

Mini Compact 84 mm x 55 mm footprint

Specifications

Core System

CPU

Intel

Atom™ processor Z530 at 1.6 GHz with 533 MHz FSB,

2.3 watts TDP, supports Hyper-Threading

Intel

Atom™ processor Z510 at 1.1 GHz with 400 MHz FSB,

2.0 watts TDP

Memory

Chipset

BIOS

Hardware Monitor

Watchdog Timer

Expansion Busses

Soldered 512/1024 MB non-ECC, unbuffered 400/533 MHz

DDR2

Intel

System Controller Hub US15W

AMIBIOS

8 with CMOS backup in 8 Mbit LPC flash

Supply voltages and CPU temperature

Programmable timer ranges to generate RESET

Two PCI Express x1

LPC bus

SMBus / I C

Multi I/O

IDE (PATA)

SATA

USB

Single channel IDE with UDMA (33/66/100) connects to

onboard Solid State Disk of 1 GB up to 8 GB

PATA to SATA bridge

One SATA port

Eight USB 2.0 ports capable of transfers up to 480 MB/s; one

port optionally configurable as USB client

Power Specifications

Input Power

Power States

Power Consumption

4.75V ~ 14V wide range input support, with optional 5Vsb for

ATX support

Supports S0, S1, S3, S4, S5

5 W (with Atom Z510 and 512 MB memory, typical)

Video

Chipset

Features

VGA Interface

LVDS Interface

SDVO

GMA 500 integrated on Intel

on System Controller Hub

US15W

Ultra low power integrated 3D graphics core with full HD HW

video decode engine and dual independent display support

Analog VGA not supported

Single channel 18/24-bit at 25~112 MHz

May be used for any external display device (HDMI/DVI,

analog TV, VGA and LVDS); includes EDID and

EDID-less support, and a 160 MHz pixel clock

Mechanical and Environmental

Operating Temp.

Storage Temp.

Humidity

Shock

Vibration

Compatibility

Mechanical

Certifications

0°C to 60°C

-20°C to 80°C

10% to 90%, storage: 5% to 95% (non condensing)

15G peak-to-peak, 11ms duration, non-operation

Non-operating: 1.88 Grms, 5-500 Hz, each axis

Operating: 0.5 Grms, 5-500 Hz, each axis

PICMG COM Express

COM.0 Type 1

Mini size 84 mm x 55 mm (3.3” x 2.17”)

CE, FCC

Audio

Chipset

Type

Integrated on Intel

System Controller Hub US15W

Supports Intel

High Definition Audio codec on carrier board

Operating Systems

Standard Support

Windows

XP 32-bit

Windows

Vista 32-bit

Linux

2.6.26 and up

Extended Support

Realtek RTL8111C PCI Express Gigabit Ethernet Controller

10/100/1000 Mbps with Wake-on-LAN and Alert on LAN

support

Embedded XP BSP

WinCE BSP

Linux

2.6.x BSP

AIDI I

C Library for Win32, WinCE and Linux

LAN

Chipset

Interface

1-39

http://www.adlinktech.com/Computer-on-Module
