RN2605 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> RN2605

RN2605: DescriptionSwitching, Inverter Circuit, Interface Circuit And Driver Circuit Applications; CategoryDiscrete semiconductor The transistor; File Size444KB，7 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RN2605 Overview

Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications

RN2605 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
package instruction	2-3N1A, 6 PIN
Contacts	6
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BUILT-IN RESISTOR RATIO IS 21.36
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	6 pF
Collector-emitter maximum voltage	50 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80
JESD-30 code	R-PDSO-G6
Number of components	2
Number of terminals	6
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
VCEsat-Max	0.3 V
Base Number Matches	1

Preview

Download Datasheet

View All

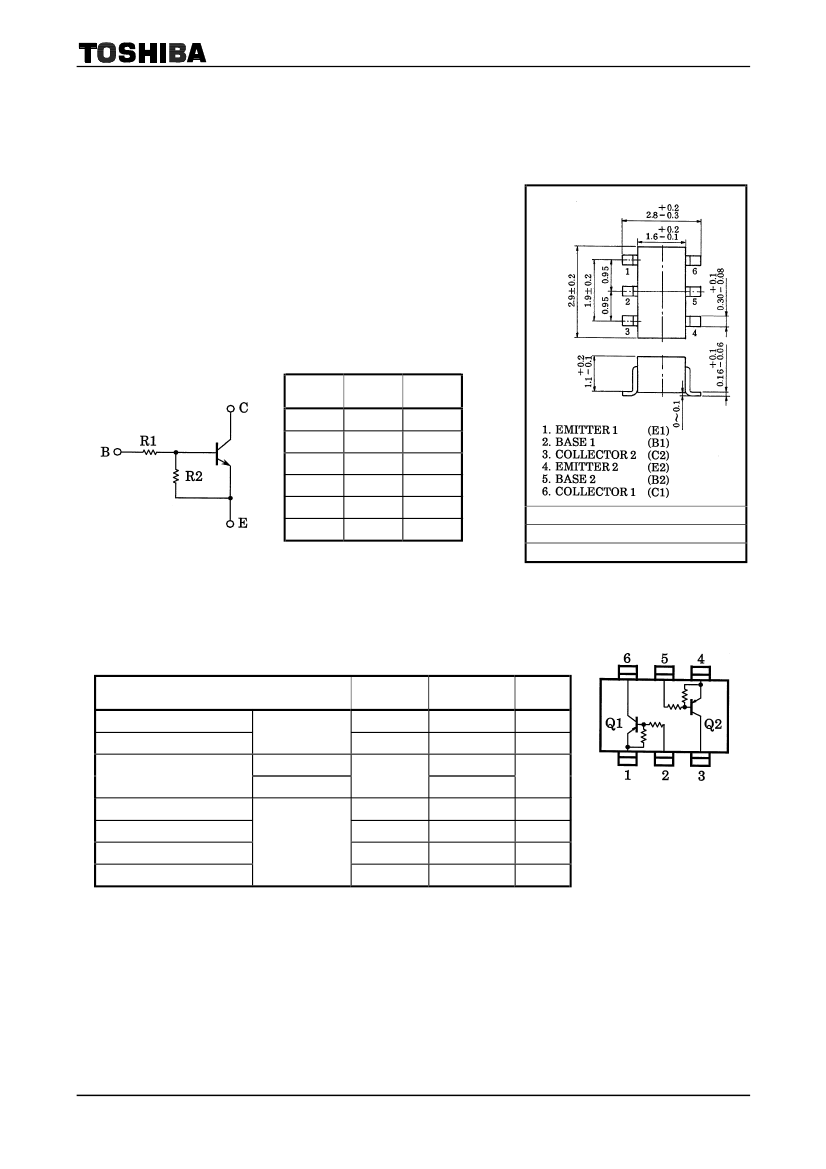

RN2601~RN2606

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process)

RN2601,RN2602,RN2603

RN2604,RN2605,RN2606

Switching, Inverter Circuit, Interface Circuit

And Driver Circuit Applications

Including two devices in SM6 (super mini type with 6 leads)

With built-in bias resistors

Simplify circuit design

Reduce a quantity of parts and manufacturing process

Complementary to RN1601~1606

Unit in mm

Equivalent Circuit and Bias Resistor Values

Type No.

RN2601

RN2602

RN2603

RN2604

RN2605

RN2606

R1 (kΩ)

4.7

2.2

4.7

R2 (kΩ)

4.7

JEDEC

EIAJ

TOSHIBA

Weight: 0.015g

―

2-3N1A

Equivalent Circuit

(Top View)

Maximum Ratings

(Ta = 25°C) (Q1, Q2 Common)

Characteristic

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

RN2601~2606

RN2601~2604

RN2605, 2606

Symbol

CBO

CEO

EBO

stg

Rating

−50

−10

−5

−100

300

150

−55~150

Unit

°C

Total rating

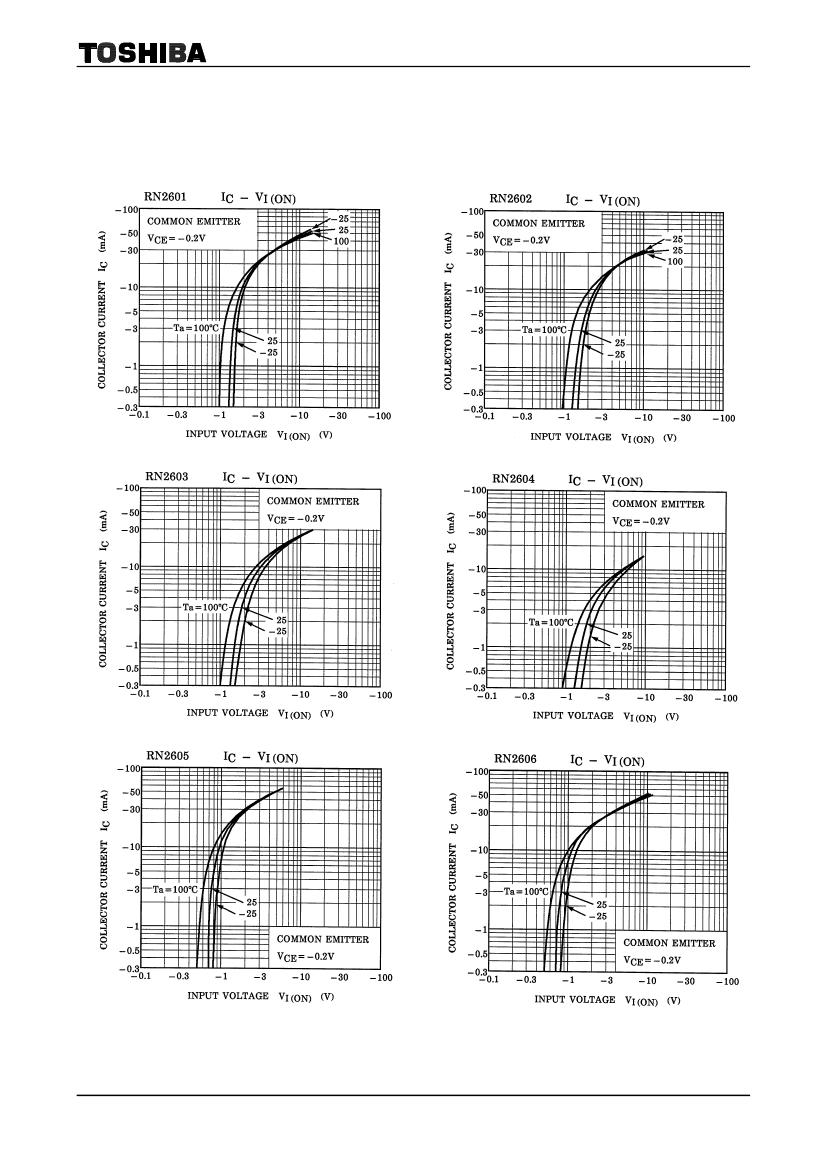

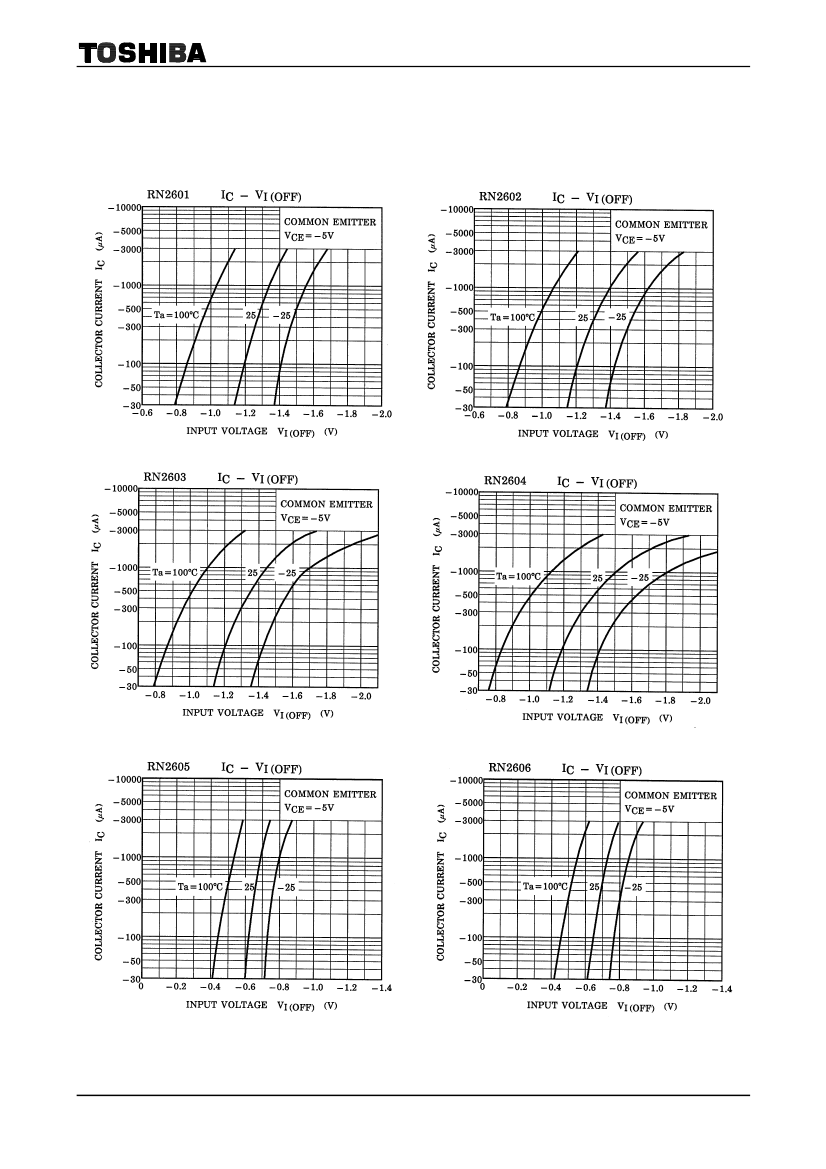

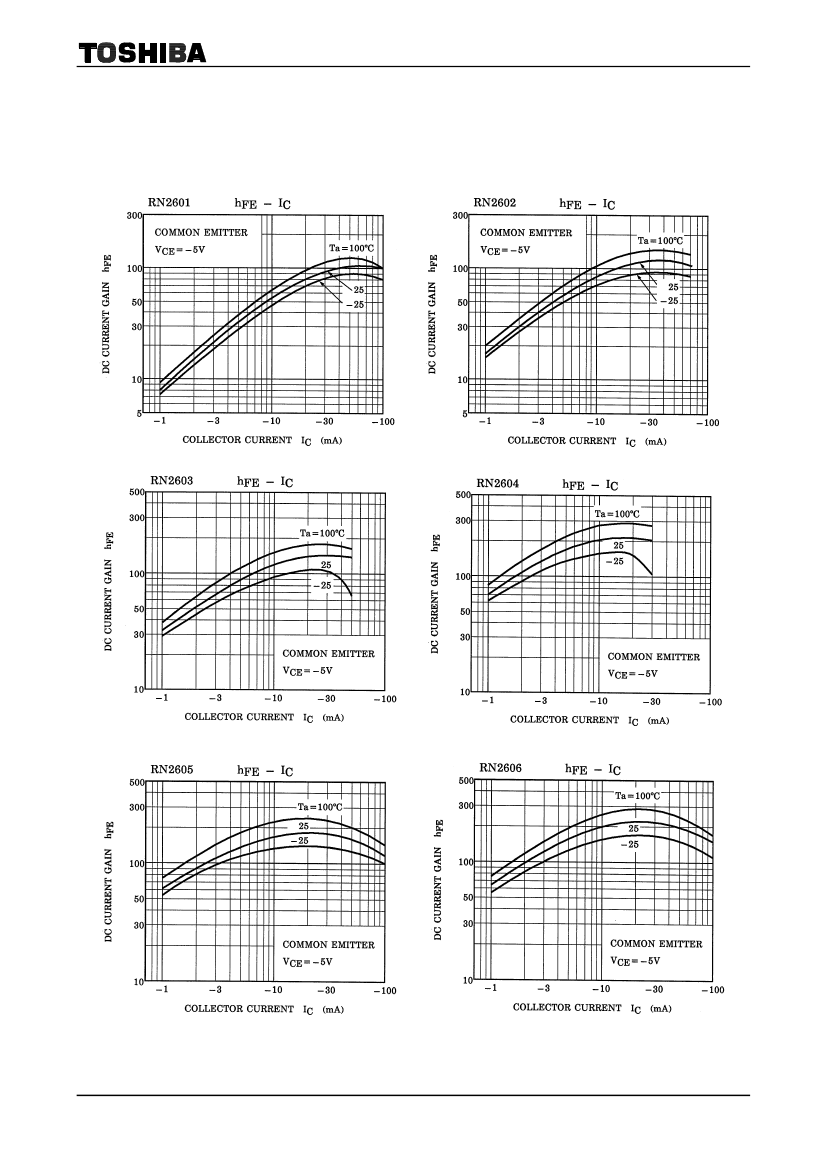

2001-06-05

RN2605 Related Products

	RN2605	RN2601	RN2602	RN2603	RN2604	RN2606
Description	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications	Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	2-3N1A, 6 PIN	2-3N1A, 6 PIN	2-3N1A, 6 PIN	2-3N1A, 6 PIN	2-3N1A, 6 PIN	2-3N1A, 6 PIN
Contacts	6	6	6	6	6	6
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BUILT-IN RESISTOR RATIO IS 21.36	BUILT-IN RESISTOR RATIO IS 1	BUILT-IN RESISTOR RATIO IS 1	BUILT-IN RESISTOR RATIO IS 1	BUILT-IN RESISTOR RATIO IS 1	BUILT-IN RESISTOR RATIO IS 10
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-based maximum capacity	6 pF	6 pF	6 pF	6 pF	6 pF	6 pF
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80	30	50	70	80	80
JESD-30 code	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6	R-PDSO-G6
Number of components	2	2	2	2	2	2
Number of terminals	6	6	6	6	6	6
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
VCEsat-Max	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V
Base Number Matches	1	1	1	1	-	-
