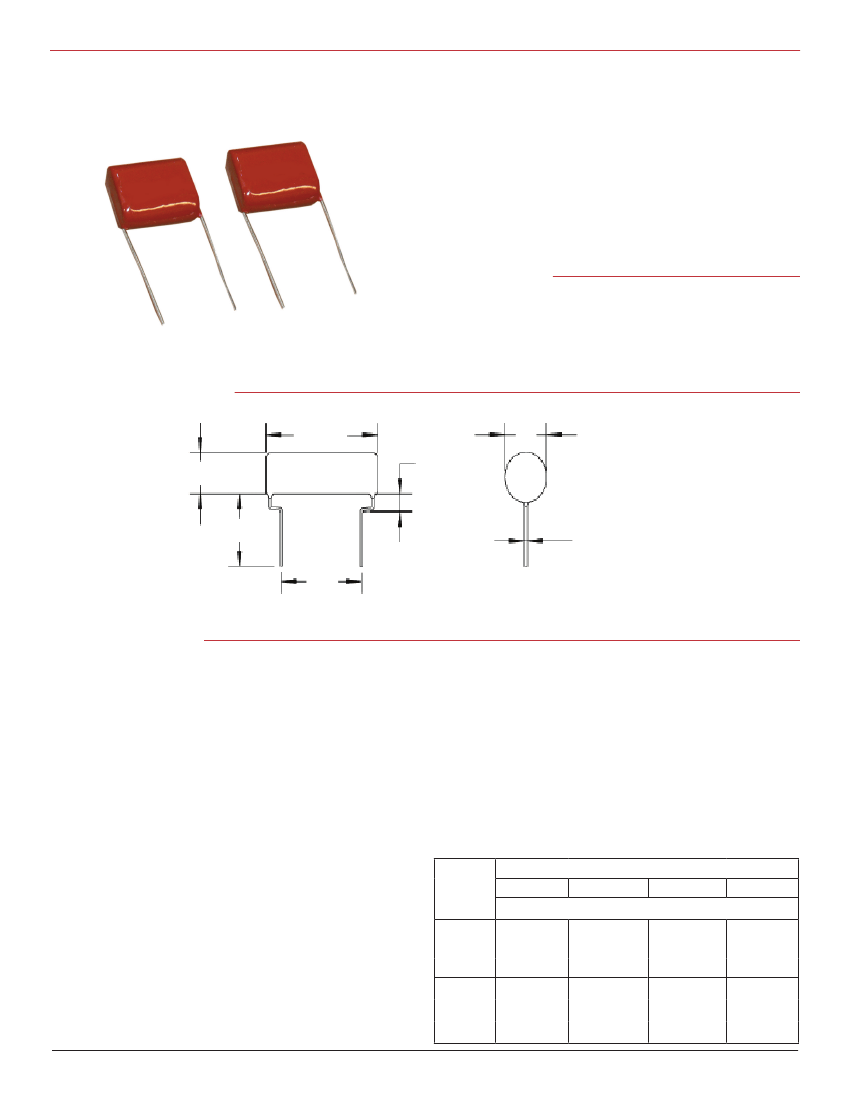

Type DPFF
High AC Current Polypropylene Film Capacitors
High Voltage Single and Series Section Film/Foil Polypropylene Capacitors
Type DPFF radial leaded polypropylene flm/foil ca-
pacitors feature single and series section construc-
tion. Part numbers with the “S” sufx have extended
aluminum foil with a foating metallized flm. Excel-
lent temperature stability to 105 ºC and low loss
characteristics, make Type DPFF ideal for high AC
current and pulse applications.
Highlights
• High dv/dt
• High AC current
• Good for pulse applications
• Low DF
RoHS Compliant
L Max.
H Max.
.250” Max.
T
Max.
Outline Drawing
1.18” Min
(30 mm)
S
.06” (1.5 mm).
0.032” (0.8 mm)
Tinned Copper
NOTE: Other capacitance values, sizes and performance specifications are available. Please contact CDE.
Specifcations
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
Dielectric Strength:
Dissipation Factor:
Insulation Resistance:
Life Test:
Pulse Capability:
0.001 to 0.47 µF
200 to 1600 Vdc (155 to 500 Vac 60 Hz)
±5% standard, ±10% optional
–55 ºC to +105 ºC (derate linearly to 50% rated
voltage at +105 ºC
250% (≤800 Vdc ) 200% (1200 and 1600 Vdc) for
1 minute
0.10% Max. (+25 ºC, 1 KHz)
50,000 MΩ·µF, 100,000 MΩ Min.
500 hr @ 85 ºC @ 125% rated voltage
Rated
Volts
200
400
600
800
1200
1600
.700-.750
4600
6000
8000
Body Length
.900-.950
2400
3200
6600
1.250-1.300 1.650-1.700
1400
1800
2800
6000
6800
11600
720
840
1200
3200
3200
6000
dV/dt — volts per microsecond, maximum
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type DPFF
High AC Current Polypropylene Film Capacitors
Cap
(µF)
Catalog
T Max.
H Max.
L Max.
S ±0.06 (±1.5)
Part Number Inches (mm) Inches (mm) Inches (mm) Inches (mm)
600/630 Vdc (200 Vac 60 Hz)
.0470
DPFF6S47J–F
.0560
DPFF6S56J–F
.0680 DPFF6S68J–F
.0820 DPFF6S82J–F
.1000
DPFF6P1J–F
.1000
DPFF6P1JS–F
.1200
DPFF6P12J–F
.1500
DPFF6P15J–F
.1800 DPFF6P18J–F
.2200
DPFF6P22J–F
0.60 (15.2)
0.65 (16.5)
0.65 (16.5)
0.75 (16.0)
0.75 (16.0)
0.71 (18.0)
0.75 (19.0)
0.75 (19.0)
0.85 (21.6)
0.85 (21.6)
0.60 (15.2)
0.65 (16.5)
0.65 (16.5)
0.64 (16.3)
0.75 (16.0)
0.75 (16.0)
0.75 (16.0)
0.75 (19.0)
0.75 (19.0)
0.75 (19.0)
0.85 (21.6)
0.85 (21.6)
0.85 (21.6)
0.50 (12.7)
0.34 (8.6)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.55 (14.0)
0.41 (10.4)
0.55 (14.0)
0.44 (11.2)
0.60 (15.2)
0.60 (15.2)
0.50 (12.7)
0.70 (17.8)
0.70 (17.8)
0.70 (17.8)
0.70 (17.8)
0.80 (20.3)
0.80 (20.3)
0.64 (16.3)
0.90 (22.9)
0.90 (22.9)
0.73 (18.5)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.55 (14.0)
0.55 (14.0)
0.60 (15.2)
1.30 (33.0)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.70 (43.2)
1.70 (43.2)
1.65 (41.9)
1.70 (43.2)
1.70 (43.2)
1.65 (41.9)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.30 (33.0)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.70 (43.2)
1.70 (43.2)
1.70 (43.2)
1.70 (43.2)
1.65 (41.9)
1.70 (43.2)
1.70 (43.2)
1.65 (41.9)
1.30 (33.0)
1.30 (33.0)
1.30 (33.0)
1.30 (33.0)
1.30 (33.0)
1.30 (33.0)
1.30 (33.0)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
Cap
(µF)
Catalog
Part Number
T Max.
H Max.
L Max.
S ±0.06 (±1.5)
Inches (mm) Inches (mm) Inches (mm) Inches (mm)
1200 Vdc (475 Vac 60 Hz)
0.60 (15.2)
0.65 (16.5)
0.65 (16.5)
0.55 (14.0)
0.65 (16.5)
0.65 (16.5)
0.75 (16.0)
0.75 (16.0)
0.85 (21.6)
0.68 (17.3)
0.85 (21.6)
0.29 (7.4)
0.30 (7.6)
0.32 (8.1)
0.50 (12.7)
0.50 (12.7)
0.35 (8.9)
0.55 (14.0)
0.55 (14.0)
0.40 (10.2)
0.60 (15.2)
0.60 (15.2)
0.46 (11.7)
0.65 (16.5)
0.65 (16.5)
0.52 (13.2)
0.70 (17.8)
0.70 (17.8)
0.61 (15.5)
0.75 (19.1)
0.75 (19.1)
0.59 (15.0)
0.85 (21.6)
0.85 (21.6)
0.95 (24.1)
0.95 (24.1)
0.81 (20.6)
0.60 (15.2) 1.30 (33.0)
0.65 (16.5)
0.65 (16.5)
0.61 (15.5)
0.65 (16.5)
0.65 (16.5)
0.75 (16.0)
0.75 (16.0)
0.85 (21.6)
0.74 (18.8)
0.85 (21.6)
0.33 (8.4)
0.34 (8.6)
0.36 (9.1)
0.50 (12.7)
0.50 (12.7)
0.39 (9.9)
0.55 (14.0)
0.55 (14.0)
0.44 (11.2)
0.60 (15.2)
0.60 (15.2)
0.50 (12.7)
0.65 (16.5)
0.65 (16.5)
0.56 (14.2)
0.70 (17.8)
0.70 (17.8)
0.65 (16.5)
0.75 (19.1)
0.75 (19.1)
0.63 (16.0)
0.85 (21.6)
0.85 (21.6)
0.95 (24.1)
0.95 (24.1)
0.85 (21.6)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.70 (43.2)
1.70 (43.2)
1.70 (43.2)
1.65 (41.9)
1.70 (43.2)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.30 (33.0)
1.30 (33.0)
1.25 (31.8)
1.70 (43.2)
1.70 (43.2)
1.65 (41.9)
1.70 (43.2)
1.70 (43.2)
1.70 (43.2)
1.70 (43.2)
1.65 (41.9)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
0.72 (18.3)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
1.095 (27.8)
.0100
DPFF12S1J–F
.0120
DPFF12S12J–F
.0150
DPFF12S15J–F
.0150
DPFF12S15JS–F
.0180 DPFF12S18J–F
.0220
DPFF12S22J–F
.0270
DPFF12S27J–F
.0330
DPFF12S33J–F
.0390
DPFF12S39J–F
.0390
DPFF12S39JS–F
.0470
DPFF12S47J–F
.0010
DPFF16D1JS–F
.0012
DPFF16D12JS–F
.0015
DPFF16D15JS–F
.0018 DPFF16D18J–F
.0022
DPFF16D22J–F
.0022
DPFF16D22JS–F
.0027
DPFF16D27J–F
.0033
DPFF16D33J–F
.0033
DPFF16D33JS–F
.0039
DPFF16D39J–F
.0047
DPFF16D47J–F
.0047
DPFF16D47JS–F
.0056
DPFF16D56J–F
.0068 DPFF16D68J–F
.0068 DPFF16D68JS–F
.0082 DPFF16D82J–F
.0100
DPFF16S1J–F
.0100
DPFF16S1JS–F
.0120
DPFF16S12J–F
.0150
DPFF16S15J–F
.0150
DPFF16S15JS–F
.0180 DPFF16S18J–F
.0220
DPFF16S22J–F
.0270
DPFF16S27J–F
0.033
DPFF16S33J–F
0.033
DPFF16S33JS–F
.0680 DPFF6S68JS–F
0.60 (15.2)
.1500
DPFF6P15JS–F 0.71 (18.0)
.2200
DPFF6P22JS–F 0.83 (21.1)
.0056
DPFF8D56J–F
.0056
DPFF8D56JS–F
.0068 DPFF8D68J–F
.0082 DPFF8D82J–F
.0100
DPFF8S1J–F
.0100
DPFF8S1JS–F
.0120
DPFF8S12J–F
.0120
DPFF8S12JS–F
.0150
DPFF8S15J–F
.0150
DPFF8S15JS–F
.0180 DPFF8S18J–F
.0220
DPFF8S22J–F
.0270
DPFF8S27J–F
.0330
DPFF8S33J–F
.0390
DPFF8S39J–F
.0470
DPFF8S47J–F
.0560
DPFF8S56J–F
.0680 DPFF8S68J–F
.0820 DPFF8S82J–F
.1000
DPFF8P1J–F
.1000
DPFF8P1JS–F
0.50 (12.7)
0.28 (7.1)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.50 (12.7)
0.55 (14.0)
0.35 (8.9)
0.55 (14.0)
0.38 (9.7)
0.60 (15.2)
0.60 (15.2)
0.70 (17.8)
0.70 (17.8)
0.70 (17.8)
0.70 (17.8)
0.80 (20.3)
0.80 (20.3)
0.90 (22.9)
0.90 (22.9)
0.67 (17.0)
1600 Vdc (500 Vac 60 Hz)
800 Vdc (450 Vac 60 Hz)
.0220
DPFF8S22JS–F
0.44 (11.2)
.0330
DPFF8S33JS–F
0.51 (13.0) 0.57 ( (14.5)
1.25 (31.8)
.0680 DPFF8S68JS–F 0.58 (14.7)
1200 Vdc (475 Vac 60 Hz)
.0027
DPFF12D27J–F
0.50 (12.7)
.0033
DPFF12D33J–F
0.50 (12.7)
.0039
DPFF12D39J–F
0.50 (12.7)
.0047
DPFF12D47J–F
0.50 (12.7)
.0056
DPFF12D56J–F
0.55 (14.0)
.0068 DPFF12D68J–F
0.55 (14.0)
.0082 DPFF12D82J–F
0.60 (15.2)
