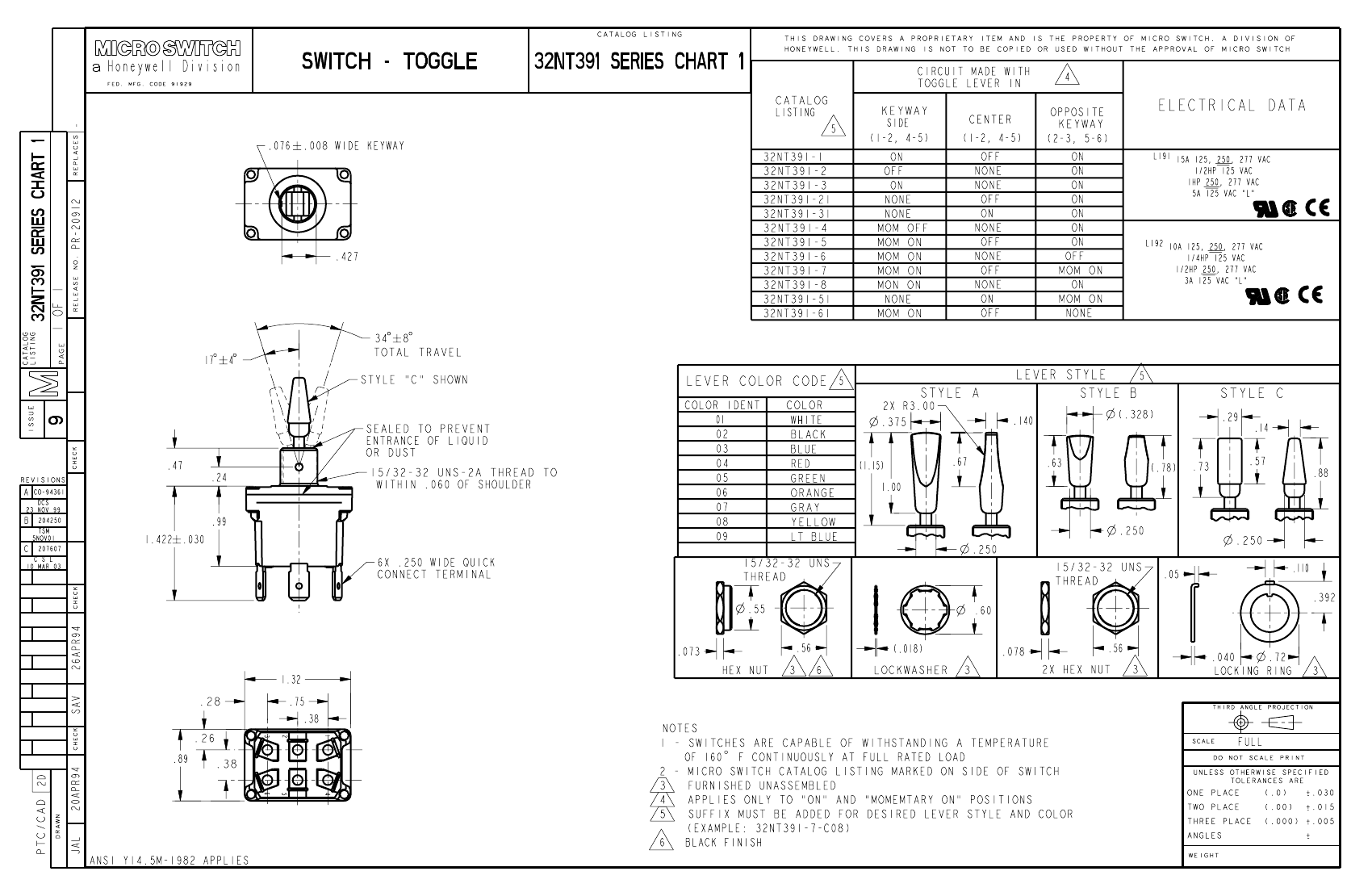

Preview

32NT391-509: DescriptionToggle Switch, DPDT, Latched And Momentary, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size138KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

32NT391-509 Overview

Toggle Switch, DPDT, Latched And Momentary, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded

32NT391-509 Parametric

Parameter Name	Attribute value
Maker	Honeywell
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Actuator type	LEVER
body width	22.61 mm
body height	25.15 mm
Body length or diameter	33.53 mm
Contact (AC) maximum rated R load	10A@277VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	277 V
Manufacturer's serial number	32NT391
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED AND MOMENTARY
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

32NT391-509 Related Products

	32NT391-509	32NT391-606	32NT391-806	32NT391-407	32NT391-601	32NT391-206	32NT391-605
Description	Toggle Switch, DPDT, Latched And Momentary, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPST, Momentary, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Momentary, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Momentary, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPST, Momentary, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPST, Latched, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPST, Momentary, Quick Connect Terminal, Lever Actuator, Panel Mount-threaded
Maker	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell	Honeywell
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER
body width	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm	22.61 mm
body height	25.15 mm	25.15 mm	25.15 mm	25.15 mm	25.15 mm	25.15 mm	25.15 mm
Body length or diameter	33.53 mm	33.53 mm	33.53 mm	33.53 mm	33.53 mm	33.53 mm	33.53 mm
Contact (AC) maximum rated R load	10A@277VAC	10A@277VAC	10A@277VAC	10A@277VAC	10A@277VAC	15A@277VAC	10A@277VAC
Maximum contact current (AC)	10 A	10 A	10 A	10 A	10 A	15 A	10 A
Maximum contact voltage (AC)	277 V	277 V	277 V	277 V	277 V	277 V	277 V
Manufacturer's serial number	32NT391	32NT391	32NT391	32NT391	32NT391	32NT391	32NT391
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED AND MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	LATCHED	MOMENTARY
switch function	DPDT	DPST	DPDT	DPDT	DPST	DPST	DPST
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
Base Number Matches	1	1	1	1	1	1	1
