(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing
protection circuit/device or providing backup circuits in your equipment.
2. We may modify products or discontinue production of a product listed in this catalog without prior notification.
3. We provide “Delivery Specification” that explain precautions for the specifications and safety of each product listed in this catalog. We
strongly recommend that you exchange these delivery specifications with customers that use one of these products.
4. If you plan to export a product listed in this catalog, keep in mind that it may be a restricted item according to the “Foreign Exchange
and Foreign Trade Control Law”. In such cases, it is necessary to acquire export permission in harmony with this law.
5. Any reproduction or transferring of the contents of this catalog is prohibited without prior permission from our company.
6. We are not responsible for problems that occur related to the intellectual property rights or other rights of our company or a third party
when you use a product listed in this catalog. We do not grant license of these rights.
7. This catalog only applies to products purchased through our company or one of our company’s official agencies. This catalog does not
apply to products that are purchased through other third parties.
Notice: Effective January 2013, TDK will use a new catalog number which adds product thickness and packaging specification detail.
This new catalog number should be referenced on all catalog orders going forward, and is not applicable for OEM part number
orders.
Please be aware the last five digits of the catalog number will differ from the item description (internal control number) on the
product label.
Contact your local TDK Sales representative for more information.
(Example)
Catalog issued date
Prior to January 2013
January 2013 and later
Catalog number
C1608C0G1E103J(080AA)
C1608C0G1E103J080AA
Item description (on delivery label)
C1608C0G1E103JT000N
C1608C0G1E103JT000N
20171016 / mlcc_automotive_general_en.fm
(3/23)
MULTILAYER CERAMIC CHIP CAPACITORS
CGA series
General (Up to 50V)
Type: CGA1/0603 [0201 inch]、
CGA2/1005 [0402 inch]、
CGA3/1608 [0603 inch]、
CGA4/2012 [0805 inch]、
CGA5/3216 [1206 inch]、
CGA6/3225 [1210 inch]、
CGA8/4532 [1812 inch]、
CGA9/5750 [2220 inch]
■
SERIES OVERVIEW
RoHS
Cl
Br
REACH Halogen
Free
SVHC-Free
Pb
Lead
Free
TDK multilayer ceramic chip capacitor CGA series is a product for surface mount which multiple sheets of dielectric and conductive material are lay-
ered alternately. The monolithic structure ensures superior mechanical strength and reliability.
Also the lower ESR, ESL and better frequency characteristics are offered by the simple structure than other capacitors. The capacitance range is up
to 47uF and the line-up has been expanding to the region of the film capacitor or electrolytic capacitor.
■
FEATURES
• The superior mechanical strength and reliability due to the monolithic
structure.
• Low ESR, ESL and excellent frequency characteristics allow for a cir-
cuit design that closely conforms to theoretical values.
• Low self-heating and high ripple resistance due to low ESR.
• No polarity.
• AEC-Q200 compliant.
■
APPLICATIONS
• Automotive electronic equipment (Engine control units, Sensor mod-
ules and Battery line smoothing)
• LC resonance circuit (C0G).
• Applications requiring higher reliability
■

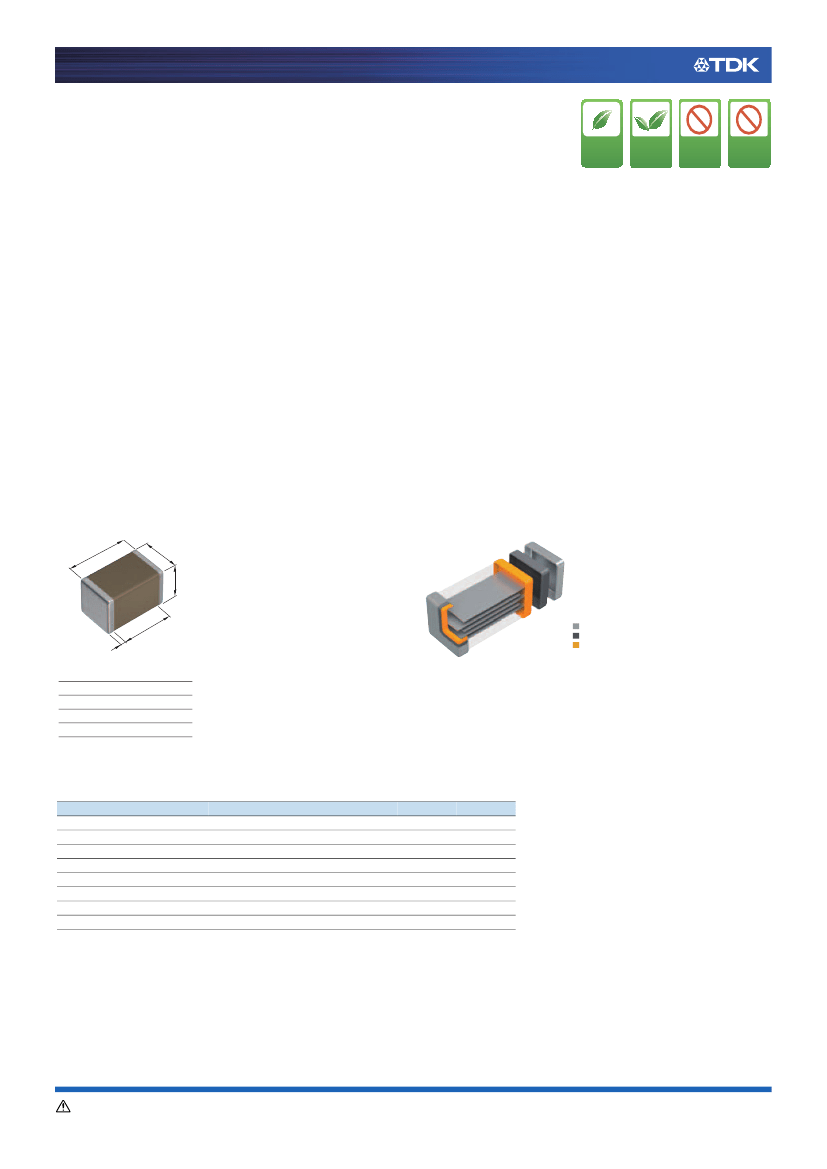

SHAPE & DIMENSIONS
L
■
PRODUCT STRUCTURE
W
T
G
B
Sn
Ni
Cu
L
W
T
B
G
Body length
Body width
Body height
Terminal width
Terminal
spacing
The structure which multiple sheets of dielectric and conductive material
are layered alternately. The superior mechanical strength and reliability
are realized by the monolithic and simple structure.
Type
L
W
CGA1
0.60±0.03
0.30±0.03
CGA2
1.00±0.05
0.50±0.05
CGA3
1.60±0.10
0.80±0.10
CGA4
2.00±0.20
1.25±0.20
CGA5
3.20±0.20
1.60±0.20
CGA6
3.20±0.40
2.50±0.30
CGA8
4.50±0.40
3.20±0.40
CGA9
5.70±0.40
5.00±0.40
Dimensional
tolerances are typical values.
T
0.30±0.03
0.50±0.05
0.80±0.10
1.25±0.20
1.60±0.20
2.50±0.30
2.50±0.30
2.50±0.30
Dimensions in mm
B
G
0.10 min.
0.20 min.
0.10 min.
0.30 min.
0.20 min.
0.30 min.
0.20 min.
0.50 min.
0.20 min.
1.00 min.
0.20 min.
—
0.20 min.
—
0.20 min.
—
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20171016 / mlcc_automotive_general_en.fm
(4/23)
MULTILAYER CERAMIC CHIP CAPACITORS
■
CATALOG NUMBER CONSTRUCTION
CGA
(1)
9
(2)
N
(3)
3
(4)
X7R
(5)
1E
(6)
476
(7)
M
(8)
230
(9)
K
(10)
B
(11)
(1) Series
(2) Dimensions L x W (mm)
Code
1
2
3
4
5
6
8
9
EIA
CC0201
CC0402
CC0603
CC0805
CC1206
CC1210
CC1812
CC2220
Length
0.60
1.00
1.60
2.00
3.20
3.20
4.50
5.70
Width
0.30
0.50
0.80
1.25
1.60
2.50
3.20
5.00
Terminal width
0.10
0.10
0.20
0.20
0.20
0.20
0.20
0.20
(6) Rated voltage (DC)
Code
0J
1A
1C
1E
1V
1H
Voltage (DC)
6.3V
10V
16V
25V
35V
50V
(3) Thickness code
Code
A
B
C
E
F
H
J
L
M
N
P
Q
R
Thickness
0.30 mm
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
(7) Nominal capacitance (pF)
The capacitance is expressed in three digit codes and in units of
pico Farads (pF). The first and second digits identify the first and
second significant figures of the capacitance. The third digit identi-
fies the multiplier. R designates a decimal point.
(Example)0R5 = 0.5pF
101 = 100pF
225 = 2,200,000pF = 2.2µF
(8) Capacitance tolerance
Code
C
D
J
K
M
Tolerance
±0.25pF
±0.50pF
±5%
±10%
±20%
(9) Thickness
(4) Voltage condition for life test
Symbol
1
2
3
Condition
1 × R.V.
2 × R.V.
1.5 × R.V.
Code
030
050
060
080
085
115
125
160
200
230
250
280
320
Thickness
0.30 mm
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
(5) Temperature characteristics
Temperature
characteristics
C0G
X5R
X7R
X7S
Temperature coefficient
Temperature range
or capacitance change
0±30 ppm/℃
±15%
±15%
±22%
-55 to +125℃
-55 to +85℃
-55 to +125℃
-55 to +125℃
(10) Packaging style
Code
A
B
K
Style
178mm reel, 4mm pitch
178mm reel, 2mm pitch
178mm reel, 8mm pitch
(11) Special reserved code
Code
A,B,C
Description
TDK internal code
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20171016 / mlcc_automotive_general_en.fm
(5/23)
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance range chart
Capacitance
(pF)
1
1.5
2
2.2
3
3.3
4
4.7
5
6
6.8
7
8
9
10
12
15
18
22
27
33
39
47
56
68
82
100
150
220
330
470
680
1,000
1,500
2,200
3,300
4,700
6,800
10,000
CGA1/0603 [0201 inch]
X7R
1H
(50V)
1E
(25V)
1C
(16V)
1A
(10V)
0J
(6.3V)
C0G
1H
(50V)
1E
(25V)
Code
010
1R5
020
2R2
030
3R3
040
4R7
050
060
6R8
070
080
090
100
120
150
180
220
270
330
390
470
560
680
820
101
151
221
331
471
681
102
152
222
332
472
682
103
Standard thickness
0.30mm
■
Please refer to the capacitance range table after P-12 for the details such as product thickness and capacitance tolerance.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
