517D107M010JA6AE3

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10 V, 100 uF, THROUGH HOLE MOUNT, CAN, RADIAL LEADED, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size116KB,8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

517D107M010JA6AE3 Online Shopping

Suppliers Part Number Price MOQ In stock
517D107M010JA6AE3 - - View Buy Now

517D107M010JA6AE3 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10 V, 100 uF, THROUGH HOLE MOUNT, CAN, RADIAL LEADED, ROHS COMPLIANT

517D107M010JA6AE3 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid2061693959
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys ManufacturerVishay
Samacsys Modified On2022-06-23 04:17:44
YTEOL.47
capacitance100 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter5 mm
dielectric materialsALUMINUM (WET)
JESD-609 codee3
leakage current0.03 mA
length11 mm
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
Package formRadial
method of packingBULK
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)10 V
ripple current110 mA
surface mountNO
Delta tangent0.22
Terminal surfaceMATTE TIN
Terminal pitch5 mm
Terminal shapeWIRE
Not for New Designs

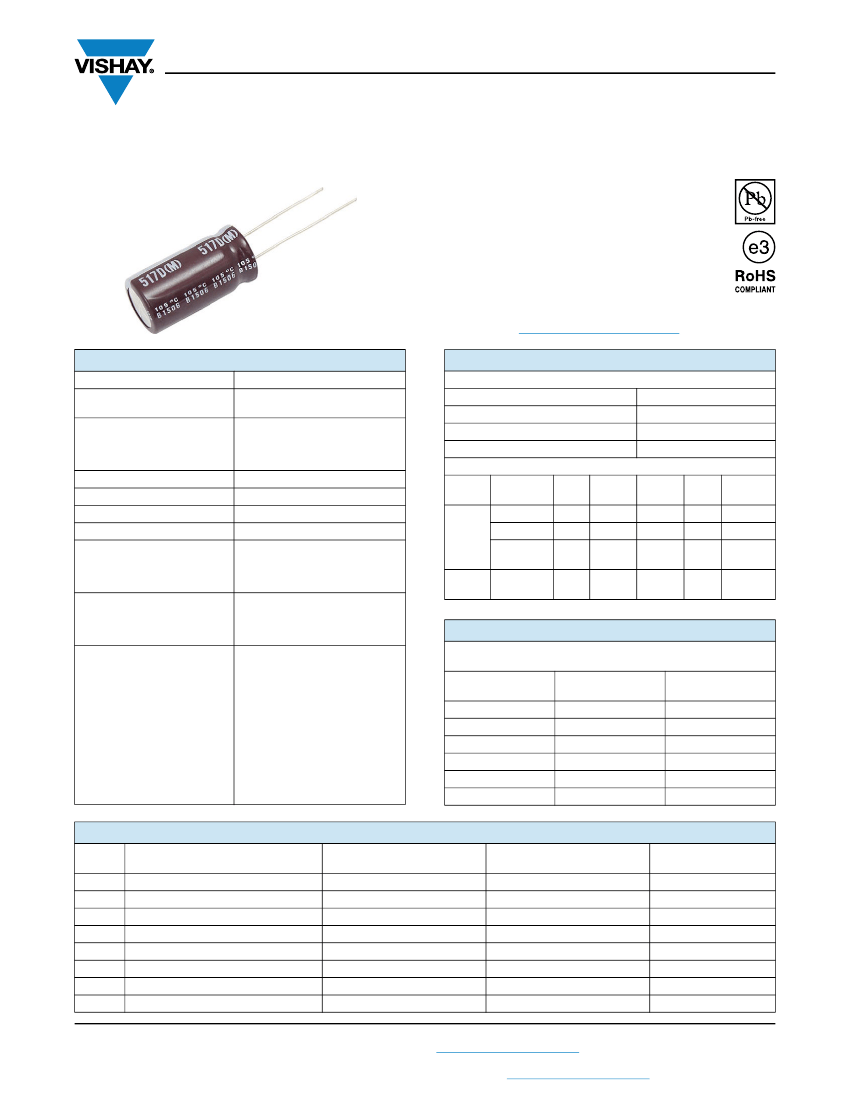

517D
www.vishay.com
Vishay Sprague
Aluminum Capacitors
+105 °C, General Purpose Miniature, Radial Lead
FEATURES
• High CV per case size
• Low cost
• Solvent resistant construction
(through 100 WV
DC
)
• Life test to 2000 h at +105 °C
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
Ø D x L in mm
Operating temperature
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Termination
Life validation test at 105 °C
VALUE
0.197" x 0.433" [5.0 x 11.0]
to 0.709" x 1.575" [18.0 x 40.0]
-55 °C to +105 °C
(6.3 WV
DC
to 100 WV
DC
)
-40 °C to +105 °C
(160 WV
DC
to 250 WV
DC
)
0.47 μF to 15 000 μF
± 20 %
6.3 WV
DC
to 250 WV
DC
2 radial leads
2000 h:
Δ
CAP ± 20 % from
initial measurement.
Δ
DF 2 x initial specified limit.
Δ
DCL
initial specified limit.
1000 h:
Δ
CAP ± 20 % from initial
measurement.
Δ
DF 2 x initial specified limit.
Δ
DCL
initial specified limit.
Rated voltage for 1 min for
6.3 WV
DC
to 100 WV
DC
units:
I < 0.03 CV or 4 μA
(whichever is greater).
Rated voltage for 2 min for
6.3 WV
DC
to 100 WV
DC
units:
I < 0.04 CV or 3 μA
(whichever is greater).
Rated voltage for 1 min for
160 WV
DC
to 250 WV
DC
units:
I < 0.1 CV + 40 μA and CV > 1000;
I < 0.04 CV + 100 μA
and CV > 1000
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+70 °C
+85 °C
+105 °C
FREQUENCY (Hz)
WV
DC
CAP. (μF)
0 to 47
6.3 to
100
100 to 470
50 to
60
0.75
0.80
100 to
120
1
1
1
1
300 to
400
1.35
1.23
1.10
1.25
1 kHz
10 kHz
1.57
1.34
1.13
1.40
2.00
1.50
1.15
1.60
MULTIPLIERS
1.78
1.4
1.0
1000 to
0.85
22 000 000
160 to
0.47 to 100 0.80
250
Shelf life at 105 °C
LOW TEMPERATURE PERFORMANCE
MAXIMUM IMPEDANCE RATIO Z
(T)
/Z
(+20 °C)
MAXIMUM AT 120 Hz
RATED VOLTAGE
(WV
DC
)
6.3
10.0
16.0
25.0 to 100.0
160.0 to 200.0
250.0
Z - 25 °C / Z + 20 °C Z - 40 °C / Z + 20 °C
4.0
3.0
2.0
2.0
2.0
4.0
8.0
6.0
4.0
3.0
4.0
6.0
DC leakage current
DIMENSIONS
in inches [millimeters]
CASE
CODE
JA
AA
BB
CC
CD
CG
DG
DK
NOMINAL CASE SIZE
DxL
0.197 x 0.433 [5.0 x 11.0]
0.248 x 0.433 [6.3 x 11.0]
0.315 x 0.453 [8.0 x 11.5]
0.394 x 0.492 [10.0 x 12.5]
0.394 x 0.630 [10.0 x 16.0]
0.394 x 0.787 [10.0 x 20.0]
0.492 x 0.787 [12.5 x 20.0]
0.492 x 0.984 [12.5 x 25.0]
LEAD SPACING
S
0.079 [2.0]
0.098 [2.5]
0.138 [3.5]
0.197 [5.0]
0.197 [5.0]
0.197 [5.0]
0.197 [5.0]
0.197 [5.0]
NOMINAL LEAD DIAMETER
D
0.020 [0.50]
0.020 [0.50]
0.024 [0.60]
0.024 [0.60]
0.024 [0.60]
0.024 [0.60]
0.024 [0.60]
0.024 [0.60]
TYPICAL WEIGHT
(g)
0.44
0.63
1.03
1.53
1.86
2.48
3.98
5.27
Revision: 04-May-2018
