BNX024H01B datasheet, PDF - EEWORLD Datasheet

BNX024H01B: DescriptionEMI Filter LC-Circuit 20A 50VDC Flat Style SMD Automotive Bulk; File Size318KB，4 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BNX024H01B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BNX024H01B	-	-	View	Buy Now

BNX024H01B Overview

EMI Filter LC-Circuit 20A 50VDC Flat Style SMD Automotive Bulk

BNX024H01B Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8548.90.01.00
Number of Terminals	4
Maximum Current Rating (A)	20
Maximum Voltage Rating	50VDC
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Mounting	Surface Mount
Termination Style	Flat Style
Packaging	Bulk
Product Length (mm)	12.1
Product Depth (mm)	9.1
Product Height (mm)	3.5

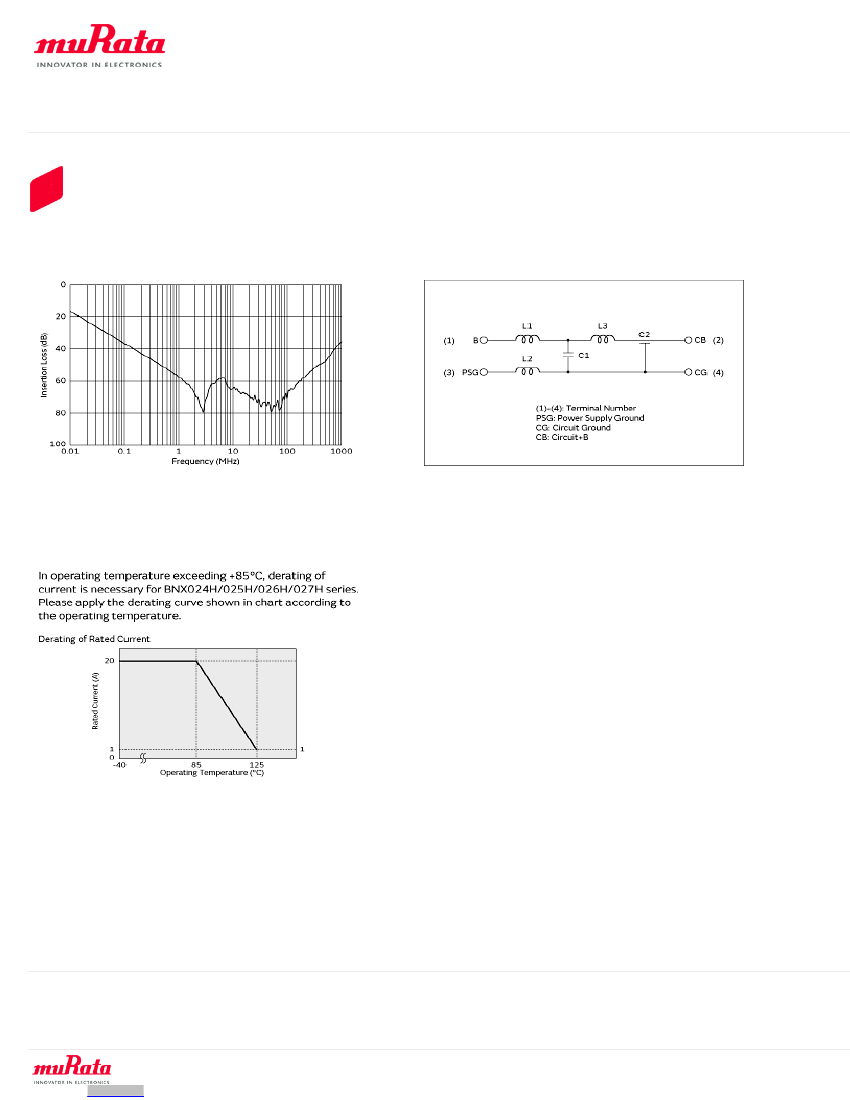

Preview

Download Datasheet

View All

Note: This datasheet may be out of date.

Product Search Data Sheet

Please download the latest datasheet of BNX024H01# from the official website of Murata

Manufacturing Co., Ltd.

http://www.murata.com/en/products/productdetail?partno=BNX024H01%23

BNX024H01#

“#” indicates a package specification code.

< List of part numbers with package codes >

BNX024H01B

BNX024H01K

BNX024H01L

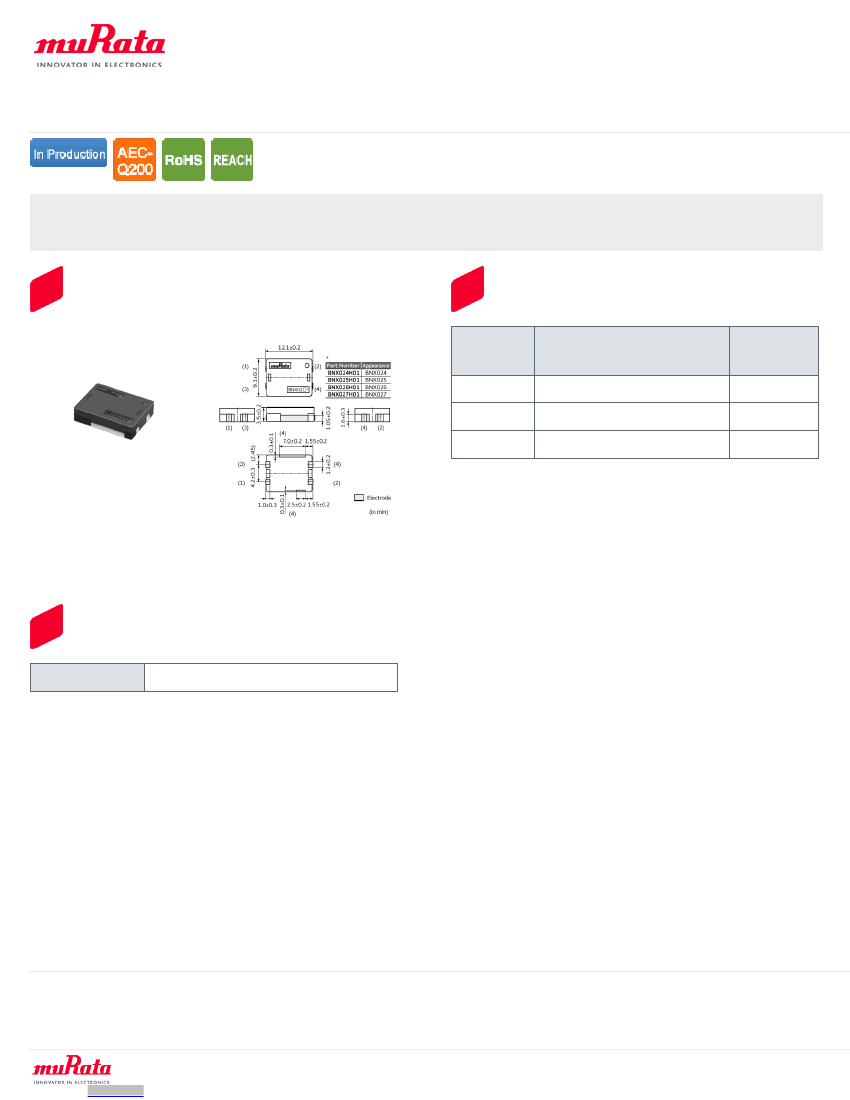

Appearance & Shape

Packaging Information

Standard

Packaging

Specifications

Packing

Quantity

Bulk(Bag)

330mm Embossed Tape

180mm Embossed Tape

100

1500

400

Applications

Automotive Usage

Powertrain/Safety

1 of 4

Attention

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated04/10/2021

BNX024H01B Related Products

	BNX024H01B	BNX024H01L	BNX024H01K
Description	EMI Filter LC-Circuit 20A 50VDC Flat Style SMD Automotive Bulk	EMI Filter LC-Circuit 20A 50VDC Flat Style SMD Automotive T/R	EMI Filter LC-Circuit 20A 50VDC Flat Style SMD Automotive T/R
EU restricts the use of certain hazardous substances	Compliant	Compliant	Compliant
ECCN (US)	EAR99	EAR99	EAR99
Part Status	Active	Active	Active
Number of Terminals	4	4	4
Maximum Current Rating (A)	20	20	20
Maximum Voltage Rating	50VDC	50VDC	50VDC
Minimum Operating Temperature (°C)	-55	-55	-55
Maximum Operating Temperature (°C)	125	125	125
Mounting	Surface Mount	Surface Mount	Surface Mount
Termination Style	Flat Style	Flat Style	Flat Style
Packaging	Bulk	Tape and Reel	Tape and Reel
Product Length (mm)	12.1	12.1	12.1
Product Depth (mm)	9.1	9.1	9.1
Product Height (mm)	3.5	3.5	3.5
HTS	8548.90.01.00	8548.90.01.00	-
