JQX-14FC12CS6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > JQX-14FC12CS6

Preview

JQX-14FC12CS6: DescriptionELECTRONIC COMPONENTS; File Size246KB，3 Pages; ManufacturerDBLECTRO; Websitehttp://www.dblectro.com

Download Datasheet View All

JQX-14FC12CS6 Overview

ELECTRONIC COMPONENTS

JQX-14FC12CS6 Preview

Features

Heavy load, suitable for heavy power reverse.

Small size, suitable for high-density mounting.

Up to 5000VAC dielectric strength. Between open contacts of JQX-14FC

3000VAC dielectric strength.

Contact gap of JQX-14FC

:2y1.5mm=3mm.

Suitable for remote control TV set, copy machine, sales machine and air conditioner etc.

Ordering Information

JQX-14FC

C S 10 DC12V 0.8 3.5

4 Contact Current：3A,5A,6A,8A,10A,16A,20A

5 Coil rated Voltage(V)：DC:3,5,6,9,12,15,24

6 Coil power cunsumption：NIL:0.53W；0.8:0.8W；1.2:1.2W

7 Pole-distance：3.5:3.5mm；5:5.0mm

1 Part number：JQX-14FC

JQX-14FC

2 Contact arrangement：A:1A；2A:2A；C:1C；2C:2C

3 Enclosure：S: Sealed type；Z: Dust cover

Contact Data

Contact Arrangement

Contact Material

Contact Rating (resistive)

1A SPSTNO

f2A

DPSTNO

f1C

SPDT(B-M)

f2C

DPDT(B-M)

Ag CdO

Ag SnO

1A:16A/220VAC,30VDC;

1C:10A,16A,20A/220VAC,30VDC;

10A/250VAC,14VDC(20A Application for 5mmPole-distance)

2A,2C:5A,8A/220VAC, 30VDC; JQX-14FC3 2A 8A/220VAC 2C 6A/220VAC

Motor load : 1HP 250VAC ; 1/2HP 125VAC

Lamp load : TV-5

300W 2200VA

110VDC 380VAC

Max. Switching Current:20A

50m

Item 3.12 of IEC255-7

Item 3.30 of IEC255-7

5y10 (JQX-14FC

Item 3.31 of IEC255-7

2y1.5mm=3mm( for JQX-14FC

Max. Switching Power

Max. Switching Voltage

Contact Resistance or Voltage drop

Operation life Electrical

Mechanical

Contact gap

Coil Parameter

Coil voltage

VDC

Coil

resistance

±10%

153

275

1100

Pickup

voltage

VDC(max)

(75%of rated

voltage )

2.25

3.75

4.50

6.75

9.00

18.0

release

voltage

VDC(min)

(10% of

rated

voltage)

0.3

0.5

0.6

0.9

1.2

2.4

0.53

Coil power

consumption

Operate

Time

Release

Time

Dash

numbers

Rated

003-530

005-530

006-530

009-530

012-530

024-530

Max.

3.9

6.5

7.8

11.7

15.6

31.2

CAUTION

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Rated

006-670

009-810

012-800

015-830

024-780

006-900

009-1160

012-1200

015-1250

024-1230

Max.

7.8

11.7

15.6

19.5

31.2

7.8

11.7

15.6

19.5

31.2

100

180

270

740

120

180

470

voltage )

rated

voltage)

0.6

0.9

1.2

1.5

2.4

0.6

0.9

1.2

1.5

2.4

4.50

6.75

9.00

11.3

18.0

4.50

6.75

9.00

11.3

18.0

0.8W

1.25W

CAUTION

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.

2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

Operation condition

Insulation Resistance

Dielectric Strength

Between contacts

Between contact and coil

Creepage distance

Shock resistance

Vibration resistance

Terminals strength

Solderability

Ambient Temperature

Relative Humidity

Mass

1000M

min (at 500VDC)

JQX-14FC

3000V

4000v Surge voltage 12kV

Item 7 of IEC255-5

Item 6

of IEC255-5

50Hz 1000V

50Hz 5000V

100m/s

10~50Hz

10N

235x2

-40~70

20g

85% (at 40)

8mm (only for JQX-14FC

11ms

amplitude

3x0.5s

1.5mm

Addenda B of IEC255-5

IEC68-2-27 Test Ea

IEC68-2-6 Test Fc

IEC68-2-21 Test Ua1

IEC68-2-20 Test Ta method 1

IEC68-2-3Test Ca

-25~75(JQX-14FC

Qualification inspection:

Perform the qualification test as specified in the table

of IEC255-19-1 and minimum sample size 24.

Safety approvals

Safety approval

Load

1C 16A/250VAC

2C 5A/220VAC

1HP 250VAC

1/2HP 125VAC

TV-5

1C 10A/250VAC 14VDC

2C 5A/250VAC 30VDC

CCEE

10A/250VAC

2-0.5x1

2-0.4x1

2-1x0.4

2-0.16x1

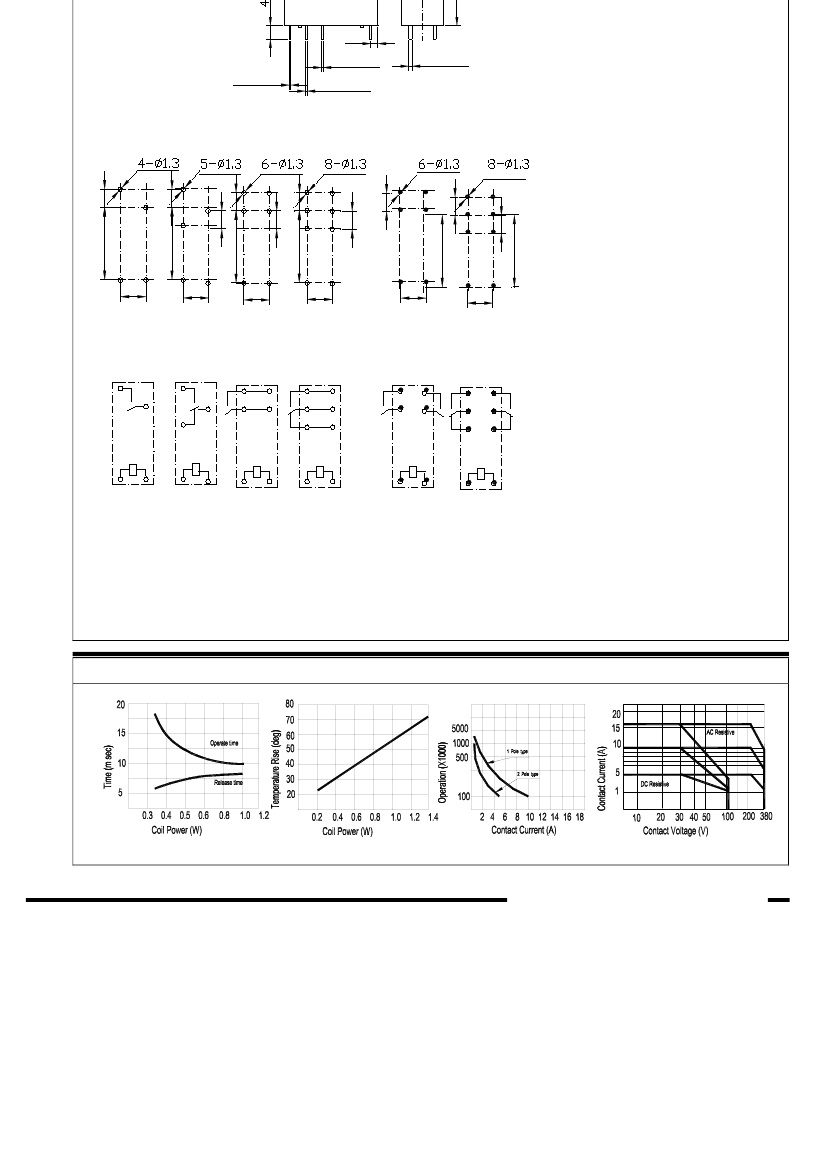

Dimensions

7,5

0.3

0.4

0.5

1.3

2.0

3.5

4.0

5.0

7.5

12.8

0.012

0.016

0.020

0.039

0.051

0.079

0.138

0.157

0.197

0.295

0.504

0.787

1.024

1.142

7,5

Mounting (Bottom views)

(10A)

(16A)

Pole-distance L: 3.5mm or 5mm

JQX-14FC

：5mm

Wiring diagram

(Bottom views)

JQX-14FC

NOTES

1).Dimensions are in millimeter.

2).Inch equivalents are given for general information only.

Reference Data

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
