39PNCAR500LF20

Description
Trimmer Resistors - Through Hole 1/4W 500 Ohms 20% SINGLE TURN
CategoryPassive components
File Size261KB,3 Pages
ManufacturerTT Electronics
Environmental Compliance
Download Datasheet Parametric Compare View All

39PNCAR500LF20 Online Shopping

Suppliers Part Number Price MOQ In stock
39PNCAR500LF20 - - View Buy Now

39PNCAR500LF20 Overview

Trimmer Resistors - Through Hole 1/4W 500 Ohms 20% SINGLE TURN

39PNCAR500LF20 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerTT Electronics
Product CategoryTrimmer Resistors - Through Hole
RoHSDetails
Termination StylePin
PackagingBulk
Factory Pack Quantity500
Unit Weight0.010000 oz

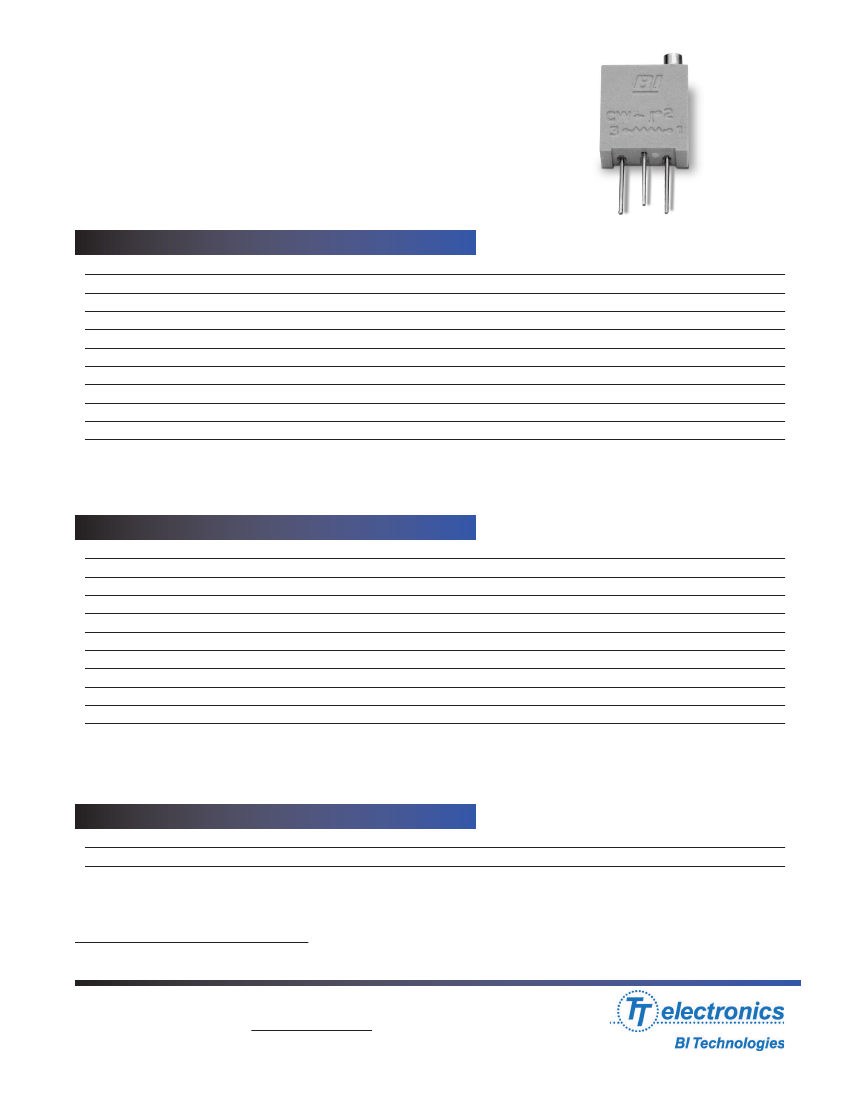

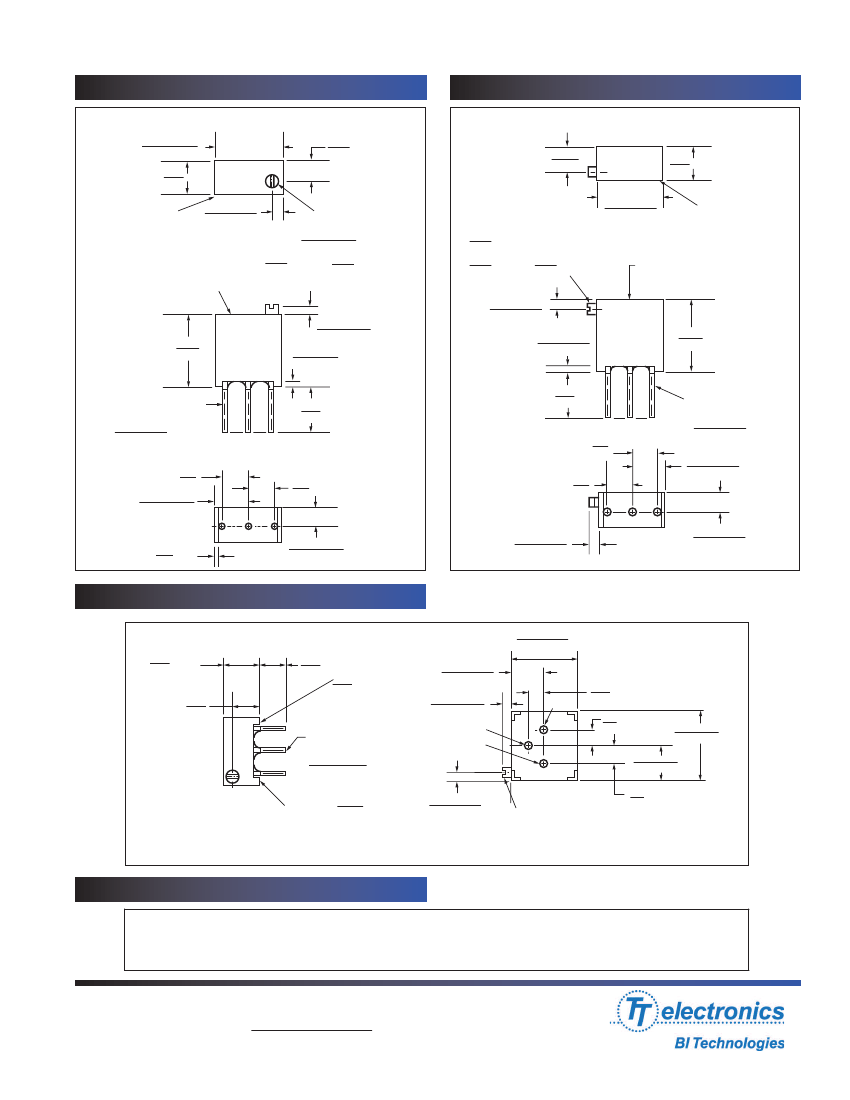

Model 66
3/8” Square
Multiturn
Cermet Trimming Potentiometer
ELECTRICAL
Standard Resistance Range
Standard Resistance Tolerance
Input Voltage
Slider Current
Power Rating
End Resistance
Actual Electrical Travel
Dielectric Strength
Insulation Resistance
Resolution
Contact Resistance Variation
10 Ohms to 2 Megohms
±10% (<100 Ohms = ±20%)
200 Vdc Max. or rms not to exceed power rating
100 mA Max. or within rated power, whichever is less
0.5 Watts at 70°C derating to 0 at 125°C
2 Ohms Max.
20 turns nominal
1,000 Vrms
1,000 Megohms Min.
Essentially infinite
1% or 1 Ohm Max., whichever is greater
ENVIRONMENTAL
Seal
Temperature Coefficient
Operating Temperature Range
Thermal Shock
Moisture Resistance
Shock
Vibration
High Temperature Exposure
Rotational Life
Load Life
Resistance to Solder Heat
85°C Fluorinert® (No Leaks)
±100 ppm/°C (<100 Ohms = ±250 ppm/°C)
–65°C to +150°C
Five cycles –65°C to +150°C (1% ∆RT, 1% ∆VR)
Ten 24 hour cycles (1% ∆RT, IR 1,000 Megohms Min.)
6 ms sawtooth, 100 G’s (1% ∆RT, 1% ∆VR)
20 G’s, 10 to 2,000 Hz (1% ∆RT, 1% ∆VR)
250 hours at 125°C (2% ∆RT, 2% ∆VR)
200 cycles (3% ∆RT)
1,000 hours at 70°C & 0.5 Watts (2% ∆RT)
260°C for 10 sec. (1% ∆RT)
MECHANICAL
Mechanical Stops
Torque, Starting
Weight
Clutch action, both ends
5 oz.-in. Max. (0.035 N-m)
0.04 oz. nominal (1.1 grams)
Specifications subject to change without notice.
Fluorinert® is a registered trademark of 3M Company.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
June 3, 2010
Website: www.bitechnologies.com
Model 66 page 1 of 3
