0443665806 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 0443665806

0443665806: DescriptionFerrite Clamp On Cores BB Freq 43&44 Mat 122Ohm @250MHz Round; CategoryPassive components; File Size454KB，5 Pages; ManufacturerFair Rite; Environmental Compliance

Download Datasheet Parametric Compare View All

0443665806 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0443665806	-	-	View	Buy Now

0443665806 Overview

Ferrite Clamp On Cores BB Freq 43&44 Mat 122Ohm @250MHz Round

0443665806 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Fair Rite
Product Category	Ferrite Clamp On Cores
RoHS	Details
Shape	Round
Inside Diameter	9.5 mm
Outside Length	26.3 mm
Outside Width	16.4 mm
Outside Height	11 mm
Packaging	Bulk
Core Material	43
Operating Temperature Range	- 55 C to + 125 C
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	220
Unit Weight	0.458562 oz

Preview

Download Datasheet

View All

Fair-Rite Product's Catalog

Part Data Sheet, 0443665806

Printed: 2014-05-13

Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288

Phone: (888) 324-7748 www.fair-rite.com

Part Number:

0443665806

Frequency Range: Broadband Frequencies 25-300 MHz (43 & 44 materials)

Description:

Application:

Where Used:

Part Type:

43 ROUND CABLE CORE ASSEMBLY

Suppression Components

Cable Component

Round Cable Snap-Its

Mechanical Specifications

Weight:

13.000 (g)

Part Type Information

Round cable snap-its can easily accommodate round cables or bundled wires with diameters from 2.5 mm (.100'') to

25.4 mm (1.000''). These assemblies are available in four ferrite material classes to suppress differential or

common-mode conducted EMI from 1 MHz into the GHz region. The polypropylene cases are meeting the RoHS restrictions

of hazardous substances and have a flammability rating of UL94 V-0.

-Round cable snap-it assemblies are controlled for impedances only. Minimum impedance values are specified for the + marked

frequencies. The minimum impedance is typically the listed impedance less 20%.

-Single turn impedance tests for the 31, 43, 44 and 46 material are performed on the 4193A Vector Impedance Analyzer. The 61

material parts are tested on the 4291A RF Impedance Analyzer and 75 material parts are tested on the 4285A LCR Meter.

Cores are tested with the shortest practical wire length.

-Many of the snap-it parts have round core equivalents. See Round Cable EMI Suppression Cores section of our catalog.

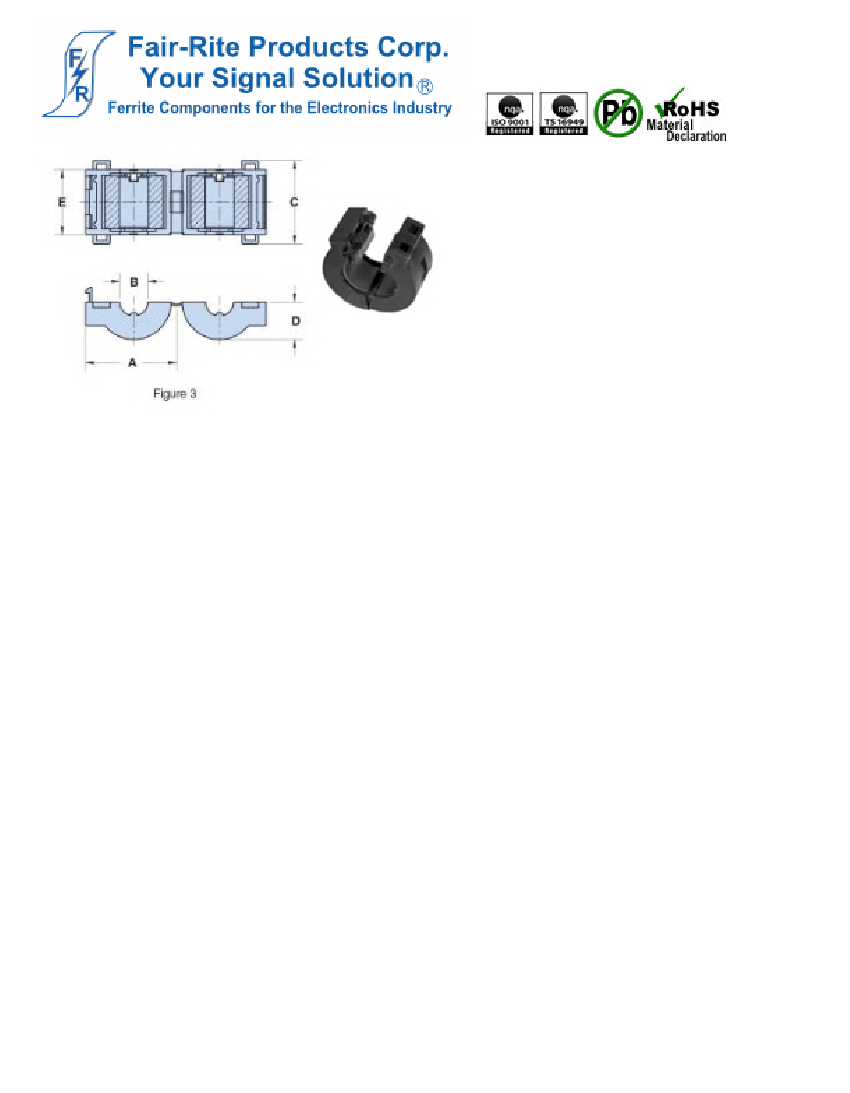

-'B' Dimension is the core Dimension.

-Round Cable Snap-it Kits are available for each of the four suppression materials. 31 Snap-It Kit (0199000030),

43 Snap-It Kit (0199000031), 46 Core and Snap-It Kit (0199000032) and 61 Snap-It Kit (0199000033).

-Explanation of Part Numbers: Digits 1 & 2 = product class and 3& 4 = material grade.

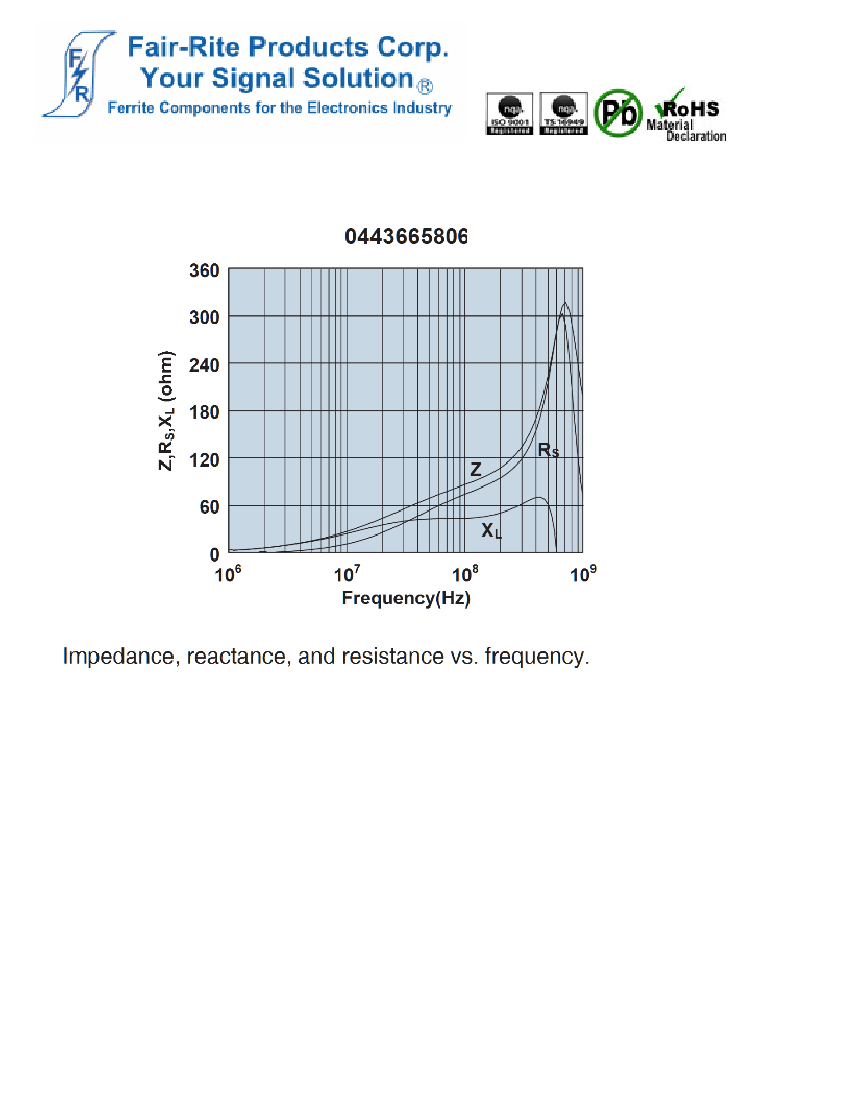

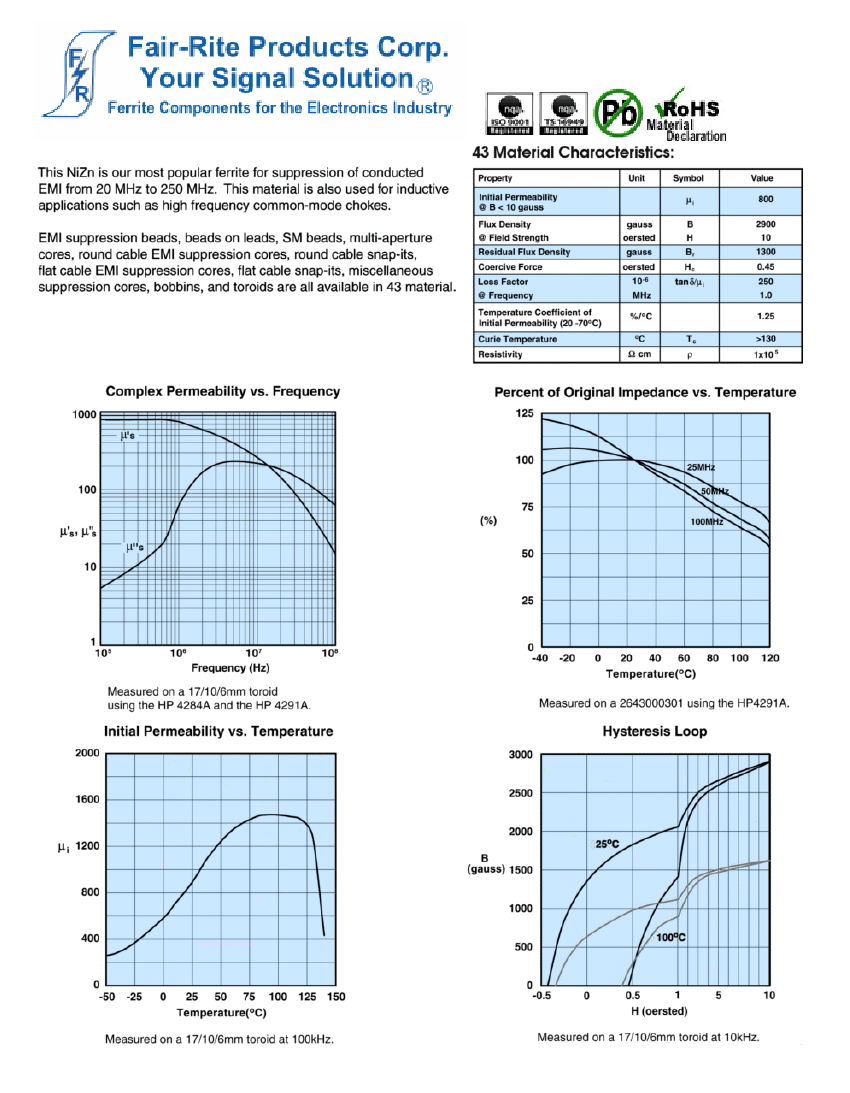

0443665806 Related Products

	0443665806	443665806
Description	Ferrite Clamp On Cores BB Freq 43&44 Mat 122Ohm @250MHz Round	Ferrite Clamp On Cores 43 ROUND CABLE CORE ASSEMBLY
Product Attribute	Attribute Value	Attribute Value
Manufacturer	Fair Rite	Fair Rite
Product Category	Ferrite Clamp On Cores	Ferrite Clamp On Cores
Shape	Round	Round
Inside Diameter	9.5 mm	9.5 mm
Outside Length	26.3 mm	26.3 mm
Outside Width	16.4 mm	16.4 mm
Core Material	43	43
Operating Temperature Range	- 55 C to + 125 C	- 55 C to + 125 C
Maximum Operating Temperature	+ 125 C	+ 125 C
Minimum Operating Temperature	- 55 C	- 55 C
Unit Weight	0.458562 oz	6.567 lbs
