CM04ED470J03 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CM04ED470J03

CM04ED470J03: DescriptionMica Capacitors 47 pF 165Vac 1600volts; CategoryPassive components; File Size527KB，7 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric View All

CM04ED470J03 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CM04ED470J03	-	-	View	Buy Now

CM04ED470J03 Overview

Mica Capacitors 47 pF 165Vac 1600volts

CM04ED470J03 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cornell Dubilier
Product Category	Mica Capacitors
RoHS	N
Termination Style	Radial
Capacitance	47 pF
Voltage Rating	500 V
Tolerance	5 %
Length	9.4 mm
Width	4.8 mm
Height	8.6 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Bulk
Operating Temperature Range	- 55 C to + 125 C
Product	Mica Standard Dipped Capacitors
Lead Spacing	3.6 mm
Factory Pack Quantity	100
Temperature Coefficient / Code	- 20 PPM / C, + 100 PPM / C

Preview

Download Datasheet

View All

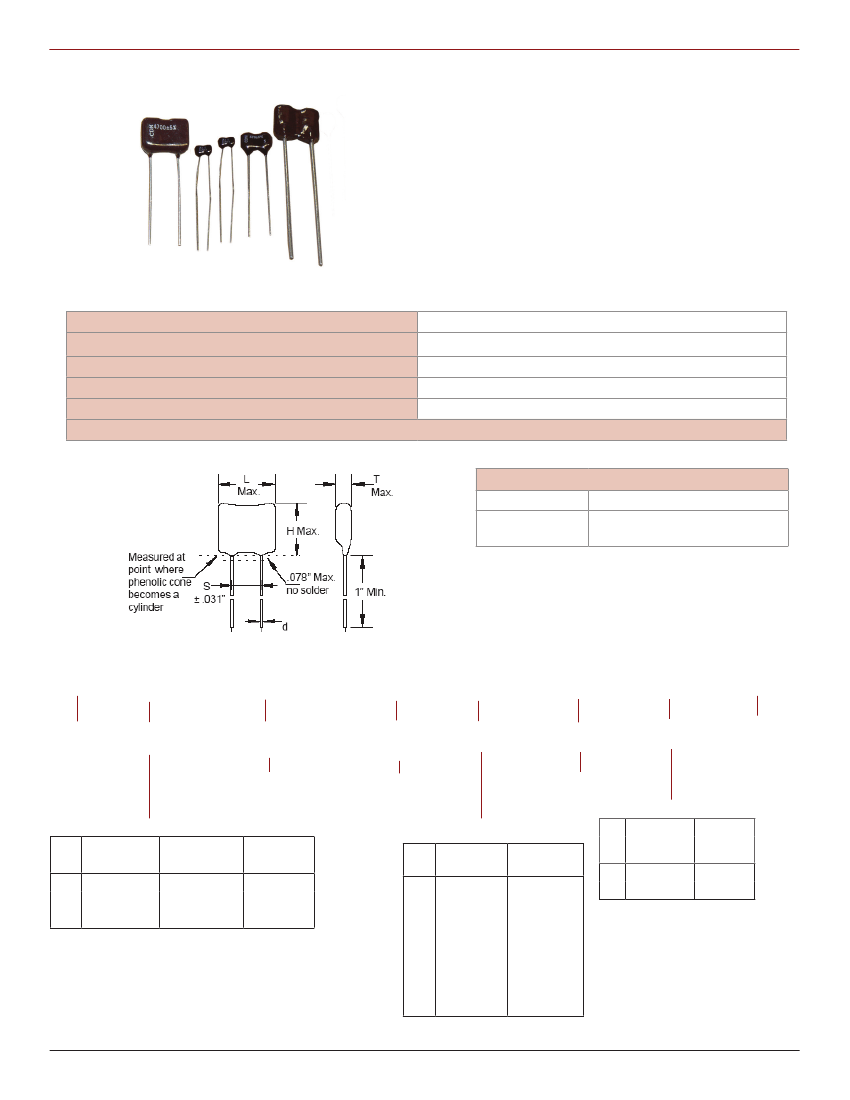

Mica Capacitors, Standard Dipped

Types CD10, D10, CD15, CD19, CD30, CD42, CDV19, CDV30

Stability and mica go hand-in-hand when you need to count

on stable capacitance over a wide temperature range. CDE’s

standard dipped silvered mica capacitors are the first choice for

timing and close tolerance applications. These standard types

are widely available through distribution.

Highlights

- Reel packaging available

- High temperature – up to +150 ºC

- Dimensions meet EIA RS153B specification

- 100,000 V/µs dV/dt pulse capability minimum

- Non-flammable units that meet IEC 695-2-2 are available

1 pF to 91,000 pF

±1/2 pF (D), ±1 pF (C), ±1/2% (E), ±1% (F), ±2% (G), ±5% (J)

100 Vdc to 2500 Vdc

–55 ºC to +125 ºC (O) –55 ºC to +150 ºC (P)*

200% of rated voltage

RoHS Compliant

* P temperature range available for types CD10, CD15, CD19, CD30 and CD42

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range

Dielectric Strenght Test

Dimensions

Construction Details

Case Material

Terminal Material

Epoxy

Copper clad steel, nickle undercoat,

100% tin finish

Ordering Information

Order by complete part number as below. For other options,

write your requirements on your purchase order or request

for quotation.

Part Numbering System

(Radial-Leaded Silvered Mica Capacitors, except D10*)

CD15

Characteristic

Code

Voltage

(Vdc)

100

Capacitance

(pF)

Capacitance

Tolerance

Temperature

Range

Vibration

Grade

Blank =

Not Specified

F= RoHS

Compliant

Series

Characteristics

Code

Temp. Coeff.

ppm/ ºC

–200 to +200

–20 to +100

0 to +70

F = 1000 Vdc

A = 100 Vdc H = 1500 Vdc

C = 300 Vdc J = 2000 Vdc

D = 500 Vdc K = 2500 Vdc

Standard Cap.

Range

1–18 pF

20–82 pF

Drift

Capacitance

±(0.5% +0.1pF)

±(0.1% +0.1 pF)

010 = 1 pF

O = –55 ºC to +125 ºC

100 = 10 pF

P = –55 ºC to +150 ºC

(1.5) = 1.5 pF

361 = 360 pF

122 = 1200 pF

Capacitance Tolerance

Tol.

Code

Tolerance

±1 pF

±1⁄2 pF

±1⁄2 %

±1 %

±2 %

±3 %

±5 %

Capacitance

Range

1– 9 pF

1–99 pF

100 pF and up

50 pF and up

25 pF and up

18 pF and up

10 pF and up

Vibration Grade

Vibration

Condition

No. MIL-STD-202

(Hz)

Method 204

Condition D

10 to 2,000

±(0.05% +0.1 pF) 91 pF and up

Options Available

- Non-flammable units per IEC 695-2-2 are available for standard

dipped capacitors. Specify IEC 695-2-2 on your order.

- Tape and reeling, specify per application guide.

Standard tolerance is ±1/2 pF for less

* Order type D10 using the catalog numbers

than 10 pF and ±5% for 10 pF and up

shown in ratings tables.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
