PCJ1C221MCL4GS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> PCJ1C221MCL4GS

Preview

PCJ1C221MCL4GS: DescriptionAluminum Organic Polymer Capacitors 16volts 220uF 105c 8x10; CategoryPassive components capacitor; File Size618KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

PCJ1C221MCL4GS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PCJ1C221MCL4GS	-	-	View	Buy Now

PCJ1C221MCL4GS Overview

Aluminum Organic Polymer Capacitors 16volts 220uF 105c 8x10

PCJ1C221MCL4GS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 3333
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	18 mΩ
high	10 mm
JESD-609 code	e4
leakage current	0.704 mA
length	9 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	3890 mA
size code	3333
surface mount	YES
Delta tangent	0.12
Terminal surface	Silver (Ag)
Terminal shape	FLAT
width	8.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

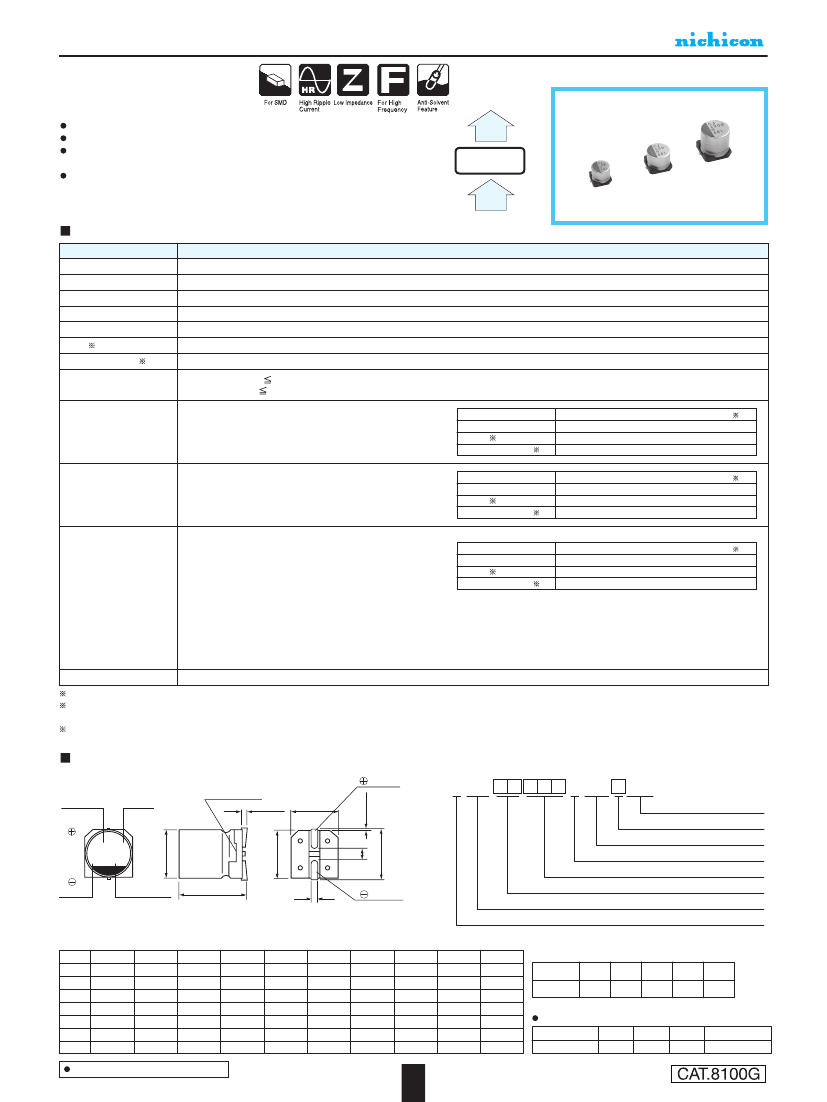

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

PCJ

Specifications

Item

Category Temperature Range

Rated Voltage Range

Chip Type, Low ESR,

Higher Capacitance

PCK

Low ESR

Low ESR, Higher Capacitance, High ripple current.

Load life of 2000 hours at 105°C.

SMD type : Lead free reflow soldering condition at

260°C peak correspondence.

Compliant to the RoHS directive (2011/65/EU).

PCJ

Low ESR

Higher

Capacitance,

PCF

Performance Characteristics

– 55 to +105°C

2.5 to 16V

33 to 2700µF

± 20% at 120Hz, 20°C

Less than or equal to the specified value at 100kHz, 20°C

Rated Capacitance Range

Capacitance Tolerance

ESR (

1)

2)

Tangent of loss angle (tan

δ)

Less than or equal to the specified value at 120Hz, 20°C

Leakage Current (

Less than or equal to the specified value .

Z+105°C / Z+20°C

Z– 55°C / Z+20°C

1.25

(100kHz)

After 2 minutes' application of rated voltage at 20°C

Temperature Characteristics

(Max.Impedance Ratio)

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 2000 hours at 105°C.

Capacitance change

tan

δ

ESR

( 1)

Leakage current ( 2)

Capacitance change

tan

δ

ESR

( 1)

Leakage current ( 2)

Within ± 20% of the initial capacitance value ( 3)

150% or less than the initial specified value

Less than or equal to the initial specified value

Within ± 20% of the initial capacitance value ( 3)

150% or less than the initial specified value

Less than or equal to the initial specified value

Damp Heat

(Steady State)

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 1000 hours at 60°C, 90% RH.

After soldering the capacitor under the soldering conditions

prescribed here, the capacitor shall meet the specifications listed at

right.

Pre-heating shall be done at 150 to 200°C and for 60 to 180 sec.

The duration for over +230°C temperature at capacitor surface shall

not exceed 60 seconds.

In case peak temperature is 250°C or less, reflow soldering shall be

two times maximum.

In case peak temperature is 260°C or less, reflow soldering shall be

once.

Measurement for solder temperature profile shall be made at the

capacitor top and the terminal.

Navy blue print on the case top

Resistance to

Soldering Heat

Capacitance change

tan

δ

ESR

( 1)

Leakage current ( 2)

Within ± 10% of the initial capacitance value ( 3)

130% or less than the initial specified value

Less than or equal to the initial specified value

Marking

1 ESR should be measured at both of the terminal ends closest where the terminals protrude through the plastic platform.

2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120

minutes at 105°C.

3 Initial value : The value before test of examination of resistance to soldering.

Dimensions

Positive

Capacitance

Type numbering system (Example : 6.3V 220µF)

1

2

3

4

5

6

7

8

9 10 11 12 13 14

0.5 MAX.

Plastic platform

PC J 0 J 2 2 1 MC L 1 GS

Taping code

Size code

Configuration

Lot No.

0.3 MAX.

C±0.2

φD±0.5

B ±0.2

A±0.2

CJ

220

j

841

Capacitance tolerance (±20%)

Rated capacitance (220µF)

E

Series

Voltage

( j:6.3v)

L

+0.1

-0.4

H

Negative

Rated voltage (6.3V)

Series name

Type

Size

φD

L

A

B

C

E

H

φ5

×

6L

5.0

5.9

6.0

5.3

1.6

φ6.3

×

6L

φ6.3

×

8L

6.3

5.9

7.3

6.6

2.1

7.9

7.3

6.6

2.1

φ8

×

7L

8.0

6.9

9.0

8.3

3.2

φ8

×

8L

8.0

7.9

9.0

8.3

3.2

φ8

×

10L

8.0

9.9

9.0

8.3

3.2

φ8

×

12L

8.0

11.9

9.0

8.3

3.2

(mm)

φ10

×

8L

φ10

×

10L

φ10

×

12.7L

10.0

7.9

11.0

10.3

4.6

9.9

11.0

10.3

4.6

12.6

11.0

10.3

4.6

Voltage

V

Code

2.5

e

4

g

6.3

j

10

A

16

C

Frequency coefficient of rated ripple current

0

Frequency0/ 120Hz

Coefficient

0.05

1kHz

0.30

10kHz 100kHz or more

0.70

1.00

0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1 0.8 to 1.1

Dimension table in next page.
