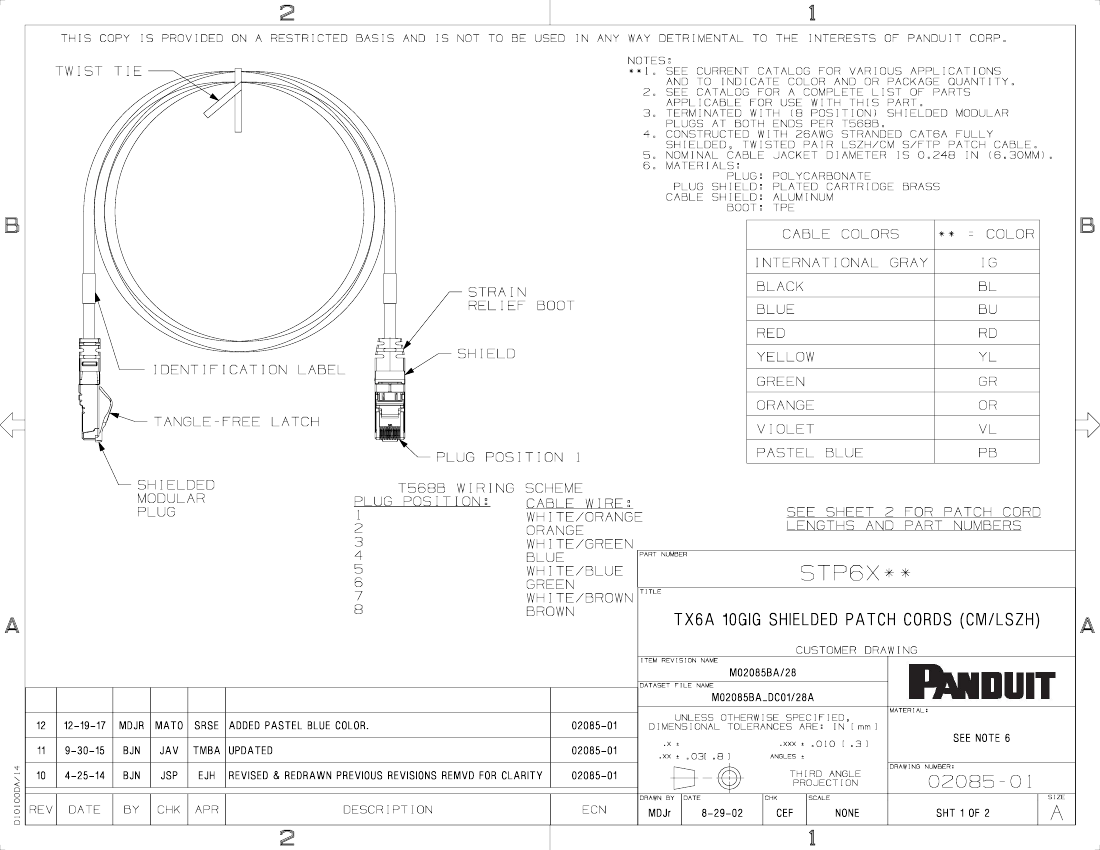

TWIST TIE
1
NOTES:
**1. SEE CURRENT CATALOG FOR VARIOUS APPLICATIONS
AND TO INDICATE COLOR AND OR PACKAGE QUANTITY.
2. SEE CATALOG FOR A COMPLETE LIST OF PARTS
APPLICABLE FOR USE WITH THIS PART.
3. TERMINATED WITH (8 POSITION) SHIELDED MODULAR
PLUGS AT BOTH ENDS PER T568B.
4. CONSTRUCTED WITH 26AWG STRANDED CAT6A FULLY
SHIELDED, TWISTED PAIR LSZH/CM S/FTP PATCH CABLE.
5. NOMINAL CABLE JACKET DIAMETER IS 0.248 IN (6.30MM).
6. MATERIALS:
PLUG: POLYCARBONATE
PLUG SHIELD: PLATED CARTRIDGE BRASS
CABLE SHIELD: ALUMINUM
BOOT: TPE
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
B
CABLE COLORS
INTERNATIONAL GRAY
STRAIN
RELIEF BOOT
BLACK
BLUE
RED
SHIELD
IDENTIFICATION LABEL
YELLOW
GREEN
ORANGE
TANGLE-FREE LATCH
S6
** = COLOR
IG
BL
BU
RD
YL
GR
OR
VL
PB
B
VIOLET
PLUG POSITION 1
PASTEL BLUE
SHIELDED
MODULAR
PLUG
A
T568B WIRING
PLUG POSITION:
1
2
3
4
5
6
7
8
SCHEME
CABLE WIRE:
WHITE/ORANGE
ORANGE
WHITE/GREEN
PART NUMBER
BLUE
WHITE/BLUE
GREEN
TITLE
WHITE/BROWN
BROWN
SEE SHEET 2 FOR PATCH CORD
LENGTHS AND PART NUMBERS
STP6X**
A
TX6A
10GIG
SHIELDED
PATCH
CORDS
(CM/LSZH)
CUSTOMER DRAWING
ITEM REVISION NAME
M02085BA/28
DATASET FILE NAME
M02085BA_DC01/28A
12
11
D10100DA/14
12-19-17
9-30-15
4-25-14
DATE
MDJR
MATO
JAV
JSP
CHK
SRSE
ADDED
PASTEL
BLUE
COLOR.
02085-01
02085-01
02085-01
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.XXX
MATERIAL:
BJN
BJN
TMBA
UPDATED
EJH
REVISED
&
REDRAWN
PREVIOUS
REVISIONS
REMVD
FOR
CLARITY
.010 [.3]
SEE
NOTE
6
DRAWING NUMBER:
.03[.8]
ANGLES
10
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
02085-01
SIZE
REV
BY
APR
DESCRIPTION
ECN
MDJr
8-29-02
CEF
NONE
SHT
1
OF
2
A
2
1
2

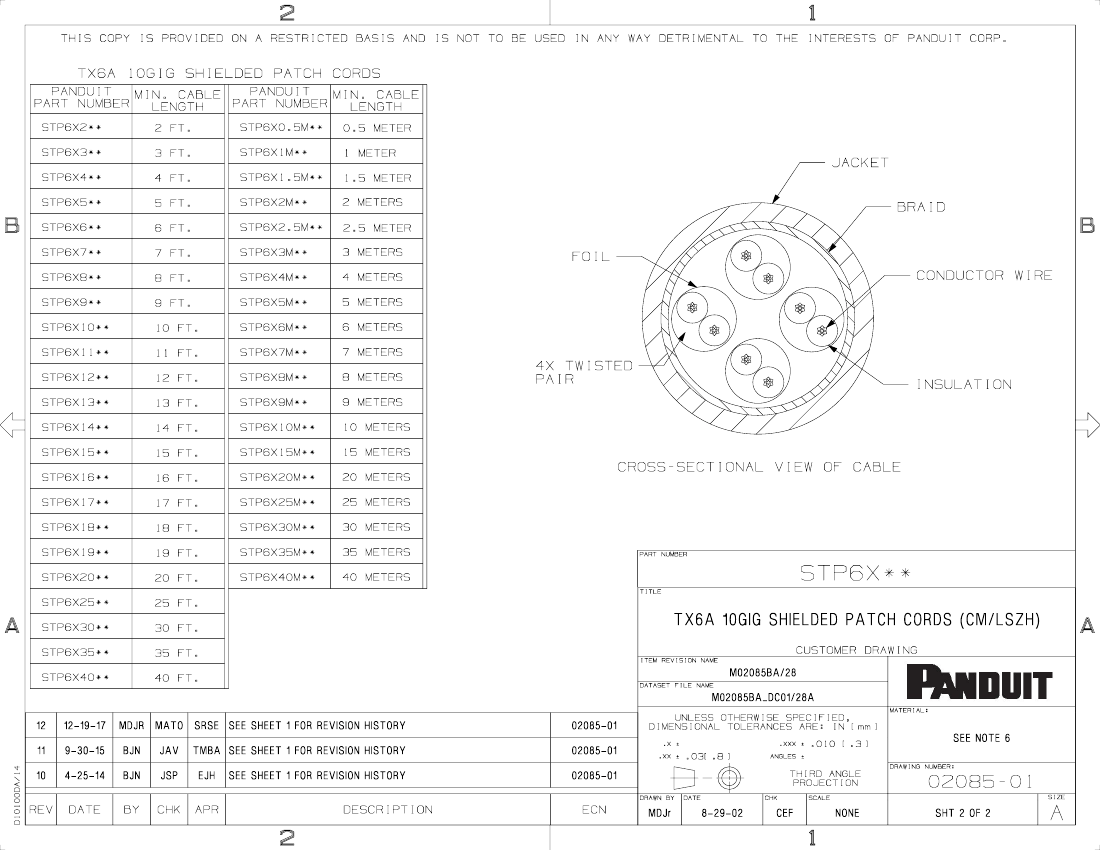

TX6A 10GIG SHIELDED PATCH CORDS
PANDUIT
MIN. CABLE
PART NUMBER
LENGTH
STP6X2**
STP6X3**
STP6X4**
STP6X5**
2 FT.
3 FT.
4 FT.
5 FT.
6 FT.
7 FT.
8 FT.
9 FT.
10 FT.
11 FT.
12 FT.
13 FT.
14 FT.
15 FT.
16 FT.
17 FT.
18 FT.
19 FT.
20 FT.
25 FT.
30 FT.
35 FT.
40 FT.
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
PANDUIT
MIN. CABLE
PART NUMBER
LENGTH
STP6X0.5M**
STP6X1M**
STP6X1.5M**
STP6X2M**
STP6X2.5M**
STP6X3M**
STP6X4M**
STP6X5M**
STP6X6M**
STP6X7M**
STP6X8M**
STP6X9M**
STP6X10M**
STP6X15M**
STP6X20M**
STP6X25M**
STP6X30M**
STP6X35M**
STP6X40M**
0.5 METER
1 METER
1.5 METER
2 METERS
2.5 METER
3 METERS
4 METERS
5 METERS
6 METERS
7 METERS
8 METERS
9 METERS
10 METERS
15 METERS
20 METERS
25 METERS
30 METERS
35 METERS
40 METERS
TITLE
PART NUMBER
JACKET
BRAID
B
STP6X6**
STP6X7**
STP6X8**
STP6X9**
STP6X10**
STP6X11**
STP6X12**
STP6X13**
STP6X14**
STP6X15**
STP6X16**
STP6X17**
STP6X18**
STP6X19**
STP6X20**
STP6X25**
B
FOIL
CONDUCTOR WIRE
4X TWISTED
PAIR
INSULATION
CROSS-SECTIONAL VIEW OF CABLE
STP6X**
TX6A
10GIG
SHIELDED
PATCH
CORDS
(CM/LSZH)
CUSTOMER DRAWING
ITEM REVISION NAME
A
STP6X30**
STP6X35**
STP6X40**
A
M02085BA/28
DATASET FILE NAME
M02085BA_DC01/28A
12
11
D10100DA/14
12-19-17
9-30-15
4-25-14
DATE
MDJR
MATO
JAV
JSP
CHK
SRSE
SEE
SHEET
1
FOR
REVISION
HISTORY
02085-01
02085-01
02085-01
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.XXX
MATERIAL:
BJN
BJN
TMBA
SEE
SHEET
1
FOR
REVISION
HISTORY
EJH
SEE
SHEET
1
FOR
REVISION
HISTORY
.010 [.3]
SEE
NOTE
6
DRAWING NUMBER:
.03[.8]
ANGLES
10
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
CHK
SCALE
02085-01
SIZE
REV
BY
APR
DESCRIPTION
ECN
MDJr
8-29-02
CEF
NONE
SHT
2
OF
2
A
2
1
