[2]
12.7mm
(.49")
137.0mm
(5.39")
[2]
[2]
15.6mm
(.61")
5.51mm
(.22")
22 AWG
WIRES
NOTES:
1.
OPERATION
1.
2.
3.
4.
2.
GENTLY LIFT LATCH AT SIDE OF CONNECTOR.
SWING COVER OFF OF CONTACTS.
SLIDE THE FLEX TAPE INTO THE CONNECTOR PLACING THE EDGE OF THE FLEX TAPE
UNDER 2 HOLD DOWN TABS.
FOLD OVER THE COVER AND PRESS IN PLACE UNTIL THE LATCH IS FULLY ENGAGED.
LIMIT CURRENT TO A MAXIMUM OF 5 AMPS.
JKL PART NO.: ZCH-137HD-8J
METRIC
THIRD ANGLE
PROJECTION
DIMENSIONS ARE
IN mm (INCHES)
TOLERANCE UNLESS
OTHERWISE SPECIFIED
1 PL +/-
2 PL +/-
ANGLE +/-
APPV'D BY
REF.
REF.
DATE
TITLE
COMPONENTS CORPORATION

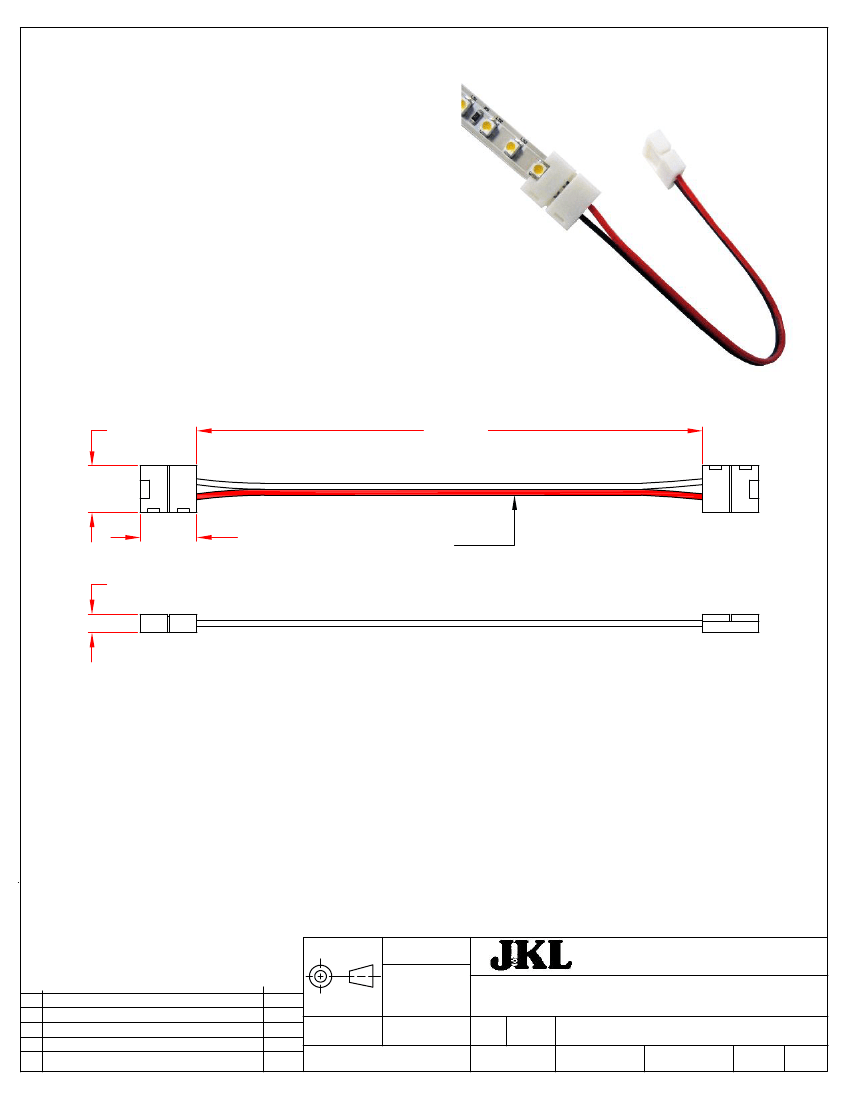

NO SOLDER 8mm FLEX TAPE
JOINER CONNECTOR
55335
NONE
FSCM NO.
DRAWING
NO.
RELEASED
DATE
A
REV.
NO.
ADD SIDE VIEW
RELEASE & CANCEL PL-1409-02
DESCRIPTION/ECO
NUMBER
8/20/15
L. WENGSTROM
L.R.
10/10/14
APPV'D
DATE
DRAWN BY
SIZE
8/20/15
MANUAL REVISIONS NOT PERMITTED
- CAD DRAWING -
SCALE
A
ZCH-137HD-8J
REVISION
DATE
10/10/14
8/20/15
REV.
NO.
A
1
SHEET
OF
1
