800A-WSP9-VS2-R-E: DescriptionPushbutton Switch, SPST, Off-(on), Momentary, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight; Categoryswitch Push button switch; File Size385KB，3 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

800A-WSP9-VS2-R-E Overview

Pushbutton Switch, SPST, Off-(on), Momentary, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight

800A-WSP9-VS2-R-E Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
Is Samacsys	N
Actuator angle
Actuator length	0.215 inch
Actuator material	GLASS FILLED NYLON
Actuator type	PUSHBUTTON
body width	5.08 mm
body height	8.89 mm
Body length or diameter	10.16 mm
Nozzle length	0.162 inch
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact function	OFF-(ON)
Contact resistance	0.01 mΩ
contact time	SNAP ACTION
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	800A
Installation features	THROUGH HOLE-STRAIGHT
PCB hole count	4
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal length	0.13 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

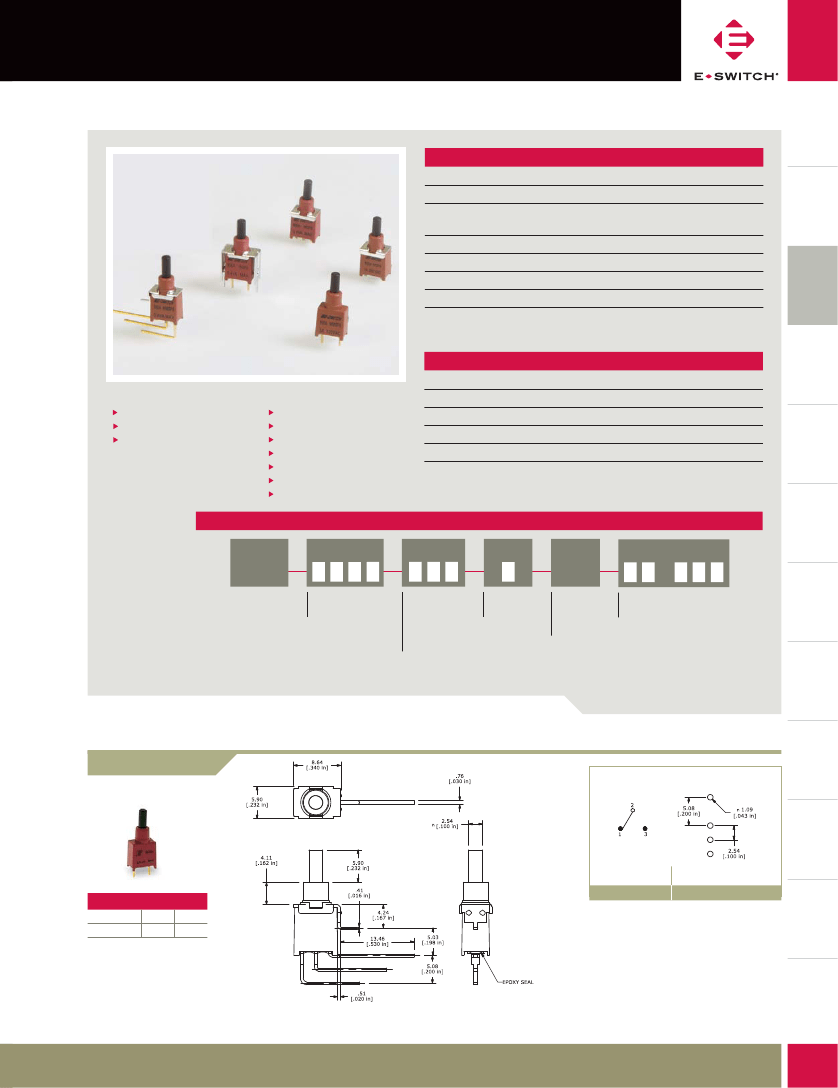

SERIES 800A SWITCHES

SPECIFICATIONS

Life Expectancy:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Actuation Force:

50,000 cycles typical

10m

1

max. typical @ 2-4 VDC

100mA for both silver and gold plated contacts

1,000M

1

min.

1,000 V rms @ sea level

200 ± 50 gf

PUSHBUTTON

SWITCHES

CAP COLOR

SNAP-ACTION

SWITCHES

CAP

OPTIONS

DETECTOR

SWITCHES

ROTARY

SWITCHES

Model No.

WSP8

WSP9

ON

OFF

Type

(ON)

SCHEMATIC

P.C. MOUNTING

( ) = Momentary

KEYLOCK

SWITCHES

DIP

SWITCHES

SLIDE

SWITCHES

SEAL

CAP

ROCKER

SWITCHES

TOGGLE

SWITCHES

NAVIGATION

SWITCHES

TACT

SWITCHES

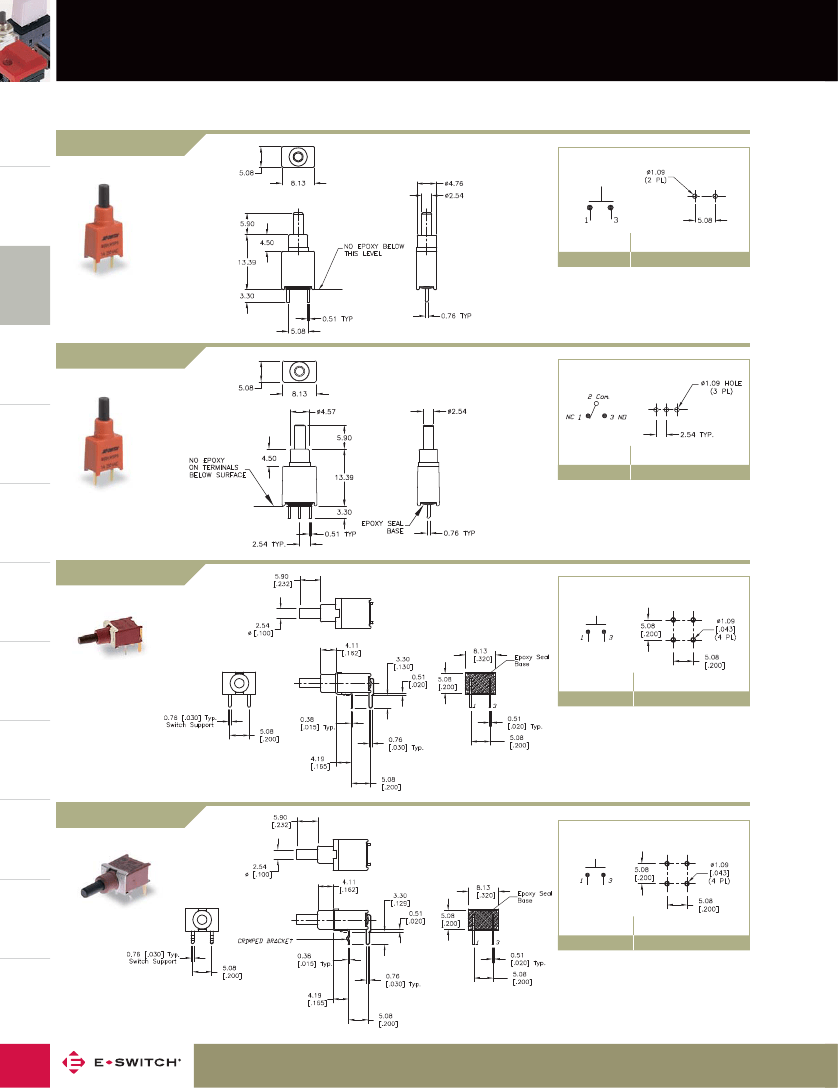

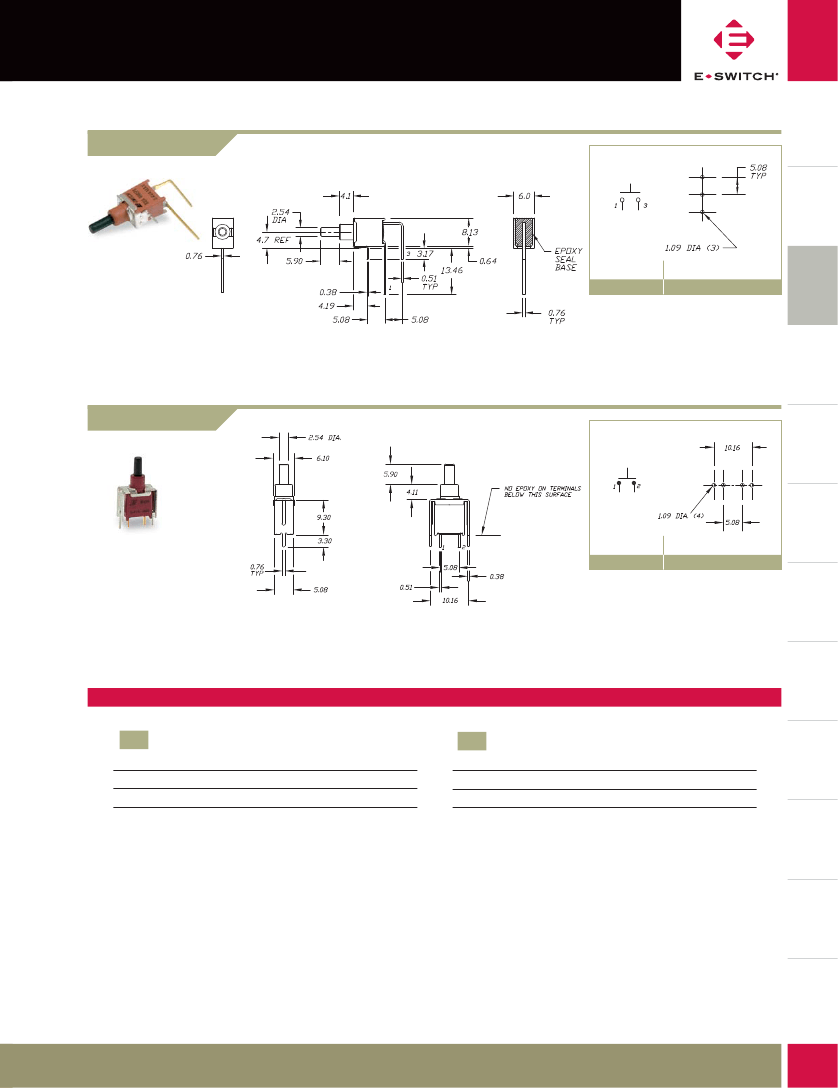

PUSHBUTTON SWITCHES - SUB-MINIATURE

Contact Rating:

1A @ 120 VAC

Operating Temperature: -30°C to +85°C

MATERIALS

Case:

Diallyl Phthalate (DAP)

Glass filled nylon or glass filled polyester

Diallyl Phthalate (DAP)

Stainless steel

Silver or Gold plated copper alloy

FEATURES & BENEFITS

Subminiature design

Butt contact design

IP-67 sealed option

APPLICATIONS/MARKETS

Telecommunications

Networking

Computers/servers

Performance audio

Instrumentation

Low power on/off designs

External hard drives and modems

Plunger:

Bushing:

Housing:

Contacts:

SPDT

WSP8

www.e-switch.com

▲

HOW TO ORDER

SERIES

MODEL NO.

TERMINATION

CONTACT

MATERIAL

800 A

WSP8

WSP9

M2

M6

M61

M7

VS2

Q = Silver

R = Gold

E

E = Epoxy

Sealed at

Base of

Terminal

See Cap Options

Example Ordering Number

800A_ WSP9_ M7_ R_ E

Specifications subject to change without notice.

info

@

e-switch.com

77

800A-WSP9-VS2-R-E Related Products

	800A-WSP9-VS2-R-E	800A-WSP8-VS2-R-E
Description	Pushbutton Switch, SPST, Off-(on), Momentary, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Pushbutton Switch, SPST, On-(on), Momentary, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Maker	E-Switch	E-Switch
Reach Compliance Code	compliant	compliant
Actuator length	0.215 inch	0.215 inch
Actuator material	GLASS FILLED NYLON	GLASS FILLED NYLON
Actuator type	PUSHBUTTON	PUSHBUTTON
body width	5.08 mm	5.08 mm
body height	8.89 mm	9.2964 mm
Body length or diameter	10.16 mm	10.16 mm
Nozzle length	0.162 inch	0.162 inch
center contact material	COPPER ALLOY	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC	0.4VA@20VAC
Contact function	OFF-(ON)	ON-(ON)
Contact resistance	0.01 mΩ	0.01 mΩ
contact time	SNAP ACTION	SNAP ACTION
Dielectric withstand voltage	1000VRMS V	1000VRMS V
Electrical life	50000 Cycle(s)	50000 Cycle(s)
End contact material	COPPER ALLOY	COPPER ALLOY
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL
Shell material	STAINLESS STEEL	STAINLESS STEEL
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE
Manufacturer's serial number	800A	800A
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
PCB hole count	4	4
seal	EPOXY	EPOXY
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	SPST	SPST
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Terminal length	0.13 inch	0.13 inch
Terminal material	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER
