Network cable - NBC-MSD/4,0-93E/R4AC - 1410142
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Network cable, Ethernet CAT5, 4-position, PUR, water blue RAL 5021, shielded, Plug straight M12, on Plug
straight RJ45, Cable length: 4 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356892971
85444210
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
4m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 60 °C (cable, fixed installation)
General data
Number of positions
Signal type/category
Overvoltage category
Degree of pollution
Alternative short product description
4
Ethernet CAT5 (IEC 11801:2002)
I
3
3
Ethernet cable
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Plug straight M12
4 (4)
11/13/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1410142
Network cable - NBC-MSD/4,0-93E/R4AC - 1410142
Technical data
Characteristics head 1
Shielded
yes
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Shielded
Plug straight RJ45
4 (8)
yes
Standards and Regulations
Flammability rating according to UL 94
V2
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Twisted pairs
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Tensile strength short-term/long-term
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Standards/specifications
Insulation resistance
Loop resistance
Cable capacity
Wave impedance
Signal runtime
Coupling resistance
PUR ETHERNET 2x2 FLEX
93E
20963 (80°C/30 V)
Ethernet CAT5 (IEC 11801), 100 Mbps
2x2xAWG26/7; SF/UTP
2x 2x 0.14 mm²
26
7x 0.16 mm
0.98 mm
white/orange-orange, white/green-green
2 cores to the pair
Two pairs with two fillers to the core
Aluminum-coated foil, tinned copper braided shield
70 %
water blue RAL 5021
1.2 mm
6.4 mm ±0.2 mm
4xD
8xD
≤ 80N
42 kg/km
PUR
Foamed PE
Bare Cu litz wires
Electrical requirements EN 50288-2-2
≥ 500 MΩ*km
≤ 290 Ω (per km)
approx. 45 nF/km (at 1 kHz)
100 Ω ±5 Ω (at 100 MHz)
5.3 ns/m
≤ 100.00 mΩ/m (At 10 MHz)
11/13/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1410142
Network cable - NBC-MSD/4,0-93E/R4AC - 1410142
Technical data
Cable
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Halogen-free
Resistance to oil
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
≤ 100 V (Peak value, not for high-power applications)
700 V (50 Hz, 1 min.)
700 V (50 Hz, 1 min.)
According to IEC 60332-1-2
in acc. to UL VW1
According to IEC 60754-1
according to EN 60811-2-1
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
-20 °C ... 80 °C
-20 °C ... 80 °C

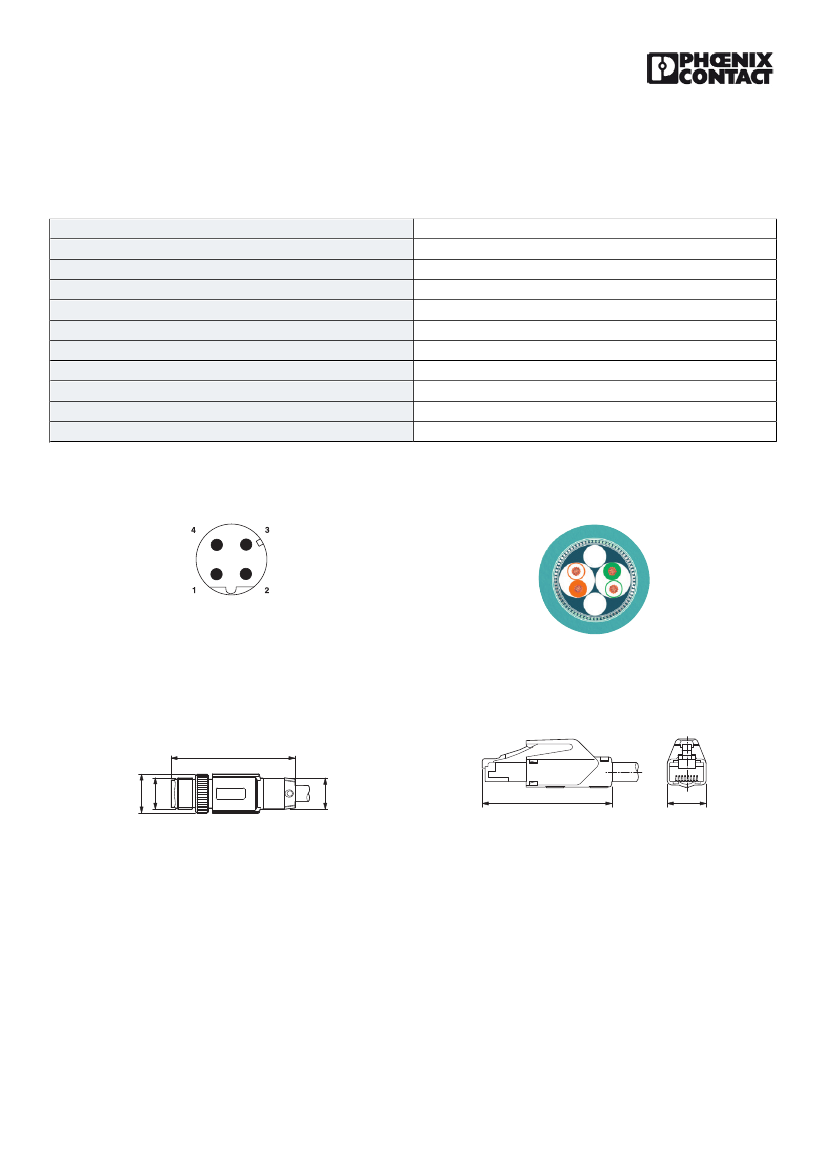

Drawings
Schematic diagram
Cable cross section
Pin assignment M12 male connector, 4-pos., D-coded, male side
PUR ETHERNET 2x2 FLEX [93E]
Dimensional drawing
Dimensional drawing
47,3
Ø14,8
M12
Ø12
44,65
13,4
RJ45 connector, IP20
Plug, M12 x 1, straight, shielded
11/13/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1410142
Network cable - NBC-MSD/4,0-93E/R4AC - 1410142
Circuit diagram
M12
1
3
2
4
RJ45
1
2
3
6
Schematic diagram
8 7 6 5 4 3 2 1
Connector pin assignment plug RJ45
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 4 / 4
