TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR MATERIAL: PET (WHITE)
SUPPORT TAPE: PET (BLUE)
CONTACT MATERIAL: COPPER
CONTACT PLATING: TIN
QUALITY CLASS: 20 MATING CYCLES MIN.
PITCH: 1.00 MM
5
A
ENVIRONMENTAL
OPERATING TEMPERATURE: -30°C UP TO 105°C
HEAT RESISTANCE: 110°C x 96 HRS
FLAMMABILITY RATING UL SUB.758
MOISTURE RESISTANCE: 40°C, 95% RH x 96 HRS
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 1.0 A MAX
WORKING VOLTAGE: 60V
INSULATION RESISTANCE: >1000 MOHM/M (500 VDC)
DIELECTRIC STRENGHT: 500 VAC/MN NO BREAKDOWN
CONDUCTOR RESISTANCE: <1.09 OHM/M
CONTACT RESITANCE: <20 mOHMS
STANDARD
CERTIFIED: E328849
MECHANICAL
ELONGATION OF INSULATOR: > 60 %
TENSIL STRENGHT OF INSULATION: >3.5KG/MM²
FLEXING TEST: 180° >20 TIMES
ABRASION: >10000 TIMES
PULL/OUT: >20 TIMES
PACKAGING
BAG

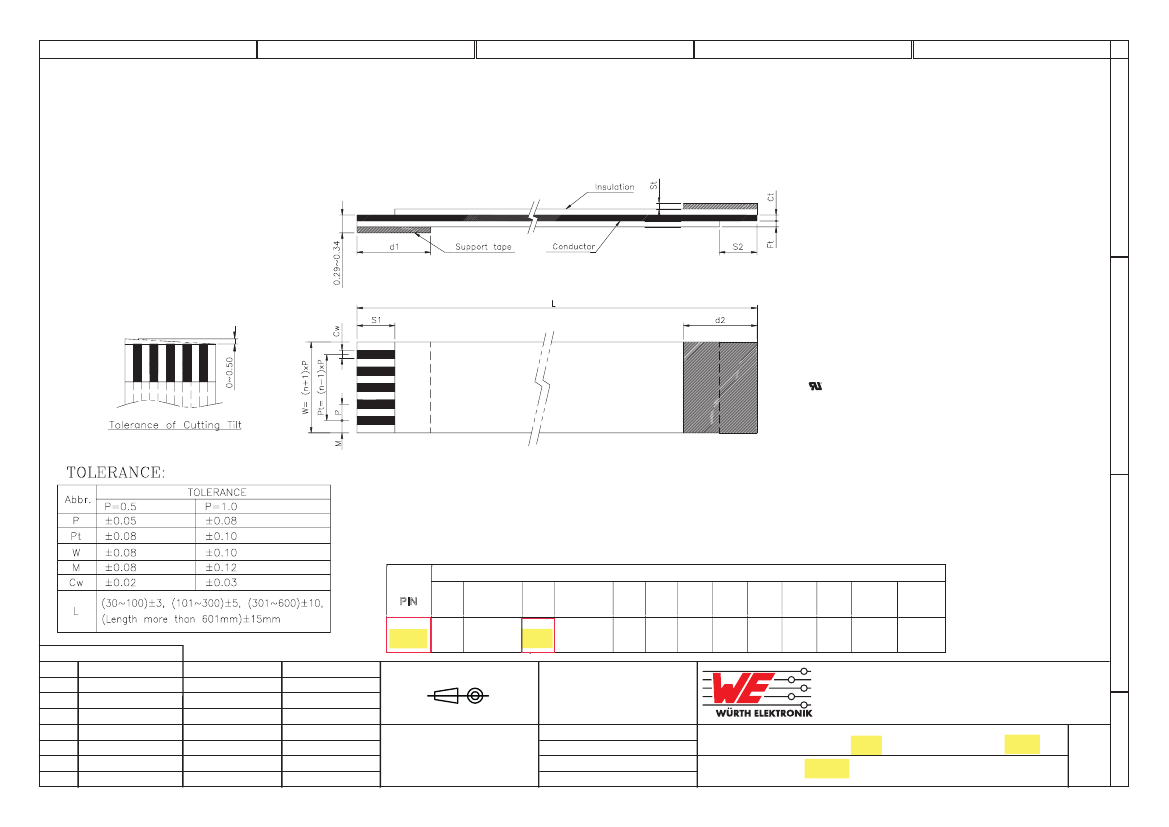

DIMENSION & TOLERANCE
W= (N+1) x P
Pt=(N-1) x P
B
No. of
PIN
XX
RoHS Compliant
Dimension
P
Pt
L
LLL
.......
W
M
Cw Ct±0.01 S1±1.0 S2±1.0 d1±2.0 d2±2.0 Ft±0.01
0.70 0.035
5.0
5.0
10.0
10.0
0.043
St±0.01
0.225
C
...........
1.0 (XX - 1) x P
(XX + 1) x P 1.0
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
APPROVAL: GMo
I
H
REV
05-AUG-15
23-SEP-13
DATE
TEMPERATURE
CT DIM
FILE
AK
QL
BY
UNIT: MM
SCALE:
SHEET: 1/2
DRAW: CH
DESCRIPTION: 1.00MM FLAT FLEXIBLE CABLE TYPE 2
XX NB OF PIN:
.......
/ LLL OVERALL LENGTH:
..........
MM
WERI PART NO: 686 7_
_ _ _ _
001
XX LLL
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET: 2/2
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
