NOTES:
1.
MATERIALS AND FINISHES:
SMA STR PLUG - STAINLESS STEEL, GOLD PLATING
CABLE - TFLEX 405
2.
ELECTRICAL:
A. IMPEDANCE:
3.
PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 95-902-451-XXX AND DATE CODE".
50 OHM
THIRD ANGLE PROJ.
REV
REVISIONS
A
B
RELEASE TO MFG
DESCRIPTION
ADDED PNS FOR 3, 4, AND 5 IN LENGTHS
11/16/15
12/18/15
DATE
50824
50911
ECO
APPR
VK
JN
SCALE
0.600
LENGTH "L" (SEE TABLE)
MARKING:
AMPHENOL RF
LOCATE APPROXIMATELY
AT CENTER AS SHOWN
INTERFACE PER
MIL-STD-348
SERIES: SMA PLUG
TYP(2)
1/4" [6.35] HEX
PART NUMBER
(IMPERIAL)
95-902-451-003
95-902-451-004
95-902-451-005
95-902-451-006
95-902-451-007
95-902-451-008
95-902-451-009
95-902-451-010
-
PART NUMBER
(METRIC)
-
-
-
-
-
-
-
-
-
-
-
-
LENGTH TABLE
1/4" [6.35] HEX
INSERTION
LOSS MAX (dB)
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.15
1.15
1.30
1.90
2.00
2.40
3.40
3.70
LENGTH "L" IN
INCHES [METERS]
3.00 [0.076]
4.00 [0.102]
5.00 [0.127]
6.00 [0.152]
7.00 [0.178]
8.00 [0.203]
9.00 [0.229]
10.00 [0.254]
12.00 [0.305]
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
36.00 [0.914]
39.37 [1.000]
9.84 [0.250]
95-902-451M025
DESIGN REQUIREMENTS:
X
FREQUENCY : DC TO 18 GHz
X
VSWR
: 1.650 MAX.
95-902-451-012
95-902-451-018
X
CONTINUITY
X
HI-POT: 500 VRMS
OTHER
MATERIAL
95-902-451-024
95-902-451-036
-
-
95-902-451M050
X
INS. LOSS : SEE TABLE
95-902-451M100
CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
SEE NOTES
REFERENCE
EAR # 6826
CONFIGURATION LEVEL: In Work
DRAWN
J. NERI
ENGINEER
VIJI K
APPROVED
K. CAPOZZI
DATE
02-Dec-15
DATE
15-Oct-15
DATE
12/18/15

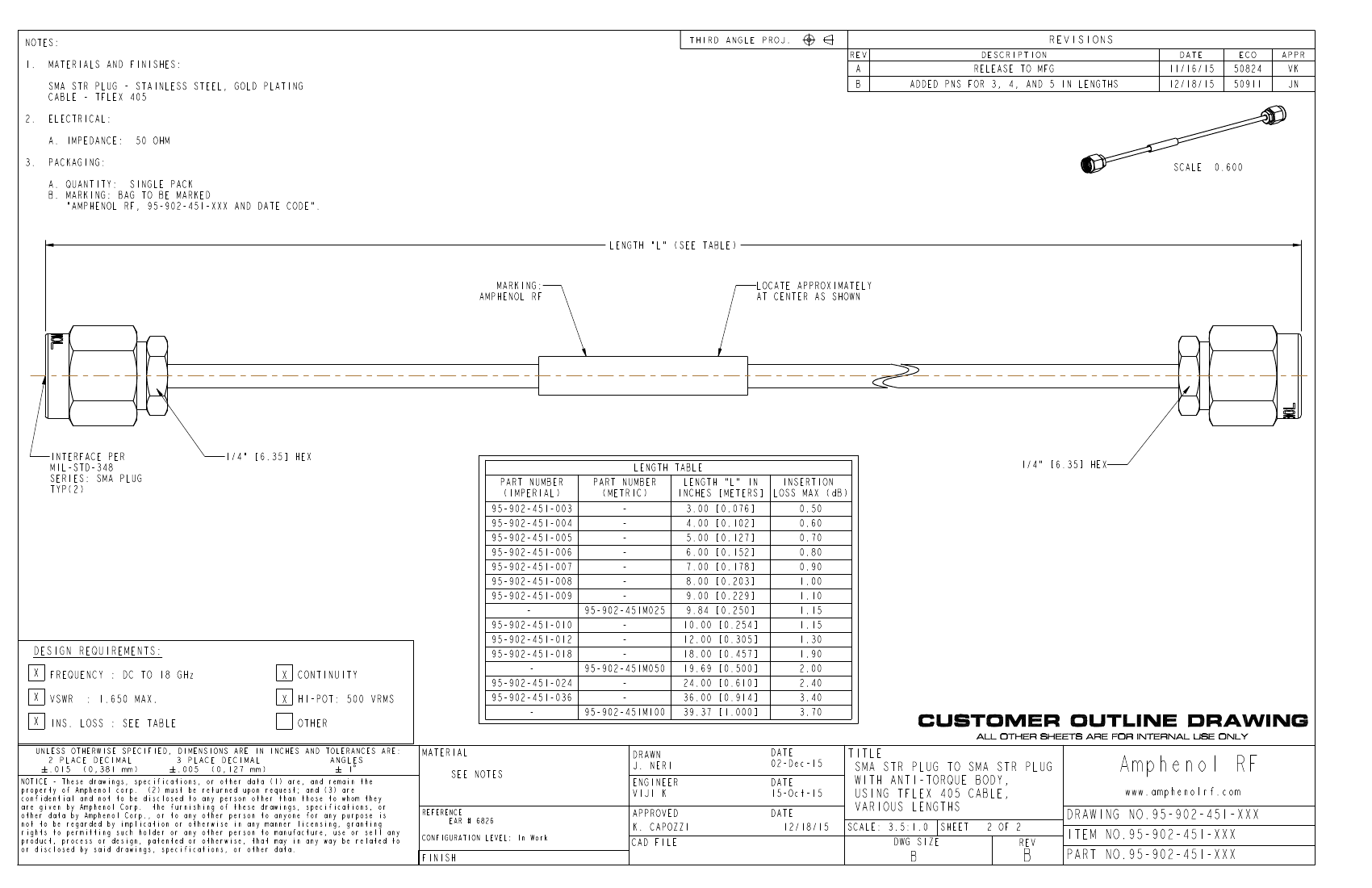

TITLE
SMA STR PLUG TO SMA STR PLUG
WITH ANTI-TORQUE BODY,
USING TFLEX 405 CABLE,
VARIOUS LENGTHS
SCALE: 3.5:1.0
DWG SIZE
SHEET
2 OF 2
REV
Amphenol RF
www.amphenolrf.com
DRAWING NO. 95-902-451-XXX
ITEM NO. 95-902-451-XXX
PART NO. 95-902-451-XXX
FINISH
CAD FILE
B
B
