336320-12-0250 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 336320-12-0250

336320-12-0250: DescriptionRF Cable Assemblies SMA BHJkIP67RP-AMC P 1.13mm CB 250mm ExMF; CategoryWire/cable; File Size308KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336320-12-0250 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336320-12-0250	-	-	View	Buy Now

336320-12-0250 Overview

RF Cable Assemblies SMA BHJkIP67RP-AMC P 1.13mm CB 250mm ExMF

336320-12-0250 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	SMA
Connector A Gender	Jack (Female)
Connector A Body Style	Bulkhead
Connector B Series	AMC
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	250 mm
Impedance	50 Ohms
Frequency Range	DC to 6 GHz
Cable Type	1.13 mm Coax
IP Rating	IP67
Packaging	Bulk
Connector A Polarity	Reverse
Connector B Polarity	Reverse
Polarity	Reverse
Factory Pack Quantity	1

Preview

Download Datasheet

View All

NOTES:

1. MATERIALS AND FINISHES:

REVERSE POLARITY SMA BULKHEAD CRIMP JACK IP 67 - P/N: 132422RP-10

MICRO COAX RIGHT ANGLE PLUG TERMINATED USING 1.13 MM CABLE - P/N:A-1PA-113-XXXB2

2. ELECTRICAL:

A. IMPEDANCE: 50 OHM, NOMINAL

3. PACKAGING:

A. QUANTITY: SINGLE PACK

B. BAG TO BE MARKED: AMPHENOL RF, 336320-12-XXXX, AND DATE CODE

336320-12-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

DESCRIPTION

17-Dec-14

DATE

2838

ECO

CL/BCG

APPR

SCALE 1.250

LENGTH AND TOLERANCE (SEE TABLE)

HEAT SHRINK TUBE

1.13 MM CABLE

GASKET

LOCK WASHER

HEX NUT

'D' FLAT

REVERSE POLARITY

SMA BULKHEAD CRIMP JACK IP 67

336320-12-0050

336320-12-0100

336320-12-0150

336320-12-0200

336320-12-0250

336320-12-0300

CONNEX NUMBER

CABLE LENGTH (IN) CABLE LENGTH (MM)

1.968 # 0.150

3.936 # 0.150

5.905 # 0.150

7.873 # 0.200

11.810 # 0.200

9.842 # 0.200

100 # 3.81

150 # 3.81

200 # 5.08

250 # 5.08

300 # 5.08

50 # 3.81

DESIGN REQUIREMENTS:

FREQUENCY: DC TO 6 GHz

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

* ADDITIONAL LENGTHS CAN BE PROVIDED,

CONTACT AMPHENOL RF MARKETING FOR QUOTE

CONTINUITY

HI-POT :200 VRMS

OTHER

MATERIAL

DRAWN

DATE

TITLE

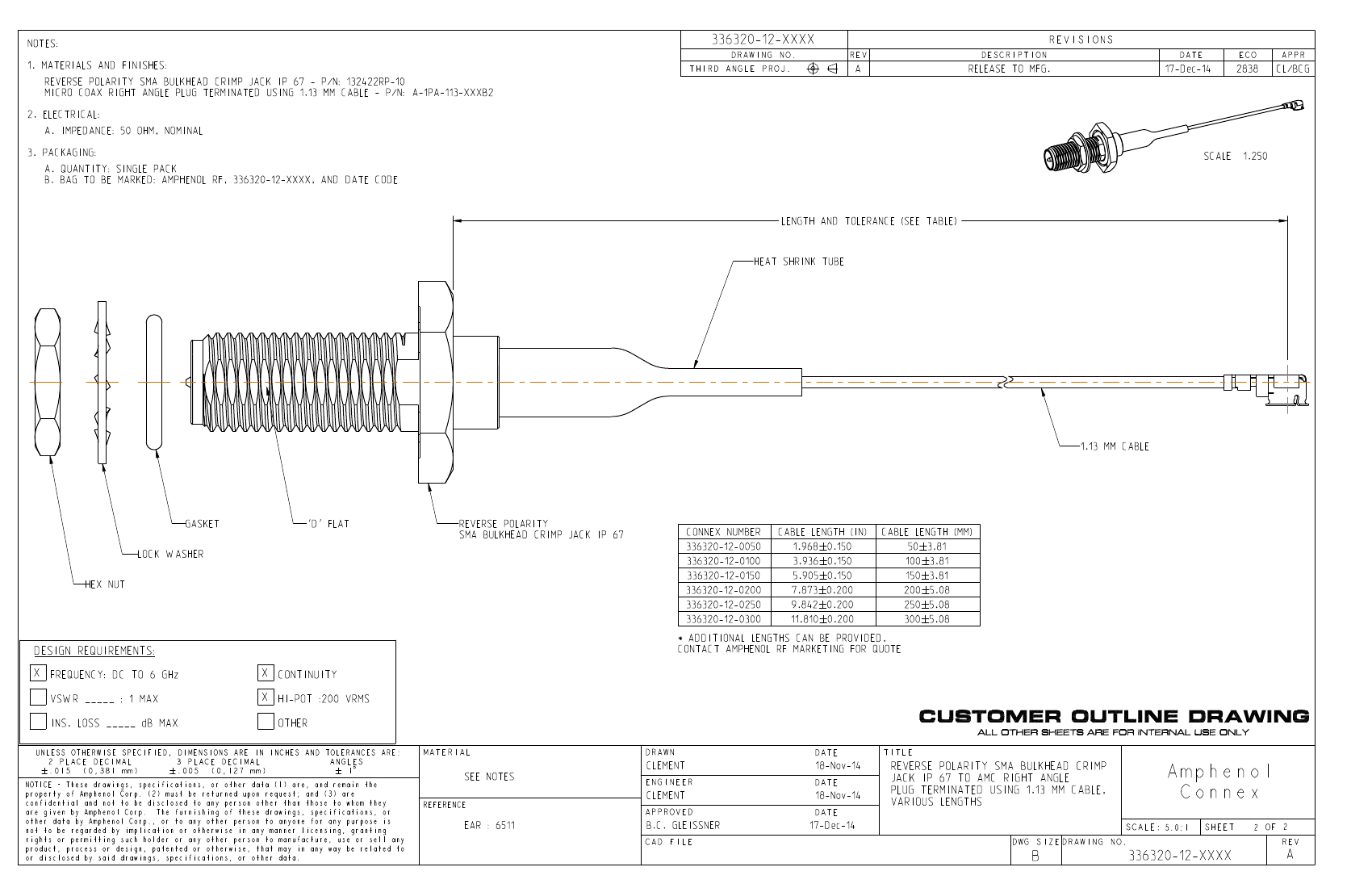

CUSTOMER OUTLINE DRAWING

ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY

SEE NOTES

REFERENCE

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

CLEMENT

18-Nov-14

17-Dec-14

ENGINEER

APPROVED

CAD FILE

REVERSE POLARITY SMA BULKHEAD CRIMP

JACK IP 67 TO AMC RIGHT ANGLE

PLUG TERMINATED USING 1.13 MM CABLE,

VARIOUS LENGTHS

DWG SIZE DRAWING NO.

Amphenol

Connex

SCALE: 5.0:1

SHEET

2 OF 2

REV

EAR : 6511

B.C. GLEISSNER

336320-12-XXXX
