336503-14-0150 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 336503-14-0150

336503-14-0150: DescriptionRF Cable Assemblies MCX Blkhd Jack - AMC Plug 137mm, 150mm; CategoryWire/cable; File Size121KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336503-14-0150 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336503-14-0150	-	-	View	Buy Now

336503-14-0150 Overview

RF Cable Assemblies MCX Blkhd Jack - AMC Plug 137mm, 150mm

336503-14-0150 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	MCX
Connector A Gender	Jack (Female)
Connector A Body Style	Bulkhead
Connector B Series	AMC
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	150 mm
Impedance	50 Ohms
Frequency Range	DC to 6 GHz
Cable Type	1.37 mm Coax
Packaging	Bulk
Connector A Polarity	Normal
Connector B Polarity	Normal
Polarity	Reverse
Factory Pack Quantity	1

Preview

Download Datasheet

View All

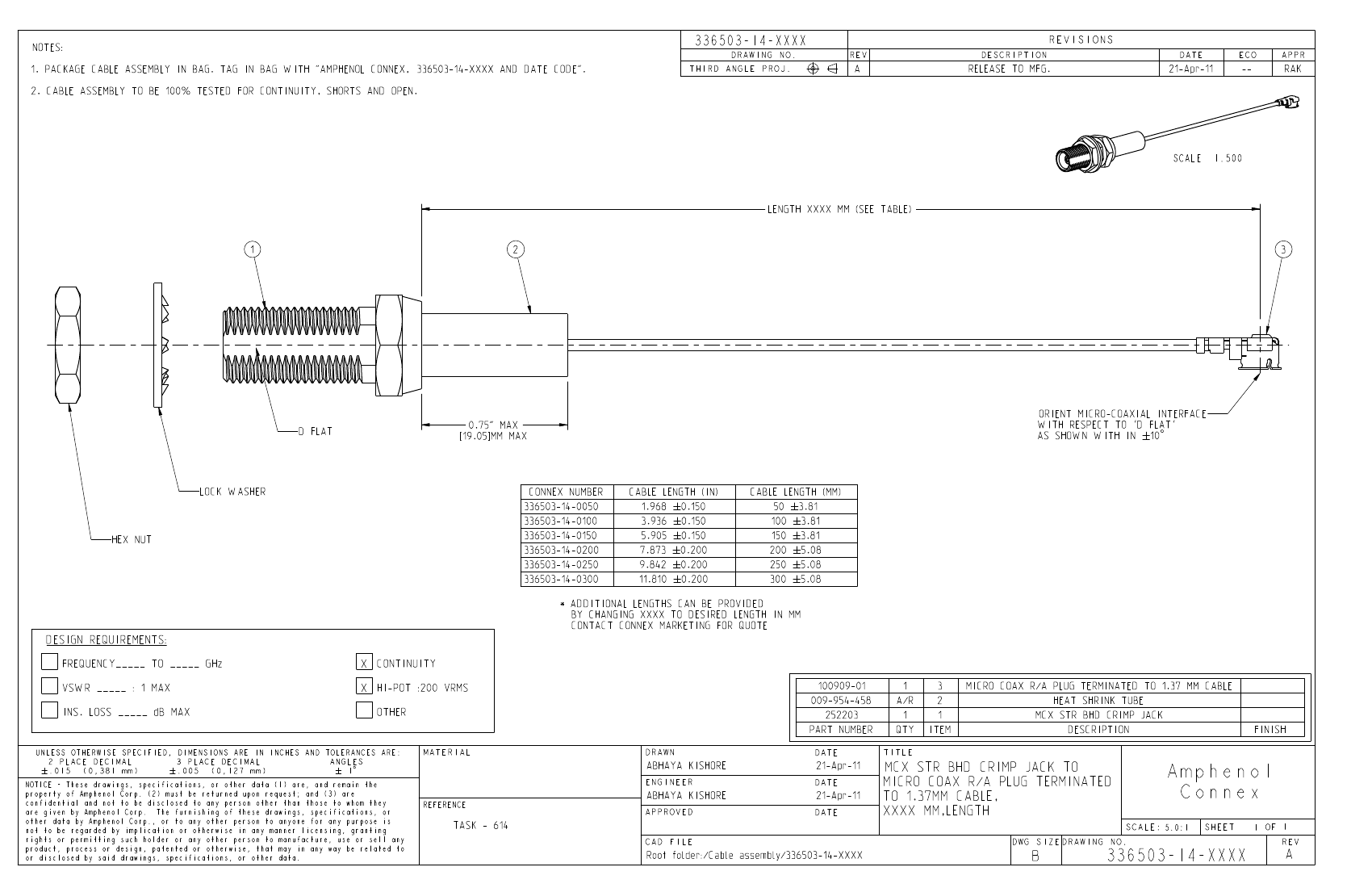

NOTES:

1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX, 336503-14-XXXX AND DATE CODE".

2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.

336503-14-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

DESCRIPTION

21-Apr-11

DATE

ECO

APPR

RAK

SCALE

1.500

LENGTH XXXX MM (SEE TABLE)

D FLAT

0.75" MAX

[19.05]MM MAX

ORIENT MICRO-COAXIAL INTERFACE

WITH RESPECT TO 'D FLAT'

# $

AS SHOWN WITH IN

LOCK WASHER

336503-14-0050

336503-14-0100

336503-14-0150

336503-14-0200

336503-14-0250

336503-14-0300

CONNEX NUMBER

CABLE LENGTH (IN)

1.968 #

0.150

3.936 #

0.150

7.873 #

0.200

5.905 #

0.150

CABLE LENGTH (MM)

100 #

3.81

200

150 #

3.81

5.08

3.81

HEX NUT

11.810 #

0.200

9.842 #

0.200

250

300

5.08

DESIGN REQUIREMENTS:

FREQUENCY_____ TO _____ GHz

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

* ADDITIONAL LENGTHS CAN BE PROVIDED

BY CHANGING XXXX TO DESIRED LENGTH IN MM

CONTACT CONNEX MARKETING FOR QUOTE

CONTINUITY

HI-POT :200 VRMS

OTHER

009-954-458

PART NUMBER

252203

100909-01

A/R

QTY

TITLE

ITEM

MICRO COAX R/A PLUG TERMINATED TO 1.37 MM CABLE

MCX STR BHD CRIMP JACK

DESCRIPTION

HEAT SHRINK TUBE

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

ABHAYA KISHORE

21-Apr-11

DATE

ENGINEER

REFERENCE

APPROVED

CAD FILE

TASK - 614

MCX STR BHD CRIMP JACK TO

MICRO COAX R/A PLUG TERMINATED

TO 1.37MM CABLE,

XXXX MM,LENGTH

Amphenol

Connex

SCALE: 5.0:1

SHEET

1 OF 1

REV

Root folder:/Cable assembly/336503-14-XXXX

DWG SIZE DRAWING NO.

336503-14-XXXX

336503-14-0150 Related Products

	336503-14-0150	336503-14-0300	336503-14-0050	336503-14-0200	336503-14-0250	336503-14-0100
Description	RF Cable Assemblies MCX Blkhd Jack - AMC Plug 137mm, 150mm	RF Cable Assemblies MCX Blkhd Jack - AMC Plug 137mm, 300mm	RF Cable Assemblies MCX Blkhd Jack - AMC Plug 137mm, 50mm	RF Cable Assemblies MCX Blkhd Jack - AMC Plug 137mm, 200mm	RF Cable Assemblies MCX Blkhd Jack - AMC Plug 137mm, 250mm	RF Cable Assemblies MCX Blkhd Jack - AMC Plug 137mm, 100mm
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Details	Details	Details	Details	Details	Details
Connector A Series	MCX	MCX	MCX	MCX	MCX	MCX
Connector A Gender	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector B Gender	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Length	150 mm	300 mm	50 mm	200 mm	250 mm	100 mm
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Frequency Range	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Cable Type	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Connector A Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Polarity	Reverse	Reverse	Reverse	Reverse	Reverse	Reverse
Factory Pack Quantity	1	1	1	1	1	1
