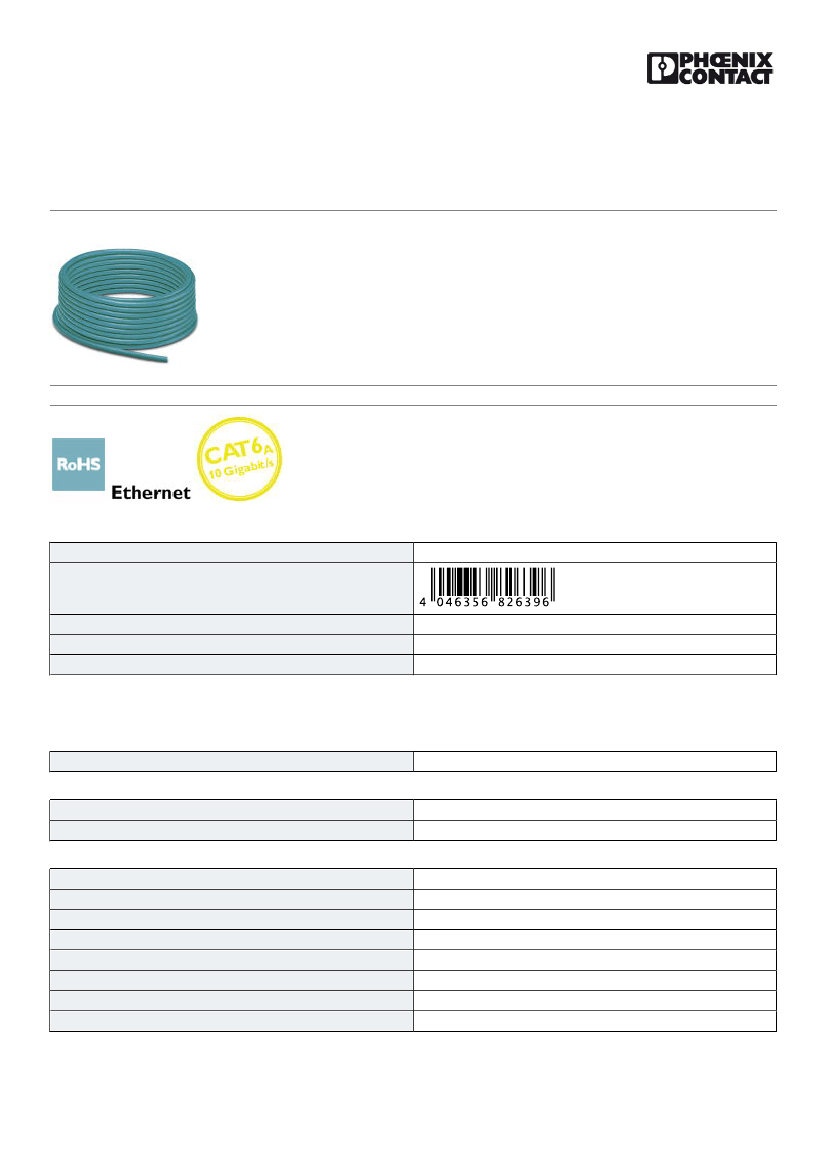

Network cable - NBC-500,0-94E - 1408572
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Cable ring, bus system cable, Ethernet, 8-wire, shielded, FRNC, blue outer sheath, 4 x 2 x AWG 23/1, cable
length: 500 m
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356826396
85444995
Made to Order (non-returnable)
1 STK
Technical data
Dimensions
Length of cable
500 m
General data
Number of positions
Signal type/category
8
Ethernet CAT7, 10 Gbps
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Ethernet
94E
10797 (80°C/30 V)
Ethernet CAT7, 10 Gbps
4x2xAWG23/1; S/FTP
4x 2x 0.32 mm²
23
1x
11/13/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1408572
Network cable - NBC-500,0-94E - 1408572
Technical data
Cable
Core diameter including insulation
Wire colors
Twisted pairs
Type of pair shielding
Overall twist
Shielding
Optical shield covering
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Tensile strength short-term/long-term
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Cable capacity
Wave impedance
Signal speed
Signal runtime
Cable impedance
1.45 mm ±0.05 mm
White-blue, white-orange, white-green, white-brown
2 cores to the pair
Aluminum-lined polyester foil
4 pairs, twisted
Aluminum-lined polyester foil, tinned copper braided shield
65 %
water blue RAL 5021
8 mm ±0,3 mm
30 mm
60 mm
80 N
FRNC
Foamed PE
Bare Cu wire
> 5 GΩ*km
< 75 Ω/km
< 56 nF/km
100 Ω ±5 Ω (at 100 MHz)
0.6 c
5.7 ns/m
< 5 mΩ (with 1 MHz)
< 5 mΩ (At 10 MHz)
< 30 mΩ (At 30 MHz)
< 100 mΩ (at 100 MHz)
Nominal voltage, cable
Test voltage Core/Core
Flame resistance
Halogen-free
Resistance to oil
Concentration of fumes
Ambient temperature (operation)
Ambient temperature (installation)
30 V AC
2500 V DC
according to IEC 60332-3-24 (Cat. C )
According to IEC 60754-2
According to IEC 60811-2-1
in accordance with IEC 61034
-20 °C ... 80 °C (Cable)
0 °C ... 50 °C
Drawings
11/13/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1408572
Network cable - NBC-500,0-94E - 1408572

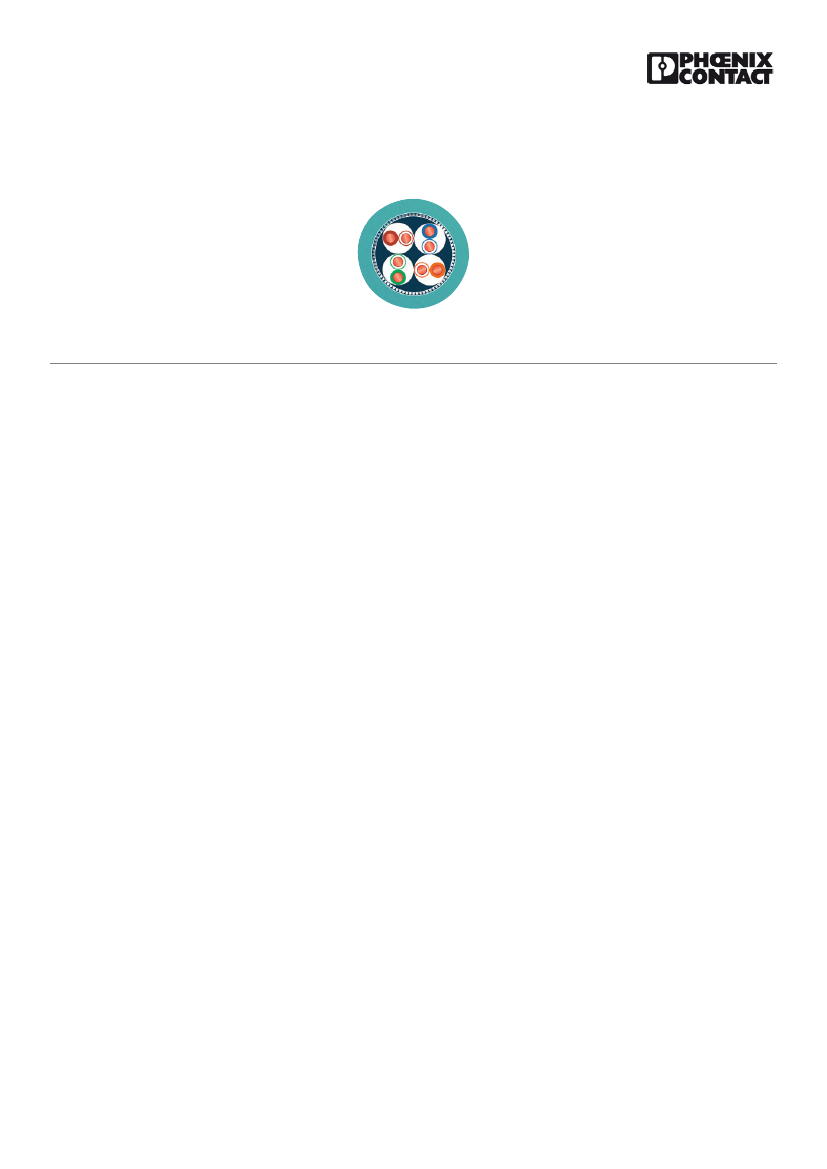

Cable cross section
Ethernet [94E]
