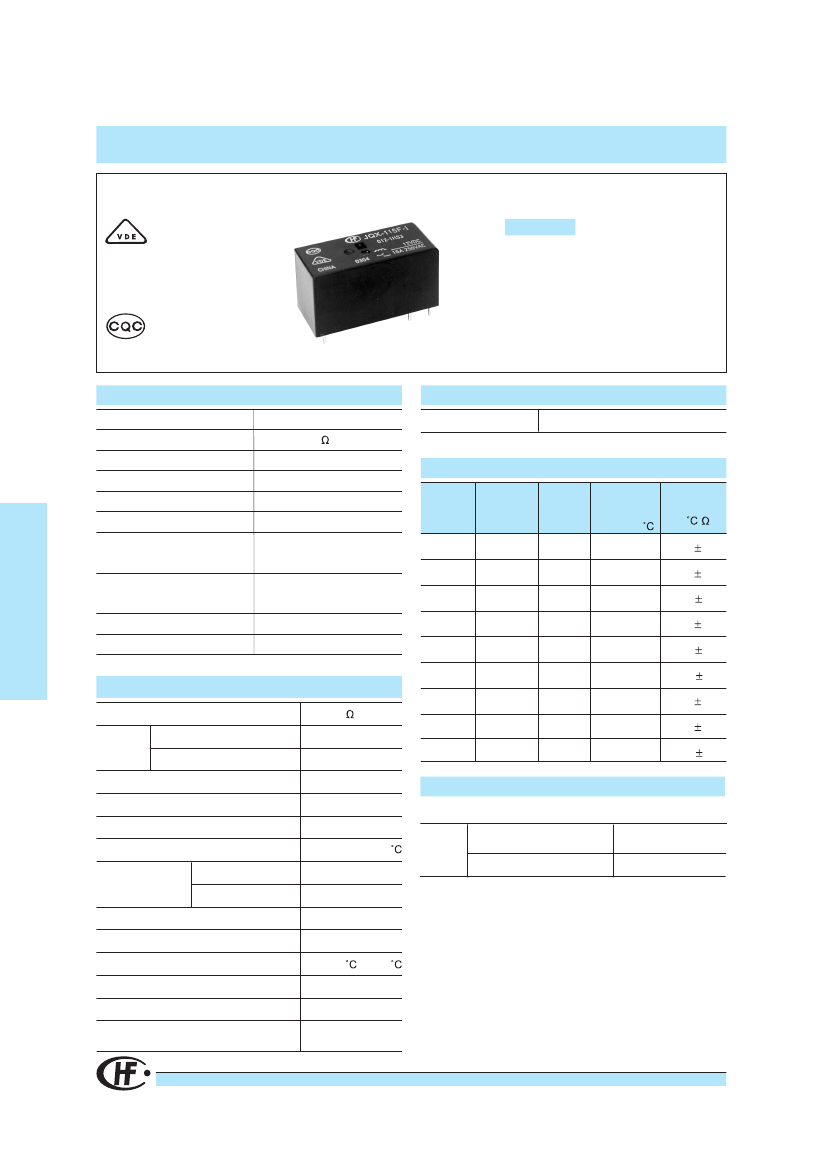

JQX-115F-I
MINIATURE HIGH POWER RELAY
Features
File No.:116934
*
High Inrush TV-5 80A /125VAC
*
Low height 15.7 mm
*
5KV dielectric coil to contacts
*
Creepage distance 10mm
*
Sealed IP67& Flux proof types available
File No.:CQC02001001951
*
VDE0860
CONTACT DATA
Contact Arrangement
Initial Contact Resistance Max.
Contact Material
Max. switching voltage
Max. switching current
1A
50m (at 1A/ 6VDC)
AgSnO
2
440VAC/ 125VDC
16A
4000VA
16A 250VAC
(3 x 10
4
COIL
Coil power
0.4W
COIL DATA
Nominal
Voltage
VDC
5
6
9
12
18
24
48
Pick-up
Voltage
VDC
3.50
4.20
6.30
8.40
12.6
16.8
33.6
42.0
77.0
Max.
Coil
Drop-out allowable
Resistance
Voltage
Voltage
VDC VDC(at 20 ) (20 )
0.5
0.6
0.9
1.2
1.8
2.4
4.8
6.0
11.0
7.5
9.0
13.5
18
27
36
72
90
165
62
90
203
360
810
1440
5760
7500
25200
10%
10%
10%
10%
10%
10%
15%
15%
15%
General Purpose Power Relays JQX-115F-I
Max. switching power
Contact Rating
Inrush Rating
@ 125VAC
Mechanical life
Electrical life
*Note: The AgSnO
2
material is with indium
360 ops/hour)
TV-5, 80A
(2.5 x 10
4
ops
)
2 x 10
6
OPS
1 x 10
5
OPS
CHARACTERISTICS
Initial Insulation Resistance
Dielectric Between coil and Contacts
Strength
Between open contacts
1000M 500 VDC
5000VAC 1min.
1000VAC 1min.
10KV (1.2X50µs)
Max. 15ms
60
110
Surge voltage between coil and contacts
Operate time (at nomi. Volt.)
Release time (at nomi. Volt.)
Temperature rise (at nomi. Volt.)
Shock Resistance
Functional
Destructive
Vibration Resistance
Humidity
Ambient temperature
Termination
Unit weight
Construction
SAFETY APPROVAL RATINGS
JQX-115F-I (High Inrush)
Specifications
VDE
1H(S)3A(G)(F)
Ratings
16A/ 250VAC @85°C
Max. 8ms
Max. 55
100 m/s
2
1000 m/s
2
10 to 150Hz, 20g
35% to 85%
-40
to +85
PCB
13.5g
Sealed IP67
& Flux proof
VERSION: EN02-20040601
HONGFA RELAY
ISO9001*ISO/TS16949
*ISO14001
CERTIFIED
90
ORDERING INFORMATION
JQX-115F-I /
Type
Coil voltage
5, 6, 9,12, 18, 24, 48, 60, 110VDC
1H:
1 Form A
Nil:
Flux proof
012
1H
S
3
A
Contact arrangement
Structure
Version
S:
Sealed IP67
3:
5.0mm
Contact Material
A:
AgSnO
2
(with indium)
OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT
Outline Dimensions
General Purpose Power Relays JQX-115F-I
PCB layout
5mm 1 Form A
5.04
Wiring Diagram
20.16
5mm 1 Form A
CHARACTERISTICS CURVE
LIFE CURVE
1000
3.6
3.4
COIL OPERATING RANGE (DC)
Operations (X10000 OPS)
Coil Voltage(U/UN)
3.0
2.6
2.2
1.8
1.4
1.0
0.6
100
10
16 A
1
0
2
4
6
8
10
12
14
16
18
20
0
+20
+40
+60
+80
+100
Contact Current (A)
Ambient Temperature(
)
