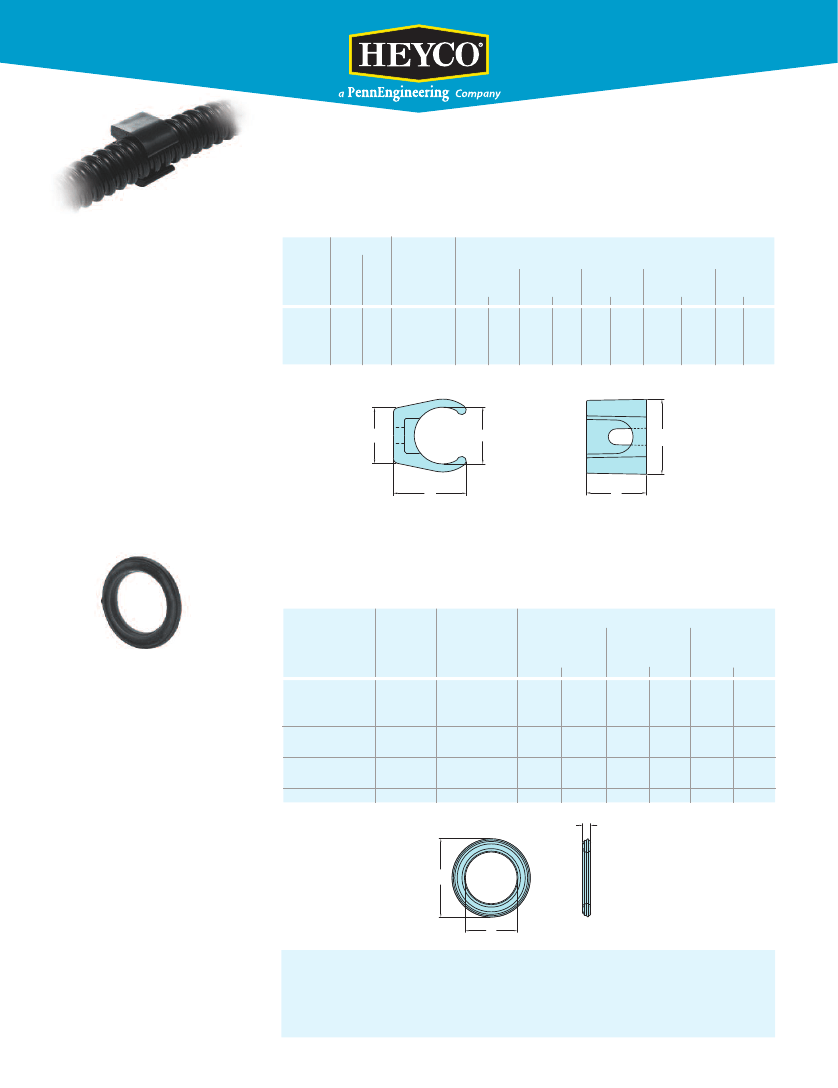

Heyco-Flex Mounting Brackets
™
•
For mounting Heyco-Flex Conduit
or Tubing securely into place, vertically
or horizontally. See pages 2-1, 2-7,
and 2-8.
•
Only fingertip pressure is required to
snap conduit or tubing into bracket.
•
Low profile design for space savings
and pleasing appearance.
•
Recommended distance between
brackets at intervals not greater than
3 feet (1m) as required by
Article 351-27 of 1996 NEC.
•
Use one standard #10 (4-5M)
screw for attaching bracket to
panel (screw not included).
•
Resist salt water, weak acids,
gasoline, alcohol, oil, grease, and
common solvents.
FITS
CONDUIT/
TUBING
PART NO. DESCRIPTION
A
Inside Dia.
in.
mm.
PART DIMENSIONS
B
Length
in.
mm.
SIZE
Black Gray
C
Height
in.
mm.
D
Outside Dia.
in.
mm.
E
Width
in.
mm.
3/8
1025 1026
HFB 3/8
1/2
1027 1028
HFB 1/2
3/4
1029 1030
HFB 3/4
1
1031 1032
HFB 1
Standard color black or gray.
.66
.79
1.05
1.24
16,9
20,0
26,7
31,5
.91
1.07
1.27
1.52
23,2
27,3
32,2
38,6
.72
.71
.67
.84
18,2
18,0
17,0
21,3
.90
1.06
1.31
1.53
22,9
26,8
33,2
38,9
.75
19,1
C
A
D
B
Dimensions
excluding draft
E
Heyco Sealing Washers
®
Will Fit These
Electrical Fitting
NPT Trade Sizes
PART NO.
Black
DESCRIPTION
A
Inside
Diameter
in.
mm.
PART DIMENSIONS
B
Outside
Diameter
in.
mm.
C
Thickness
in.
mm.
•
For use with Heyco-Flex fittings.
•
Liquid tight, dust tight, and oil tight
at enclosure.
•
Suitable for wet locations requiring
a separate gasket between the box
and fitting.
•
Also suitable for other panel
sealing applications.
•
Easy to install since washers seal
off on the perimeter, not on the
connector threads.
•
Special double sealing ridges
compensate for minor unevenness
at enclosure.
1/4
3/8
1/2
3/4
1
1-1/4
1-1/2
2
Standard color black.
3258
3259
3260
3261
3262
3264
3265
3257
SW 1/4
SW 3/8
SW 1/2
SW 3/4
SW 1
SW 1-1/4
SW 1-1/2
SW 2
.54
.67
.85
1.03
1.28
1.66
1.86
2.32
13,7
17,0
21,6
26,2
32,5
42,2
47,2
58,9
C
.80
1.01
1.24
1.50
1.77
2.16
2.44
2.93
20,2
25,5
31,5
38,1
45,0
54,8
62,0
74,4
.13
.14
.18
.16
.18
3,2
3,4
4,6
4,1
4,6
B
A
Quick
Specs
2-19
Material
Flammability Rating
Temperature Range
HFB - Nylon 6/6
HFB - 94V-2
-22°F (-30°C) to 221°F (105°C)
SW - Thermoplastic Elastomer
SW - 94V-0
