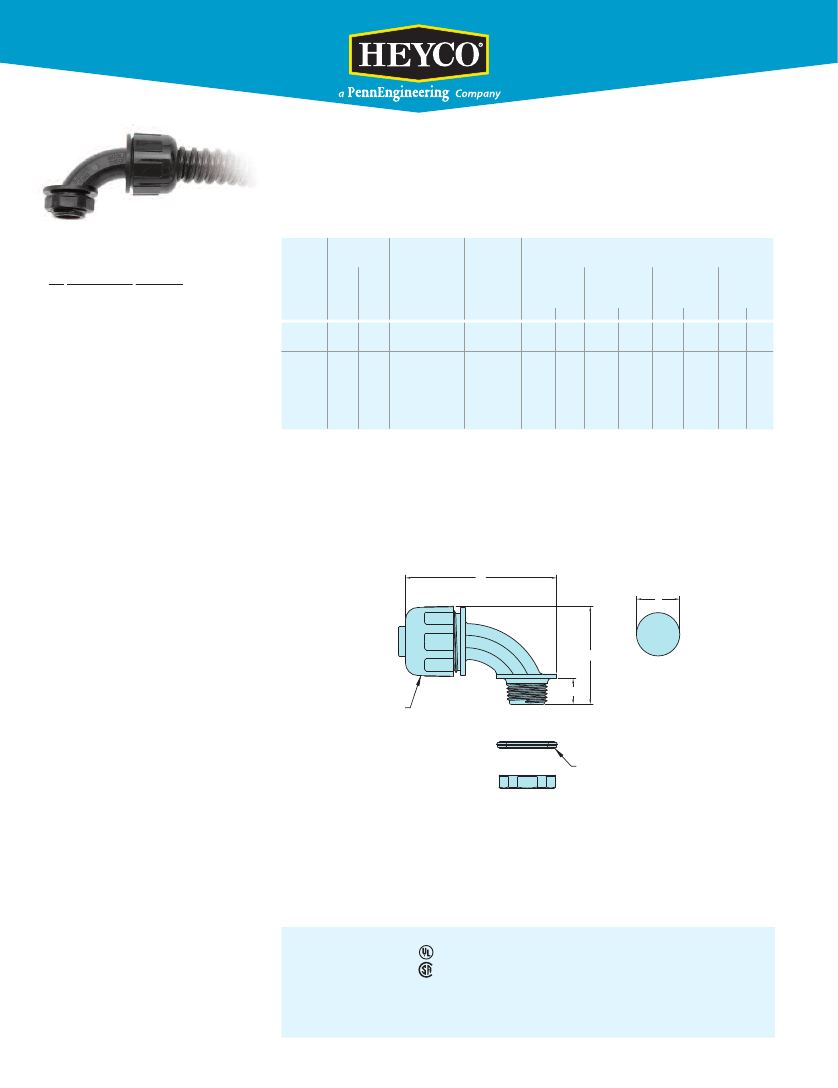

Heyco-Flex Liquid Tight Conduit Fittings
™
For Flexible, Nonmetallic Liquid Tight Heyco-Flex
™
I Conduit and Heyco-Flex
™
II Tubing
90° Sweep, NPT Hubs
•
Smooth internal surfaces for easier
wire installation around corner angles.
•
No disassembly required. Instead, the
installer simply pushes the conduit or
tubing onto the ferrule, then tightens
the domed sealing nut. This completed
assembly can then be secured in the
panel by the locknut or into an
NPT threaded hole.
•
Convex ferrule ensures liquid tight seal.
•
No threading of the conduit or tubing
is required to install. This eliminates
the possibility of cutting the conduit
and creating leak paths.
•
Complete conduit/connector system is
reusable. Conduit will not wind tight
onto the connector during assembly
and can be easily removed by pulling
while turning in a clockwise direction.
•
Lower installed cost.
•
Multiple sizes for use with Heyco-Flex
Conduit and Tubing. See pages 2-7
and 2-8.
•
Suitable for indoor/outdoor use; for
original equipment manufacturers or
field installers.
•
Resist salt water, weak acids, gasoline,
alcohol, oil, grease, and common
solvents. (This feature is not assessed by
UL certification and testing.)
•
Use of a sealing washer may be required
for wet locations. See pages 2-19.
•
If using a tapped hole, Teflon
®
tape is
needed on the threads of the connector,
for all other applications an O-ring and
Locknut are needed to attain liquid tight.
•
Black connectors up to 1˝ provided
with nylon locknut, packed separately.
O-ring sold separately, see page 2-20.
•
Black connectors larger than 1˝ and
all gray connectors provided with
assembled O-ring and metal locknut.
•
See pages 2-17 and 2-18 for locknuts.
FITS
PART NO. DESCRIPTION
CONDUIT/
TUBING
TRADE Black Gray
SIZE
3/8
8423 8424
HFC 3/8-90R
1/2
8425 8426
HFC 1/2-90R
3/4
8427 8428
HFC 3/4-90R
1
8412 8413
HFC 1-90R
1-1/4
8652 8653
HFC 1-1/4-90R
1-1/2
8654 8655
HFC 1-1/2-90R
2
8656 8657
HFC 2-90R
Standard colors black and gray.
THREAD
SIZE
PART DIMENSIONS
BODY AND SEALING UNIT
A
B
C
Clearance
Max. O.A.
Max. O.A.
Hole
Height
Length
in. mm.
in. mm.
in. mm.
D
Thread
Length
in. mm.
1/2 NPT
3/4 NPT
1 NPT
1-1/4 NPT
1-1/2 NPT
2 NPT
.875 22,2
1.109
1.375
1.734
1.984
2.469
28,1
34,9
44,0
50,4
62,7
1.98
50,3
2.91
3.17
3.96
4.73
5.20
5.80
73,9 .52
80,5
100,6
104,1
132,1
147,3
.52
.69
.76
.80
.86
13,2
13,2
17,5
19,3
20,3
21,8
2.29 58,2
2.83 71,9
4.10 104,1
4.75 120,7
5.42 137,7
C
A
B
SUGGESTED CLEARANCE HOLE
FOR NONTHREADED MOUNTING
D
DOMED SEALING NUT
OPTIONAL SEALING WASHER
Quick
Specs
2-11
Material
Certifications
Flammability Rating
Temperature Range
IP Rating
Nylon 6/6
Listed under Underwriters’ Laboratories File E28430
Certified by Canadian Standards Association
File 84579 and 81067
94V-2
-22°F (-30°C) to 221°F (105°C)
IP 68 up to 70 psi (5 bar) water pressure
