Pomona
®
Model 4487 & 5260
BNC (Male) On Retractable Cable
With Molded Strain Relief
FEATURES:
•
BNC center contact is gold plated for optimum electrical connection.
•
Flexible Strain Relief is molded to the BNC/Coaxial Cable for to ensure long cable life.
•
BNC shell is plated for tarnish resistance.
MATERIALS:
BNC (Male): Body: Brass, Nickel Plated
Center Contact: Brass, Gold Plated
Impedance: 50 Ohms
STRAIN RELIEF: PVC Molded to Cable, Color: Black
Marking: “POMONA 4487-XX” or “POMONA 5260-XX”
CABLE: Shielded microphone, center conductor, 24 AWG (45x40), polyurethane jacket, .170” (4,32 mm).
Pomona part number marked on the cable.
RATING:
Voltage: Shield/Earth: 30VAC/60VDC Max.
Inner Conductor/Shield: 270VRMS Max.
Operation Temperature: 50°C (+122°F) Max.
ORDERING INFORMATION:
Model 4487-XX (BNC Male, Both Ends) or 5260-XX (BNC Male, One End
Only) XX = Extended Length In Inches , Standard. Lengths: 48” (122 cm), 60” (152,4 cm), 72” (183 cm)
Ordering Example: 4487-48 is BNC (Male), Both Ends, Extended Cable Length of 48” (122 cm)

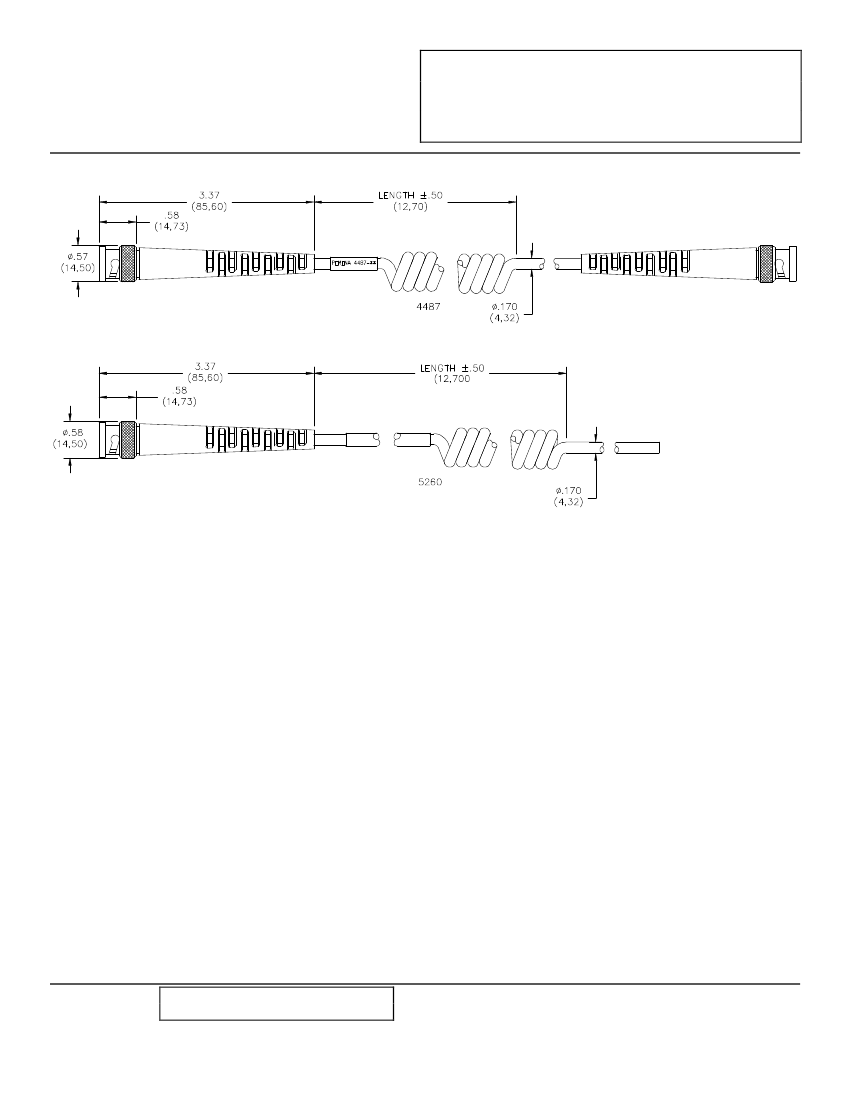

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Made in USA
08/31/99
SY/EH/LS
R:\Release\DataSheet\To_Marketing_99C\D4487-5260_1_01.doc
Sales: 909-469-2900 Fax: 909-629-3317
Technical Assistance: 800-241-2060
PomonaACCESS
90349
(800) 444-6785 or (949) 253-3858
More drawings available at
www.pomonaelectronics.com
