NOTES:
1. PACKAGE CABLE ASSEMBLY IN BAG.TAG IN BAG WITH "AMPHENOL CONNEX,
2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.
336206-12-XXXX AND DATE CODE".
336206-12-XXXX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
RELEASE TO MFG.
DESCRIPTION
08-Feb-11
DATE
ECO
--
APPR
RAK
SCALE
1.000
LENGTH XXXX MM (SEE TABLE)
1
2
3
0.75" MAX
[19.05]MM MAX
CONNEX NUMBER
CABLE LENGTH (IN)
1.968
3.936
5.905
7.873
11.810
9.842
#0.150
#0.150
#0.150
#0.200
#0.200
#0.200
CABLE LENGTH (MM)
100
150
200
250
300
50
#3.81
#3.81
#3.81
#5.08
#5.08
#5.08
GASKET
LOCK WASHER
HEX NUT
D FLAT
336206-12-0050
336206-12-0100
336206-12-0150
336206-12-0200
336206-12-0250
336206-12-0300
ORIENT MICRO-COAXIAL INTERFACE
WITH RESPECT TO D FLAT
AS SHOWN WITH IN #
10 $
DESIGN REQUIREMENTS:
FREQUENCY_____ TO _____ GHz
VSWR _____ : 1 MAX
INS. LOSS _____ dB MAX
X
CONTINUITY
X
HI-POT :200 VRMS
OTHER
* ADDITIONAL LENGTHS CAN BE PROVIDED
BY CHANGING XXXX TO DESIRED LEGNTH IN MM
CONTACT CONNEX MARKETING FOR QUOTE
100901-02
122526RP
1
1
3
2
ITEM
1
MICRO COAX PLUG TERMINATED TO 1.13 MM CABLE
RP TNC BLKHD CRIMP JACK
DESCRIPTION
HEAT SHRINK TUBE
009-954-458
PART NUMBER
A/R
QTY
FINISH
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
ABHAYA KISHORE
ABHAYA KISHORE
08-Feb-11
08-Feb-11
DATE
DATE
DATE
TITLE
ENGINEER
REFERENCE
APPROVED
CAD FILE
TASK - 562

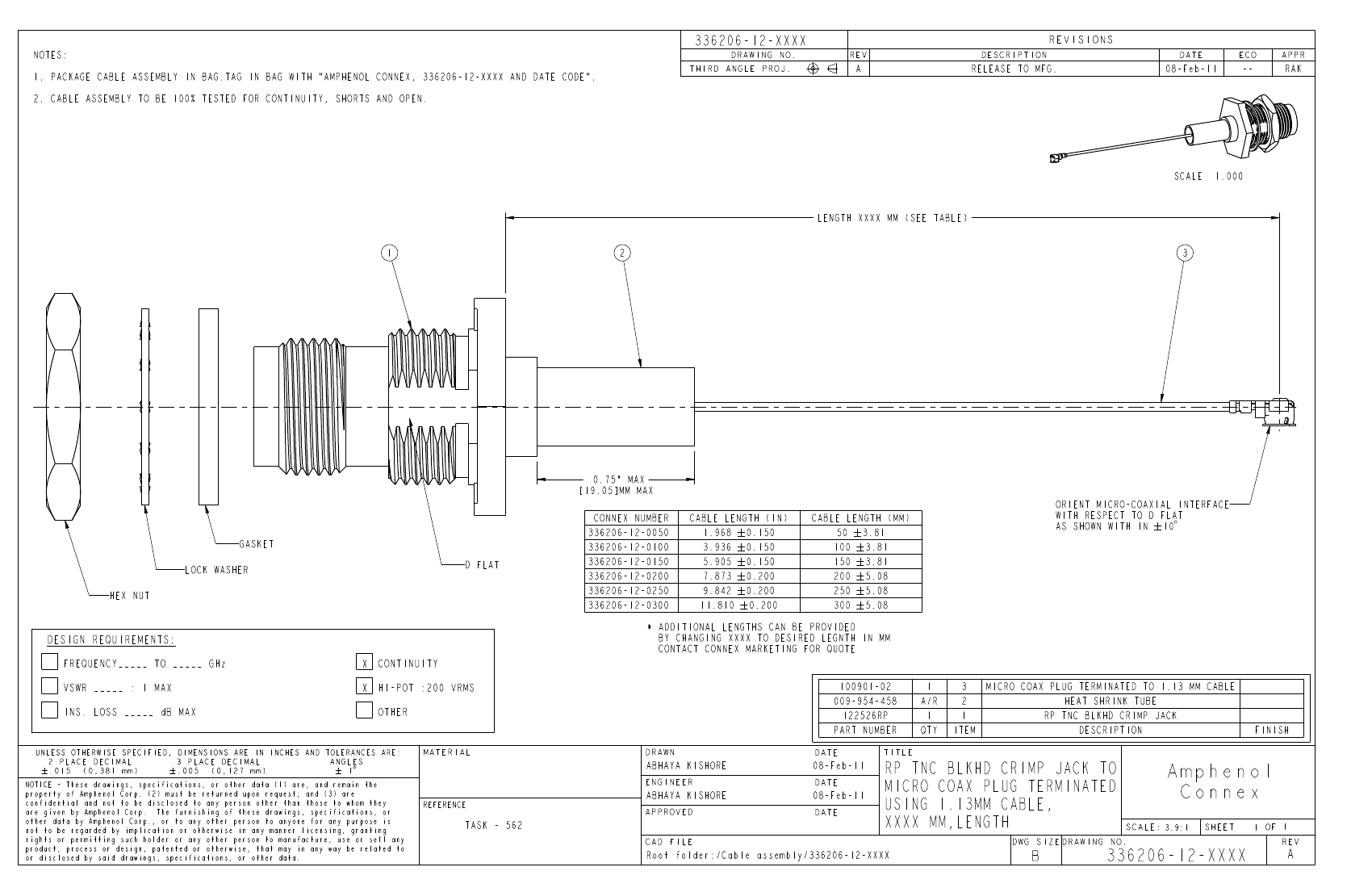

RP TNC BLKHD CRIMP JACK TO
MICRO COAX PLUG TERMINATED
USING 1.13MM CABLE,
XXXX MM,LENGTH
B
Amphenol
Connex
SCALE: 3.9:1
SHEET
1 OF 1
REV
Root folder:/Cable assembly/336206-12-XXXX
DWG SIZE DRAWING NO.
336206-12-XXXX
A
