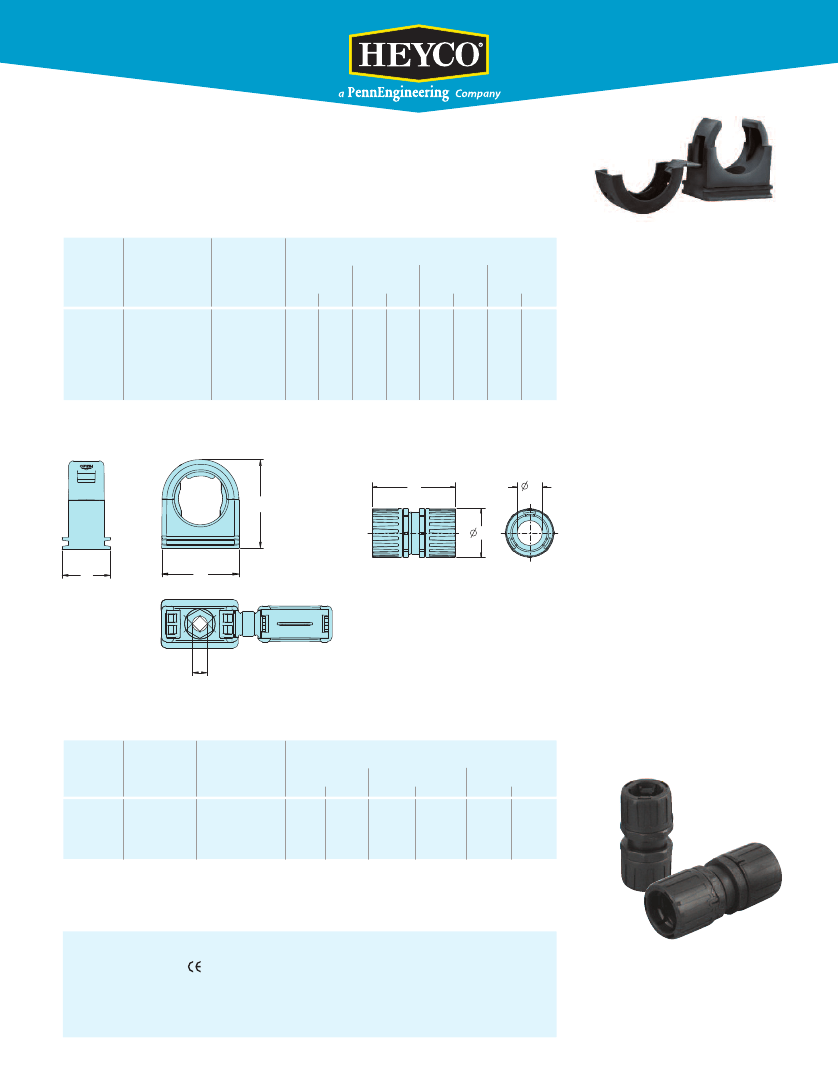

Heyco Nylon Corrugated Conduit/Tubing
Mounting Clips
®
With Integral Closure
FITS
CONDUIT
SIZE
PART NO.
Black
DESCRIPTION
A
Mounting
Hole Dia.
in.
mm.
.197
5,0
.205
5,2
.244
6,2
.244
6,2
.244
6,2
.244
6,2
PART DIMENSIONS
B
C
Width
Max O.A
Height
in.
mm.
in.
mm.
.89
22,7 1.04 26,4
1.04
26,4 1.17 29,8
1.25
31,8 1.44 36,5
1.61
40,8 1.75 44,5
1.89
48,0 2.03 51,5
2.25
57,2 2.37 60,2
D
Max.O.A.
Thickness
in.
mm.
13 mm
F8902
F8904
16 mm
F8906
21 mm
28 mm
F8908
34 mm
F8910
42 mm
F8912
Standard color black.
HCL 13
HCL 16
HCL 21
HCL 28
HCL 34
HCL 42
.79
20,0
C
C
B
A
D
B
Mounting Clips
Tubing Unions
A
•
For mounting Heyco Nylon Corrugated
Conduit or Tubing securely into place,
vertically or horizontally.
See page 2-3.
•
Low profile design for space savings
and pleasing appearance.
•
Only fingertip pressure is required to
snap conduit or tubing into bracket.
•
Can be easily opened for temporary
access/removal and closed again to
secure conduit.
•
Suitable for use with both fine and/or
coarse pitch conduit/tubing.
•
Suitable for use by original
equipment manufacturers.
•
Resist salt water, weak acids,
gasoline, alcohol, oil, grease, and
common solvents. (This feature is
not assessed by UL certification
or testing.)
•
Recommended distance between
brackets at intervals not greater than
3 feet (914 mm) as required by
Article 351-27 of 1996 NEC.
•
Use one standard #10 (4-5M) screw
for attaching bracket to panel or
chassis (screw not included).
Heyco Nylon Corrugated Conduit/Tubing Unions
®
FITS
CONDUIT
SIZE
PART NO.
Black
DESCRIPTION
A
Bore
HPAS 16 - HPAS 16
HPAS 21 - HPAS 21
HPAS 28 - HPAS 28
HPAS 34 - HPAS 34
in.
.43
.57
.77
1.04
mm.
11,0
14,5
19,5
26,5
16 mm
F8944
21 mm
F8946
28 mm
F8948
34 mm
F8950
Standard color black.
PART DIMENSIONS
B
Max. Diameter
in.
mm.
1.14
29,0
1.26
32,0
1.73
44,0
2.01
51,0
C
Length
in.
2.32
2.80
3.19
3.43
mm.
59,0
71,0
81,0
87,0
•
One piece fast fit coupler to join
corrugated conduit
Material
Certifications
Flammability Rating
Temperature Range
Nylon 6/6
Approved as per BS EN50086
94V-2 and Low Fire Hazard Including Low Smoke,
Low Toxicity as well as Halogen, Sulphur, and Phosphorus Free
-58°F (-50°C) to 275°F (135°C)
Quick
Specs
2-4
