336313-12-0250 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 336313-12-0250

336313-12-0250: DescriptionRF Cable Assemblies SMA BH Jk-AMC Plg 1.13mm cable, 250 mm; CategoryWire/cable; File Size316KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336313-12-0250 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336313-12-0250	-	-	View	Buy Now

336313-12-0250 Overview

RF Cable Assemblies SMA BH Jk-AMC Plg 1.13mm cable, 250 mm

336313-12-0250 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	SMA
Connector A Gender	Jack (Female)
Connector A Body Style	Bulkhead
Connector B Series	AMC
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	250 mm
Impedance	50 Ohms
Frequency Range	DC to 6 GHz
Cable Type	1.13 mm Coax
Packaging	Bulk
Contact Plating	Gold
Contact Material	Brass
Connector A Polarity	Normal
Connector B Polarity	Normal
Polarity	Normal
Factory Pack Quantity	1

Preview

Download Datasheet

View All

NOTES:

1. MATERIALS AND FINISHES:

SMA STR BHD JACK - BRASS, GOLD PLATING

CABLE - 1.13 MM TO AMC R/A PLUG

2. ELECTRICAL:

A. IMPEDANCE: 50 OHM, NOMINAL

3. PACKAGING:

A. QUANTITY:

B. BAG TO BE MARKED:

SINGLE PACK

AMPHENOL RF, 336313-12-XXXX, AND DATE CODE

6.50

THIRD ANGLE PROJ.

REV

REVISIONS

RELEASE TO MFG

DESCRIPTION

DATE

DRAWING UPDATED & COD SHEET ADDED

NO CHANGE TO THIS SHEET

28-Jul-15

30-Apr-18

ECO

50567

7963

APPR

BMG

6.00

SCALE

1.250

RECOMMENDED MOUNTING

HOLE DIMENSIONS

(MAX.PANEL THICKNESS = 3.20 MM)

LENGTH AND TOLERANCE XX.XX (SEE TABLE)

'D' FLAT

15.00 # 1.00

1.13 MM CABLE

AMC R/A PLUG

LOCK WASHER

8.00 (5/16") HEX

HEAT SHRINK TUBE

ORIENT AMC R/A PLUG INTERFACE

WITH RESPECT TO 'D FLAT'

AS SHOWN WITH IN # 10 $

PART NUMBER

336313-12-0050

336313-12-0100

LENGTH AND TOLERANCE

XX.XX IN MM

100.00 # 5.00

150.00 # 5.00

200.00 # 5.00

250.00 # 5.00

300.00 # 5.00

50.00 # 5.00

DESIGN REQUIREMENTS:

FREQUENCY : DC TO 6 GHz

VSWR : ____ MAX

INS. LOSS : ---- dBMAX

CONTINUITY

HI-POT : 200 VRMS

OTHER

MATERIAL

SEE NOTES

REFERENCE

EAR # 6751

CONFIGURATION LEVEL: In Work

336313-12-0150

336313-12-0200

336313-12-0250

336313-12-0300

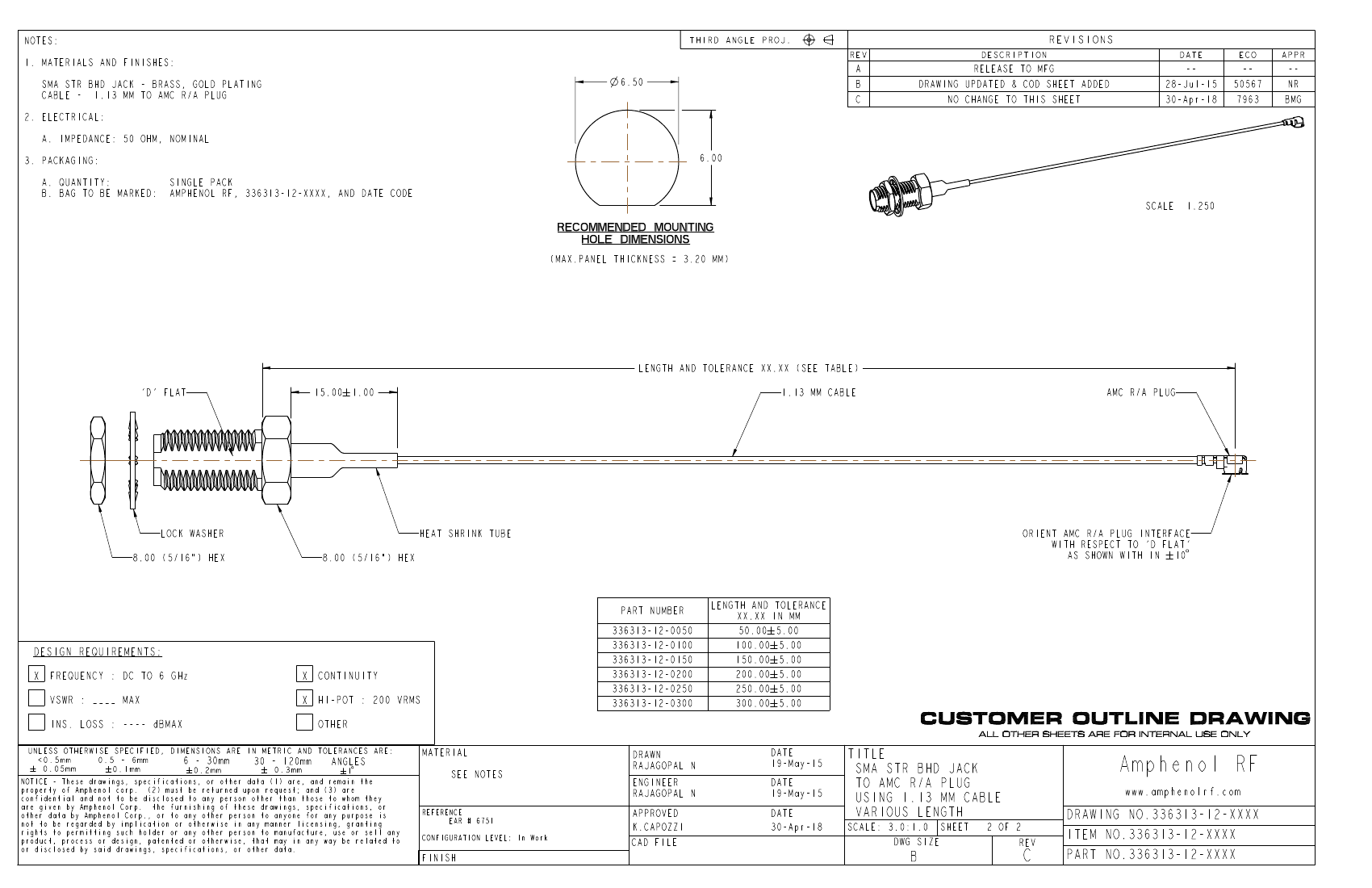

CUSTOMER OUTLINE DRAWING

ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:

<0.5mm

0.5 - 6mm

6 - 30mm

30 - 120mm

ANGLES

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon request; and (3) are

confidential and not to be disclosed to any person other than those to whom

they

are given by Amphenol Corp. the furnishing of these drawings, specifications,

other data by Amphenol Corp., or to any other person to anyone for any purpose

not to be regarded by implication or otherwise in any manner licensing,

granting

rights to permitting such holder or any other person to manufacture, use or

sell any

product, process or design, patented or otherwise, that may in any way be

related to

or disclosed by said drawings, specifications, or other data.

DRAWN

RAJAGOPAL N

ENGINEER

RAJAGOPAL N

APPROVED

K.CAPOZZI

DATE

19-May-15

DATE

19-May-15

DATE

30-Apr-18

TITLE

SMA STR BHD JACK

TO AMC R/A PLUG

USING 1.13 MM CABLE

VARIOUS LENGTH

SCALE: 3.0:1.0

DWG SIZE

SHEET

Amphenol RF

www.amphenolrf.com

FINISH

CAD FILE

2 OF 2

DRAWING NO. 336313-12-XXXX

REV

ITEM NO. 336313-12-XXXX

PART NO. 336313-12-XXXX
