Nonmetallic Raceway
Available Factory Prewired.
WIREMOLD
®
Multi-Channel Nonmetallic Raceway System
5500 Series Raceway from provides wire and
cable management for data, voice, A/V, and
power applications. It is ideal for large cable and
wire requirements in schools, office buildings, and
other institutions.

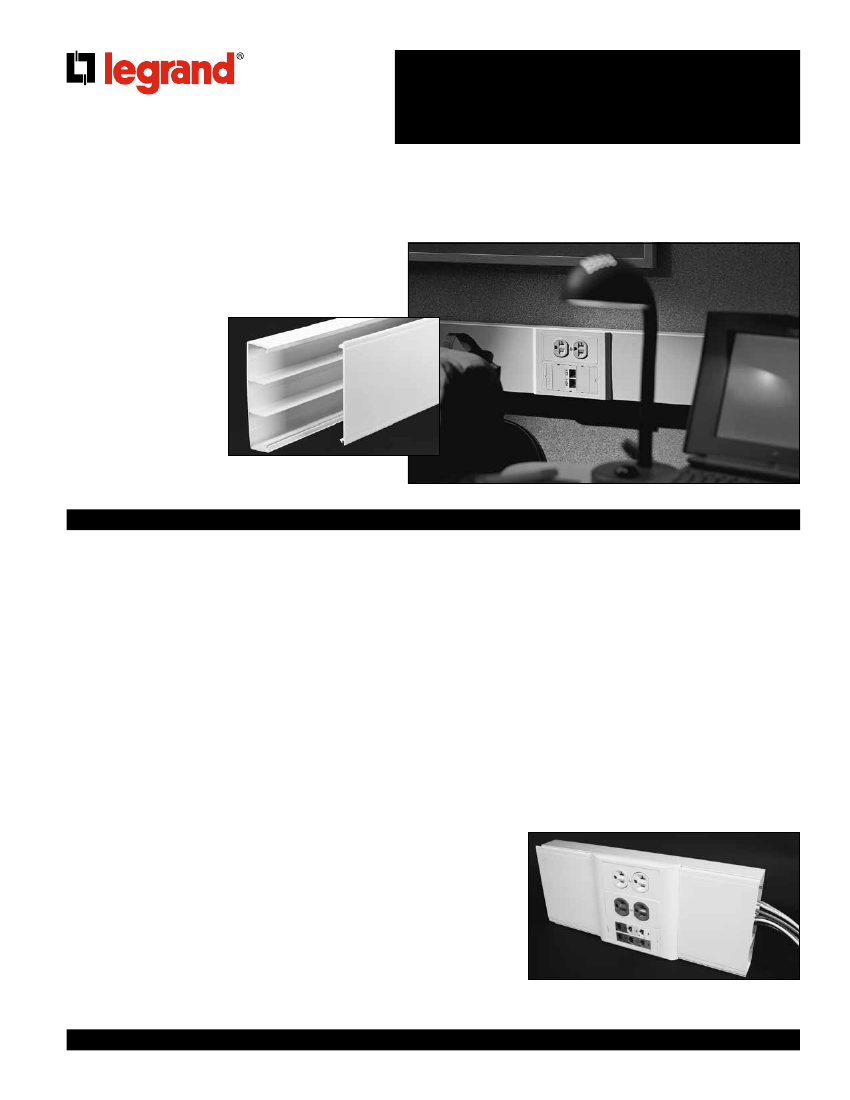

Triple Channel
Configuration of 5500
Series Raceway Base.
5500 Series Raceway installation.
FEATURES & BENEFITS
n
2" (51mm) bend radius compliant fittings.
These fittings
snap onto overlap raceway base and cover for an aesthetic
installation. Fittings are cULus verified for a 2" (51mm) bend
radius and exceed the recommendations of TIA/EIA-569.
They provide cable protection in lay-in and pull-through
cable installations.
n
Three channel raceway with breakaway dividers.
Low-
voltage and power wiring can be run in the same raceway.
Flexible for future moves and changes.
n
Large cable capacity in a low profile design.
Accommodates needs now and in the future.
n
Devices can be mounted in-line, offset or combined.
No need to remove dividers or install boxes to mount
devices, eliminates unnecessary labor. Up to four separate
services can be installed in the same location.
n
Full series of face plates are available for power,
data, voice, and video applications.
Industry standard
devices and face plates can also be mounted.
n
Made of rugged durable PVC material.
Lightweight and
easy to cut. Paintable using latex paint. Easy to clean.
n
Compatible with A/V devices by using 5507 Series
Faceplates.
n
Supplied in standard 8-foot (2.44m) lengths.
Installs
quicker. Fewer joints to cover. Consult factory for custom
colors and lengths.
n
Offered in ivory and white finishes.
Blends with any
decor.
n
Available prewired.
Manufactured to specific job site
lengths, raceway comes completely prewired, ready to
install. Jobs can be packaged by room, floor, or building
and shipped per job site requirements
.
n
Communication connectivity options.
Accepts industry
standard and proprietary devices from a wide range of
manufacturers to provide a seamless and aesthetically
pleasing interface for voice, data, audio, and video
applications at the point of use.
n
UL and cUL Listed component raceways.
File E90378
Guide RJTX, Fittings: File E90377 Guide RJYT. Meets
Article 388 of NEC and meets Section 12-600 of CEC.
Prewired 5500 Series
Raceway reduces
installation time.
ED365R16 – Updated January 2016 – For latest specs visit www.legrand.us/wiremold

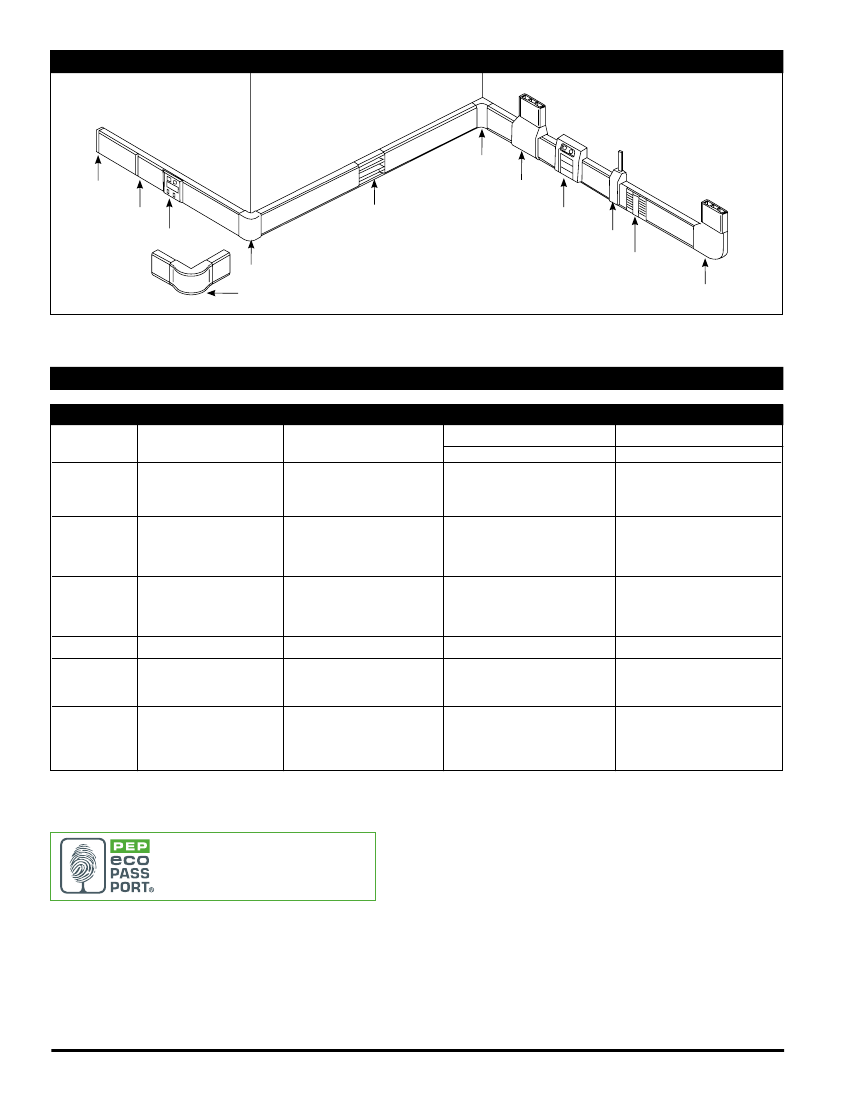

5500 Series Raceway System Layout
5517FO
5510
5506
5550
5518
5518FO
5511FO
5514A
5515
5550A4
5574
5500WCA
NOTE: Illustration is for showing product applications only.
5500 Series Raceway Wire Fill Capacities
5500 Series Raceway Wire Fill Capacities for Communications
CABLE
TYPE
Unshielded
Twisted Pair
CABLE/WIRE SIZE
4-pair,
4-pair,
4-pair,
4-pair,
2-pair,
3-pair,
4-pair,
25-pair,
RG58/U
RG59/U
RG62/U
RG6/U
100 ohm
TYPE 1
TYPE 2
TYPE 3
Mini ZipCord
ZipCord
Round 4 Strand Fiber
Round 6 Strand Fiber
24
24
24
24
24
24
24
24
AWG
AWG
AWG
AWG
AWG
AWG
AWG
AWG
Cat.
Cat.
Cat.
Cat.
3
5e
6
6a
O.D. (Approx. Dia.)
Inches
(mm)
0.190
0.220
0.250
0.354
0.140
0.150
0.190
0.410
0.195
0.242
0.242
0.270
0.330
0.390
0.465
0.245
(4.8)
(5.6)
(6.3)
(8.9)
(3.6)
(3.8)
(4.8)
(10.4)
(5.0)
(6.1)
(6.1)
(6.9)
(8.4)
(9.9)
(11.8)
(6.2)
C
57
47
33
16
105
92
57
12
54
35
35
28
19
13
9
34
131
58
59
31
20% FILL
A
18
15
10
5
34
29
18
4
17
11
11
9
6
4
3
11
42
18
19
30
B
35
29
20
10
65
57
35
7
33
22
22
17
11
8
5
21
81
36
36
19
C
114
94
66
33
211
184
114
24
109
70
70
56
38
27
19
69
262
117
118
63
40% FILL
A
37
30
21
10
68
59
37
8
35
22
22
18
12
8
6
22
85
37
38
20
B
71
58
41
20
131
114
71
15
67
44
44
35
23
16
11
42
163
72
73
39
Telephone
Coaxial
Twinaxial
Shielded
Twisted Pair
Fiber
0.079 x 0.157(2 x 4)
0.118 x 0.236(3 x 6)
0.187
(4.8)
0.256
(6.5)
NOTE: Wire capacity is reduced to allow for proper conductor bend radius and maximum permissible heat rise.
Category 6 augmented (6a) cable for 10 gigabit ethernet – max allowed cable diameter per addenda No. 11 ANSI TIA/EIA 568-B.2.
Download this product’s PEP ecopasport
®
environmental product declaration at
www.legrand.us/resources-and-downloads.
This declaration conforms with ISO 14025 and
14040 and is in alignment with EN 15804.
2
5500 Series Raceway Wire Fill Capacities
(continued)
5500 Series Raceway Wire Fill Capacities for Power
WIRE SIZE
THHN/THWN
14 AWG
POWER
WIRING
WITHOUT
DEVICES
12 AWG
10 AWG
8 AWG
6 AWG
14 AWG
2.64 sq.in.
(1703mm
2
)
5.29 sq.in.
(3413mm
2
)
2.64 sq.in.
(1703mm
2
)
2.64 sq.in.
(1703mm
2
)
2.64 sq.in.
(1703mm
2
)
1 3/4"
(44mm)
O.D. (Approx. Dia.)
Inches
(mm)
0.111
(2.8)
0.130
0.164
0.216
0.254
0.111
0.130
0.164
0.216
0.254
(3.3)
(4.2)
(5.5)
(6.5)
(2.8)
(3.3)
(4.2)
(5.5)
(6.5)
NUMBER OF CONDUCTORS
PER COMPARTMENT
C
A
B
64
41
50
60
90
65
45
64
60
90
65
45
25
46
18
15
35
25
16
8
5
44
70
40
34
50
44
70
36
25
A
A
6 11/16"
(170mm)
A
1 3/4"
(44mm)
A
B
POWER
WIRING
WITH
DEVICES
12 AWG
10 AWG
8 AWG
6 AWG
6 11/16"
(170mm)
8.14 sq.in.
(5252mm
2
)
1 3/4"
(44mm)
C
6 11/16"
(170mm)
NOTE: Total raceway wire capacity, in any configuration, can not exceed
capacity specified in C. Two A compartments can not exceed the
capacity specified for compartment B.
20% cable fill is calculated to approximate reduction in cable
capacity due to connectors mounted within raceway and fittings
that may restrict cross sectional area.
40% cable fill is the maximum designed cable fill based on a
proposed revision to TIA/EIA 569-A.

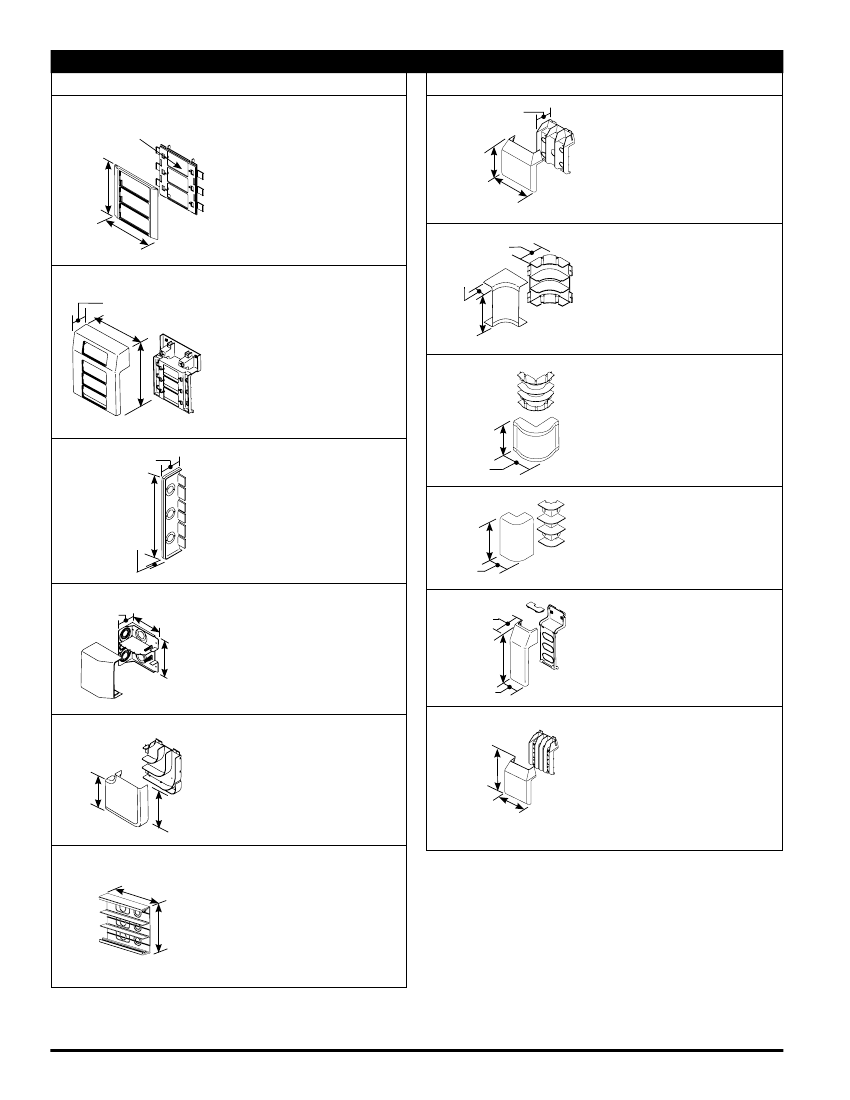

5500 Series Raceway Fittings Ordering Information
Catalog No./Item
5500BD3*
1 11/16"
(43mm)
Description/Specifications
Divided Base
–
Three equal compartments –
use for separate services
in one raceway. Breakaway
dividers enable multiple
compartment configurations.
Catalog No./Item
5506*
6 1/2"
(165mm)
Description/Specifications
Cover Clip
– Covers seam
between sections of 5500C
Cover come together.
3/4"
(19.1mm)
6 11/16"
(170mm)
5506B*
5500C*
Cover
– Use with 5500BD3.
7/8"
(22.2mm)
6 3/8"
(162mm)
1 3/4"
(44mm)
Base Seam Clip
– Covers
seam where two sections of
5500BD3 Base come together.
5500WC
Wire Clip
– Holds wires
in raceway.
2"
(512mm)
6 1/16"
(154mm)
*Available in Ivory finish or add “-WH” suffix for White finish.
3
5500 Series Raceway Fittings Ordering Information
(continued)
Catalog No./Item
5550*
2 7/8" x 1 3/4"
(73mm x 44mm) Cutout
Description/Specifications
Device Bracket
– Mounts
power and communication
devices in-line with the raceway.
For use with: 5507 Series
Faceplates, Ortronics
®
TracJack &
Series II Modules, Pass &
Seymour
®
Activate Series Inserts,
and Wiremold CM2 Open System
Communication Modules.
Catalog No./Item
5515*
3 1/16"
(78mm)
Description/Specifications
Tee/Take-Off Connector
–
For branching raceway
at right angles.
6 5/8"
(168mm)
9 1/8"
(232mm)
8 3/16"
(208mm)
6"
(152mm)
5517FO*
3"
Device Bracket
– Mounts power
and communication devices
in-line and offset with the
raceway. For use with: 5507 Series
Faceplates, Ortronics
®
TracJack &
Series II Modules, Pass &
Seymour
®
Activate Series Inserts,
and Wiremold CM2 Open System
Communication Modules.
1 13/16"
(46mm)
6 7/8"
(175mm)
(76mm)
5550A4*
2 1/2"
(64mm)
7 1/2"
(191mm)
Bend Radius Control Full
Capacity Internal Elbow
–
90° internal corner with integral
dividers that provides a 2" (51mm)
cable bend radius for
UTP and
Fiber Optic installations.
Ideal
for lay-in or pull-through
installations.
Bend Radius Control Full
Capacity External Elbow
– 90°
external corner with integral
dividers that provides a 2" (51mm)
cable bend radius for
UTP and
Fiber Optic installations. Use
the 5518FO for a radius
alternative to the 5518.
External Elbow
– Joins lengths
of raceway around
external corners.
5518FO*
6 7/8"
(175mm)
9 5/8"
(244mm)
5510*
1 13/16"
(46mm)
End Cap
– Closes off
end of 5500 Series Raceway
and has three 1/2" trade size
KOs for end feed.
3 1/2"
(89mm)
6 7/8"
(175mm)
3/8"
(10mm)
5518*
6 7/8"
(175mm)
3 1/2"
(89mm)
5510D*
3 1/4"
(83mm)
5 13/16"
(148mm)
6 7/8"
(175mm)
Entrance End Fitting
–
Feeds raceway from larger
conduits. Has concentric 3/4",
1", 1 1/2", and 2" trade size
KOs on end and back.
Two removable dividers
are included.
5574*
2 3/8"
(60mm)
9"
(209mm)
3 3/16"
(81mm)
Transition Fitting
– 90°
transition from 5500 Series
Raceway to 400, 800, 2300,
PN03, PN05, and PN10
Series Raceways.
5511FO*
6 7/8"
(175mm)
9 3/16"
(233mm)
Bend Radius Control Full
Capacity Flat Elbow
– 90° flat
corner with integral dividers that
provides a 2" (51mm) cable
bend radius for
UTP and Fiber
optic installations.
Ideal for lay-in
or pull-through installations.
5574A*
9 1/8"
(231mm)
Transition Fitting
– Makes a 90°
transition from 5500 Series
Raceway to 5400 Series Raceway.
6 9/16"
(167mm)
5514A*
8"
(203mm)
6 11/16"
(170mm)
Backfeed Connector
– Use
when a backfeed is needed.
Has three rectangular KOs
for use with existing wall box
and three 1/2", 3/4", and 1"
trade size KOs.
*Available in Ivory finish or add “-WH” suffix for White finish.
4

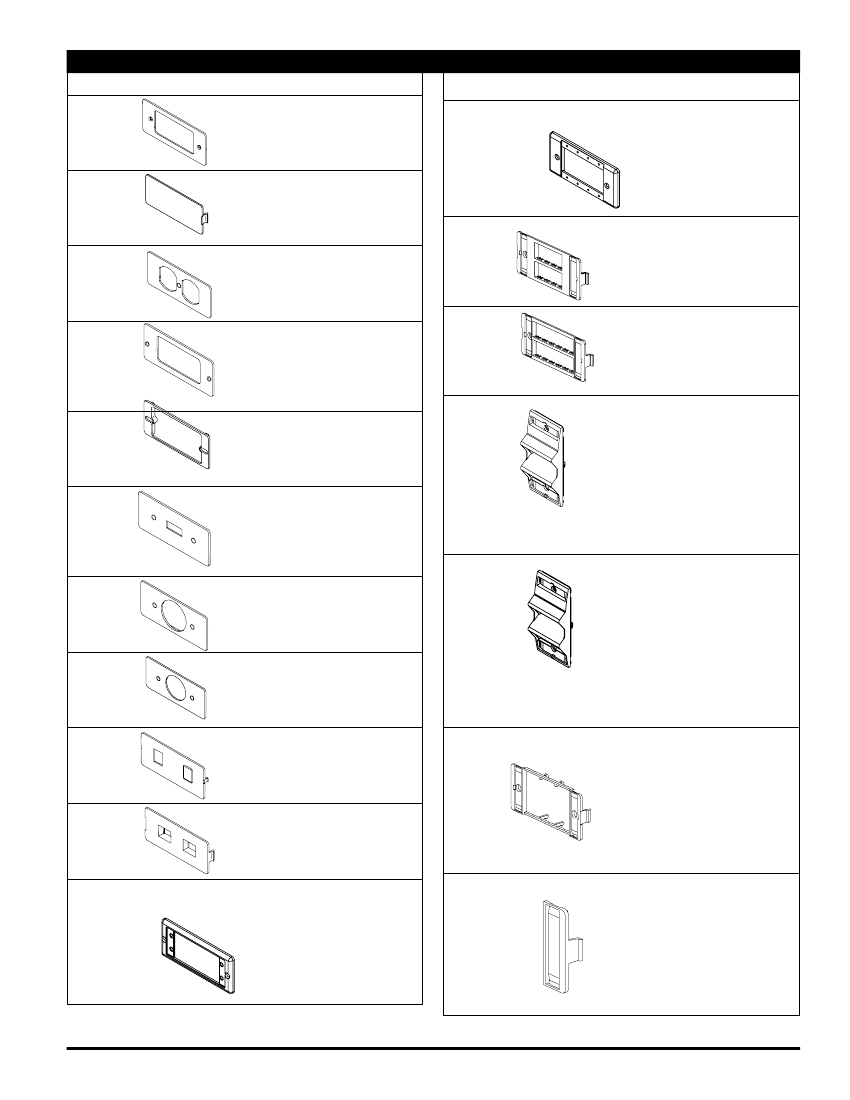

5507 Series Faceplates Ordering Information
Catalog No./Item
5507AD*
Description/Specifications
Modular Furniture Adapter
–
Mounts modular furniture
adapters.
Catalog No./Item
5507MAAP
5507MAAP-WH
5507MAAP-G
5507MAAP-FW
Description/Specifications
Extron
®
MAAP Faceplate –
Accepts four Extron
®
Electronics
MAAP single space modules.
5507B*
Blank Faceplate
– Covers
unused compartments in the
device bracket.
5507-4TJ*
Ortronics
®
Faceplate
– Mounts
Ortronics
®
communication inserts.
Accepts four TracJack Devices.
5507D*
Duplex Faceplate
–
Covers duplex style devices.
Accepts 106 Frame.
5507-6TJ*
5507R*
Rectangular Faceplate
–
Covers rectangular
style devices.
Ortronics
®
Faceplate
– Mounts
Ortronics
®
communication
inserts. Accepts six TracJack
Devices.
ARA-S2
5507S*
Rectangular Spacer
– For
mounting commercial device
plates. Installs between the
device bracket and a device.
Switch Faceplate
– Covers
standard toggle switches.
5507SW*
Angled Raceway Adapter –
For
use with multi-channel raceway
device brackets and WallSource
device mounting brackets. Angled
exit provides additional mounting
depth required for A/V connections
as well as ensuring the required
bend radius for UTP and fiber optic
cabling. Holds two Ortronics
®
Series II modules.Fits 5507 Series
Faceplate opening.
Angled Raceway Adapter –
For
use with multi-channel raceway
device brackets and WallSource
device mounting brackets. Angled
exit provides additional mounting
depth required for A/V connections
as well as ensuring the required
bend radius for UTP and fiber optic
cabling. Holds two CM2 Series
modules or two Pass & Seymour
®
2A inserts. Fits 5507 Series
Faceplate opening.
End Plates
– Includes two
outlet identification labels with
clear covers and two matching
screw covers. Required for
mounting Pass & Seymour
Activate and Wiremold CM2
Open System communication
modules into 5550 Series
device brackets.
End Plates
– Includes two
outlet identification labels with
clear covers and two matching
screw covers. Required for
mounting Ortronics Series II
modules into 5550 Series
device brackets.
CM-ARA
5507T1*
Single Receptacle
Faceplate
– Covers single
receptacles – 1.59"
(40mm) diameter.
Single Receptacle
Faceplate
– Covers single
receptacles – 1.41"
(36mm) diameter.
Dual RJ11/RJ45 Connector
Faceplate
– Mounts one or two
RJ keystone type connectors –
has one opening and a KO for
the other.
Flush Dual RJ11/RJ45
Connector Faceplate
– Same
as 5507RJ except the
connectors are recessed to
provide a flush installation.
Extron
®
AAP Faceplate –
Accepts two Extron
®
Electronics
AAP single space modules.
CM-EPLA*
5507T2*
5507RJ*
5507FRJ*
5507AAP
5507AAP-WH
5507AAP-G
5507AAP-FW
S2-EPL
NOTE: All faceplates are 4 1/4" long x 1 11/16" wide (108mm x 43mm).
* Available in Ivory finish or add “-WH” suffix for White finish.
5
Embedded System
京公网安备 11010802033920号
EEWORLD
