336206-14-0250 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 336206-14-0250

336206-14-0250: DescriptionRF Cable Assemblies TNC Blkhd Jack - AMC Plug 137mm, 250mm; CategoryWire/cable; File Size159KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

336206-14-0250 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336206-14-0250	-	-	View	Buy Now

336206-14-0250 Overview

RF Cable Assemblies TNC Blkhd Jack - AMC Plug 137mm, 250mm

336206-14-0250 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	TNC
Connector A Gender	Jack (Female)
Connector A Body Style	Bulkhead
Connector B Series	AMC
Connector B Gender	Plug (Male)
Connector B Body Style	Right Angle
Length	250 mm
Impedance	50 Ohms
Frequency Range	DC to 6 GHz
Cable Type	1.37 mm Coax
Packaging	Bulk
Connector A Polarity	Reverse
Connector B Polarity	Normal
Polarity	Reverse
Factory Pack Quantity	1

Preview

Download Datasheet

View All

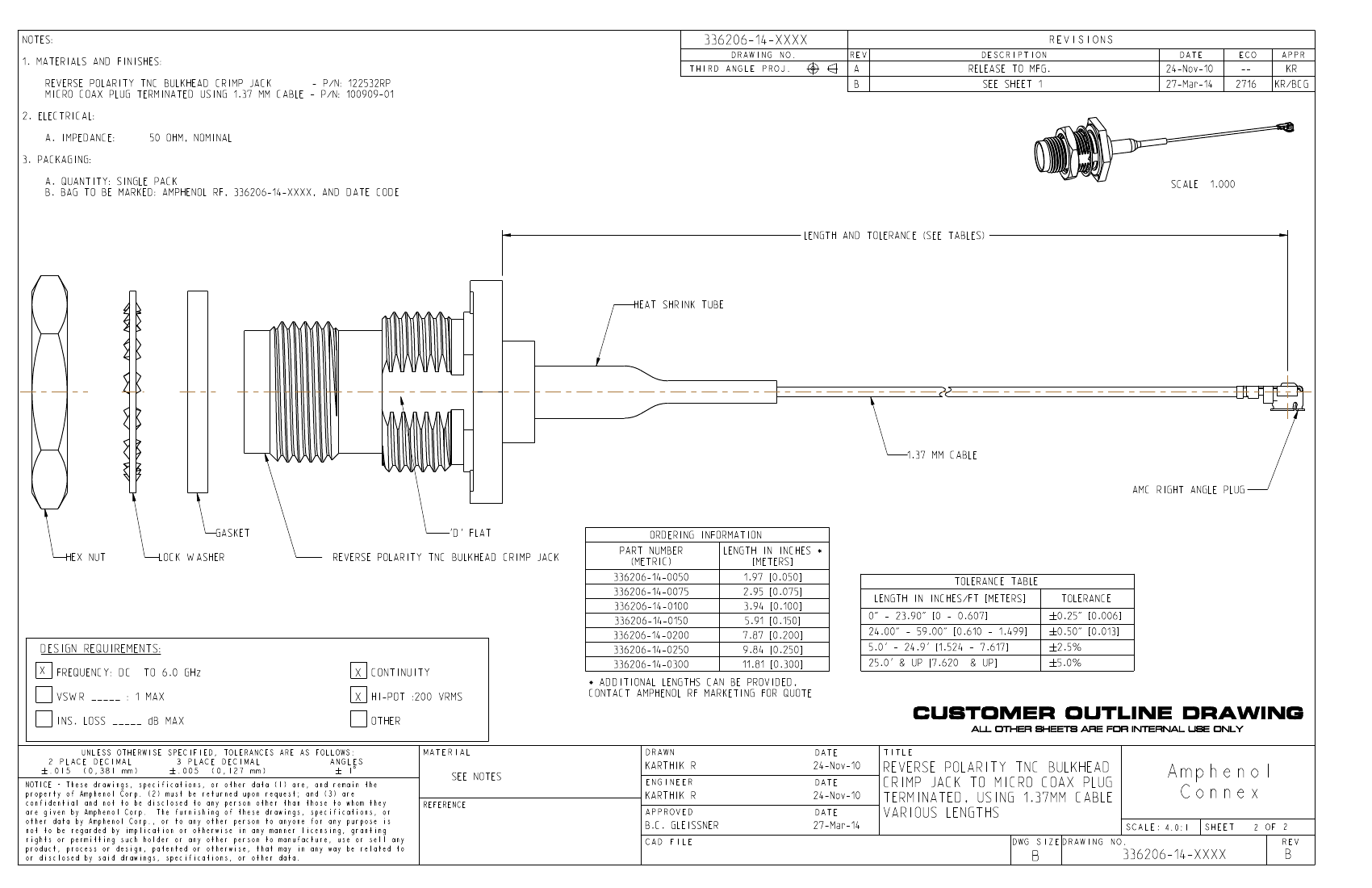

NOTES:

1. MATERIALS AND FINISHES:

REVERSE POLARITY TNC BULKHEAD CRIMP JACK

- P/N: 122532RP

MICRO COAX PLUG TERMINATED USING 1.37 MM CABLE - P/N: 100909-01

2. ELECTRICAL:

A. IMPEDANCE:

3. PACKAGING:

A. QUANTITY: SINGLE PACK

B. BAG TO BE MARKED: AMPHENOL RF, 336206-14-XXXX, AND DATE CODE

50 OHM, NOMINAL

336206-14-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

SEE SHEET 1

DESCRIPTION

24-Nov-10

DATE

ECO

27-Mar-14

2716

APPR

KR/BCG

SCALE 1.000

LENGTH AND TOLERANCE (SEE TABLES)

HEAT SHRINK TUBE

1.37 MM CABLE

AMC RIGHT ANGLE PLUG

GASKET

HEX NUT

LOCK WASHER

'D' FLAT

REVERSE POLARITY TNC BULKHEAD CRIMP JACK

336206-14-0050

336206-14-0075

336206-14-0150

336206-14-0100

PART NUMBER

(METRIC)

ORDERING INFORMATION

LENGTH IN INCHES *

[METERS]

1.97 [0.050]

2.95 [0.075]

3.94 [0.100]

5.91 [0.150]

7.87 [0.200]

11.81 [0.300]

9.84 [0.250]

TOLERANCE TABLE

LENGTH IN INCHES/FT [METERS]

0" - 23.90" [0 - 0.607]

24.00" - 59.00" [0.610 - 1.499]

5.0' - 24.9' [1.524 - 7.617]

25.0' & UP [7.620 & UP]

TOLERANCE

0.50" [0.013]

5.0%

2.5%

0.25" [0.006]

DESIGN REQUIREMENTS:

336206-14-0200

FREQUENCY: DC

TO 6.0 GHz

CONTINUITY

HI-POT :200 VRMS

OTHER

MATERIAL

336206-14-0300

336206-14-0250

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

* ADDITIONAL LENGTHS CAN BE PROVIDED,

CONTACT AMPHENOL RF MARKETING FOR QUOTE

UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

DRAWN

SEE NOTES

REFERENCE

KARTHIK R

B.C. GLEISSNER

24-Nov-10

27-Mar-14

DATE

TITLE

ENGINEER

APPROVED

CAD FILE

REVERSE POLARITY TNC BULKHEAD

CRIMP JACK TO MICRO COAX PLUG

TERMINATED, USING 1.37MM CABLE

VARIOUS LENGTHS

Amphenol

Connex

SCALE: 4.0:1

SHEET

2 OF 2

REV

DWG SIZE DRAWING NO.

336206-14-XXXX

336206-14-0250 Related Products

	336206-14-0250	336206-14-0075	336206-14-0200	336206-14-0050	336206-14-0300	336206-14-0150	336206-14-0100
Description	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 137mm, 250mm	RF Cable Assemblies TNC BLKHD JK RP/AMC PLG 1.37MM CBL 75MM	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 137mm, 200mm	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 137mm, 50mm	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 137mm, 300mm	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 137mm, 150mm	RF Cable Assemblies TNC Blkhd Jack - AMC Plug 137mm, 100mm
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Details	Details	Details	Details	Details	Details	Details
Connector A Series	TNC	TNC	TNC	TNC	TNC	TNC	TNC
Connector A Gender	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC	AMC
Connector B Gender	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Length	250 mm	75 mm	200 mm	50 mm	300 mm	150 mm	100 mm
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Frequency Range	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Cable Type	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax	1.37 mm Coax
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Connector A Polarity	Reverse	Reverse	Reverse	Reverse	Reverse	Reverse	Reverse
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal	Normal
Factory Pack Quantity	1	1	1	1	1	1	1
Connector B Body Style	Right Angle	-	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Polarity	Reverse	-	Reverse	Reverse	Reverse	Reverse	Reverse
