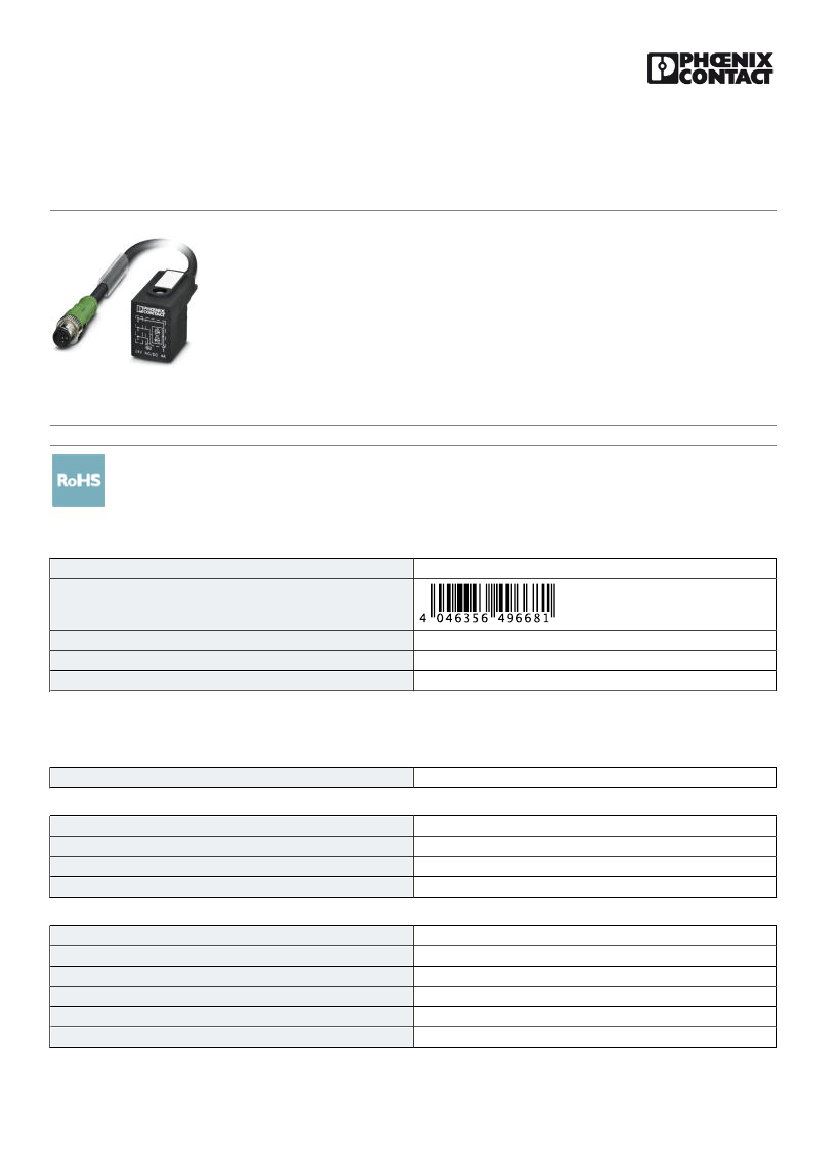

Sensor/Actuator cable - SAC-3P-M12MS/3,0-240/BI-1L-Z - 1438710
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 3-position, PUR halogen-free, yellow RAL 1021, Plug straight M12, A-coded, on Valve
connector BI (11 mm), with 1 LED, connected with Z diode, Cable length: 3 m
The illustration shows the
SPEEDCON version with a black
conductor
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356496681
85444290
Made to Order (non-returnable)
1 STK
Technical data
Dimensions
Length of cable
3m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
-20 °C ... 85 °C (valve plug)
IP65
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
4A
24 V
3
≥ 100 MΩ
A - standard
1 LED
11/13/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1438710
Sensor/Actuator cable - SAC-3P-M12MS/3,0-240/BI-1L-Z - 1438710
Technical data
General
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Z diode
III
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Valve plug contact material
Valve plug contact surface material
Valve plug contact insert material
Material housing valve plug
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU
CuSn
Sn
PA 66
TPU
Zinc die-cast, nickel-plated
TPU (Seal molded)
Standards and Regulations
Flammability rating according to UL 94
HB
Drawings
Schematic diagram
4
5
3
Dimensional drawing
45
28
1
20,5
Pin assignment M12 plug, 3-pos., valve connector
11
2
Valve connector, type BI
11/13/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1438710
Sensor/Actuator cable - SAC-3P-M12MS/3,0-240/BI-1L-Z - 1438710
Dimensional drawing
Dimensional drawing
46,8
28,2
Ø14,8
M12
Ø11
Valve connector, type BI, side view
M12 x 1 plug, straight
Circuit diagram
3
YE
4
5
2
1
PE
Contact assignment of M12 plug and valve connector
Approvals
Approvals
Approvals
CSAus
Ex Approvals
Approval details
CSAus http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
Nominal current IN
Nominal voltage UN
4A
24 V
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
9,9
11/13/2016 Page 3 / 3
