Sensor/Actuator cable - SAC-4P-M12MS/ 0,3-160 SO - 1562822
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 4-position, PUR halogen-free, Irradiated, yellow RAL 1021, Plug straight M12, A-coded,
on free cable end, Cable length: 0.3 m
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
29.51 g
85444290
Poland
Technical data
Dimensions
Length of cable
0.3 m
Ambient conditions
Degree of protection
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Coding
Status display
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
4A
250 V
4
A - standard
No
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
HB
CuSn
Ni/Au
04/25/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/1562822
Sensor/Actuator cable - SAC-4P-M12MS/ 0,3-160 SO - 1562822
Technical data
Material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Flammability rating according to UL 94
HB
Cable
Cable type
Cable type (abbreviation)
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Torsion force
Outer sheath, material
Material conductor insulation
Conductor material
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
Flame resistance
Halogen-free
Other resistance
Ambient temperature (operation)
PUR irradiated halogen-free yellow
160
4x 0.34 mm² (Signal line)
22
19x 0.15 mm
1.05 mm ±0.05 mm (Signal line)
brown, white, blue, black
4 wires, twisted
27 mm
yellow RAL 1021
5.2 mm ±0.2 mm
min. 15 mm
min. 30 mm
5000000
52 mm
10 m
3 m/s
360 °/m
PUR
PE
Bare Cu litz wires
≤ 57 Ω/km
320 V AC
2500 V AC (50 Hz, 5 minutes)
Silicone-free
DIN VDE 0472 part 804, test type B
The cable is halogen-free
hydrolysis and microbe resistant
-50 °C ... 105 °C (cable, fixed installation)
04/25/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/1562822
Sensor/Actuator cable - SAC-4P-M12MS/ 0,3-160 SO - 1562822
Technical data
Cable
-40 °C ... 105 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27279218
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approvals submitted
04/25/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/1562822
Sensor/Actuator cable - SAC-4P-M12MS/ 0,3-160 SO - 1562822
Approvals
Approval details
UL Listed
cUL Listed
cULus Listed

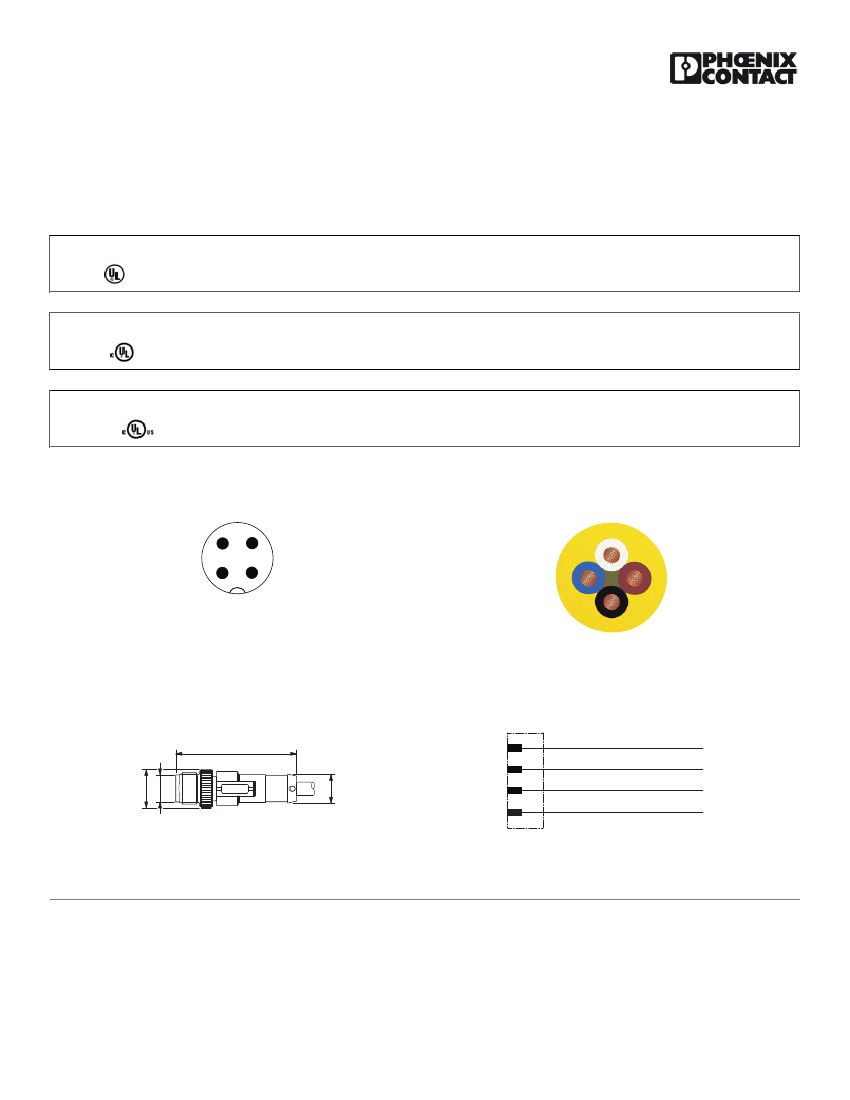

Drawings
Schematic diagram
4
3
Cable cross section
1
2
Pin assignment M12 plug, 4-pos., A-coded, view plug side
PUR irradiated halogen-free yellow [160]
Dimensional drawing
Circuit diagram
46,8
1
2
BN
WH
BK
BU
Ø14,8
M12
Ø11
4
3
M12 x 1 plug, straight
Contact assignment of M12 plugs / sockets bridged
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/25/2016 Page 4 / 4
