Cable duct - CD-HF 80X60 - 3240358
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

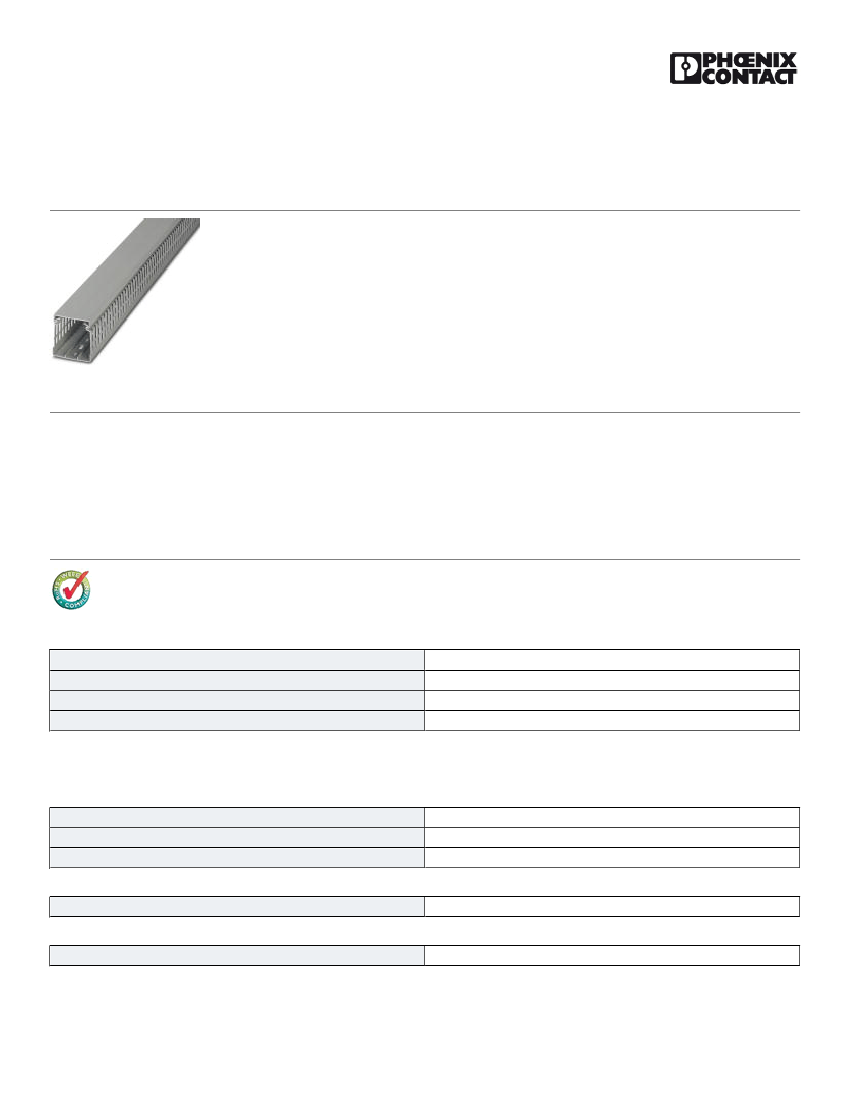

Cable duct, light gray, halogen-free, consisting of upper part and mounting base, width: 80 mm, height: 60 mm,
length: 2000 mm
The illustration shows the version in
gray
Product Features
■
■
■
■
■
Predetermined breaking point enables tool-free, burr-free removal of bars
Fast and seamless creation of T and cross connections by means of an additional predetermined breaking point in the cable duct base
The wide, diagonal heads of the cable duct bars make it easy to fit the cover and hold it securely in place
Installed conductors are securely held in place by means of wire retaining clips that can be snapped onto bars on the side
Cover is securely held in place for both horizontal and vertical mounting
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 pc
10 pc
39259020
Germany
Technical data
Dimensions
Length (b)
Width (a)
Height
2000 mm
80 mm
60 mm
Ambient conditions
Ambient temperature (operation)
-25 °C ... 90 °C
General
Color
light gray
04/25/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/3240358
Cable duct - CD-HF 80X60 - 3240358
Technical data
General
Components
Flammability rating according to UL 94
Material
Halogen-free
V0
PC/ABS
Standards and Regulations
Halogen-free
Connection in acc. with standard
Flammability rating according to UL 94
yes
CSA
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140602
27140602
27140602
27140602
27400703
27400703
27400703
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000012
EC000012
EC000012
EC000012
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30101815
30101815
30101815
30101815
30101815
Approvals
Approvals
04/25/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/3240358
Cable duct - CD-HF 80X60 - 3240358
Approvals
Approvals
CSA / UL Recognized / VDE Zeichengenehmigung
Ex Approvals
Approvals submitted
Approval details
CSA
UL Recognized
VDE Zeichengenehmigung
Accessories
Accessories
Cover
Cover profile - CD-HF COVER 80 - 3240373
Cover for cable duct, light gray, halogen-free, width: 80 mm, length: 2000 mm
Filler plug
04/25/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/3240358
Cable duct - CD-HF 80X60 - 3240358

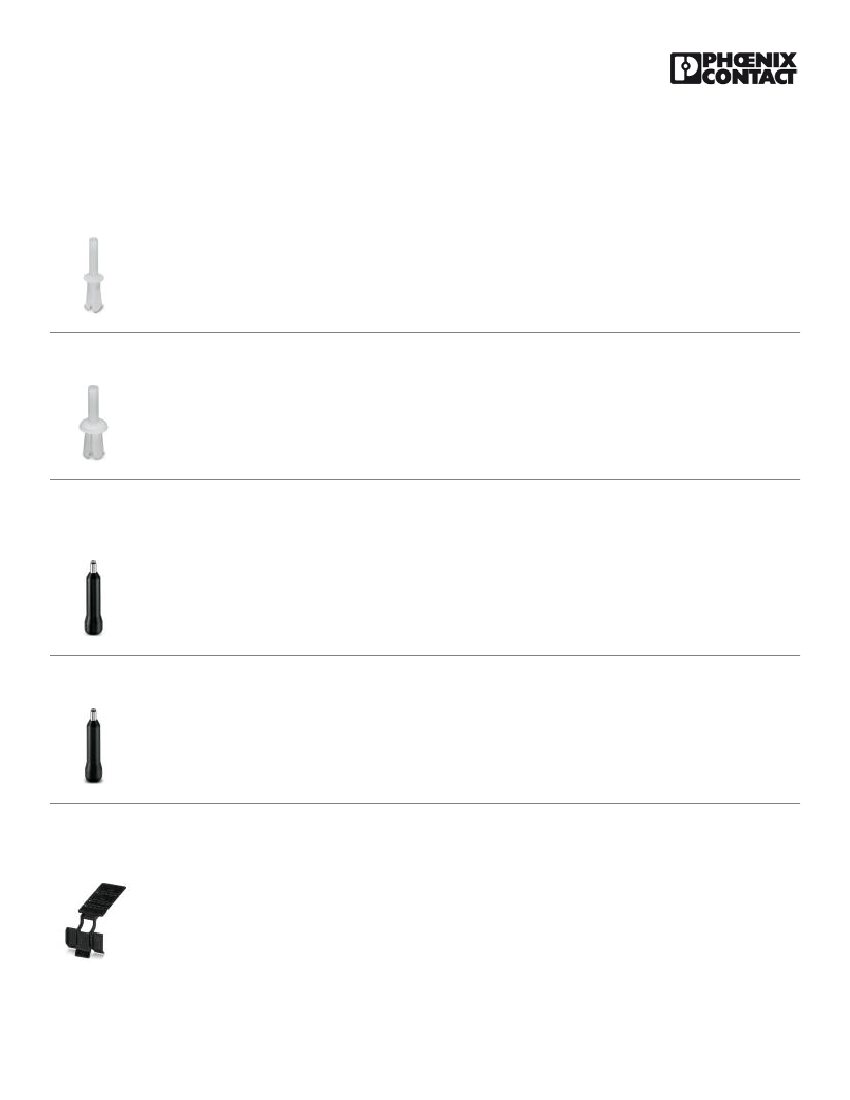

Accessories
Fastening clip - RVT-PA 4 - 3240498
Plastic body-bound rivet, for hole diameter of 4 mm and a material thickness of 1.5 ... 6 mm
Fastening clip - RVT-PA 6 - 3240499
Plastic body-bound rivet, for hole diameter of 6 mm and a material thickness of 1.5 ... 6 mm
Riveting tools
Tool - UNIFOX-RVT P 4 - 1212478
Rivet setting tool, for use with RVT-PA 4 plastic body-bound rivets
Tool - UNIFOX-RVT P 6 - 1212509
Rivet setting tool, for use with RVT-PA 6 plastic body-bound rivets
Wiring duct
Universal wire retaining clip - CD WR - 3240284
Universal wire holding bracket, perforated, for wiring channels
04/25/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/3240358
Cable duct - CD-HF 80X60 - 3240358
Accessories
Drawings
Dimensional drawing
6,8
6,5
10
2000
14
8
4,5
25
Base perforation according to DIN EN 50085
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
25
